T 25 F Junction boxes with leads 2007312

local index:
MVN040OBOB
Catalog number:
2007312
EAN code:
4012195286486
Manufacturer: OBO BETTERMANN
Price:
11,05 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
125
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Shape
    Round
  • Inlet from the rear
    Yes

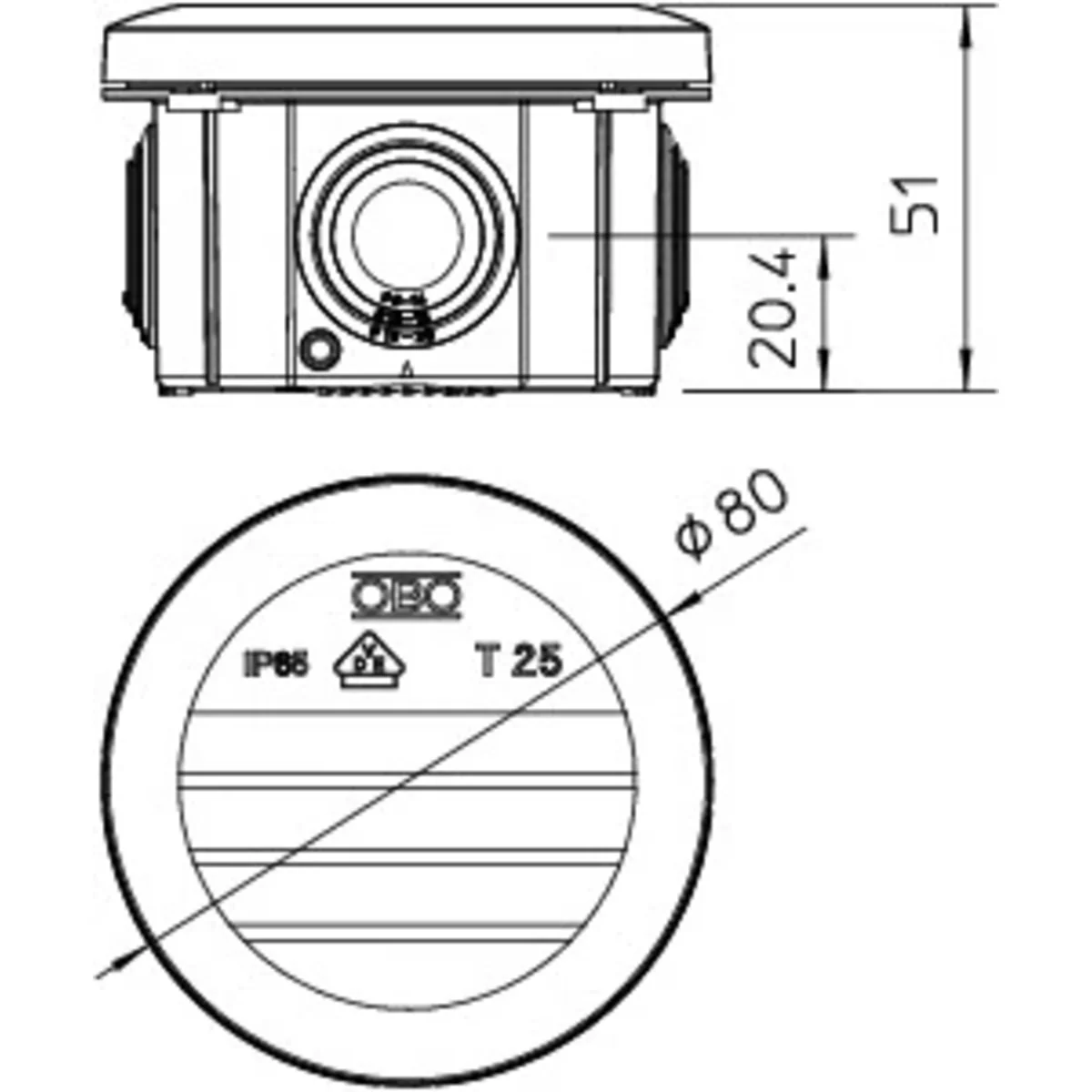

  • Diameter
    80 mm
  • Number of inlets
    4
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP65
  • Sealable
    No
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Mounting method
    Wall-/ceiling mounting
  • Depth
    51 mm
  • Tackable
    Yes
  • Material
    Plastic
  • Colour
    Grey
  • Cover attachment
    Snapped on
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -5 ... 60 °C
  • For Ex-zone gas
    None

Manufacturer details

  • Manufacturer
    OBO Bettermann Holding GmbH & Co. KG
  • Address
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 5 pcs. 125 pcs. 2250 pcs.
Weight (kg) 0,210 5,886 130,939
Volume (m3) 0,002 0,038 0,912
Width (m) 0,080 0,388 0,800
Length (m) 0,400 0,395 1,200
Depth (m) 0,051 0,249 0,950
