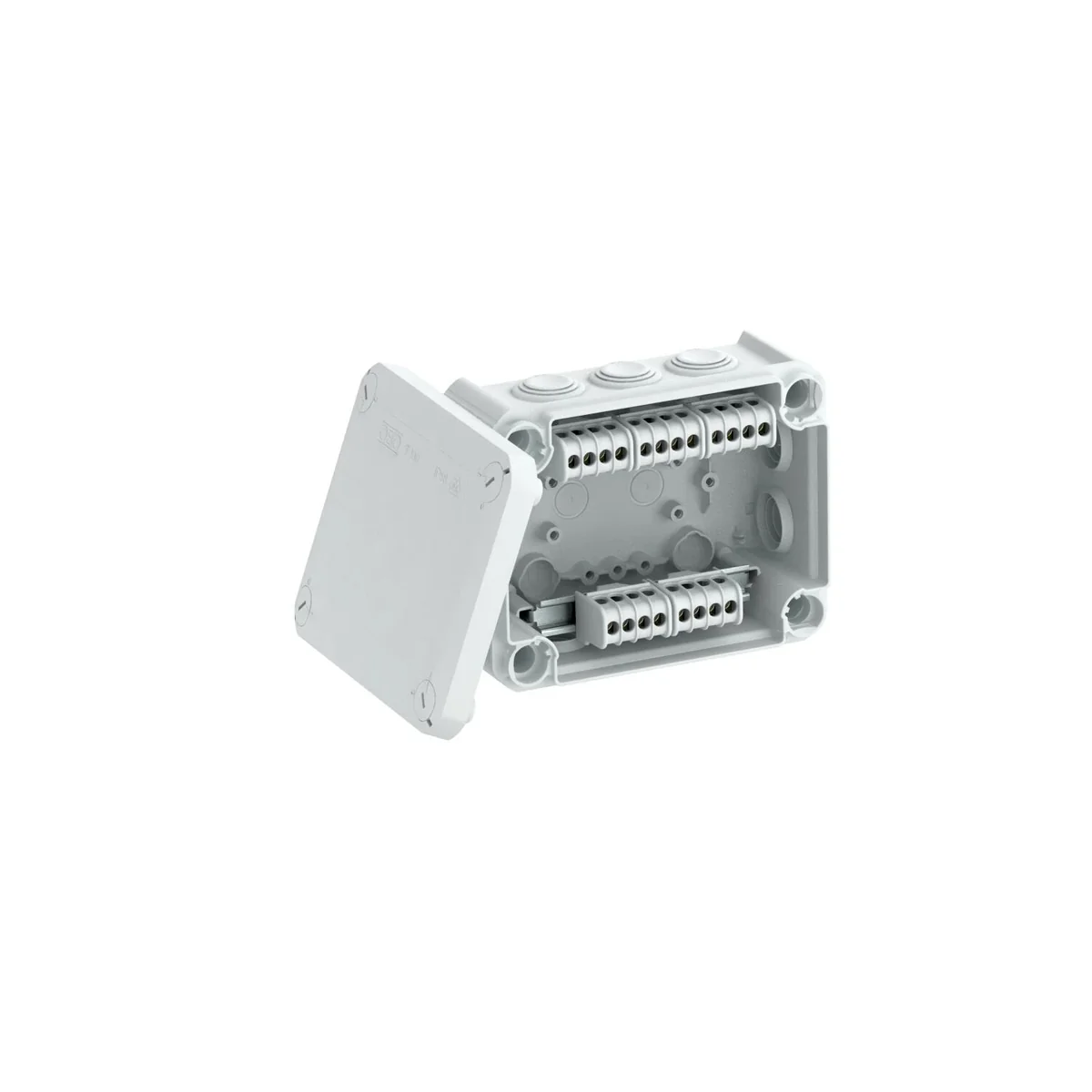

T 100 KL Junction box with terminal strip and inserts 2007436

local index:
MVN048OBOB
Catalog number:
2007436
EAN code:
4012195441212
Manufacturer: OBO BETTERMANN
Price:
125,46 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Equipped with
    Other
  • Mounting method
    Wall-/ceiling mounting
  • Inlet from the rear
    Yes

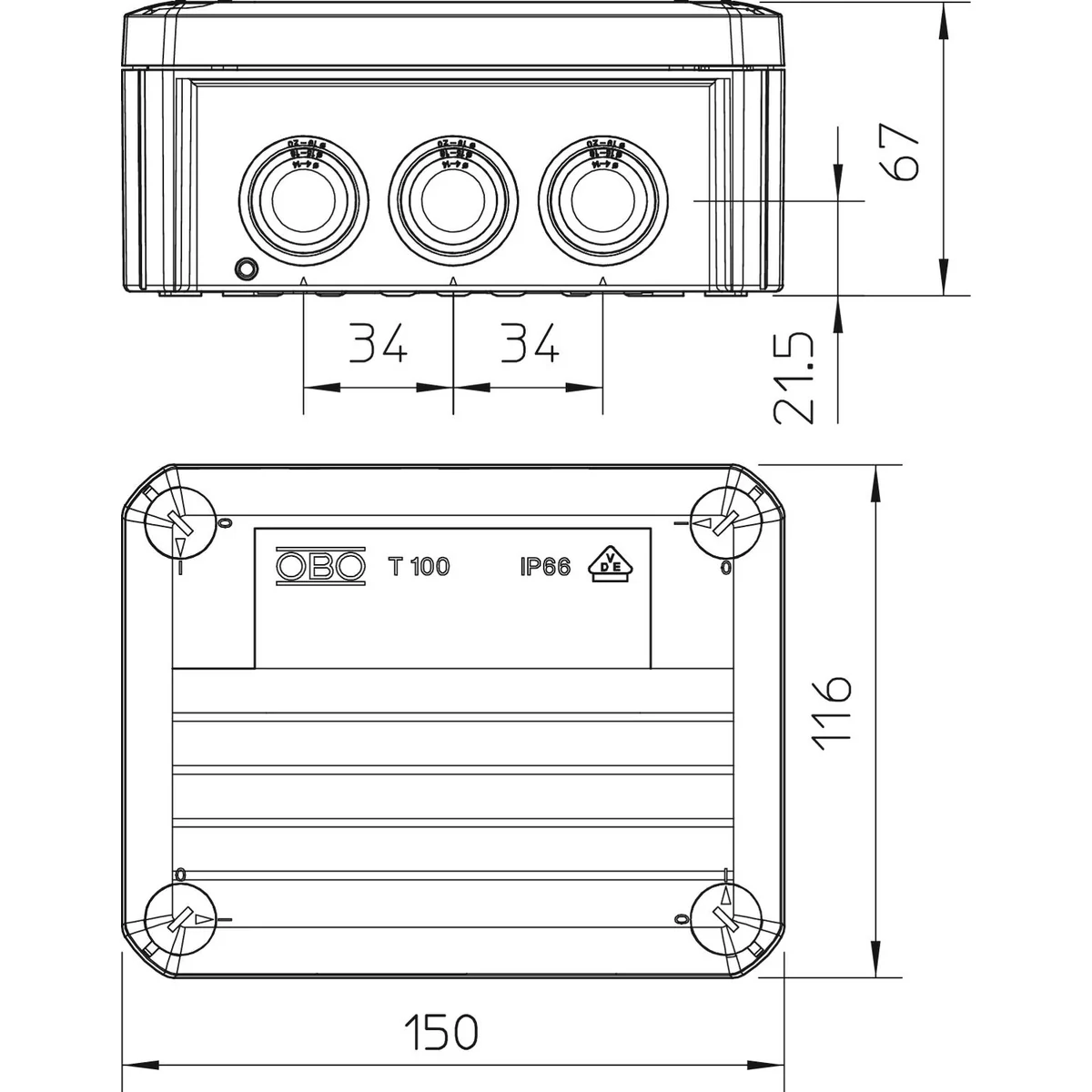

  • Width
    116 mm
  • Tackable
    Yes
  • Material
    Plastic
  • Colour
    Grey
  • Degree of protection (IP)
    IP66
  • Cover attachment
    Screwed
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 65 °C
  • For Ex-zone gas
    None
  • Shape
    Rectangular
  • Number of inlets
    10
  • Length
    150 mm
  • Depth
    67 mm
  • Type of housing feed-through
    Trimmable step membrane
  • Halogen free
    Yes
  • RAL-number (similar)
    7035
  • Transparent cover
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Manufacturer details

  • Manufacturer
    OBO Bettermann Holding GmbH & Co. KG
  • Address
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 1 pcs. 40 pcs. 480 pcs.
Weight (kg) 0,296 12,469 172,128
Volume (m3) 0,001 0,057 0,912
Width (m) 0,117 0,388 0,800
Length (m) 0,151 0,595 1,200
Depth (m) 0,067 0,249 0,950
