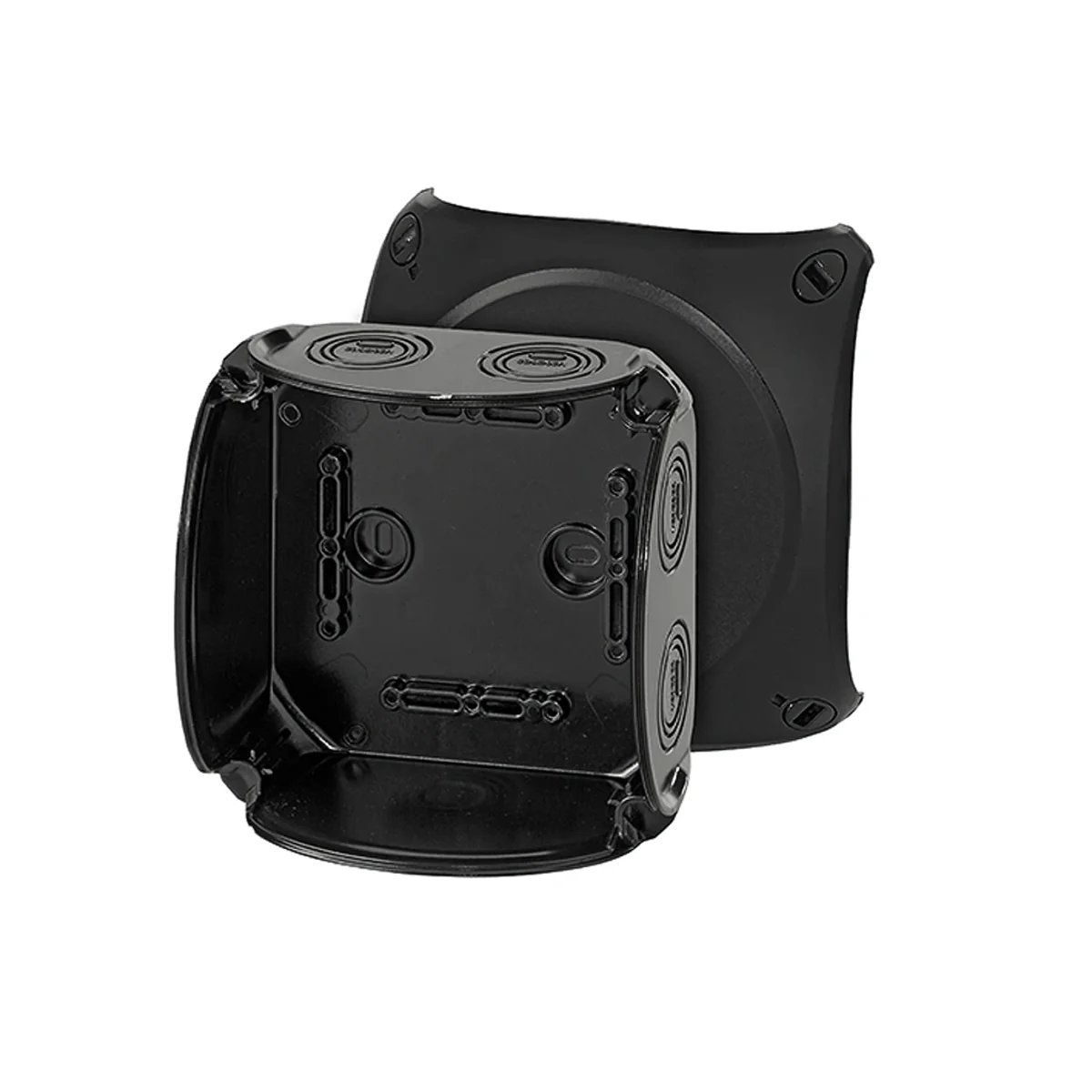

Surface-mounted junction box KF 0600 B 130x130x77mm IP66/67/69 black 62000052

local index:
MVN055HENS
Catalog No:
62000052
EAN code:
4012591121800
Manufacturer: HENSEL
Depth [mm]: 77
Color: Black
Shape: Square
Price:
31,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 3 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Junction box for outdoor unshielded installations

  • Without terminals
  • With M25 knockout in the bottom of the box
  • With metric ribs in the sidewalls
  • Resistant to UV radiation, precipitation, temperature, mechanical impacts
  • Resistance to sea water
  • can be used on quays and on ships
  • Sealing of the lid without additional accessories
  • Ingress protection:
    • IP 66 / IP 67 / IP 69
    • IP 67, immersion up to 1 m max. 15 min.
    • IP 69, water pressure: max. 100 bar, water temperature: max. 80°C, distance => 0.15m
  • Mounting width: 102mm
  • Mounting height: 102mm
  • Maximum mounting depth: 62mm

Technical data

  • Depth [mm]
    77
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Level of security
    IP66 IP67 IP69
  • Type
    branching
  • Fire resistance
    Not applicable
  • With terminal strip
    NO
  • Color
    Black
  • Material
    PC
  • Rated insulation voltage [V]
    1000
  • Type
    Wall-mounted
  • Width [mm]
    130
  • Height [mm]
    130
  • For modular equipment
    Not applicable
