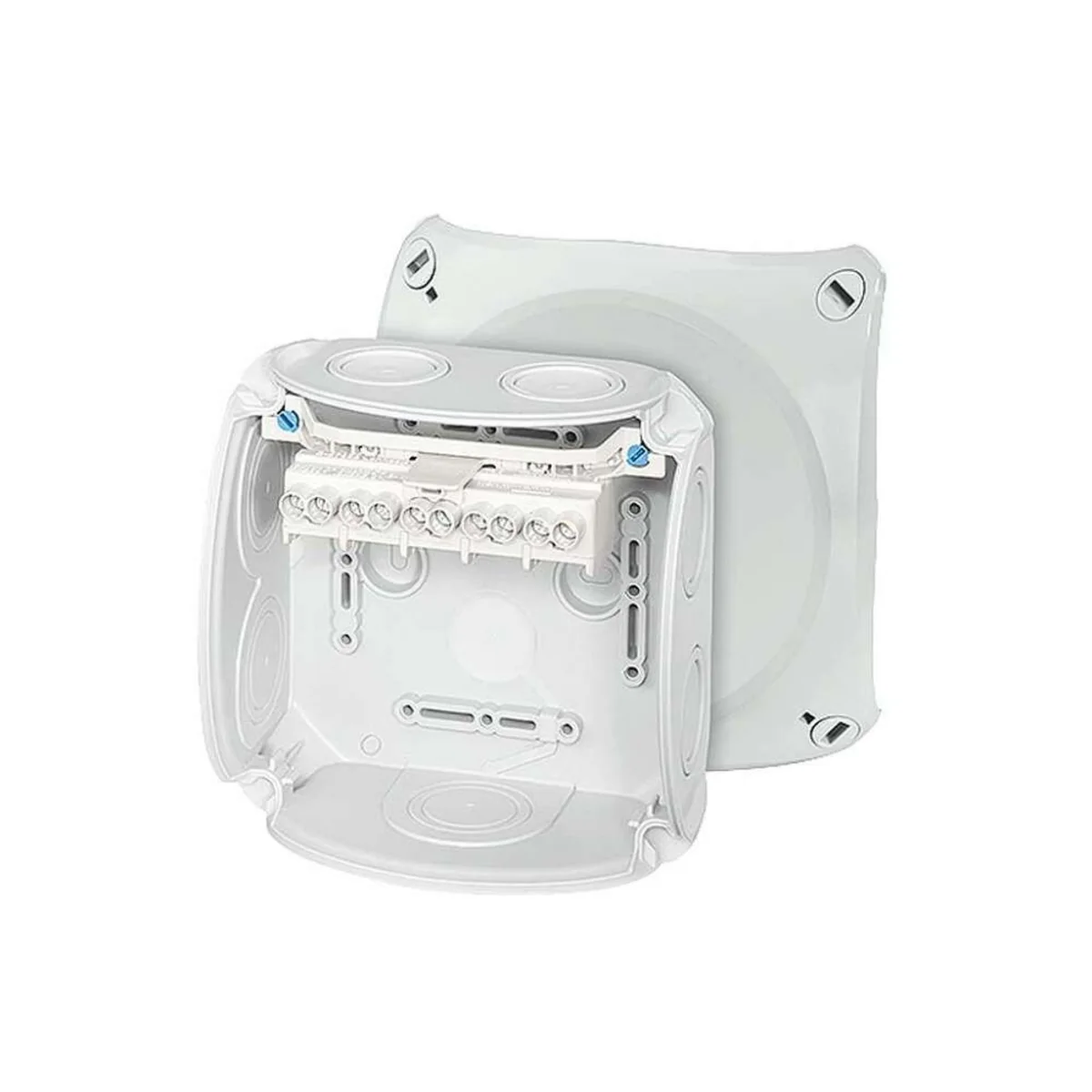

Surface-mounted junction box DK 0606 GZ 130x130x77mm with 6mm terminal strip IP66 gray 62000154
local index:
MVN081HENS
Catalog No:
62000154
EAN code:
4012591125457
Price:
20,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surface-mounted junction box
- two terminals per pole
- for each of the 5 poles: 6 x 1.5 mm² ; r/f, 4x2.5mm² r/f, 4x4mm² r/f, 4x6mm² r/f, 2 x 10mm² r / f
- with integrated membrane glands (sealing range Ø 9.0-21.0 mm) - can be removed and replaced with screwed glands
- with integrated membrane gland in the bottom of the box (sealing range Ø 9.0-20.0 mm)
- sealing of the lid without additional accessories
- holders for mounting the box and a cable connecting the lid with the base included
- to close membrane holes, use EDK glands
Technical data
-
Halogen freeYes
-
ColorGray
-
Number of poles5
-
MaterialPP
-
InstallationSurface-mounted
-
CoverYes
-
TypeWall-mounted
-
Width [mm]130
-
Height [mm]130
-
Degree of mechanical protectionIK07
-
Self-extinguishingYes
-
Fire resistance [°C]750
-
With terminal stripYes
-
Stuffing box typeM25/32
-
PKWIU27.33.13.0
-
Depth [mm]77
-
ShapeSquare
-
Number of terminals per pole2
-
Tightening torque [Nm]1.5
-
Rated insulation voltage [V]690
-
Rated current [A]40
-
Level of securityIP66
-
Typebranching
-
Sealing range [mm]9-21 9-20
-
Ambient temperature range [°C]-25 to +40
-
Fire resistanceHardly flammable
-
For modular equipmentNot applicable
-
Number of slots8
-
Terminals [mm²]2.5-6
