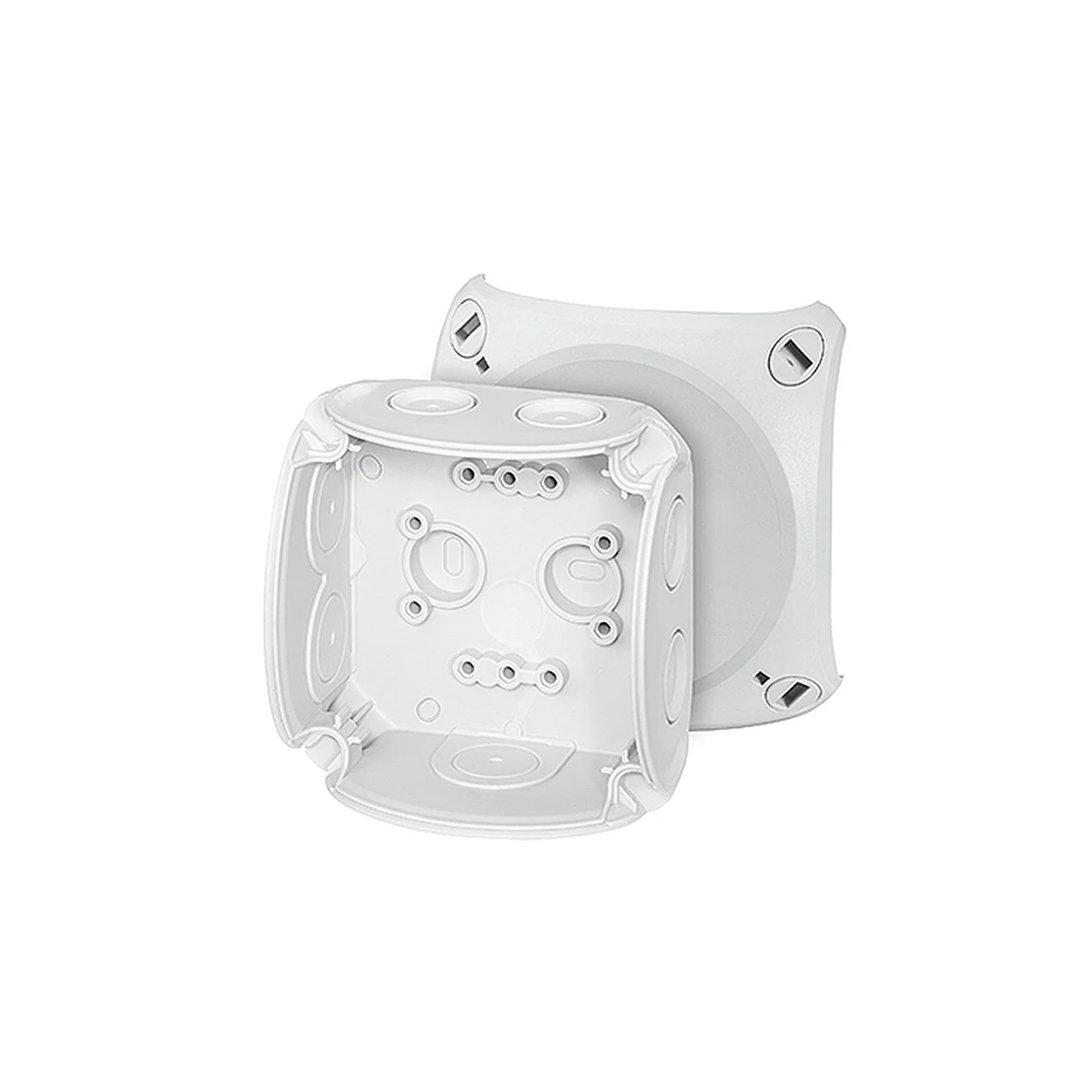

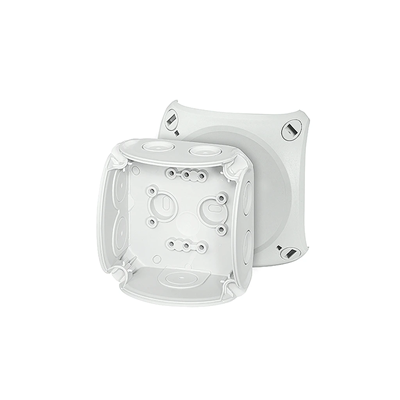

Surface-mounted junction box DK 0200 GZ 93x93x62mm without terminals IP66 gray 62000147

local index:
MVN074HENS
Catalog No:
62000147
EAN code:
4012591125327
Manufacturer: HENSEL
Halogen free: Yes
Depth [mm]: 62
Color: Gray
Price:
5,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted junction box

  • without terminals
  • with integrated membrane glands (Ø sealing range 6.0-15.0 mm) - they can be removed and replaced with screw glands
  • with an integrated membrane gland in the bottom of the box (sealing range Ø 6.0-13.0 mm)
  • sealing of the lid without additional accessoriesó ;w
  • brackets for mounting the box and a cable connecting the cover with the base included
  • to close membrane holes, use EDK glands

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PP
  • Cover
    Yes
  • Level of security
    IP66
  • Type
    branching
  • Sealing range [mm]
    6-15 6-13
  • Ambient temperature range [°C]
    -25 to +40
  • Fire resistance
    Hardly flammable
  • For modular equipment
    Not applicable
  • Number of slots
    8
  • PKWIU
    27.33.13.0
  • Depth [mm]
    62
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Width [mm]
    93
  • Height [mm]
    93
  • Degree of mechanical protection
    IK07
  • Self-extinguishing
    Yes
  • Fire resistance [°C]
    750
  • With terminal strip
    NO
  • Stuffing box type
    M20
