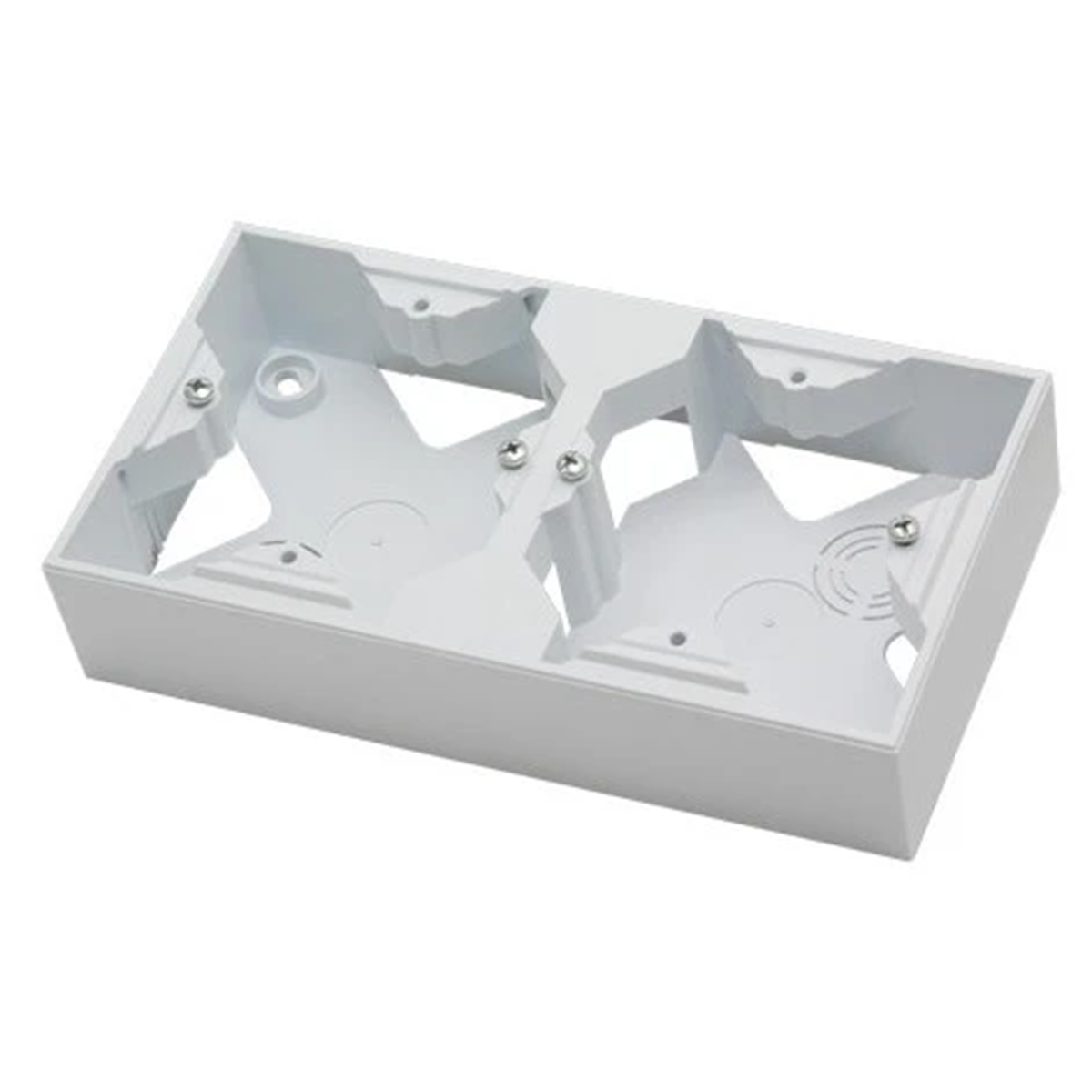

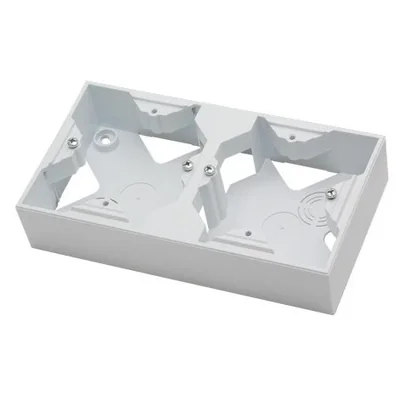

SONATA Double wall-mounted installation box white PNP-2R/00

local index:
MVN056OSPE
Catalog No:
PNP-2R/00
EAN code:
5907577470159
Manufacturer: OSPEL
Halogen free: Yes
Depth [mm]: 37
Color: White
Price:
3,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The surface-mounted box from the Sonata seriesallows you to transform any elements of the Sonata series into a surface-mounted version.

Collection Sonata by Ospel includes electrical installation equipment that meets the highest technological standards. These products perfectly fit into complex and functional arrangement solutions. The modular series is based on a simple and decisive appearance. The accessories of the Sonata series are diverse in terms of usability. It can be used in many office and home rooms, e.g. living room, bedroom, hallway, kitchen or bathroom. Products from the Sonata series are manufactured in Poland.

For fans of the classics, products with subdued colors are offered, and for lovers of modernism – connectors in metallised versions. Due to the fact that the collection includes multiple frames made of glassaluminum wood or stone, the arrangement possibilities increase. This raises the prestige of the entire collection, including switches, plug sockets, telecommunication sockets, loudspeaker sockets, dimmers, temperature regulators and hotel switches.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic Metal
  • Cover
    NO
  • Family
    SONATA
  • Width [mm]
    155
  • Height [mm]
    84
  • Number of bolts/screws
    4
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • Depth [mm]
    37
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Mounting direction
    Universal
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    2
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With duct entry
    No
  • With screw gland entry
    No
  • Degree of protection (IP)
    IP20
  • Device height
    84 mm
  • Suitable for modular domestic switching devices
    Yes
  • Number of units
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • With cover frame
    No
  • With cable entry
    Yes
  • Shock resistant
    No
  • Device width
    155 mm
  • Device depth
    37 mm

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 6 pcs.
Weight (kg) 0,077 -
Width (m) - 0,162
Length (m) - 0,237
Depth (m) - 0,090
