Socket with grounding splashproof IP54 white flap 16A 250V white AQGZ1/11

Name: Socket with grounding splashproof IP54 white flap 16A 250V white
Brand: KONTAKT-SIMON
SKU: MFB021KONT
Price: 4.21 PLN
Availability: InStock

local index:

MFB021KONT

Catalog No:

AQGZ1/11

EAN code:

5902787574079

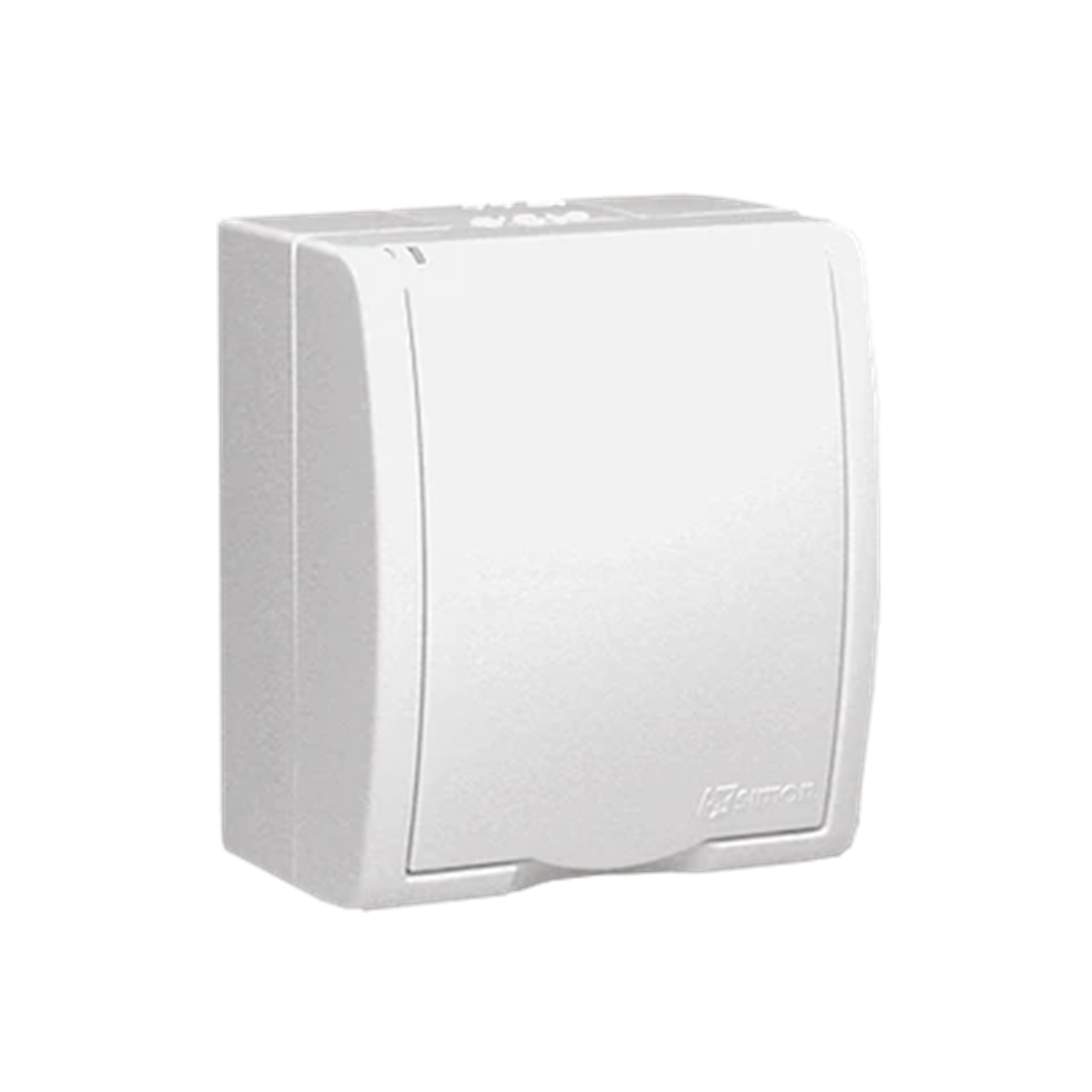

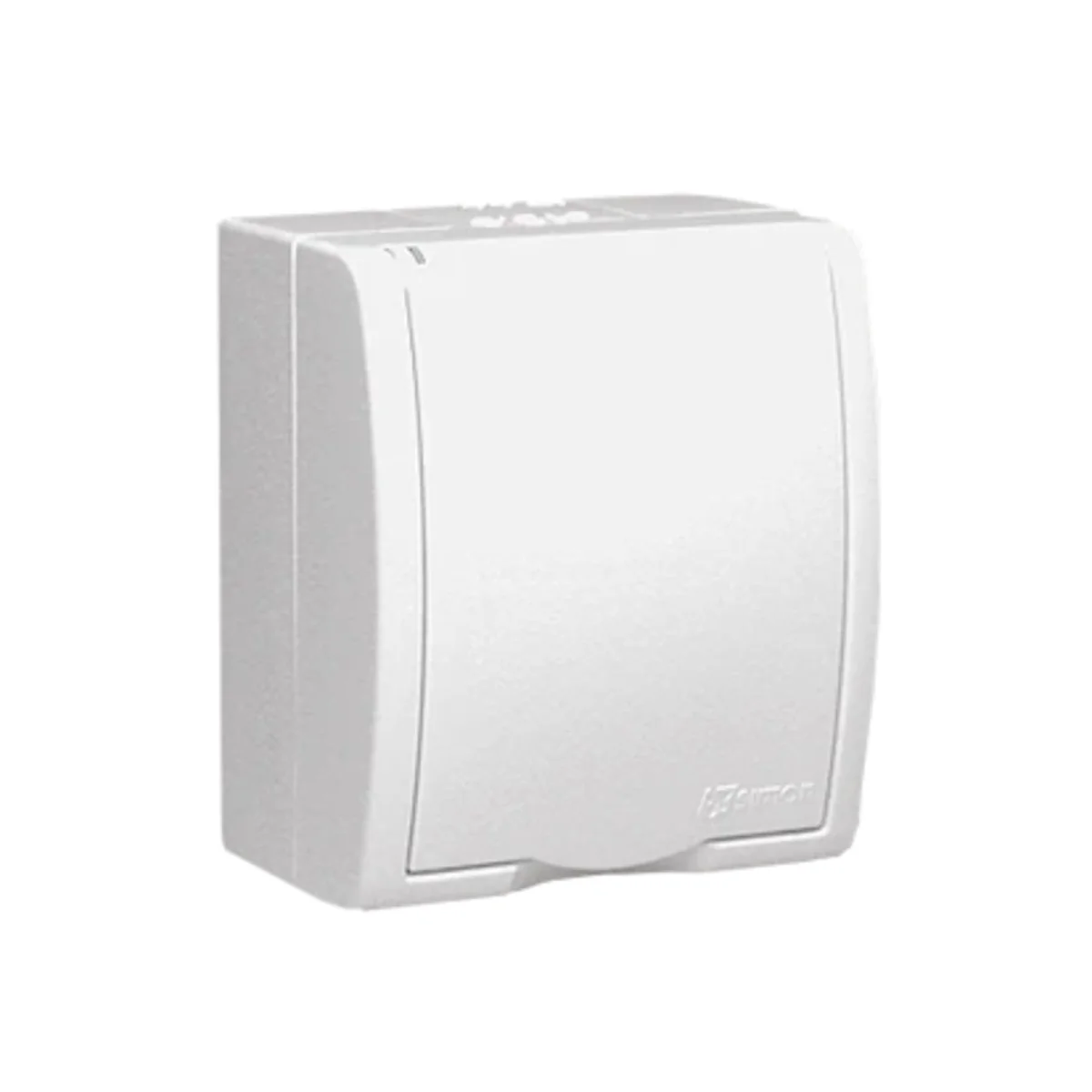

Socket with grounding splashproof IP54 white flap 16A 250V white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 46

Number of sockets: 1

See full description

Price:

4,21 €

gross / pcs.

(including VAT 23%)

Accessible 234 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Hermetic electric socket from the Simon Aquarius series, from the manufacturer Contact Simon. The product part number is AQGZ1/11.

FEATURES

Single.
Earth; grounding pin.
Screw terminals.
Socket colorwhite.
Cap white .
Rated current 16A.
Rated voltage 230V.
Ingress protection IP54 .
surface mounting.
Screw mounting (e.g. to a box).

SERIES DESCRIPTION

Simon Aquarius is a line of splash-proof electrical installation equipment, for use in rooms exposed to moisture. Hermetic electric socket characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP54
Type

Surface-mounted
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

NO
Exact material

ABS PC

Depth [mm]

46
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

16
Family

SIMON AQUARIUS
Width [mm]

60
Ground

Hurt
Surface protection

Natural
Backlight

NO
Standard

European
On the DATA key

NO
Lid color

Socket color
PKWIU

27.33.13.0

Other technical data

Number of units

1
Colour

White
Material

Plastic
Surface protection

Untreated
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP54

Connection type

Screwed terminal
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Frequency

50 ... 60 Hz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,087	0,087	0,955
Width (m)	0,070	0,110	0,190
Length (m)	0,060	0,051	0,230
Depth (m)	0,046	0,160	0,100
