Socket 10/16A, 2P, 200/250V, IP55 81140

local index:
MFB019SCHN
Catalog No:
81140
EAN code:
3303430811404
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 45.2
Number of sockets: 1
Color: Gray
Price:
13,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

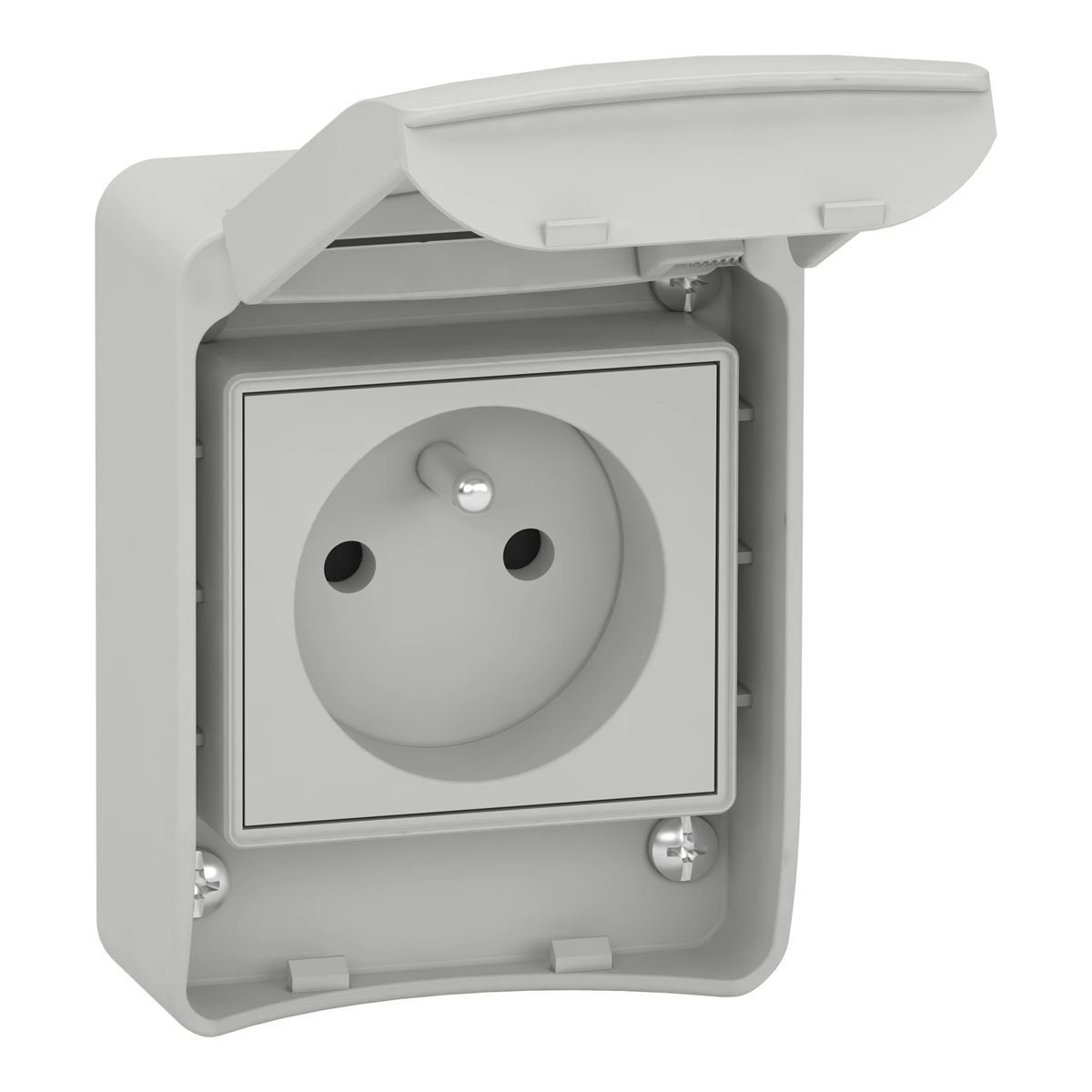

Surface mounted electrical socket from the Pratika series, from the manufacturer Schneider Electric. The product part number is 81140.



FEATURES

  • Single.< /li>
  • Grounded; grounding pin.
  • Recessed.
  • French standard.
  • Rating IP65.
  • 10-16A.
  • Housing material: self-extinguishing engineering polymer.
  • Contact material:
    • Pins: stainless steel.
    • Springs: stainless steel.

Technical data

  • Depth [mm]
    45.2
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP65
  • Type
    Surface-mounted
  • Height [mm]
    85
  • Backlight
    NO
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    Self-extinguishing polymer
  • Number of sockets
    1
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    10 16
  • Family
    PRATIKA
  • Width [mm]
    65
  • Ground
    Hurt
  • Degree of mechanical protection
    IK09
  • Standard
    French
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0

Other technical data

  • Protective contact
    No
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK09
  • Device height
    85 mm
  • Min. depth of built-in installation box
    47.2 mm
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    Yes
  • RAL-number (similar)
    7035
  • Lockable
    Yes
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP65
  • Device width
    65 mm
  • Device depth
    45.2 mm
