Single socket-outlet with earthing type Schuko IP54 white 16A AQGSZ1Z/11A

Name: Single socket-outlet with earthing type Schuko IP54 white 16A
Brand: KONTAKT-SIMON
SKU: MFB010KONT
Price: 30.71 PLN
Availability: BackOrder

Índice local:

MFB010KONT

Número de catálogo:

AQGSZ1Z/11A

Código EAN:

5902787559755

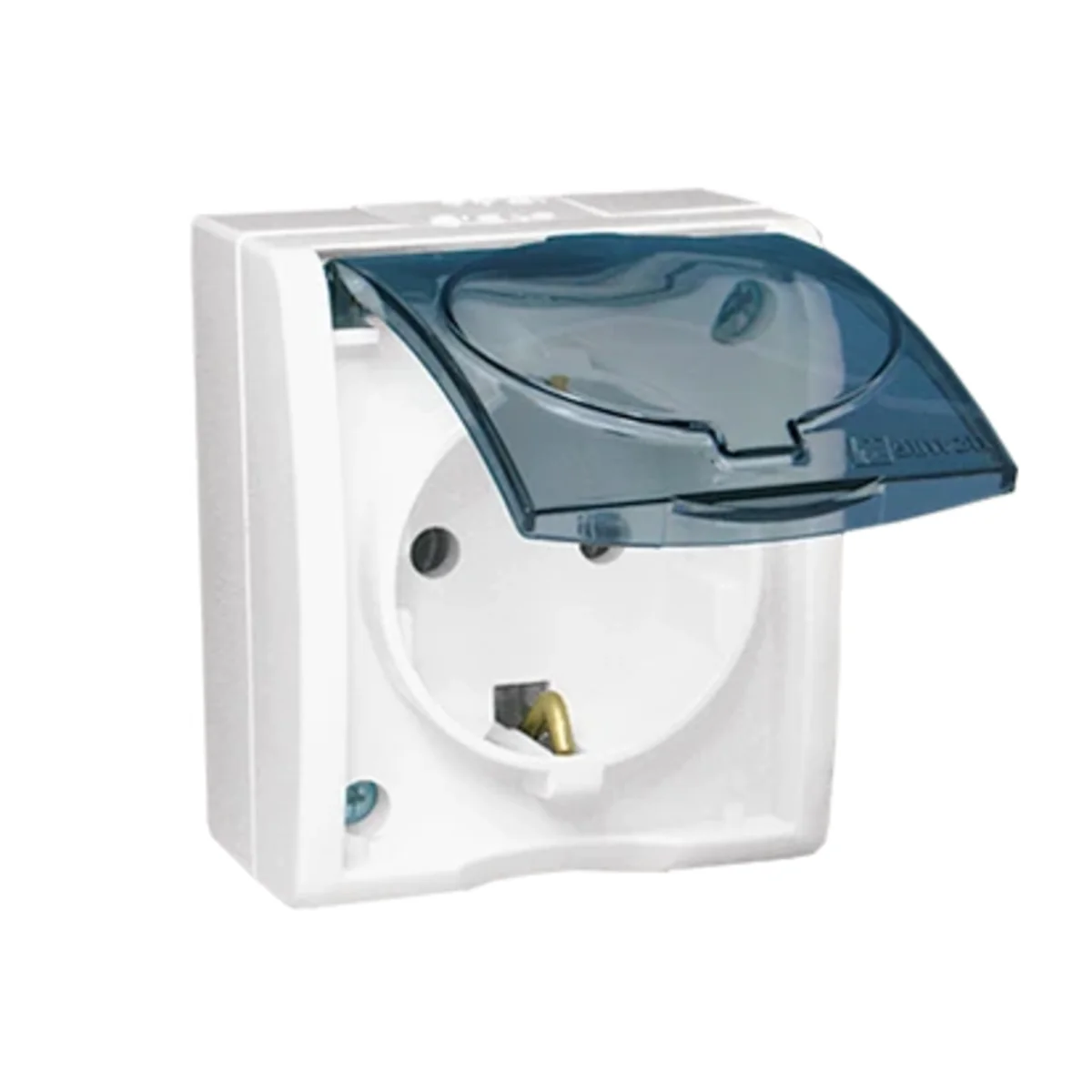

Single socket-outlet with earthing type Schuko IP54 white 16A

Haga clic en la foto para ampliar

Fabricante: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 46

Number of sockets: 1

Ver descripción completa

Precio:

30,71 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Hermetic electric socket from the Simon Aquarius series, from the manufacturer Contact Simon. The product part number is AQGSZ1Z/11A.

FEATURES

Single.
With SCHUKO grounding.
With shutters for current paths.
Screw terminals.
Color socketwhite.
Transparent lid.
Rated current 16A.< /li>
Rated voltage 230V.
Ingress protection IP54.
Mounting surface mounting.
Fixed with screws (e.g. to a box).

SERIES DESCRIPTION

Simon Aquarius is a line of splash-proof electrical installation equipment, for use in rooms exposed to moisture. Hermetic electrical socket characterizes the features of this unique series.

Datos técnicos

Halogen free

Yes
Number of sockets

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP54
Type

Surface-mounted
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

NO
Exact material

ABS PC

Depth [mm]

46
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

16
Family

SIMON AQUARIUS
Width [mm]

60
Ground

schuko
Surface protection

Natural
Backlight

NO
Standard

European
On the DATA key

NO
Lid color

Transparent
PKWIU

27.33.13.0

Otros datos técnicos

Number of units

1
Connection type

Screwed terminal
Colour

White
Surface protection

Untreated
Nominal voltage

250 V

Number of modules (module system)

1
With hinged lid

Yes
Mounting method

Surface mounted
Surface finishing

Glossy
Frequency

50 ... 60 Hz

Detalles del fabricante

Fabricante

Kontakt-Simon S.A.
Dirección

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Empaquetado a granel

una especie de paquete	Paczka	Karton
Cantidad	1 uds.	10 uds.
Peso (kg)	0,090	0,984
Ancho (m)	0,110	0,190
Longitud (m)	0,051	0,230
Profundidad (m)	0,160	0,100
