el12 Electrical equipment Sockets Hermetic electrical sockets
el12 Electrical equipment Sockets Surface-mounted sockets

Single electric socket with gray shutter 782393

local index:
MFB005LEGR
Catalog number:
782393
EAN code:
3245067823934

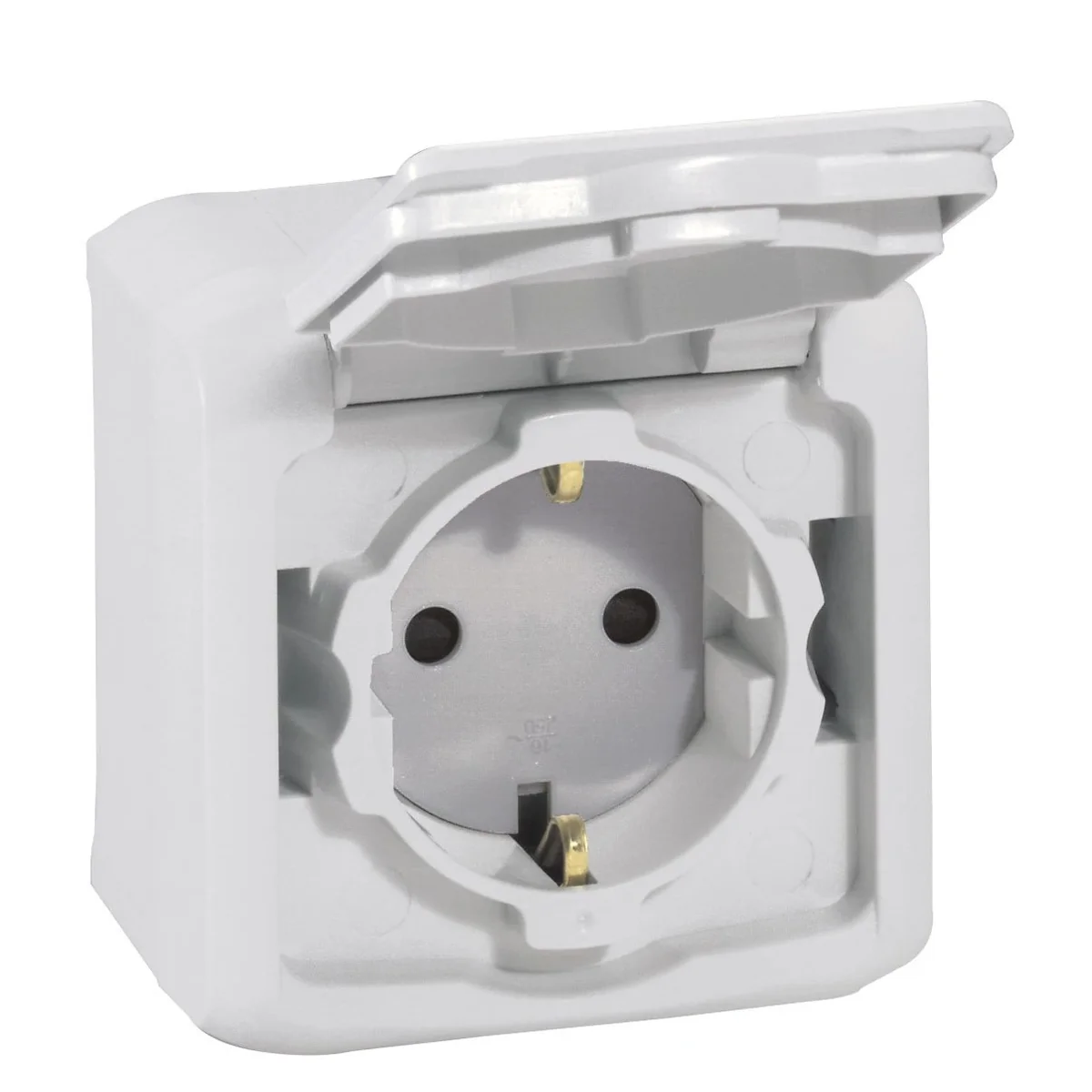

Single electric socket with gray shutter
Single electric socket with gray shutter

Click on the photo to enlarge

Manufacturer: LEGRAND
Number of sockets: 1
Color: Gray
Shape: Square
See full description
Price:
27,97 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Hermetic wall-mounted electrical socket from the Forix series, from the manufacturer Legrand. The product part number is 782393.



FEATURES

  • Single.< /li>
  • With SCHUKO grounding.
  • With shutters for current paths.
  • Terminals screw type.
  • Color grey.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP44.
  • surface mounting.

    •

    SERIES DESCRIPTION

    Forix is a series of surface-mounted accessories distinguished by subtle colors. Hermetic wall-mounted electrical socket characterizes the features of this unique series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    FORIX
  • Type
    Surface-mounted
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Ground
    schuko
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color

Other technical data

  • Model
    Socket outlet CEE 7/3 (type F)
  • Protective contact
    Other
  • Number of active contacts (flat)
    0
  • Assembly arrangement
    Basic element with full cover plate
  • Number of ports USB-A
    0
  • Number of socket outlets
    1
  • Number of modules (module system)
    2
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Grey
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK07
  • Device height
    70 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Gniazda z izolacją fazową
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7035
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    Yes
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    70 mm
  • Device depth
    57 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
  • E-mail
    info@legrand.com.pl

Bulk packaging

A kind of package Karton Paleta
Quantity 10 pcs. 1280 pcs.
Weight (kg) 1,239 158,592
Volume (m3) 0,005 0,916
Width (m) 0,146 1,200
Length (m) 0,085 0,763
Depth (m) 0,400 1,000
