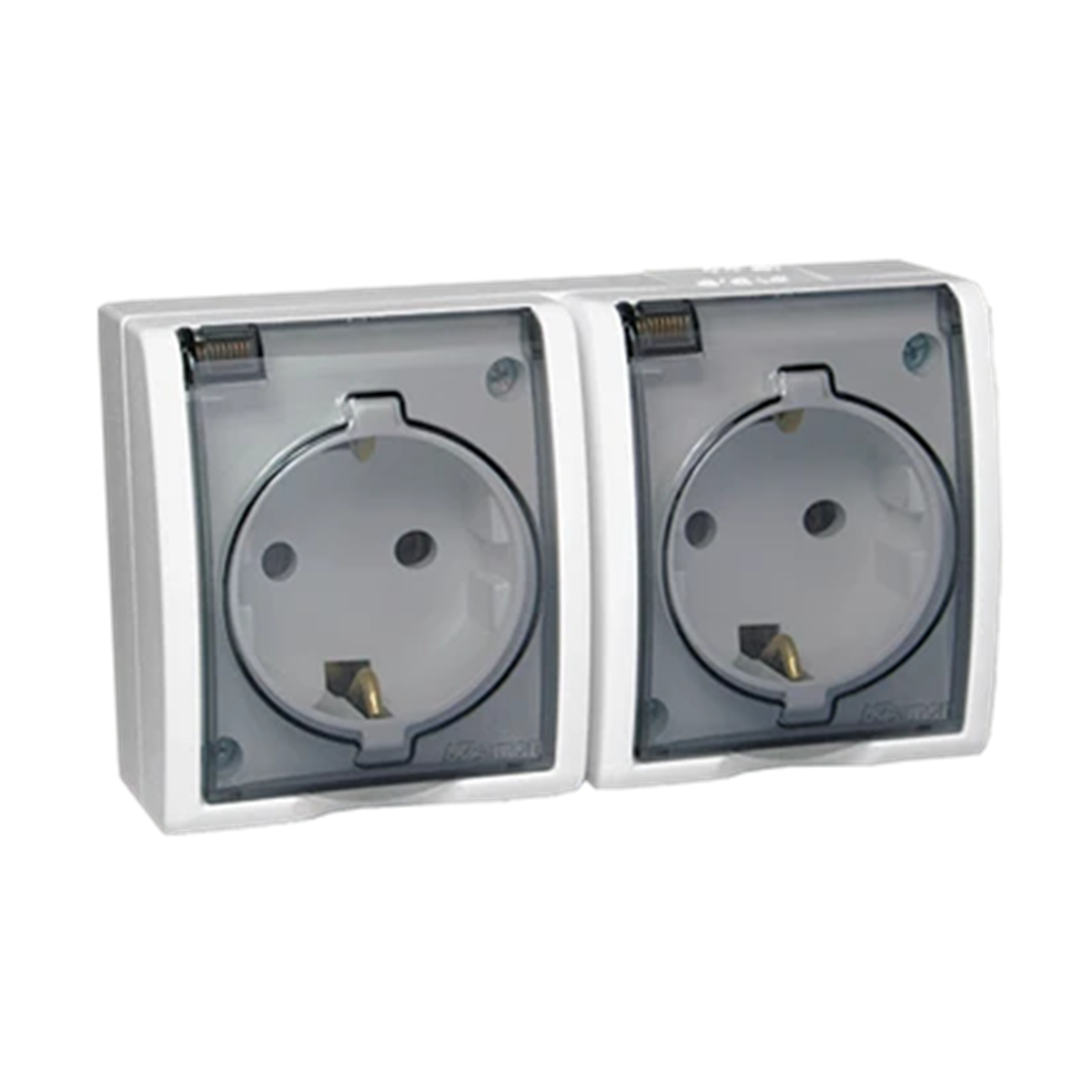

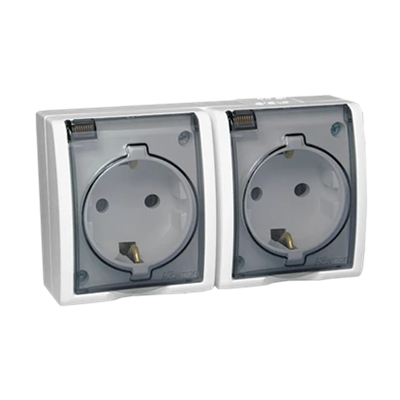

SIMON AQUARIUS Double socket outlet with earthing schuko splash-proof IP54 transparent flap with shutters 16A 230V white AQGSZ1-2Z/11A

local index:
MFB004KONT
Catalog No:
AQGSZ1-2Z/11A
EAN code:
5902787829841
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 46
Number of sockets: 2
Price:
12,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Simon Aquarius series, from the manufacturer Contact Simon. The product part number is AQGSZ1-2Z/11A.



FEATURES

  • Double .
  • With SCHUKO grounding.
  • Dividers of current paths.
  • Screw terminals.
  • Socket color white.
  • Clear lid.
  • Current rated 16A.
  • Rated voltage 230V.
  • Ingress protection IP54.
  • surface mounting.
  • Screw mounting (e.g. to a box).



SERIES DESCRIPTION

Simon Aquarius is a line of splash-proof electrical installation accessories, for use in rooms exposed to moisture. Hermetic electrical socket characterize features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP54
  • Type
    Surface-mounted
  • Height [mm]
    70
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    ABS PC
  • Depth [mm]
    46
  • Color
    White
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    SIMON AQUARIUS
  • Width [mm]
    121
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 0,173 0,173 1,274
Width (m) 0,070 0,110 0,190
Length (m) 0,121 0,051 0,230
Depth (m) 0,046 0,205 0,100
