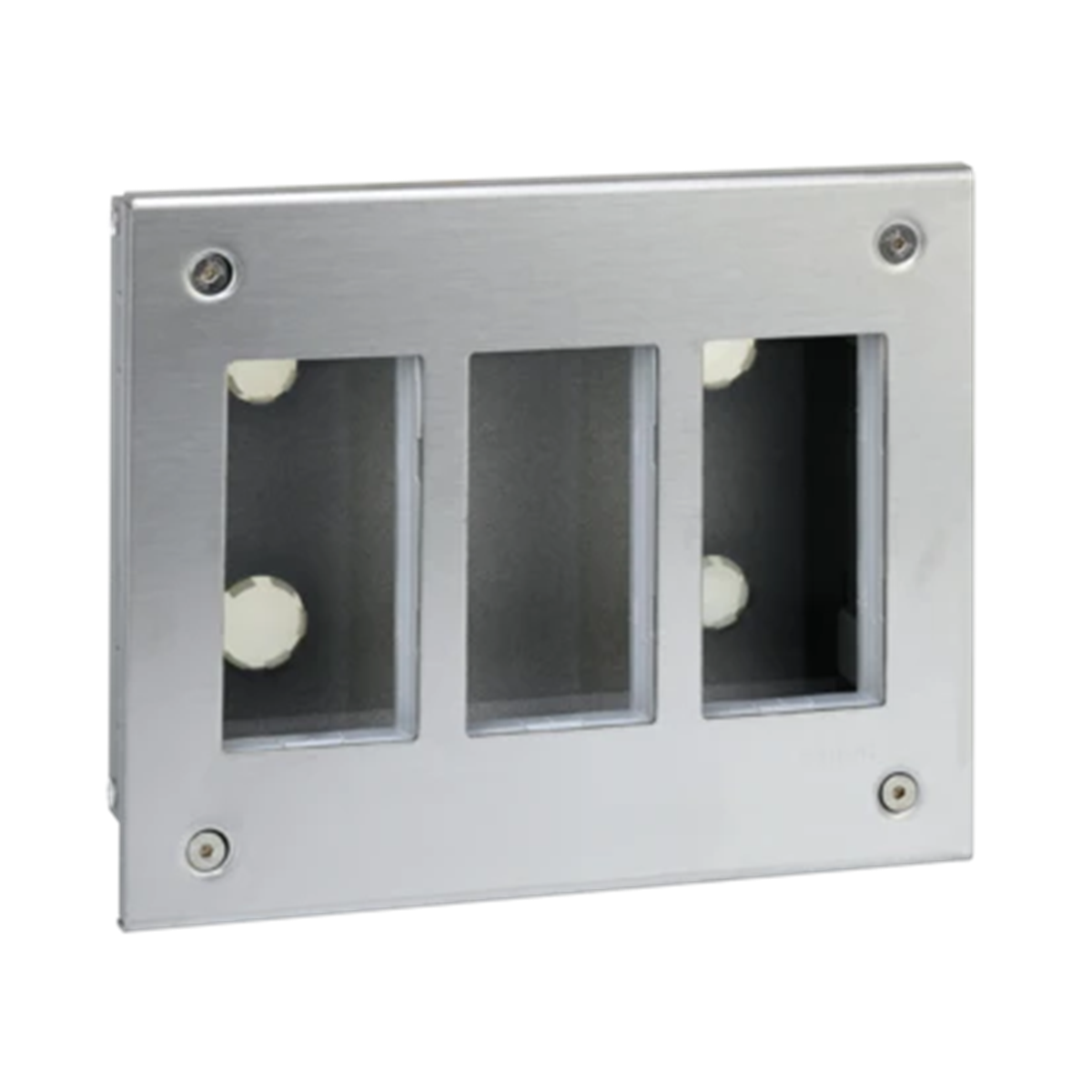

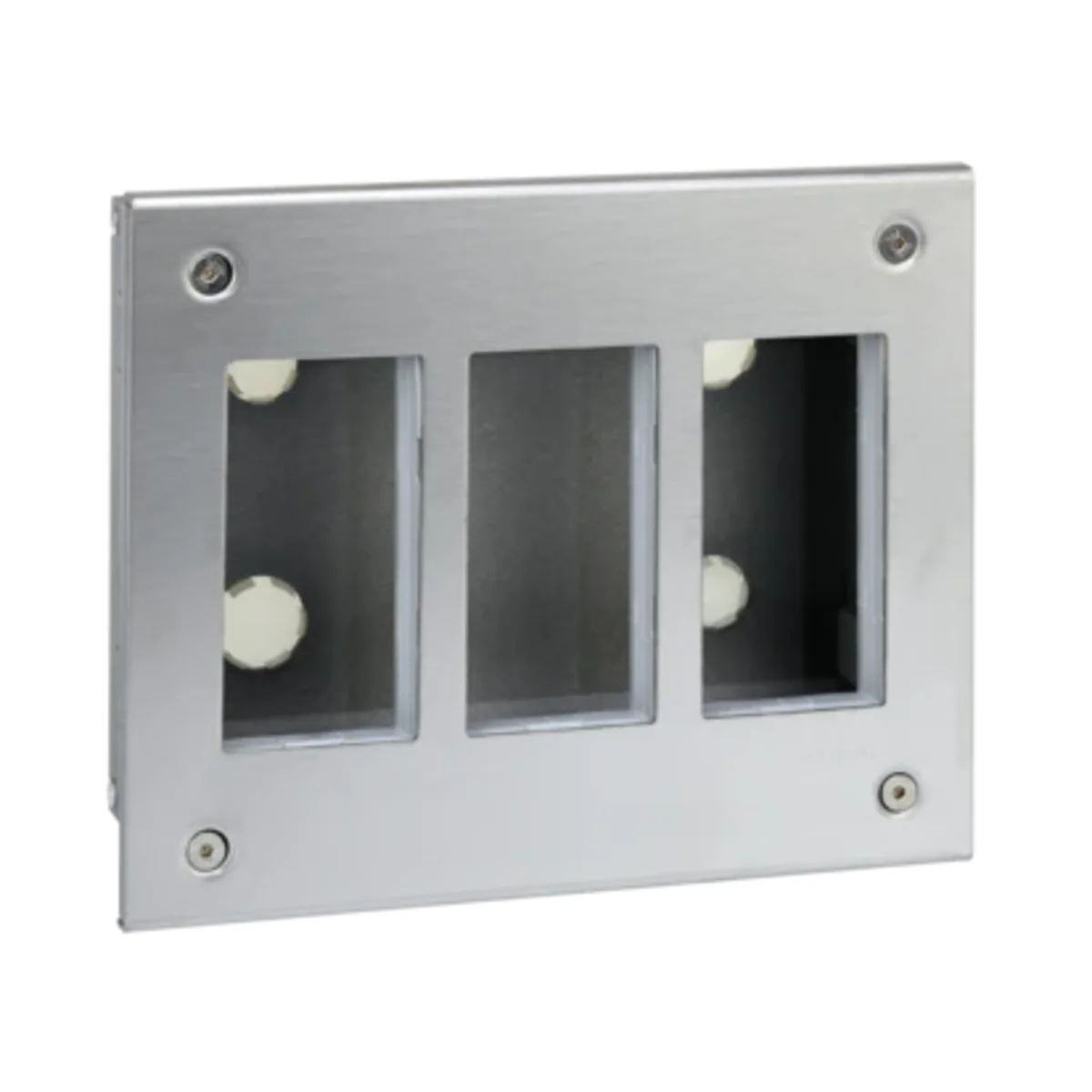

SIMON 5000 Metal flush-mounted housing, 3-module, 6xK45, complete 51000113-036

local index:
MVP016KONT
Catalog No:
51000113-036
EAN code:
8421053099384
Manufacturer: KONTAKT-SIMON
Depth [mm]: 67
Color: Silver
Shape: Rectangular
Price:
134,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SIMON 500 metal flush-mounted housings are products intended for advanced installations where protection of the installation against mechanical damage is required.

SIMON 500 metal flush-mounted housings are available in 5 sizes per 1 , 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

The front is made of stainless steel, which is a durable and aesthetic finish of the housing.

Technical data

  • Depth [mm]
    67
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Level of security
    IP40
  • Type
    For attachments
  • Surface finish
    Shiny
  • Fire resistance
    Not applicable
  • For modular equipment
    K45 Simon 500
  • PKWIU
    27.12.40.0
  • Color
    Silver
  • Material
    stainless steel
  • Cover
    NO
  • Family
    Simon 500
  • Width [mm]
    226
  • Height [mm]
    188
  • Accurate color
    inox
  • Number of segments
    3 6
  • Number of SIMON 500 modules
    3

Other technical data

  • Number of units
    6
  • Material quality
    Stainless steel
  • Surface finishing
    Glossy
  • Material
    Metal
  • Surface protection
    Untreated
  • Colour
    Kolor naturalny

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 1,482 1,482 1,482
Width (m) 0,188 - 0,189
Length (m) 0,226 - 0,226
Depth (m) 0,067 - 0,069
