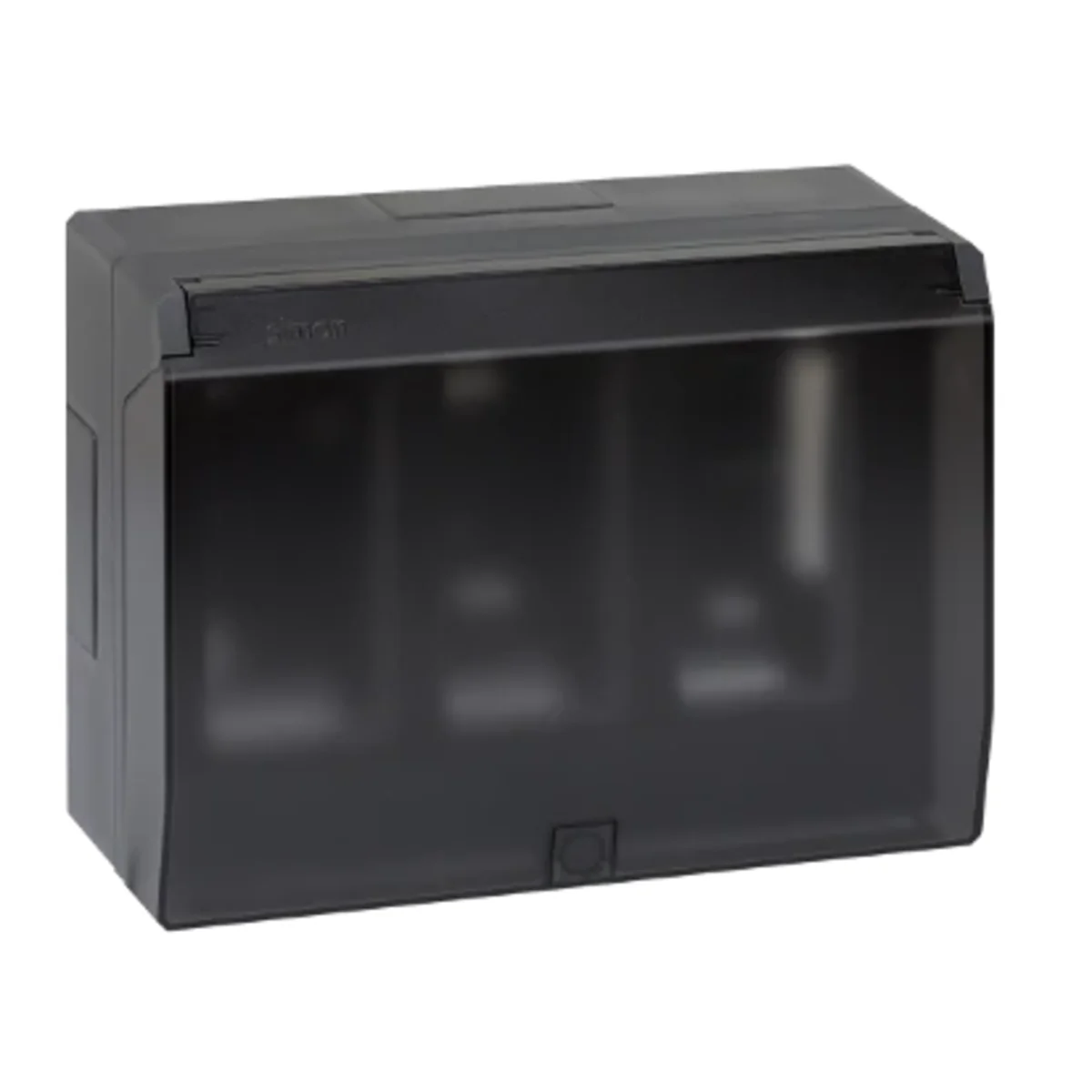

SIMON 500 surface-mounted enclosures are an ideal solution when it is necessary to distribute electrical, ICT and multimedia installations in facilities where it is impossible to run installations in the walls.

Enclosures SIMON 500 surface-mounted units are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

The housing is equipped with a frame with a cover hiding the sockets. The cover in the closed position allows you to lead the wires out of the sockets. The cover can be additionally equipped with a key lock, thanks to which it is possible to protect the sockets against unauthorized access

Halogen free

Yes
Color

Graphite Transparent
Material

Plastic
Cover

Yes
Family

Simon 500
Width [mm]

220
Height [mm]

164
Surface finish

matte
Fire resistance

Not applicable
Number of segments

3 6
With terminal strip

NO
Number of SIMON 500 modules

3

Depth [mm]

100
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP40
Type

For attachments
Surface protection

Natural
Accurate color

Gray Graphite Smoky
Mounting direction

Universal
For modular equipment

45x45 Simon 500
Number of modules 45x45

6
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Surface mounted frame with loose bottom plate
Material

Plastic
Surface finishing

Matt

Number of units

6
Surface protection

Untreated
Colour

Anthracite

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,793	0,793	0,797
Width (m)	0,164	-	0,170
Length (m)	0,220	-	0,230
Depth (m)	0,100	-	0,120
