SIMON 500 6-module surface-mounted housing 12xK45 complete gray graphite 51000006-038

Name: SIMON 500 6-module surface-mounted housing 12xK45 complete gray graphite
Brand: KONTAKT-SIMON
SKU: MVN022KONT
Price: 45.90 PLN

local index:

MVN022KONT

Catalog No:

51000006-038

EAN code:

8421053091685

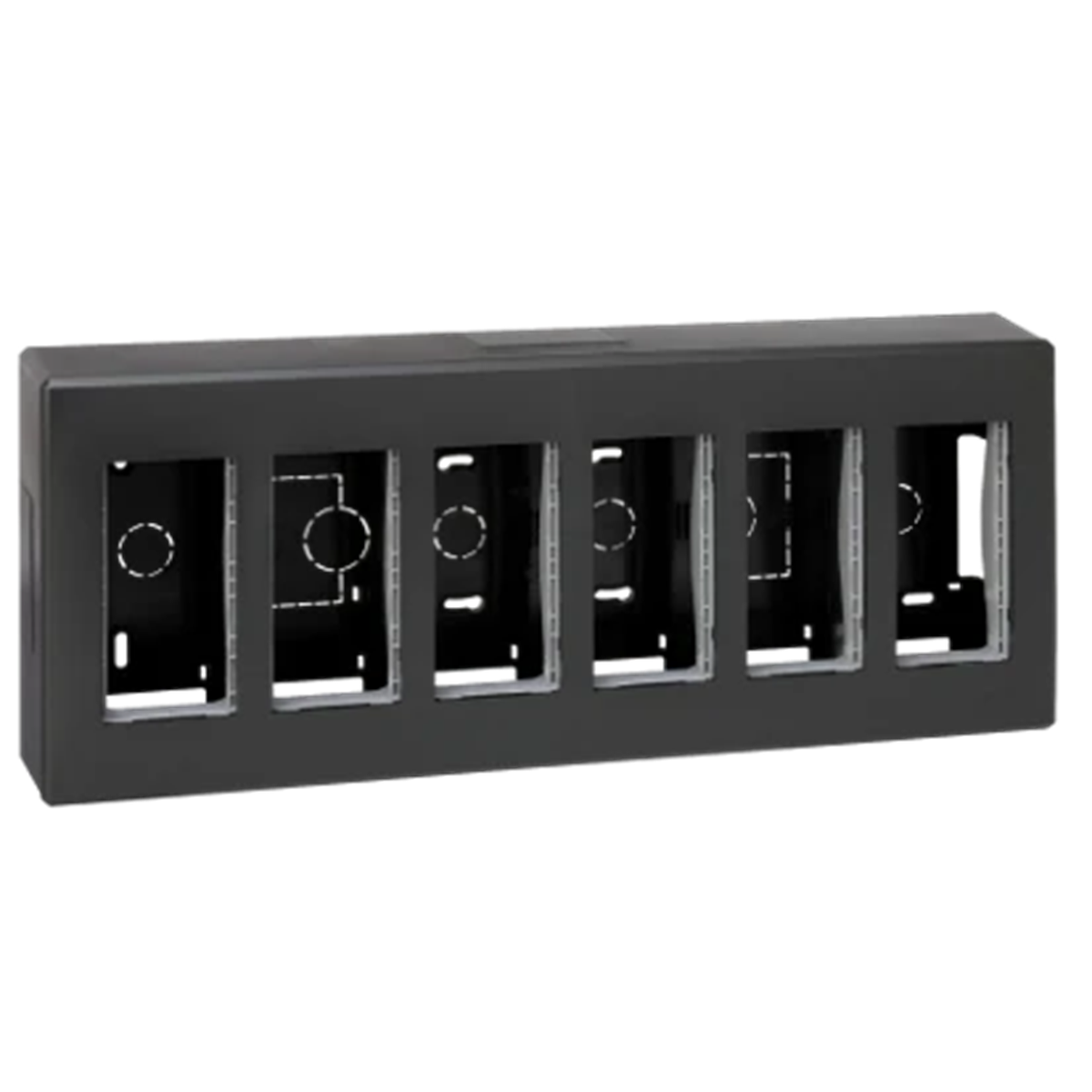

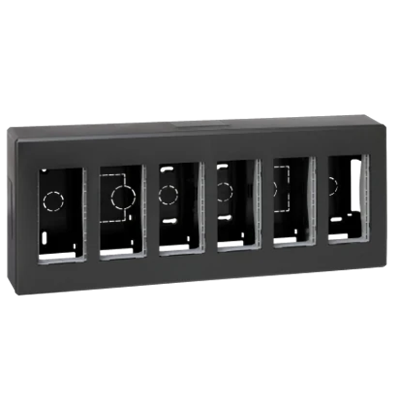

SIMON 500 6-module surface-mounted housing 12xK45 complete gray graphite

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 59

Color: Graphite

See full description

Price:

45,90 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

SIMON 500 surface-mounted enclosures are an ideal solution when it is necessary to distribute electrical, ICT and multimedia installations in facilities where it is impossible to run installations in the walls.

Enclosures SIMON 500 surface-mounted units are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

Technical data

Halogen free

Yes
Color

Graphite
Material

Plastic
Cover

NO
Family

Simon 500
Width [mm]

412
Height [mm]

167
Surface finish

matte
Fire resistance

Not applicable
Number of segments

6 12
With terminal strip

NO
Number of SIMON 500 modules

6

Depth [mm]

59
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP40
Type

For attachments
Surface protection

Natural
Accurate color

Gray graphite
Mounting direction

Universal
For modular equipment

45x45 Simon 500
Number of modules 45x45

12
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Surface mounted frame with loose bottom plate
Material

Plastic
Surface finishing

Matt

Number of units

12
Surface protection

Untreated
Colour

Anthracite

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,898	0,898	0,927
Width (m)	0,167	-	0,165
Length (m)	0,412	-	0,415
Depth (m)	0,059	-	0,075
