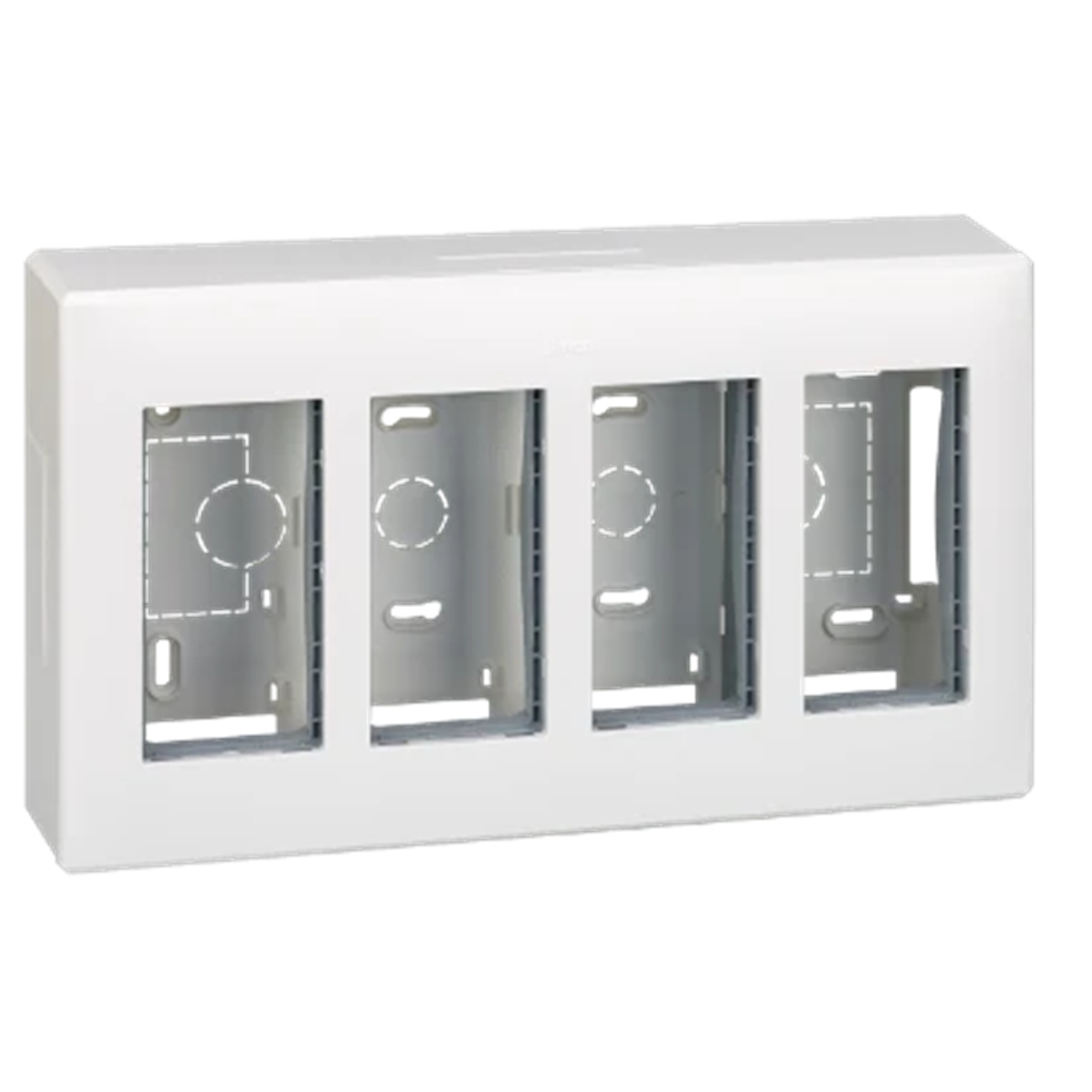

SIMON 500 4-module surface-mounted housing 8xK45 pure white 51000004-030

local index:
MVN017KONT
Catalog No:
51000004-030
EAN code:
8421053091647
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 59
Color: White
Price:
37,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SIMON 500 surface-mounted enclosures are an ideal solution when it is necessary to distribute electrical, ICT and multimedia installations in facilities where it is impossible to run installations in the walls.

Enclosures SIMON 500 surface-mounted units are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Cover
    NO
  • Family
    Simon 500
  • Width [mm]
    286
  • Height [mm]
    167
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    4 8
  • With terminal strip
    NO
  • Number of SIMON 500 modules
    4
  • Depth [mm]
    59
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP40
  • Type
    For attachments
  • Surface protection
    Natural
  • Accurate color
    Pure white
  • Mounting direction
    Universal
  • For modular equipment
    45x45 Simon 500
  • Number of modules 45x45
    8
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Surface mounted frame with loose bottom plate
  • Material
    Plastic
  • Surface finishing
    Matt
  • Number of units
    8
  • Surface protection
    Untreated
  • Colour
    White

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,675 0,675 0,678
Width (m) 0,167 - 0,165
Length (m) 0,286 - 0,290
Depth (m) 0,059 - 0,075
