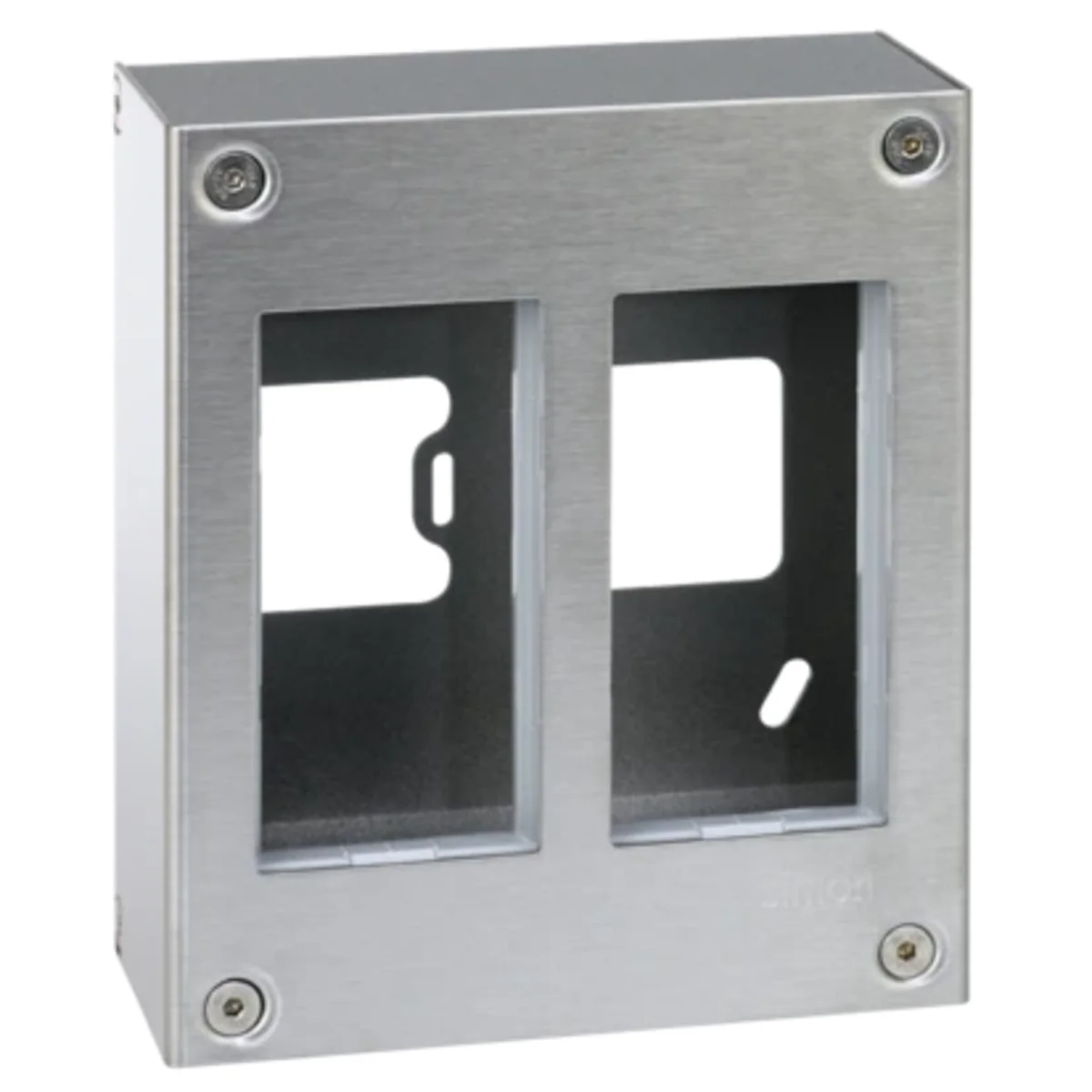

SIMON 500 metal surface-mounted housings is a solution dedicated to distribution of installations in places particularly exposed to mechanical damage.

SIMON 500 metal surface-mounted housings are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

The front is made of stainless steel, which is a durable and aesthetic finish of the housing.

Accessory holders can be combined into sets, which facilitates the assembly of individual types of installations and circuits. Dedicated connectors for Simon 500 sockets make it easy to distribute the installation between the sockets inside the housing.

Depth [mm]

67
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP40
Type

For attachments
Surface protection

Natural
Accurate color

inox
Mounting direction

Universal
For modular equipment

45x45 Simon 500
Number of modules 45x45

4
PKWIU

27.12.40.0

Color

Silver
Material

stainless steel
Cover

NO
Family

Simon 500
Width [mm]

144.5
Height [mm]

168
Surface finish

Shiny
Fire resistance

Not applicable
Number of segments

2 4
With terminal strip

NO
Number of SIMON 500 modules

2

Other technical data

Assembly arrangement

Surface mounted frame with loose bottom plate
Material

Metal
Surface protection

Untreated
Colour

Kolor naturalny

Number of units

4
Material quality

Stainless steel
Surface finishing

Glossy

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	1,025	1,025	-
Width (m)	0,168	-	-
Length (m)	0,145	-	-
Depth (m)	0,067	-	-
