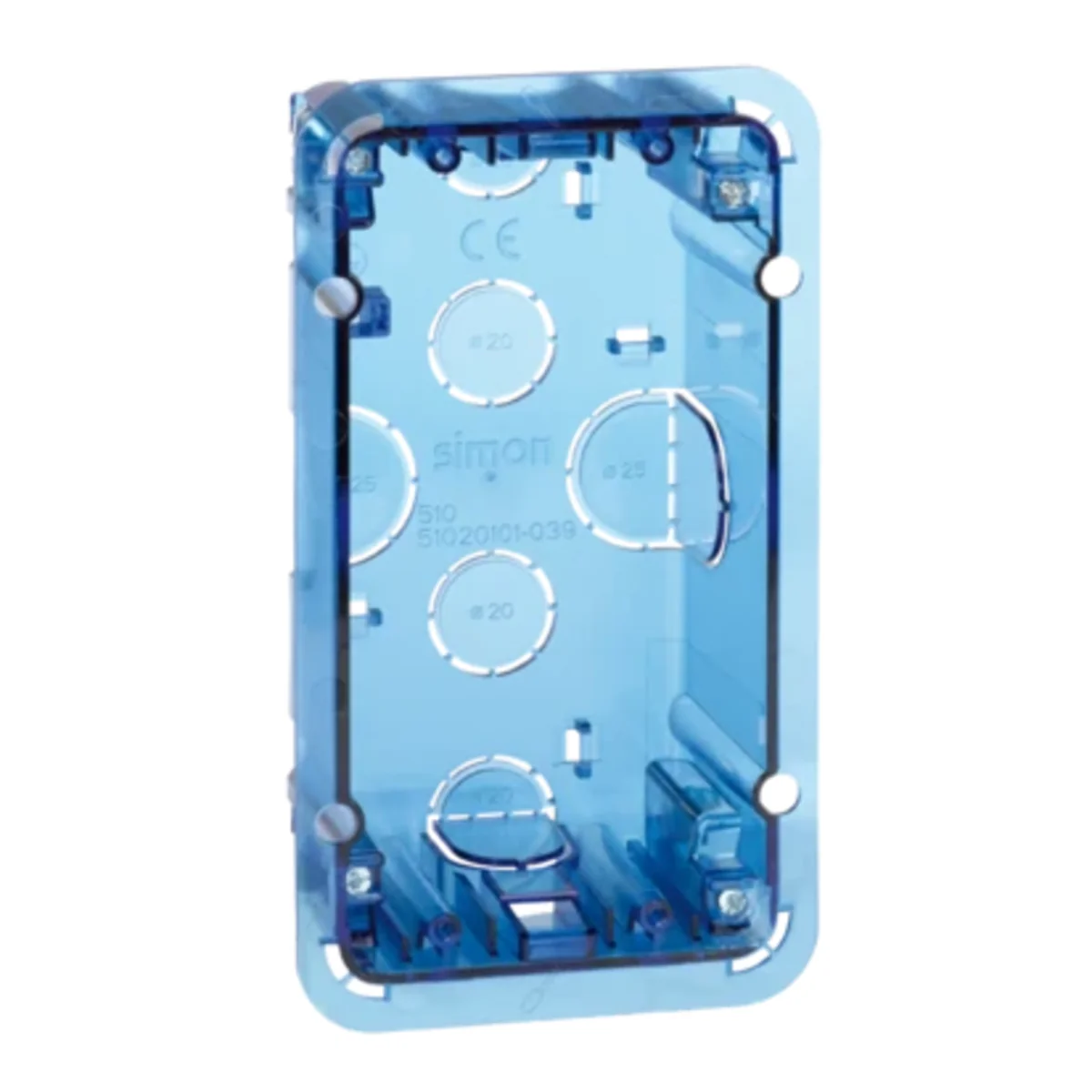

Simon 500 flush-mounted enclosures are a range of products, the use of which greatly facilitates the distribution of electrical, ICT and multimedia installations. Their main advantage is the ability to create sets of sockets of various types in one electrical and logical point.

SIMON 500 flush-mounted enclosures are available in 5 sizes for 1, 2, 3, 4 and 6 SIMON 500 modules (100x50). After using adapters for K45 modules, it is possible to mount from 2 to 12 modules in size 45x45mm.

The flush-mounted box has holes in the corners that allow it to be used as a template to prepare an appropriate mounting hole in the wall.\

The flush-mounted box has a cardboard cover protecting the inside of the housing during finishing works.

Cable grommets: perforated, in the bottom, diameter 20/25 mm.

Halogen free

Yes
Color

Blue
Material

Plastic
Cover

NO
Family

Simon 500
Width [mm]

141
Height [mm]

73
Mounting dimensions [mm]

75×143
Number of segments

1 2
Number of slots

6
PKWIU

27.12.40.0

Depth [mm]

50
Shape

Rectangular
Installation

Flush-mounted
Type

For plasterboards
Level of security

IP40
Type

For attachments
Accurate color

Blue transparent
Fire resistance

Not applicable
For modular equipment

K45 Simon 500
Number of SIMON 500 modules

1

Other technical data

Mounting method

Flush-mounted
For number of electric fittings

2
Surface protection

Untreated

Shape

Rectangular
Material

Plastic
Colour

Blue

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,136	0,136	0,136
Width (m)	-	-	0,092
Length (m)	0,141	-	0,164
Depth (m)	0,050	-	0,062
