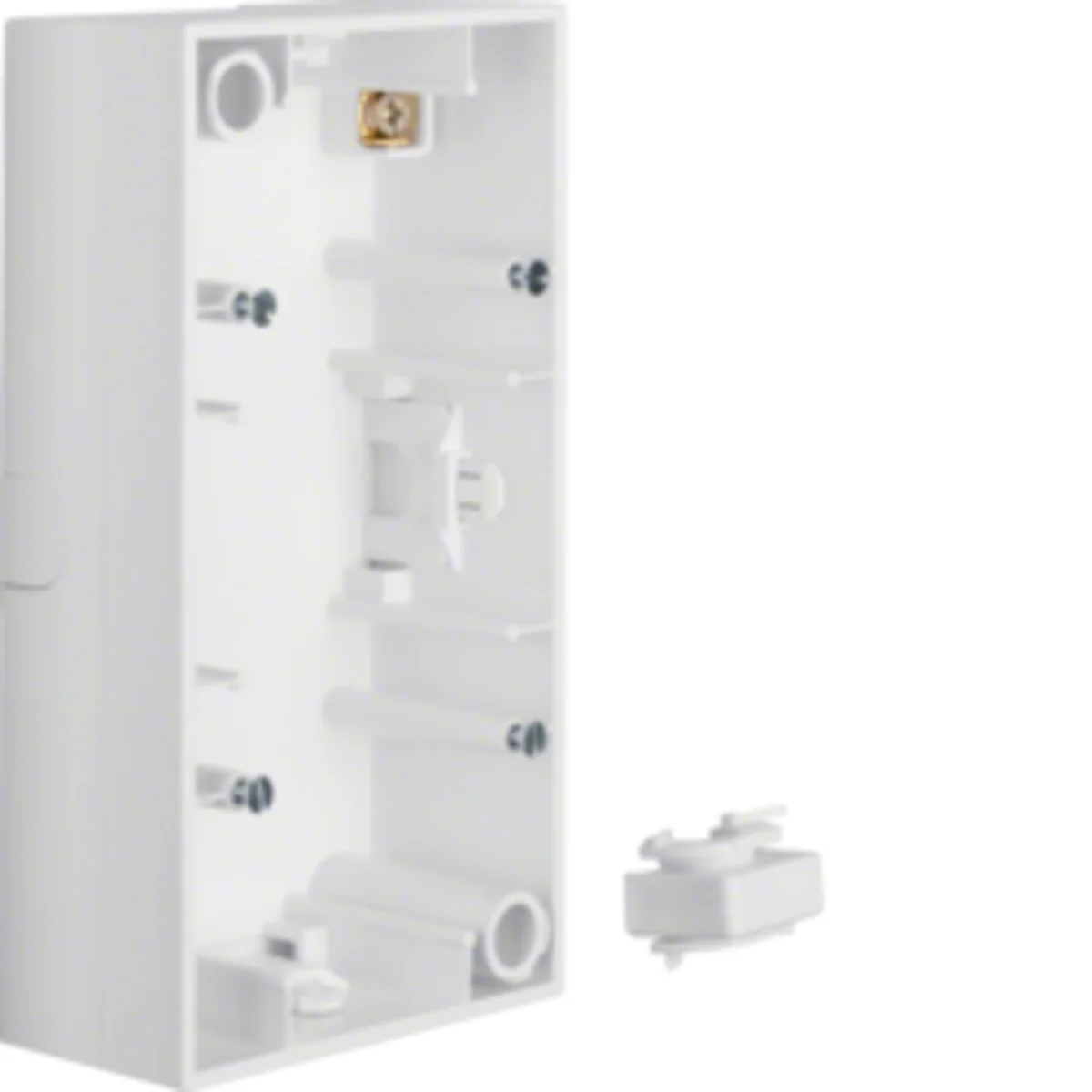

S.1 Surface-mounted double-gloss snow-white box 10428989

Índice local:
MVN040BERK
Número de catálogo:
10428989
Código EAN:
4011334278962
Fabricante: BERKER
Halogen free: Yes
Depth [mm]: 42
Color: White
Precio:
98,93 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Surface-mounted 2-gang box from the Berker S.1 series, with the following features:

  • Mounting depth: 37 mm,< /li>
  • Entries: cable entry possible from the top, bottom and in the middle of each side,
  • Cable: with cable and conduit entry,
  • Mounting type: suitable for mounting on a flammable surface; for vertical and horizontal installation,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Datos técnicos

  • Halogen free
    Yes
  • Color
    White
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    S.1
  • Width [mm]
    154
  • Height [mm]
    83
  • Accurate color
    Snow white
  • Mounting direction
    Universal
  • For modular equipment
    Not applicable
  • Number of slots
    4
  • Depth [mm]
    42
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface finish
    Shiny
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0

Otros datos técnicos

  • Assembly arrangement
    Surface mounted box
  • Suitable for modular domestic switching devices
    No
  • Number of units
    2
  • Shape
    Rectangular
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • With cover frame
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Inlet from the rear
    No
  • Number of earthing terminals
    1
  • Degree of protection (IP)
    IP20
  • Height
    92.7 mm
  • Compliant with BS 4662
    No
  • Suitable for mounting over existing flush-mounted box
    No
  • Number of modules (module system)
    0
  • Mounting direction
    Horizontal
  • Desktop device
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Cross-trunking mounting
    No
  • With cable entry
    Yes
  • With installation tube entry
    Yes
  • Number of inlets
    4
  • Shock resistant
    No
  • Width
    153 mm
  • Depth
    41.3 mm

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 5 uds. 20 uds. 640 uds.
Peso (kg) 0,648 2,980 120,360
Ancho (m) 0,180 0,300 0,800
Longitud (m) 0,090 0,220 1,050
Profundidad (m) 0,230 0,400 1,200
