S.1 Single surface-mounted box, anthracite 10419949
local index:
MVN031BERK
Catalog No:
10419949
EAN code:
4011334360476
Price:
60,23 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

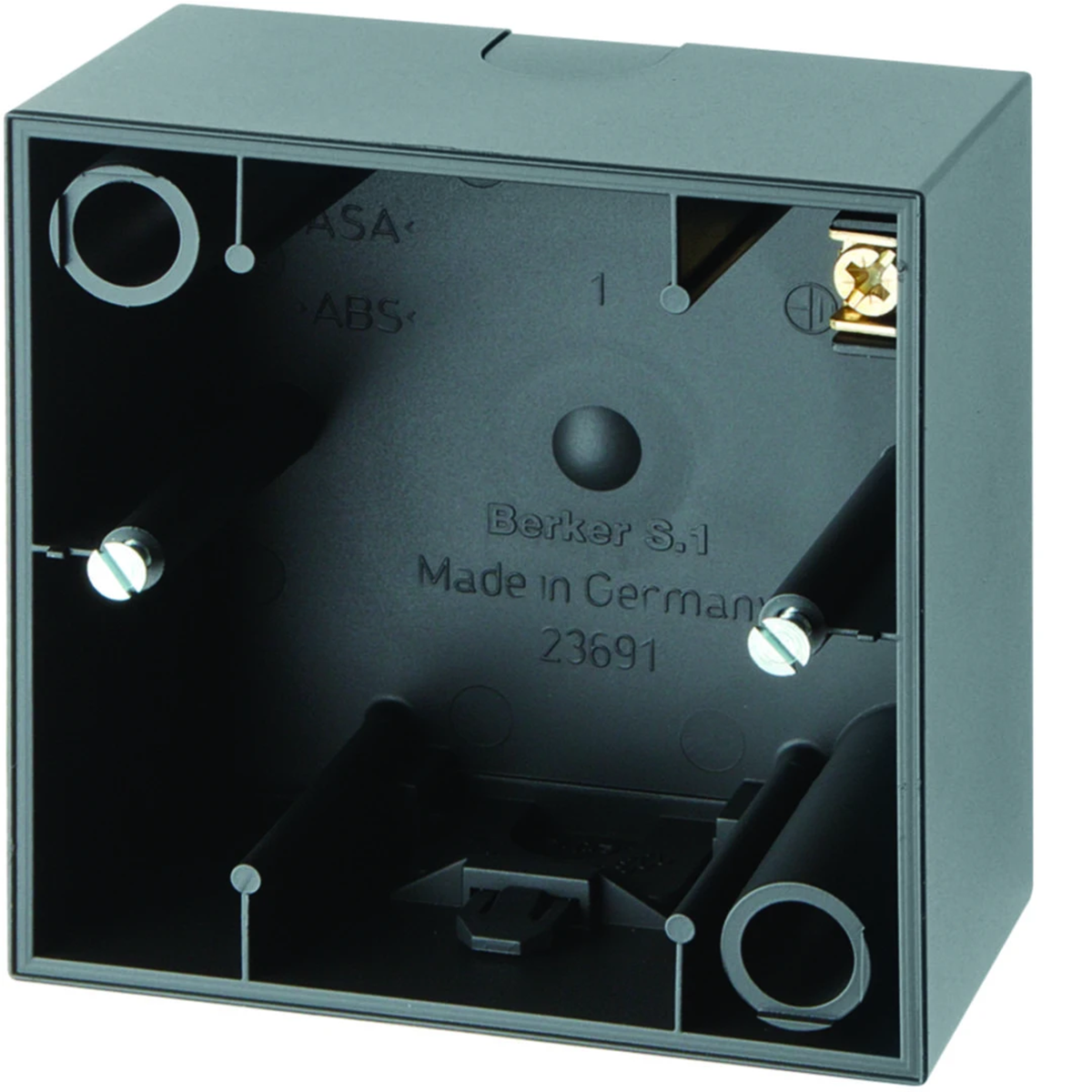

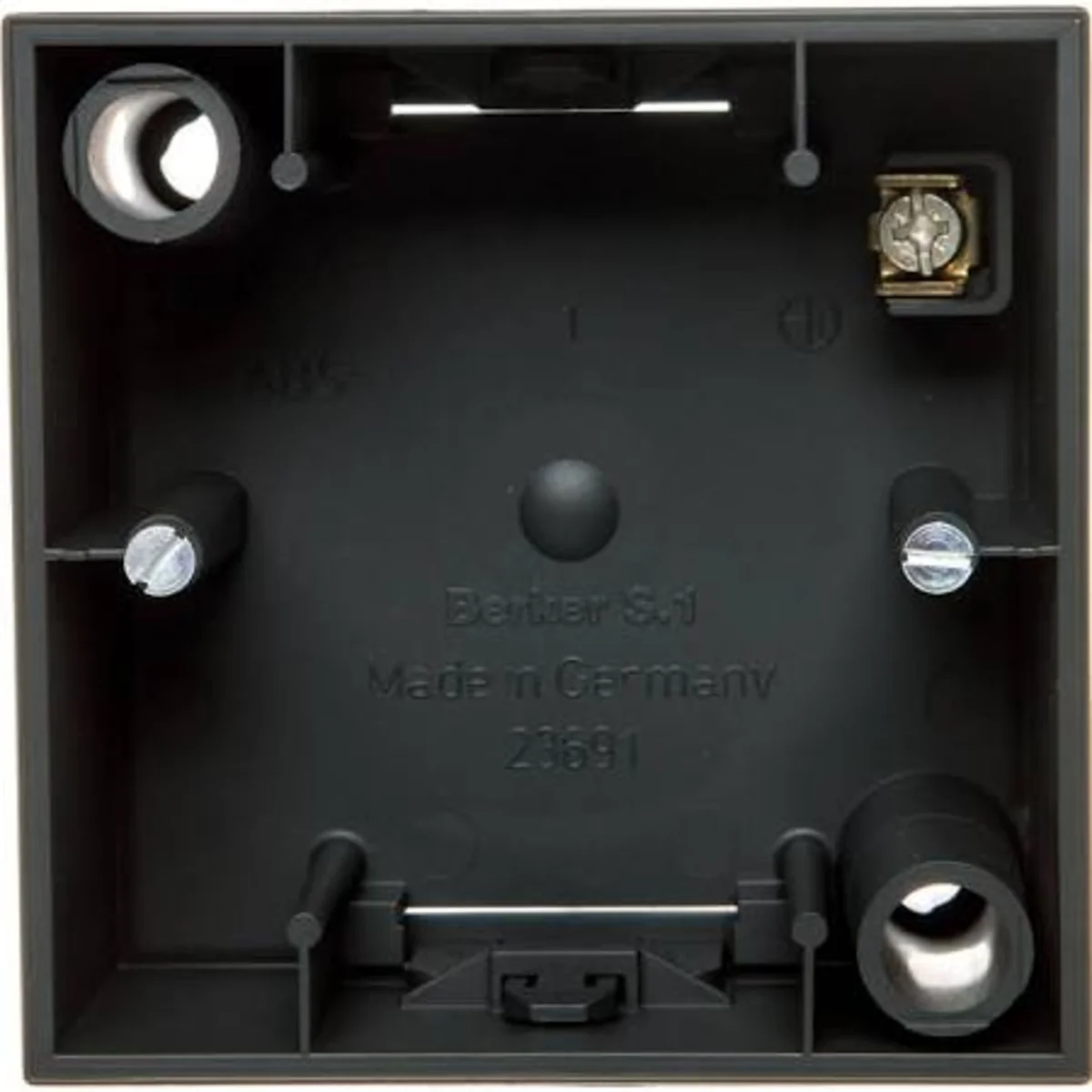

Surface-mounted 1-gang box from the Berker S.1 series, with the following features:
- Mounting depth: 37 mm,< /li>
- Entries: cable entry possible from above and below,
- Cable: with cable and conduit entry,
- Mounting type: suitable for mounting on flammable surfaces; for vertical and horizontal installation,
- Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.
Technical data
-
Halogen freeYes
-
ColorGraphite
-
MaterialThermoplastic
-
CoverNO
-
FamilyS.1
-
Width [mm]83
-
Height [mm]83
-
Accurate colorAnthracite
-
Mounting directionUniversal
-
For modular equipmentNot applicable
-
Number of slots2
-
Depth [mm]42
-
ShapeSquare
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface finishmatte
-
Fire resistanceNot applicable
-
Number of segments1
-
With terminal stripNO
-
PKWIU27.12.40.0
Other technical data
-
Suitable for mounting over existing flush-mounted boxNo
-
Number of modules (module system)0
-
Mounting directionHorizontal
-
MaterialPlastic
-
Halogen freeYes
-
ColourAnthracite
-
TransparentNo
-
Cross-trunking mountingNo
-
With cable entryYes
-
With installation tube entryYes
-
Number of inlets2
-
Inlet from the rearNo
-
Number of earthing terminals1
-
Diameter83 mm
-
Device width83 mm
-
Device depth42 mm
-
Suitable for modular domestic switching devicesNo
-
Number of units1
-
Desktop deviceNo
-
Material qualityThermoplastic
-
Surface finishingMatt
-
RAL-number (similar)7021
-
With cover frameNo
-
With duct entryYes
-
With screw gland entryNo
-
Shock resistantNo
-
Degree of protection (IP)IP20
-
Width92.5 mm
-
Height82.7 mm
-
Depth41.4 mm
-
Device height83 mm
-
Compliant with BS 4662No
Manufacturer details
-
ManufacturerBerker GmbH & Co. KG.
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 10 pcs. | 20 pcs. | 640 pcs. |
| Weight (kg) | 0,800 | 1,600 | 51,200 |
| Width (m) | 0,190 | 0,300 | 0,800 |
| Length (m) | 0,130 | 0,220 | 1,050 |
| Depth (m) | 0,270 | 0,400 | 1,200 |
