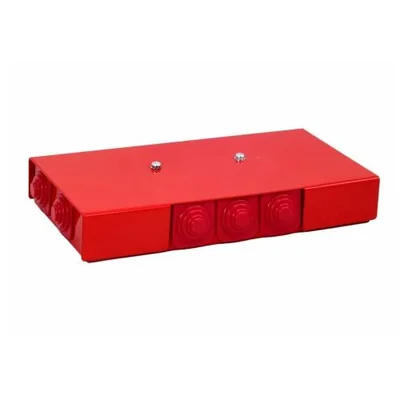

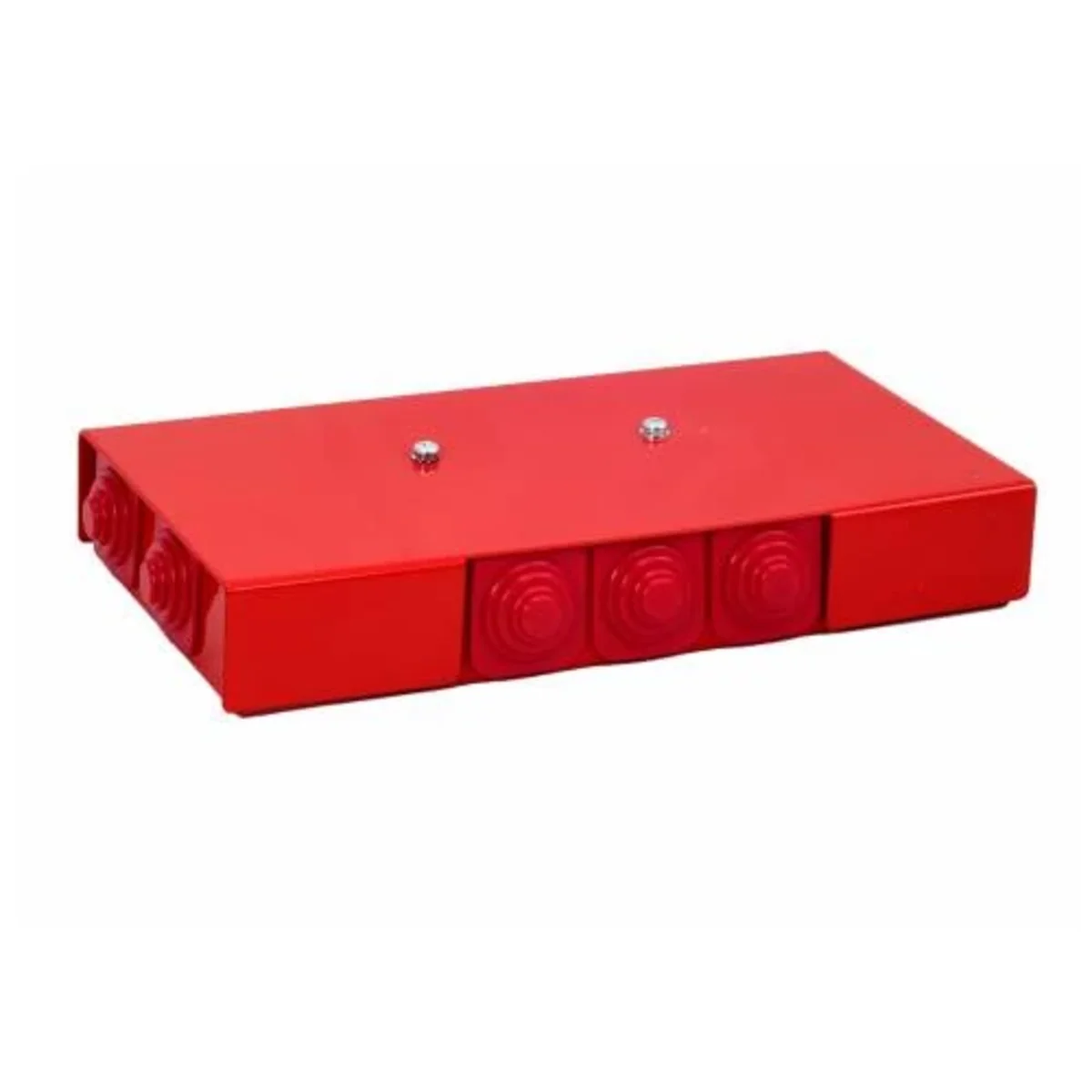

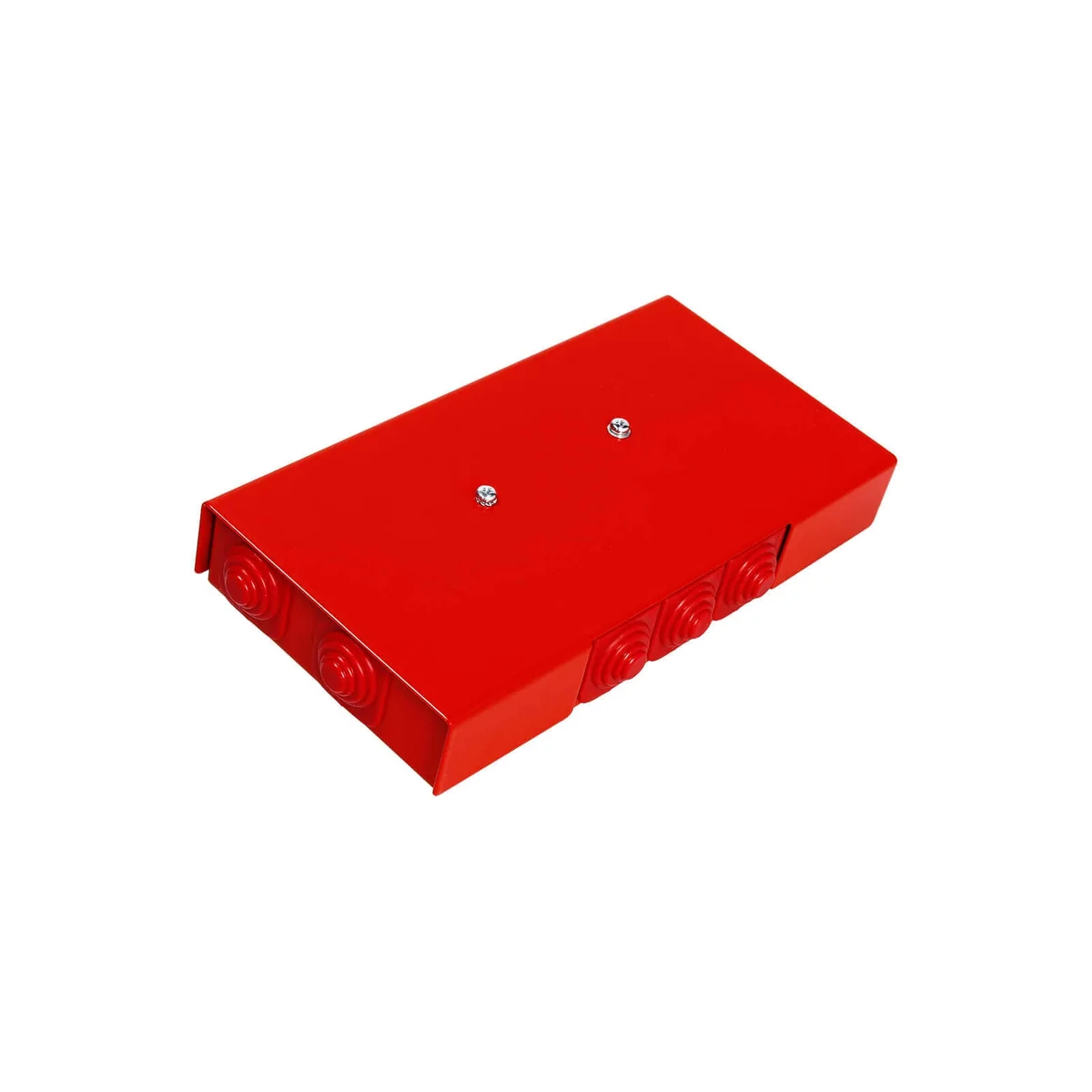

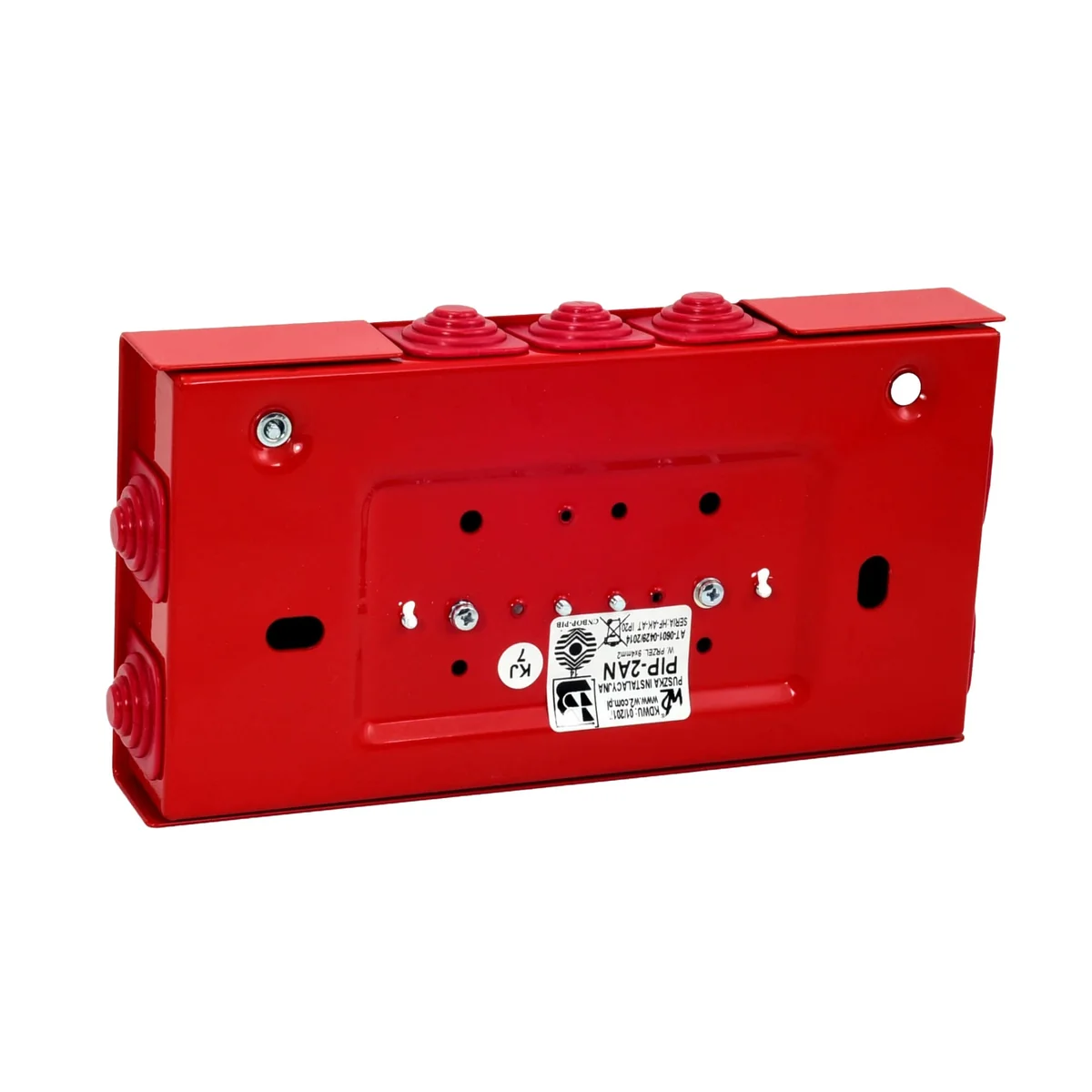

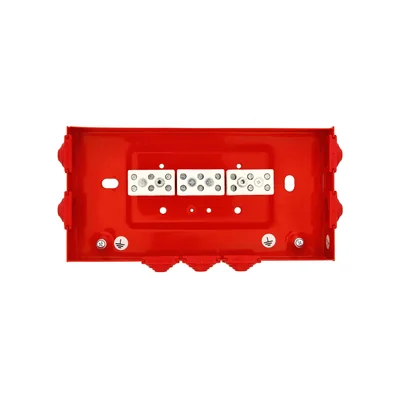

Rectangular fire protection box E90 pass-through 3x3x4mm2 103x30x197mm red 84622626

local index:
MVN035SIME
Catalog No:
84622626
EAN code:
5907813229954
Manufacturer: SIMET
Depth [mm]: thirty
Color: Red
Shape: Rectangular
Price:
37,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Box used in fire alarm systems. It has E90 fire resistance. Intended for connecting signaling devices as well as loudspeakers, wired broadcasting systems, smoke dampers, etc.. It is characterized by a straight and angular way of routing the signaling line. The purpose of the box is to ensure the continuity of the signal line after the signaling device burns out and to prevent the signaling devices located outside the fire zone from being disabled.

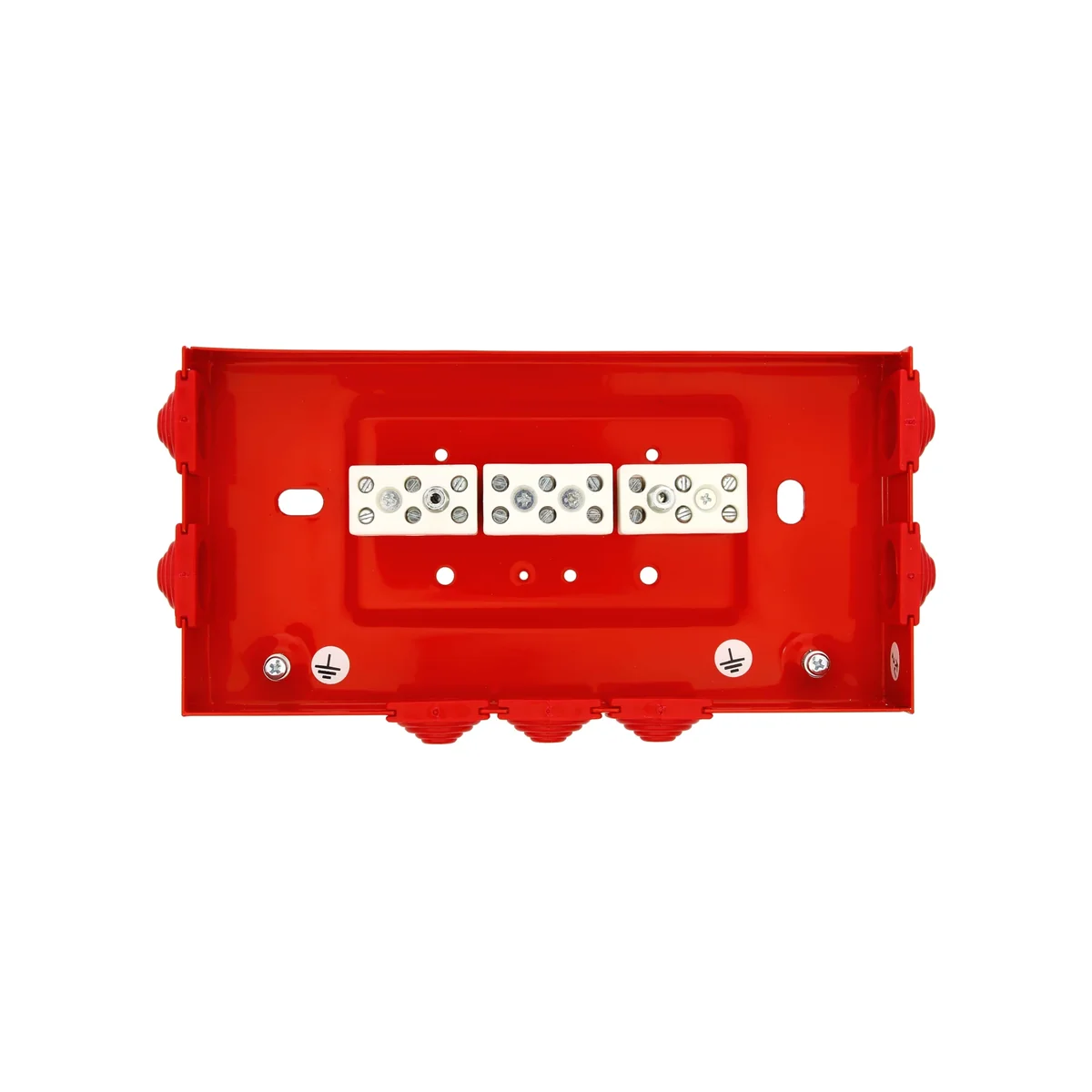

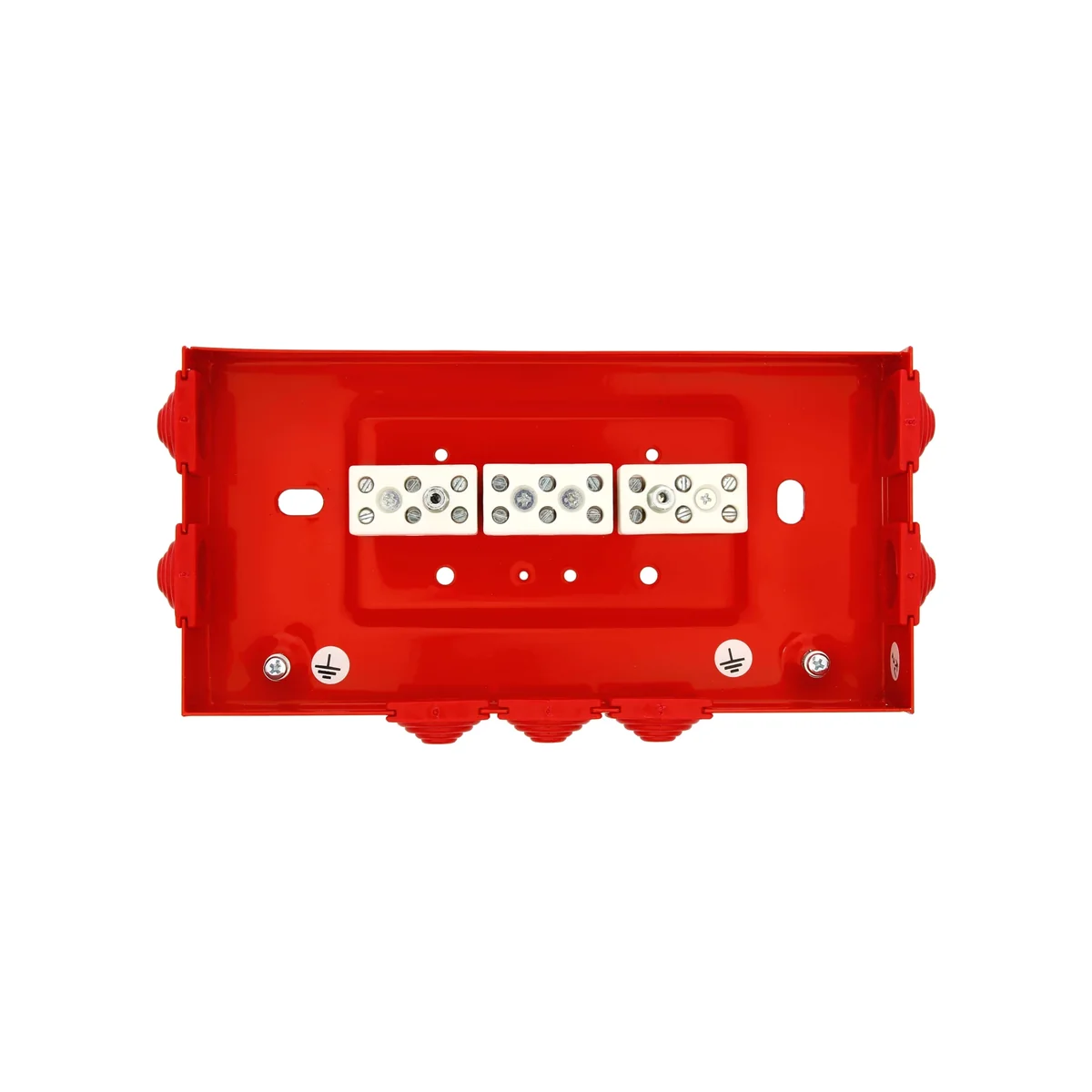

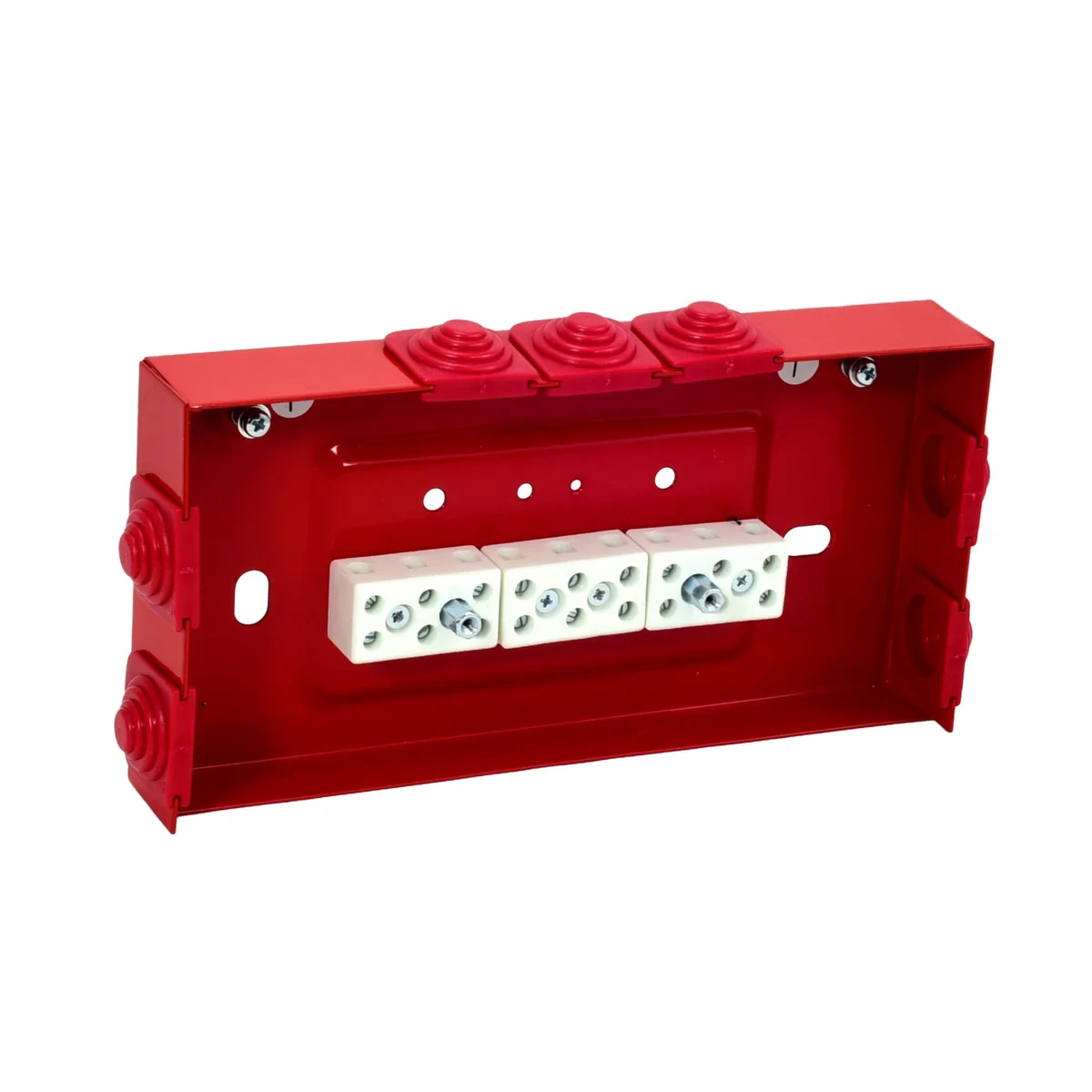

  • Powder coated sheet metal, culverts made of flame retardant material.

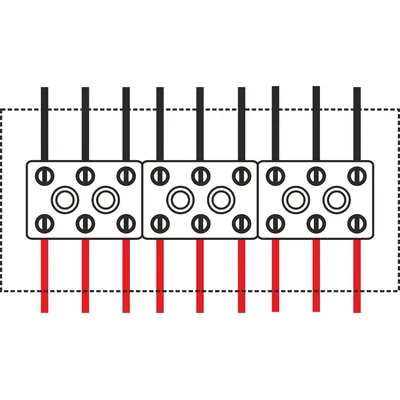

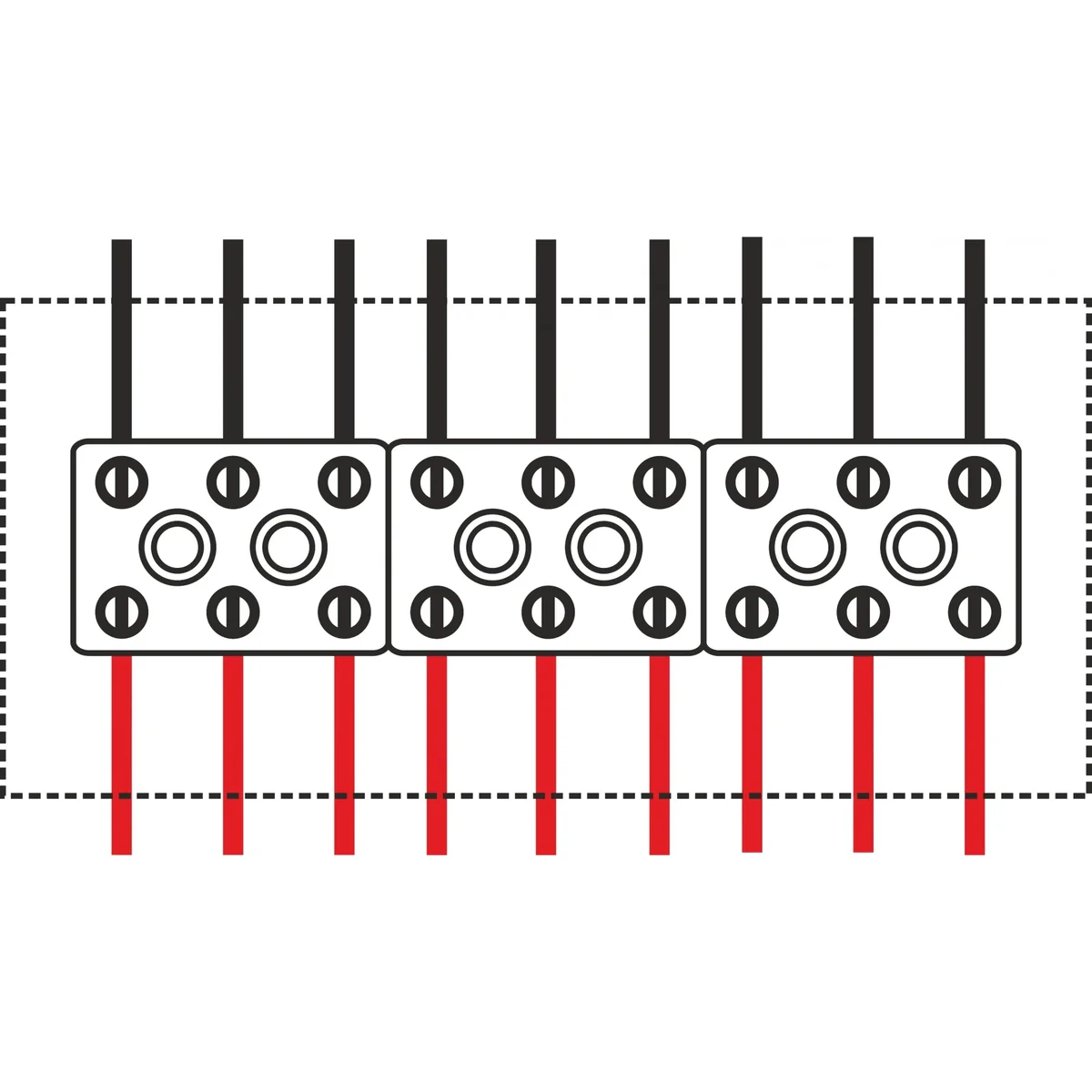

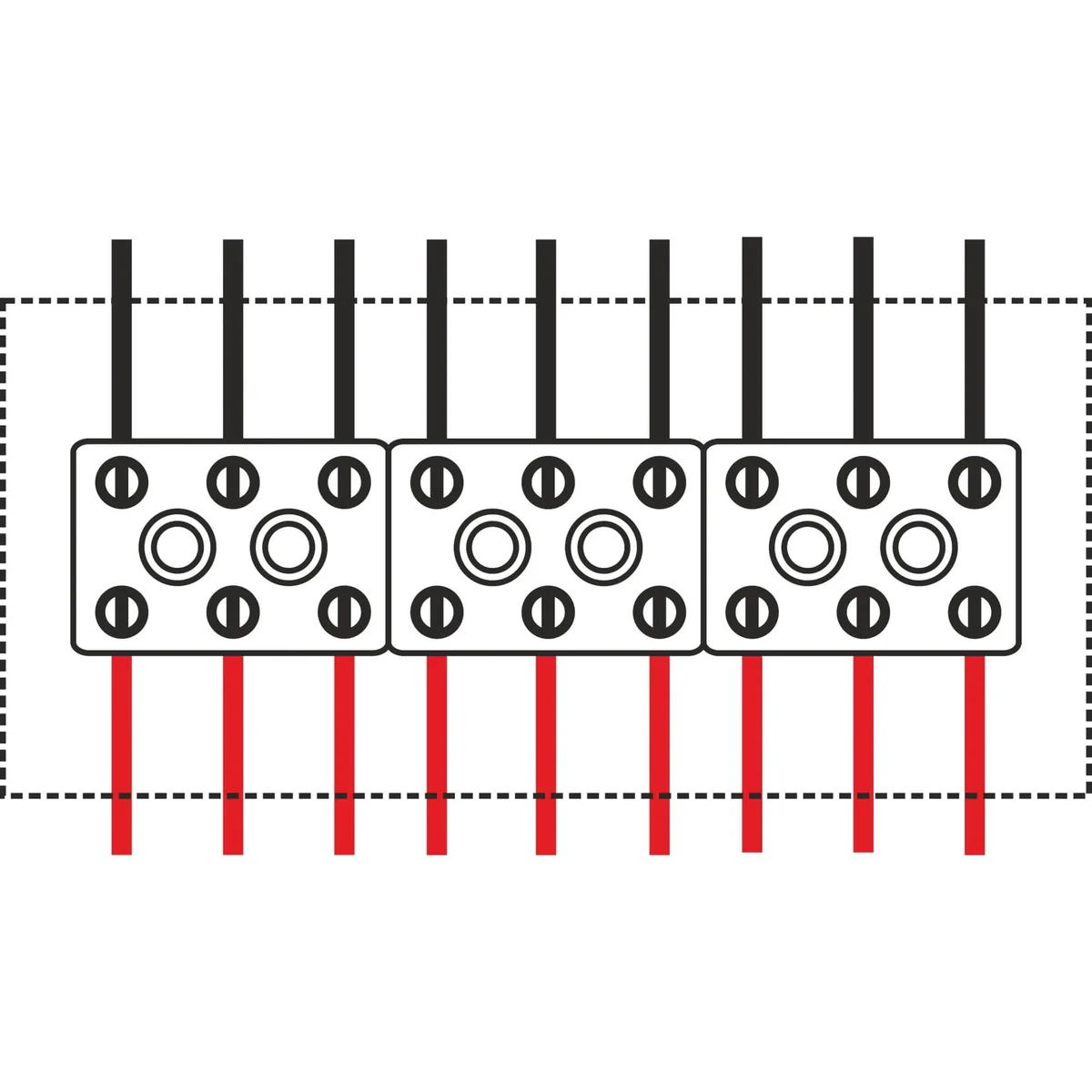

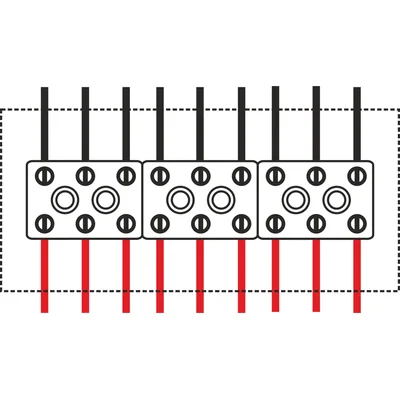

  • 3 3-pole terminal blocks 4mm².
  • 9x4mm².

Technical data

  • Depth [mm]
    thirty
  • Shape
    Rectangular
  • Material
    Steel plate
  • Rated voltage [V]
    400
  • Rated current [A]
    32
  • Level of security
    IP20
  • Type
    branching
  • Fire resistance
    Non-flammable
  • With terminal strip
    Yes
  • Color
    Red
  • Maximum conductor cross-section [mm²]
    4
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    197
  • Height [mm]
    103
  • For modular equipment
    Not applicable
  • PKWIU
    25.91.12.0
