Q.3/S.1 Single surface-mounted box, matt, snow-white 10419909
local index:
MVN029BERK
Catalog No:
10419909
EAN code:
4011334230618
Price:
11,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

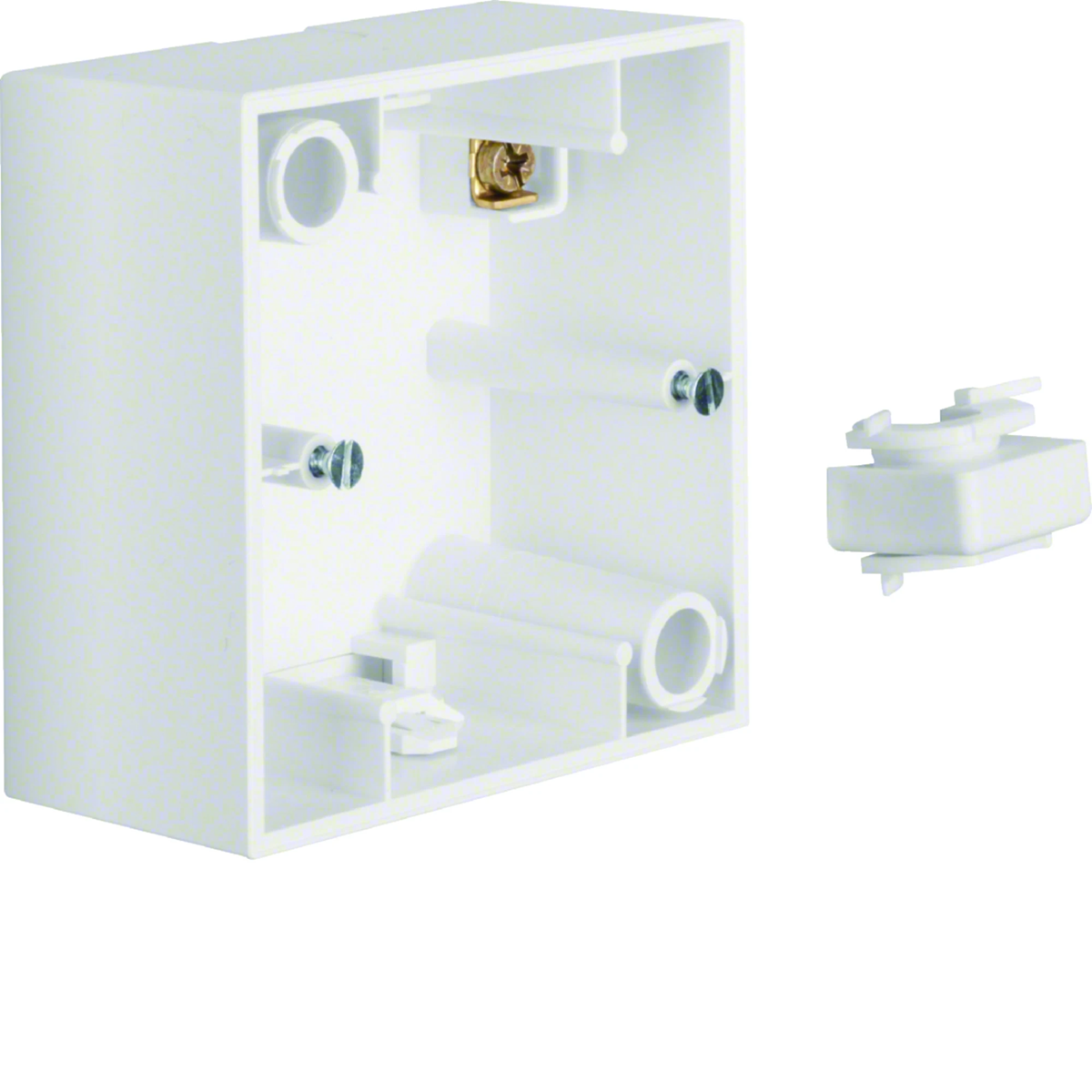

Surface-mounted 1-gang box from the Berker Q.3/S.1 series, with the following features:
- Installation depth: 37 mm,
- Entry: cable entry possible from above and below,
- Cable: with cable and conduit entry,
- Type of mounting: suitable for mounting on flammable surfaces; for vertical and horizontal installation,
- Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.
Technical data
-
Halogen freeYes
-
ColorWhite
-
MaterialThermoplastic
-
CoverNO
-
FamilyQ.3 S.1
-
Width [mm]83
-
Height [mm]83
-
Accurate colorSnow white
-
Mounting directionUniversal
-
For modular equipmentNot applicable
-
Number of slots2
-
Depth [mm]42
-
ShapeSquare
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface finishmatte
-
Fire resistanceNot applicable
-
Number of segments1
-
With terminal stripNO
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementSurface mounted box
-
Number of modules (module system)0
-
Mounting directionHorizontal and vertical
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With duct entryYes
-
With screw gland entryNo
-
Device width83 mm
-
Device depth42 mm
-
Suitable for modular domestic switching devicesNo
-
Number of units1
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9010
-
With cover frameNo
-
With cable entryYes
-
Degree of protection (IP)IP20
-
Device height83 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 20 pcs. | 640 pcs. |
| Weight (kg) | 0,072 | 0,835 | 2,098 | 87,119 |
| Width (m) | 0,083 | 0,190 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,135 | 0,225 | 1,050 |
| Depth (m) | 0,083 | 0,275 | 0,400 | 1,200 |
