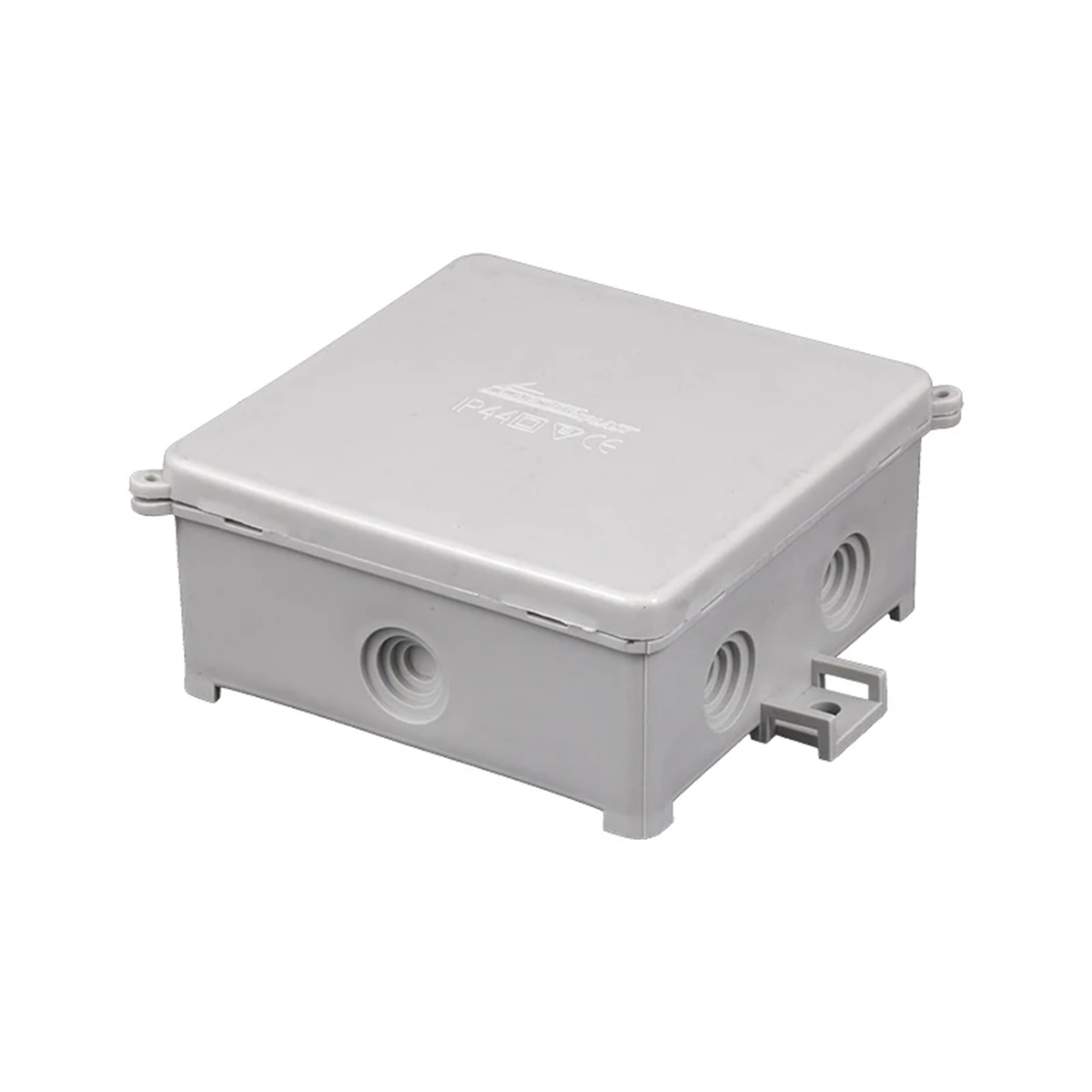

PIN Installation box PIN 80/S 80x80mm grey 31.81
local index:
MVN034ELOP
Catalog No:
31.81
EAN code:
5905548283715
Price:
0,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Installation box surface-mounted with 6 integrated cable glands for cables with a diameter of 6 - 16 mm.
Technical data
-
Halogen freeYes
-
ColorGray
-
MaterialPlastic
-
Rated voltage [V]230/400
-
CoverYes
-
FamilyPIN
-
Width [mm]80
-
Height [mm]80
-
Operating temperature range [°C]-25 to +60
-
Fire resistanceNot applicable
-
With terminal stripNO
-
Groove diameter [mm]6-16
-
Depth [mm]41
-
ShapeSquare
-
InstallationSurface-mounted
-
Rated insulation voltage [V]500
-
TypeWall-mounted
-
Level of securityIP44
-
Typebranching
-
Surface protectionNatural
-
Maximum conductor cross-section [mm²]4
-
For modular equipmentNot applicable
-
Number of stuffing boxes6
-
PKWIU27.33.13.0
Other technical data
-
Max. conductor cross section4 mm²
-
ShapeSquare
-
Mounting in the soilNo
-
For tube diameter16/19 mm
-

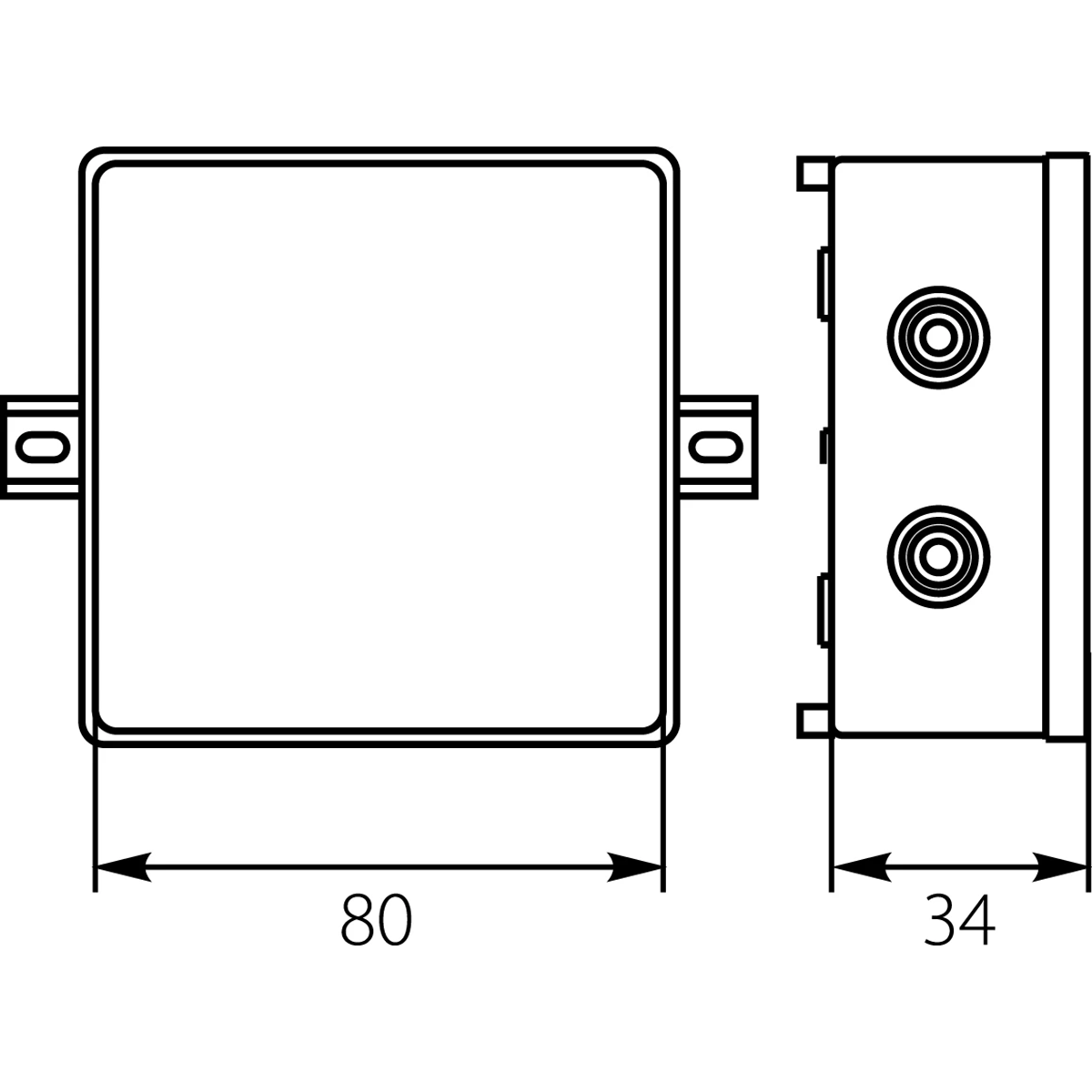

Length80 mm
-
Depth34 mm
-
TackableNo
-
Type of housing feed-throughSeal membrane
-
Halogen freeYes
-
ColourGrey
-
Degree of protection (NEMA)2
-
Transparent coverNo
-
CastableNo
-
SealableYes
-
Circuit integrityNone
-
WeatherproofNo
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
Equipped withNone
-
Mounting methodWall-/ceiling mounting
-
Mounting under waterNo
-
Inlet from the rearNo
-
Width80 mm
-
Diameter0 mm
-
Number of inlets6
-
MaterialPlastic
-
Surface protectionUntreated
-
Degree of protection (IP)IP44
-
Cover modelBlind cover
-
Cover attachmentSnapped on
-
With casting compoundNo
-
Rated insulation voltage Ui500 V
-
With screeningNo
-
Operating temperature-25 ... 60 °C
-
For Ex-zone gasNone
Manufacturer details
-
ManufacturerELEKTRO-PLAST Opatówek Sp.z o.o.
-
Address62-860 Opatówek Rogatka 14
-
Phone number
-
E-mail
-
Tax identification number9680893101
-
GLN5909000637801
