el12 Electrical equipment Electrical boxes Surface-mounted boxes

PIN Installation box PIN 100/B 100x100mm white 31.100

local index:
MVN033ELOP
Catalog No:
31.100
EAN code:
5905548283746

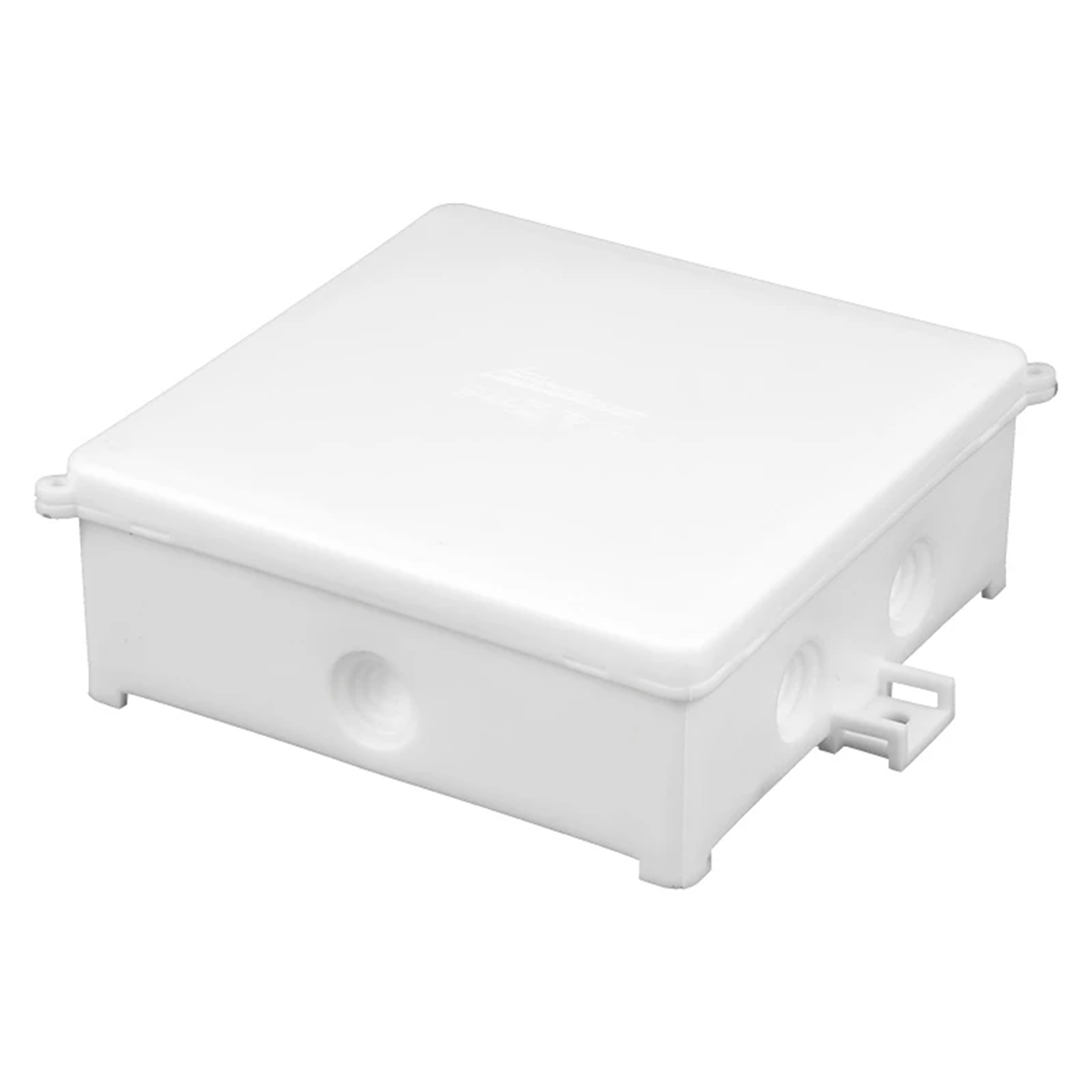

PIN Installation box PIN 100/B 100x100mm white
PIN Installation box PIN 100/B 100x100mm white

Click on the photo to enlarge

Manufacturer: ELEKTRO-PLAST OPATÓWEK
Halogen free: Yes
Depth [mm]: 41
Color: White
See full description
Price:
1,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Installation box surface-mounted with 6 integrated cable glands for cables with a diameter of 6 - 16 mm.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230/400
  • Cover
    Yes
  • Family
    PIN
  • Width [mm]
    100
  • Height [mm]
    100
  • Operating temperature range [°C]
    -25 to +60
  • Fire resistance
    Not applicable
  • With terminal strip
    NO
  • Groove diameter [mm]
    6-16
  • Depth [mm]
    41
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated insulation voltage [V]
    500
  • Type
    Wall-mounted
  • Level of security
    IP44
  • Type
    branching
  • Surface protection
    Natural
  • Maximum conductor cross-section [mm²]
    4
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    6
  • PKWIU
    27.33.13.0

Other technical data

  • Max. conductor cross section
    4 mm²
  • Shape
    Square
  • Mounting in the soil
    No
  • For tube diameter
    16/19 mm
  • Length
    100 mm
  • Depth
    34 mm
  • Tackable
    No
  • Type of housing feed-through
    Seal membrane
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (NEMA)
    2
  • Transparent cover
    No
  • Castable
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Equipped with
    None
  • Mounting method
    Wall-/ceiling mounting
  • Mounting under water
    No
  • Inlet from the rear
    No
  • Width
    100 mm
  • Diameter
    0 mm
  • Number of inlets
    6
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP44
  • Cover model
    Blind cover
  • Cover attachment
    Snapped on
  • With casting compound
    No
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 60 °C
  • For Ex-zone gas
    None
