PF 6-inlet surface-mounted box with rubber glands 86x86x40mm IP55 cover for 2 screws with terminals gray 022-53

Index local:
MVN032VIPL
Numéro de catalogue:
022-53
Code EAN:
5906365206086
Producteur: VIPLAST
Depth [mm]: 40
Color: Gray
Shape: Square
Prix:
9,78 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

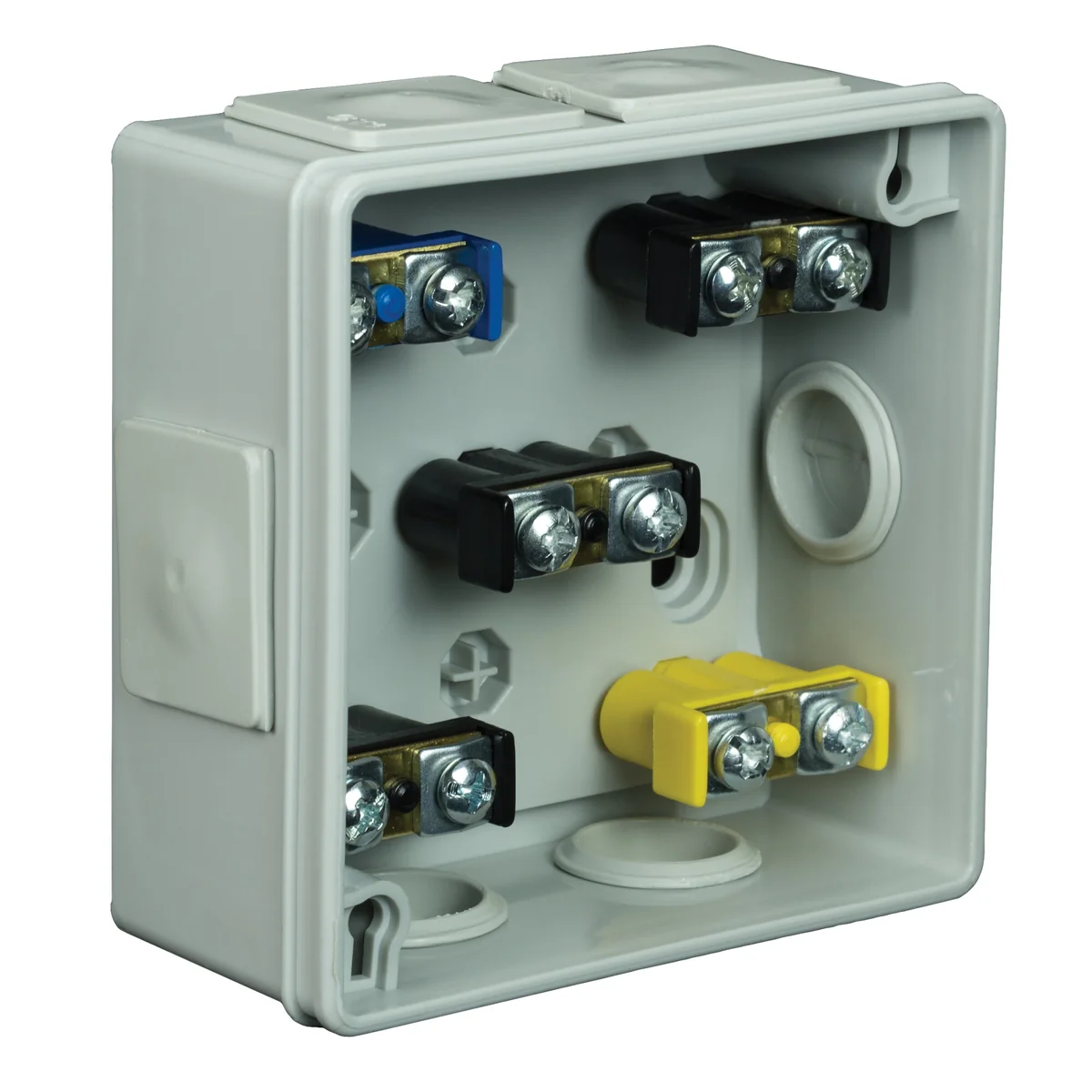

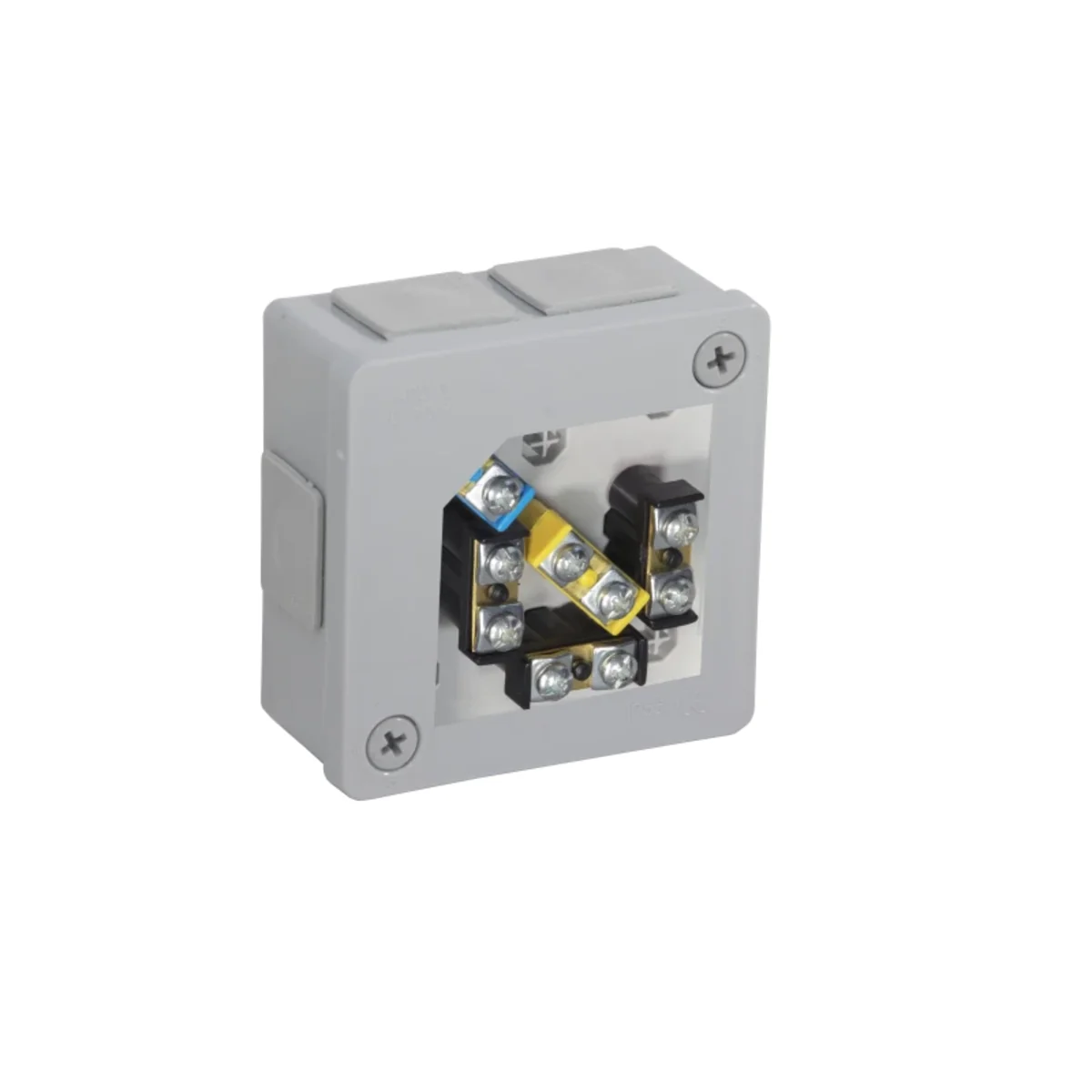

PF surface-mounted box, size 86x86x40mm, IP55 protection, 6-inlet with rubber glands (threadless). It is equipped with a cover for 2 screws and 1-4mm² terminals. In grey.

Données techniques

  • Depth [mm]
    40
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Family
    PF
  • Width [mm]
    86
  • Height [mm]
    86
  • Accurate color
    Ash
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    6
  • Terminals [mm²]
    1-4
  • Color
    Gray
  • Material
    PP PVC
  • Rated voltage [V]
    400
  • Type
    Wall-mounted
  • Level of security
    IP55
  • Type
    branching
  • Degree of mechanical protection
    IK07
  • Fire resistance
    Not applicable
  • With terminal strip
    Yes
  • Stuffing box type
    Membrane

Détails du fabricant

  • Producteur
    ViPlast Sp.z o.o.
  • Adresse
    41-503 Chorzów Azotowa 21 Polska

Emballage en vrac

Une sorte de paquet Karton Karton
Quantité 1 pcs. 10 pcs. 50 pcs.
poids (kg) 0,101 - -
Largeur (m) 0,086 - -
Longueur (m) 0,086 - -
Profondeur (m) 0,040 - -
