PF 12-inlet surface-mounted box with knockouts 86x86x40mm IP55 click-clack cover white 003-01

local index:
MVN014VIPL
Catalog No:
003-01
EAN code:
5906365207724
Manufacturer: VIPLAST
Depth [mm]: 40
Color: White
Shape: Square
Price:
1,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 257 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

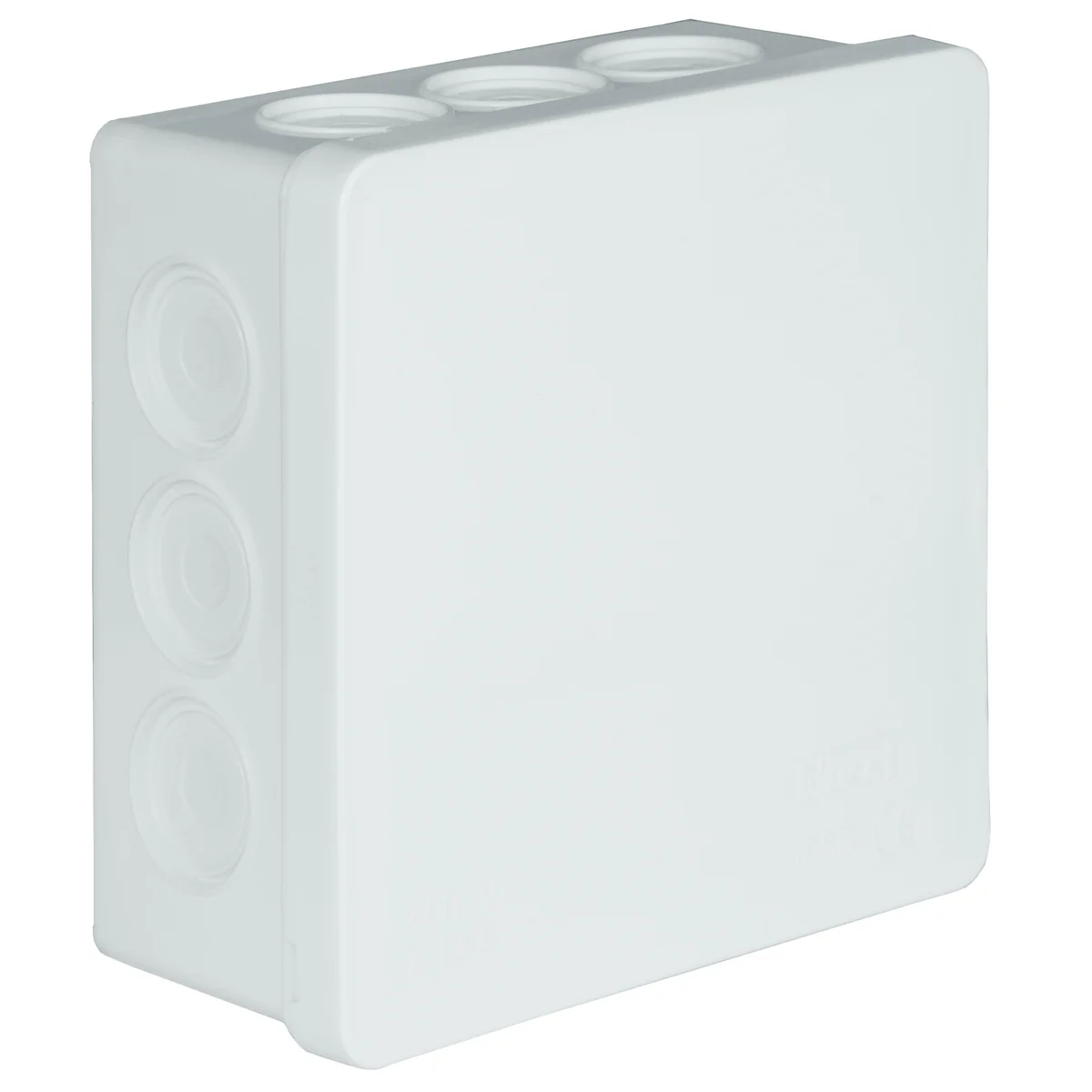

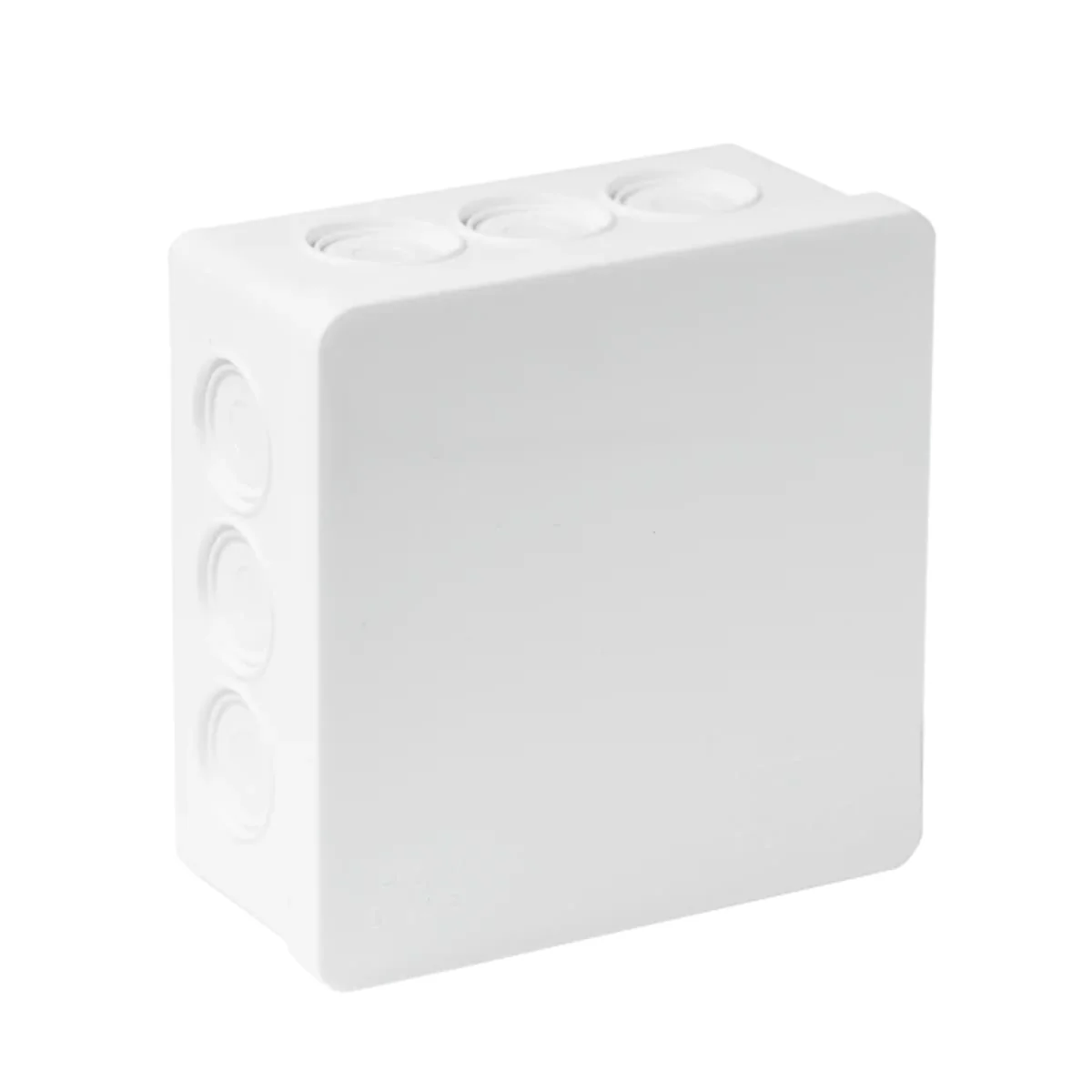

PF surface-mounted box, size 86x86x40mm, with IP55 protection, 12-inlets with knockouts; threaded glands can be used. With a lid closed in the click-clack system. In white.

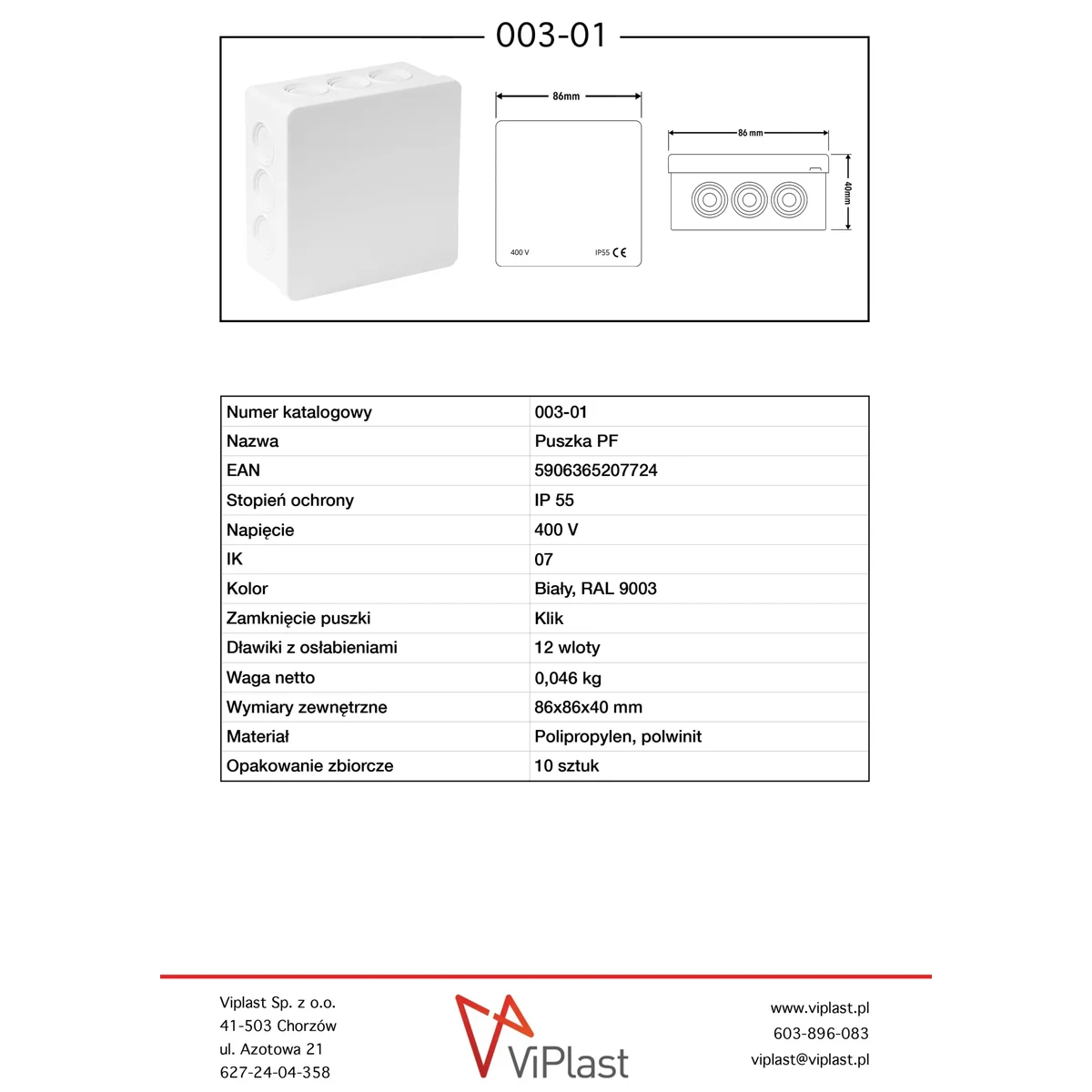

Technical data

  • Depth [mm]
    40
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Family
    PF
  • Width [mm]
    86
  • Height [mm]
    86
  • Fire resistance
    Not applicable
  • With terminal strip
    NO
  • Color
    White
  • Material
    PP
  • Rated voltage [V]
    400
  • Type
    Wall-mounted
  • Level of security
    IP55
  • Type
    branching
  • Degree of mechanical protection
    IK07
  • For modular equipment
    Not applicable
  • Number of slots
    12
