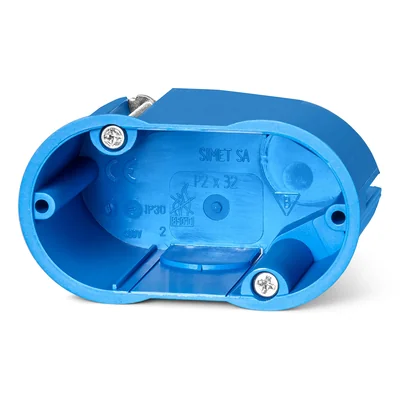

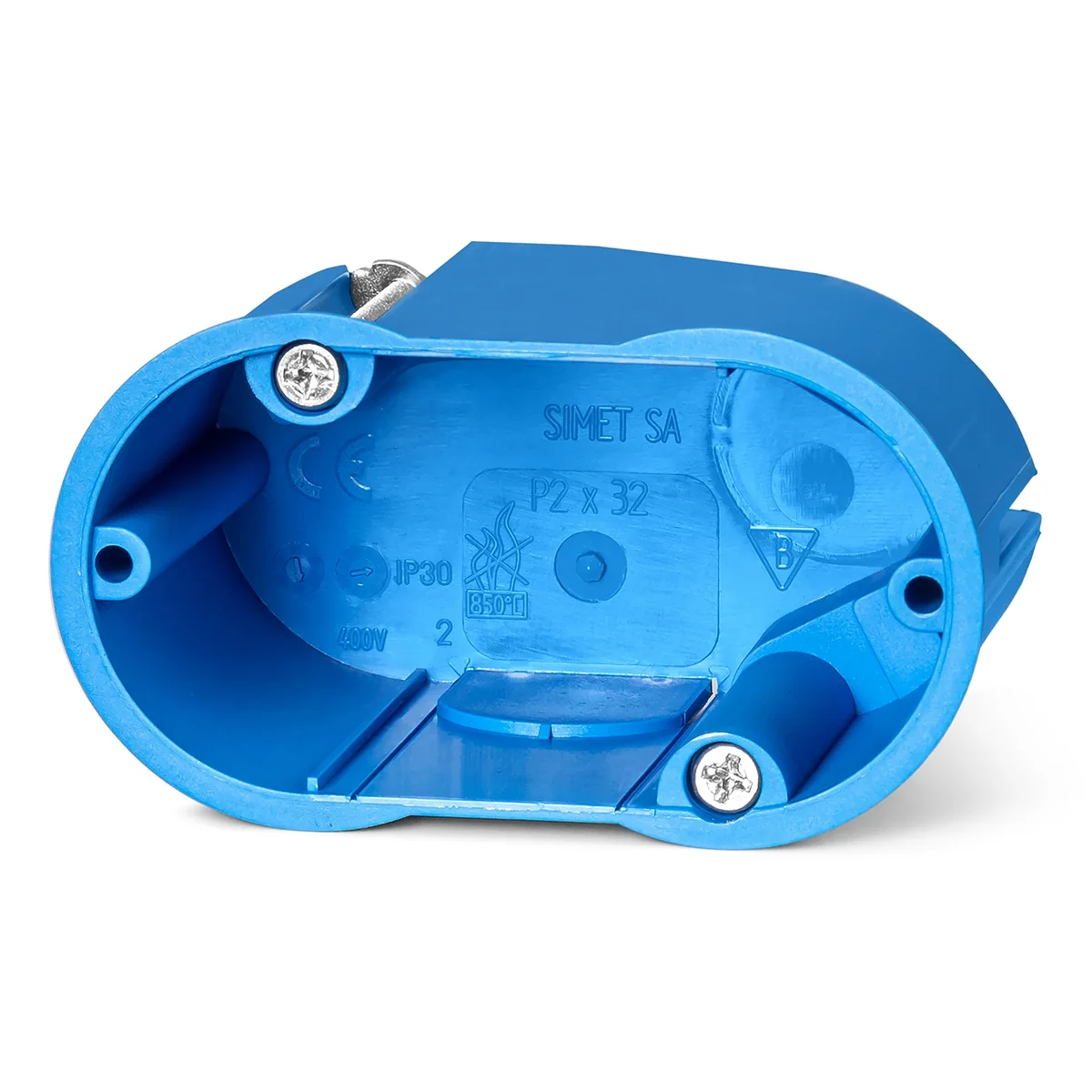

P2x32 fi2x32mm wall lamp installation box for empty walls, blue 32023203

local index:
MVP009SIME
Catalog No:
32023203
EAN code:
5907813229220
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 44
Color: Blue | White
Price:
1,93 €
gross / pcs.
(including VAT 23%)
107,22 € gross/kg.
Delivery in 3h
Accessible 120 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Sconce box – is the smallest of the range of electrical installation boxes. Adapted for installation in plasterboard walls for leading out and branching wires to connect lighting, or leading them outside. It is also used for embedding motion detectors, smoke detectors, cameras, etc.

  • Clips for embedding boxes in gypsum plasterboards, paneling and other walls.
  • 2 knockouts for ø 20 pipe .
  • Press-fitted cover with knock-out for cable entry.

Technical data

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Width [mm]
    38
  • Weight [g]
    18
  • Self-extinguishing
    Yes
  • Number of segments
    2
  • Fire resistance [°C]
    960
  • Number of slots
    2
  • Exact material
    PA6
  • Depth [mm]
    44
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Type
    For attachments
  • Height [mm]
    68
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    35
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Hollow ceiling
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Width
    65 mm
  • For number of electric fittings
    1
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    2
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Snapped on
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Shape
    Oval
  • Model
    Double
  • Diameter
    35 mm
  • Depth
    45 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    20 ... 20 mm
  • Inlet from the rear
    Yes
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
