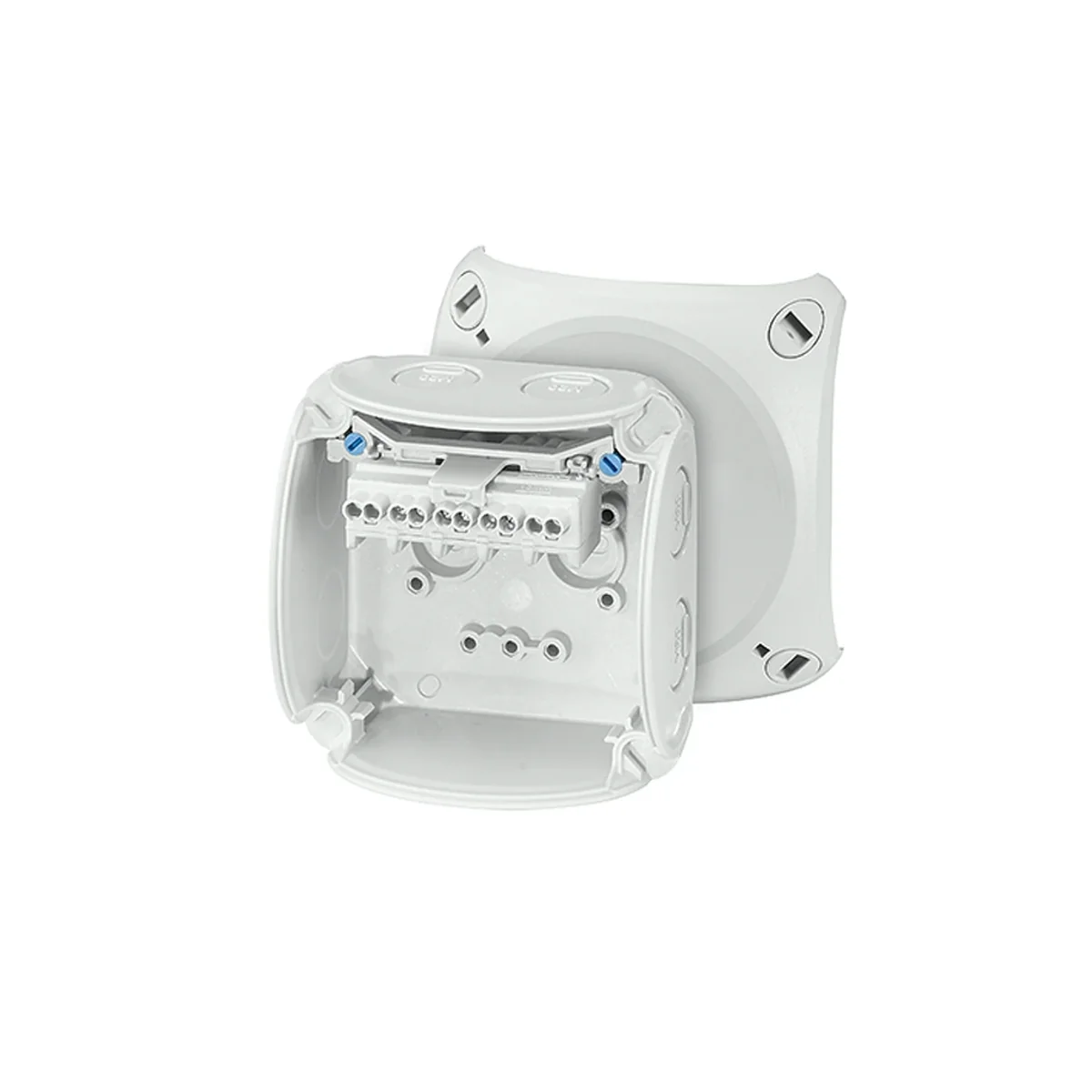

Outdoor box KF 0202 G 93x93x62mm with terminals 5-pole 2.5 mm2 Cu IP66/67/69 gray 62000043

local index:
MVN047HENS
Catalog No:
62000043
EAN code:
4012591121718
Manufacturer: HENSEL
Depth [mm]: 62
Color: Gray
Shape: Square
Price:
21,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Junction box for unshielded outdoor installations

  • 0.75-2.5 mm², Cu 3~
  • Two terminals each per pole
  • For each of 5 poles: 8 x 0.75 mm² f, 6x1.5mm² r/f, 4x2.5mm² r/f, 2x4mm² r / f
  • With metric ribs in the sidewalls
  • Resistance to UV radiation, precipitation, temperature, mechanical impacts
  • Resistance to sea water
  • Can be used on quays and ships
  • Sealable lid without additional accessories
  • Protection rating:
    • IP 66 / IP 67 / IP 69< /li>
    • IP 67, immersion up to 1 m max. 15 min.
    • IP 69, water pressure: max. 100 bar, water temperature: max. 80°C, distance => 0.15m

Technical data

  • Depth [mm]
    62
  • Shape
    Square
  • Tightening torque [Nm]
    0.5
  • Rated insulation voltage [V]
    690
  • Rated current [A]
    20
  • Level of security
    IP66 IP67 IP69
  • Type
    branching
  • Fire resistance
    Not applicable
  • With terminal strip
    Yes
  • Color
    Gray
  • Material
    PC
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    93
  • Height [mm]
    93
  • For modular equipment
    Not applicable
  • Terminals [mm²]
    0.75-2.5
