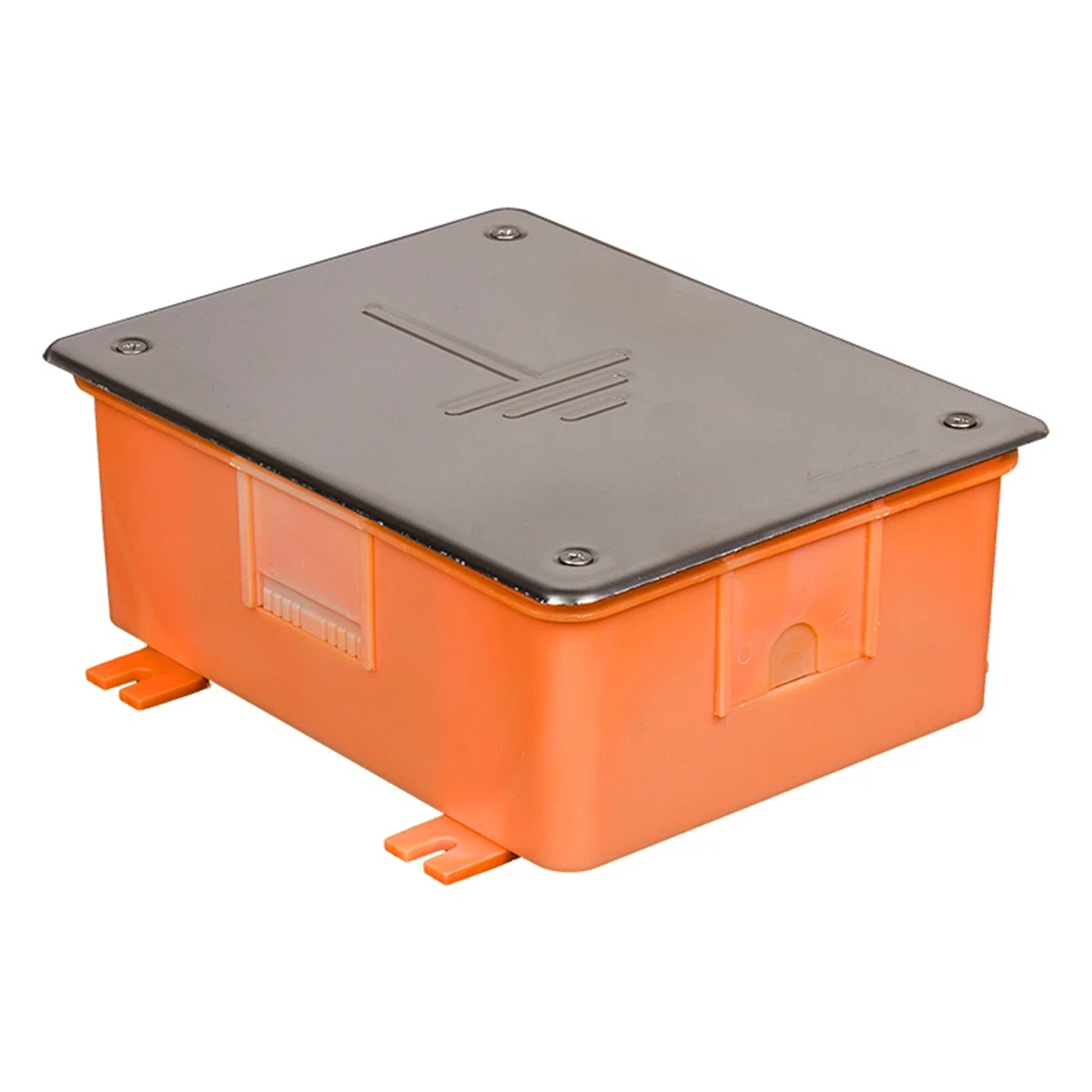

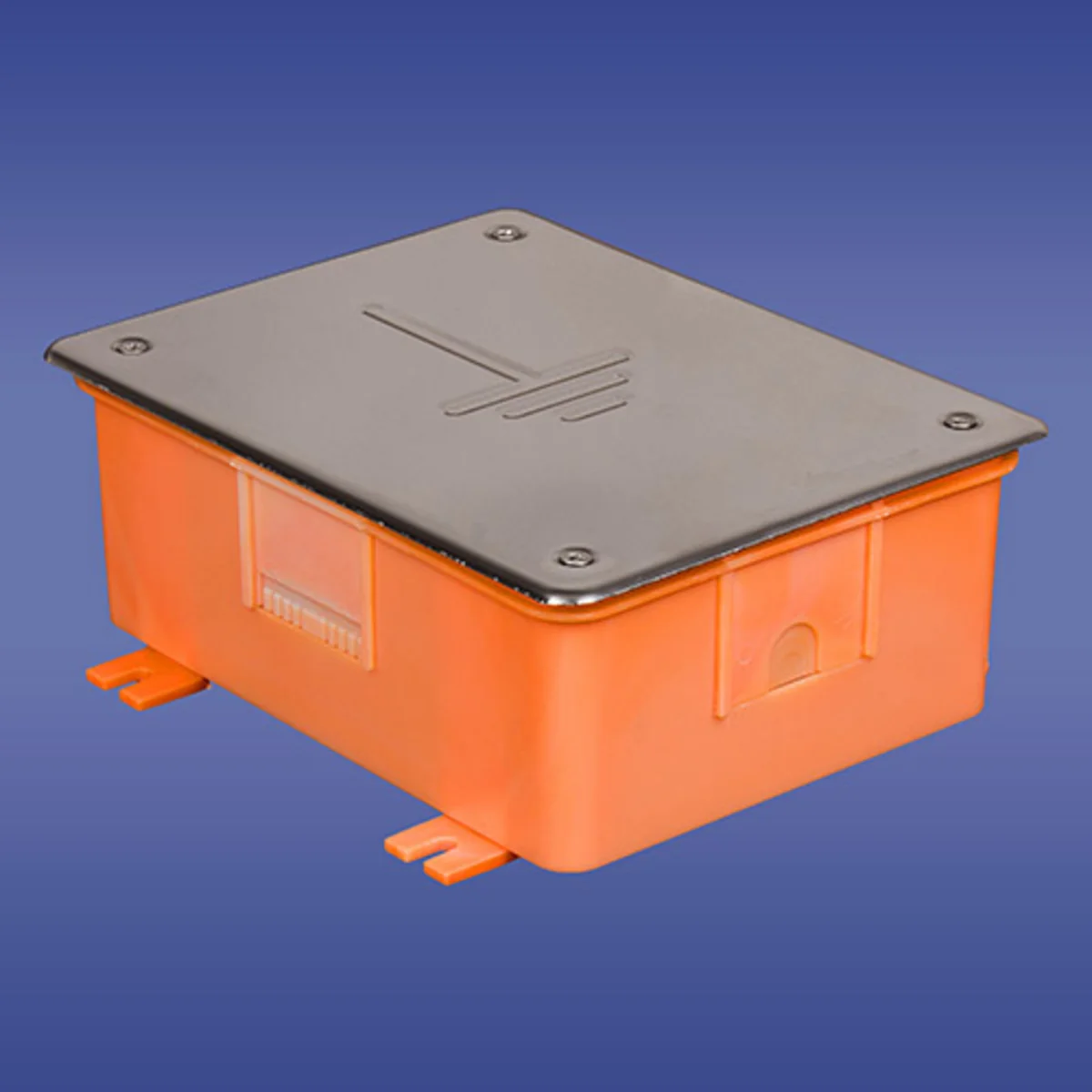

Orange PZO INOX lightning protection box with stainless steel cover 35.02

local index:
MVP002ELOP
Catalog No:
35.02
EAN code:
5905548281780
Depth [mm]: 84-215
Color: Orange | Silver
Shape: Rectangular
Price:
10,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 37 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

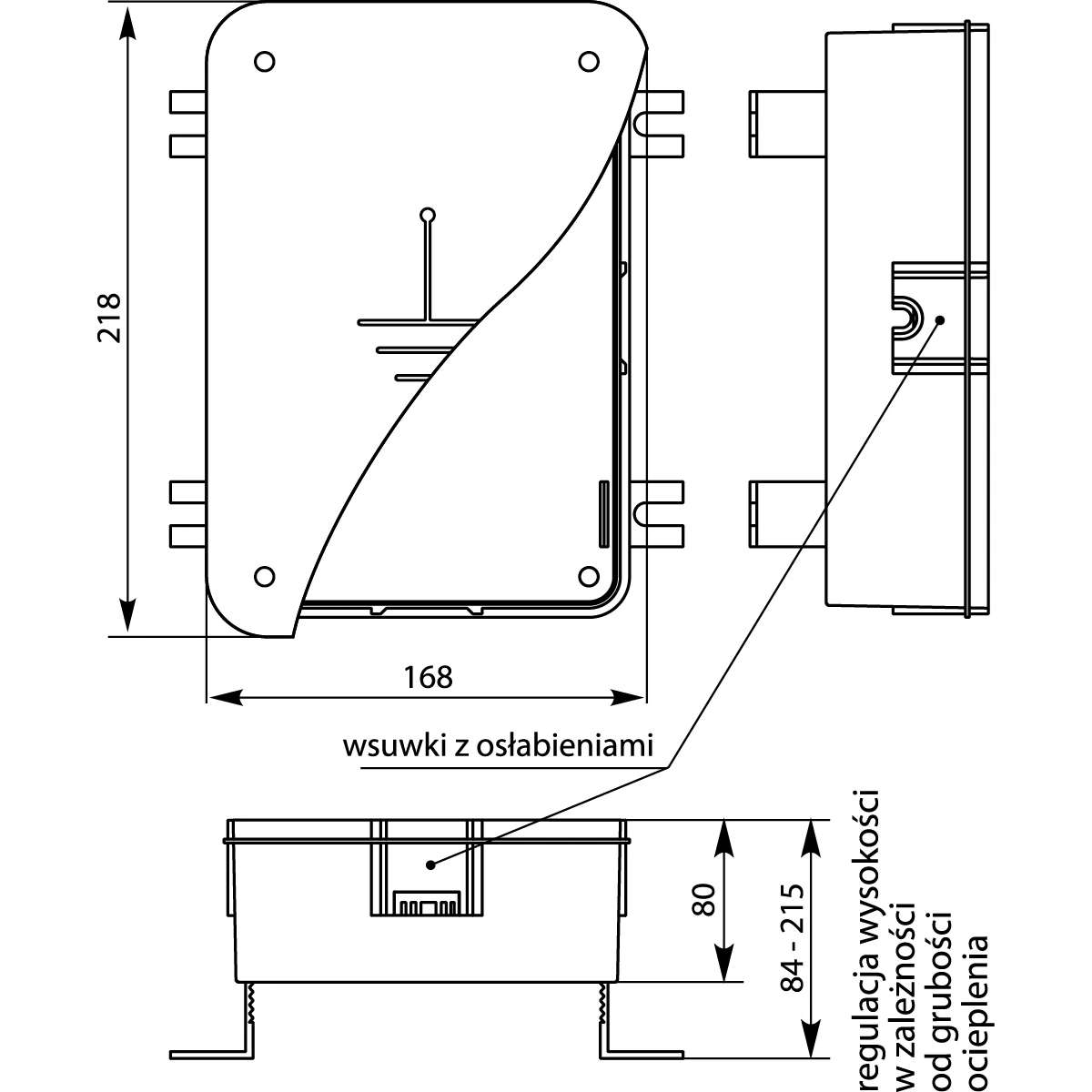

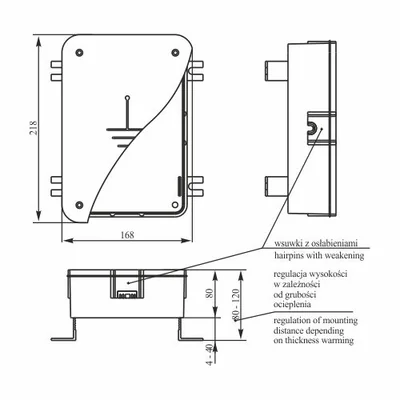

The box is intended for installing the lightning protection system control connector in the external facades of the building (plasters - insulation up to 12 cm thick). Protects joint maintenance against weather conditions. Possibility of mounting the box without disassembling the lightning protection connector by using "pins" in the walls of the box. The box cover made of stainless steel guarantees an aesthetic appearance and increases strength parameters.

  • Height adjustment depending on the thickness of the insulation.
  • Slides with weakenings.

Technical data

  • Depth [mm]
    84-215
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Type
    For Styrofoam
  • Width [mm]
    168
  • Type
    For lightning protection connections
  • Accurate color
    inox
  • Number of segments
    1
  • PKWIU
    27.33.13.0
  • Color
    Orange Silver
  • Material
    Plastic stainless steel
  • Cover
    Yes
  • Level of security
    IP20
  • Working temperature [°C]
    -25 to +60
  • Height [mm]
    218
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable

Other technical data

  • Material
    Plastic
  • Width
    168 mm
  • Length
    218 mm
  • Height
    80 mm
