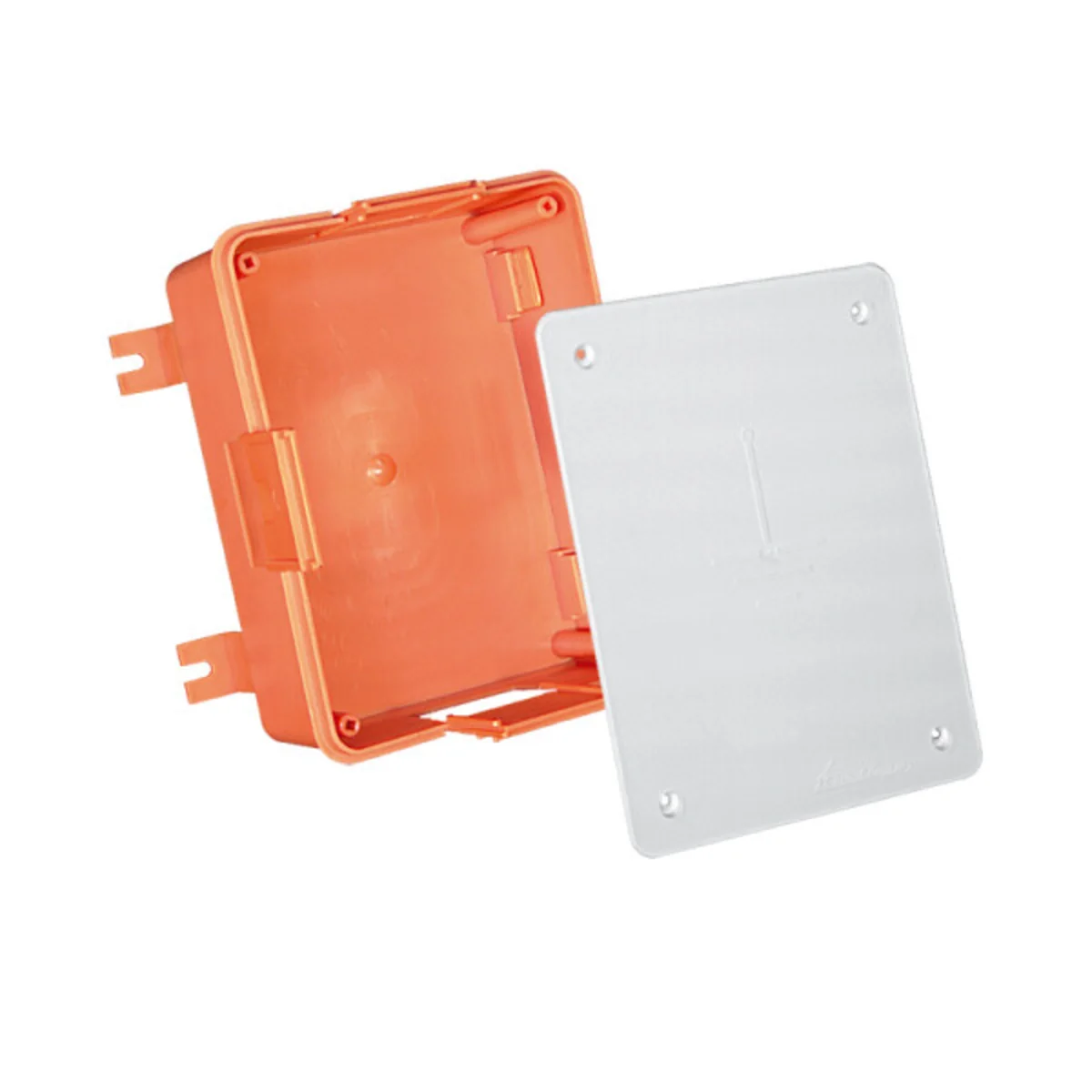

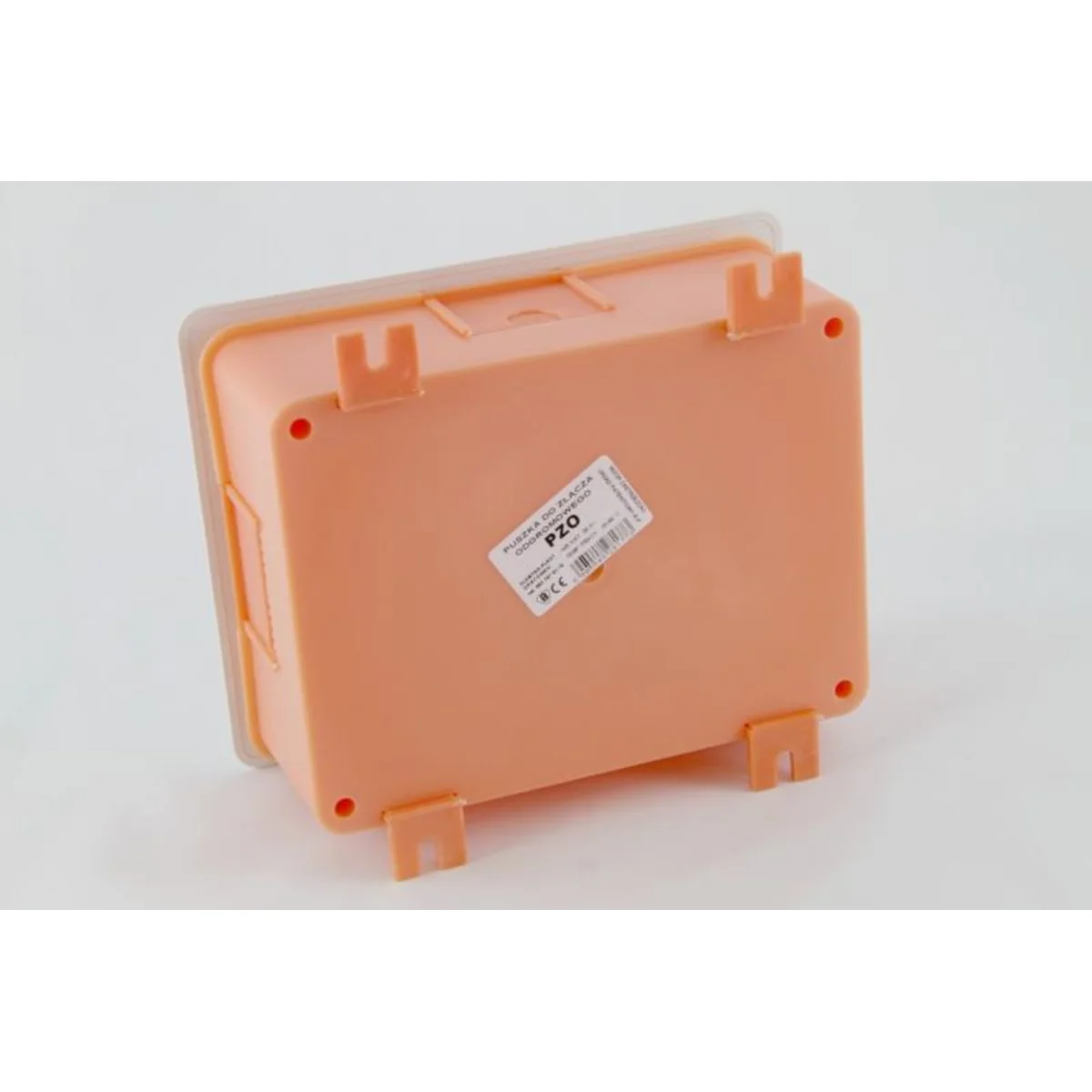

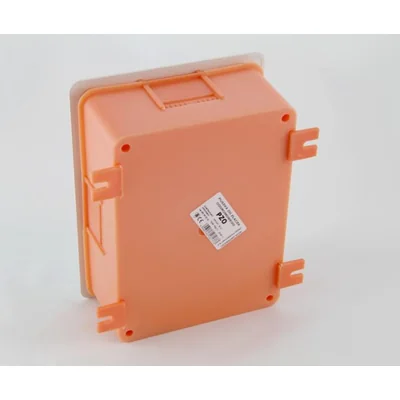

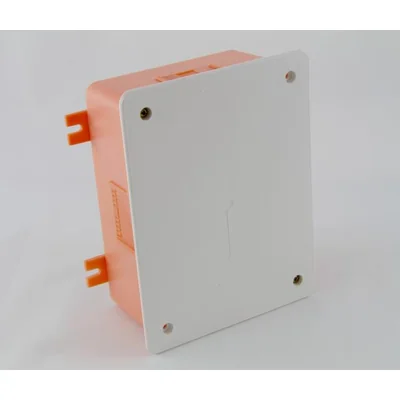

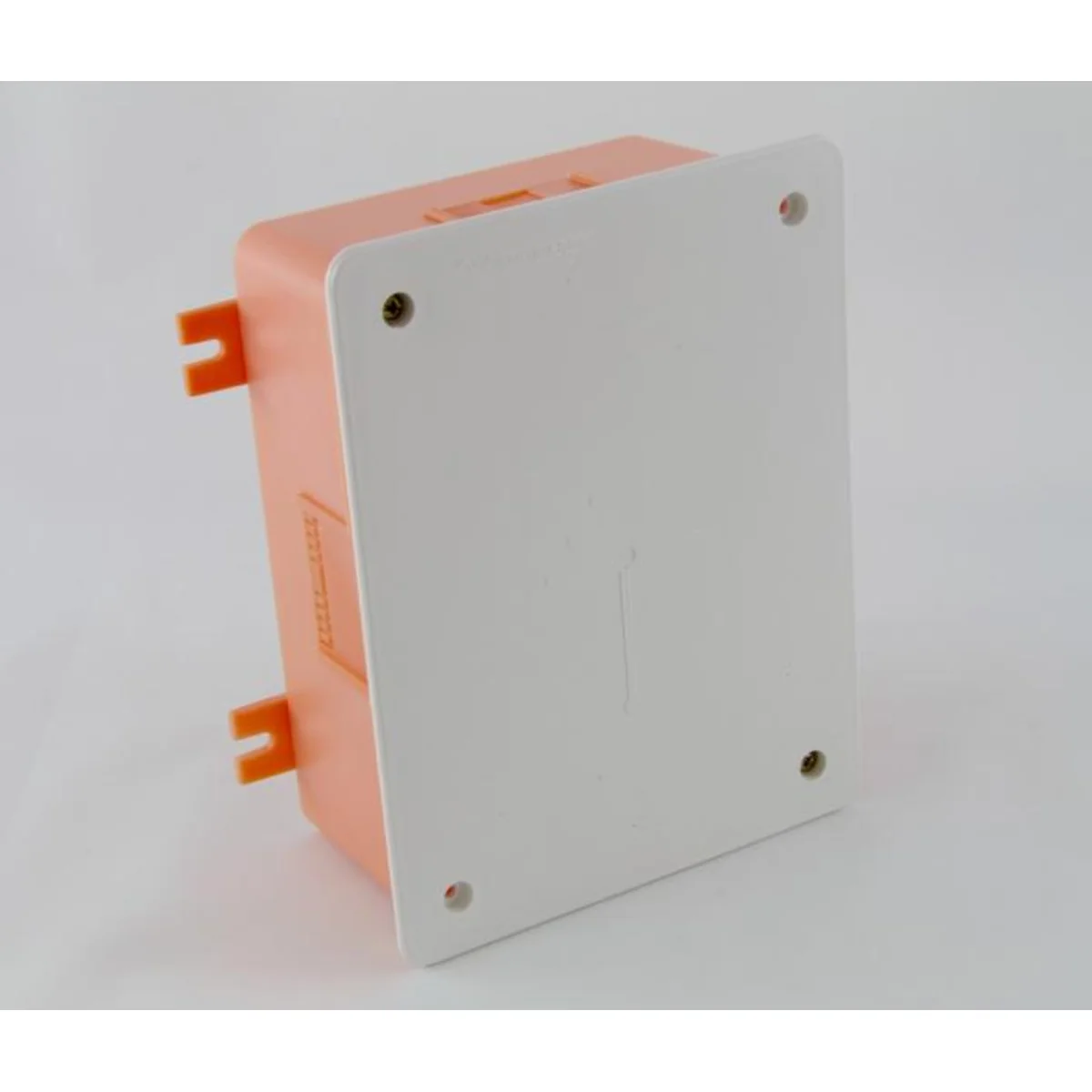

Orange box for PZO IP20 lightning protection connector 35.01

local index:
MVP001ELOP
Catalog No:
35.01
EAN code:
5905548281773
Depth [mm]: 84-215
Color: Orange | White
Shape: Rectangular
Price:
6,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 52 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The box is intended for installing the lightning protection system control connector in the external facades of the building (plasters - insulation up to 12 cm thick). Protects joint maintenance against weather conditions. Possibility of mounting the box without disassembling the lightning protection connector by using "pins" in the walls of the box. The aesthetic and matte cover of the box guarantees proper paint coverage. The product is made of plastics of high mechanical and electrical resistance.

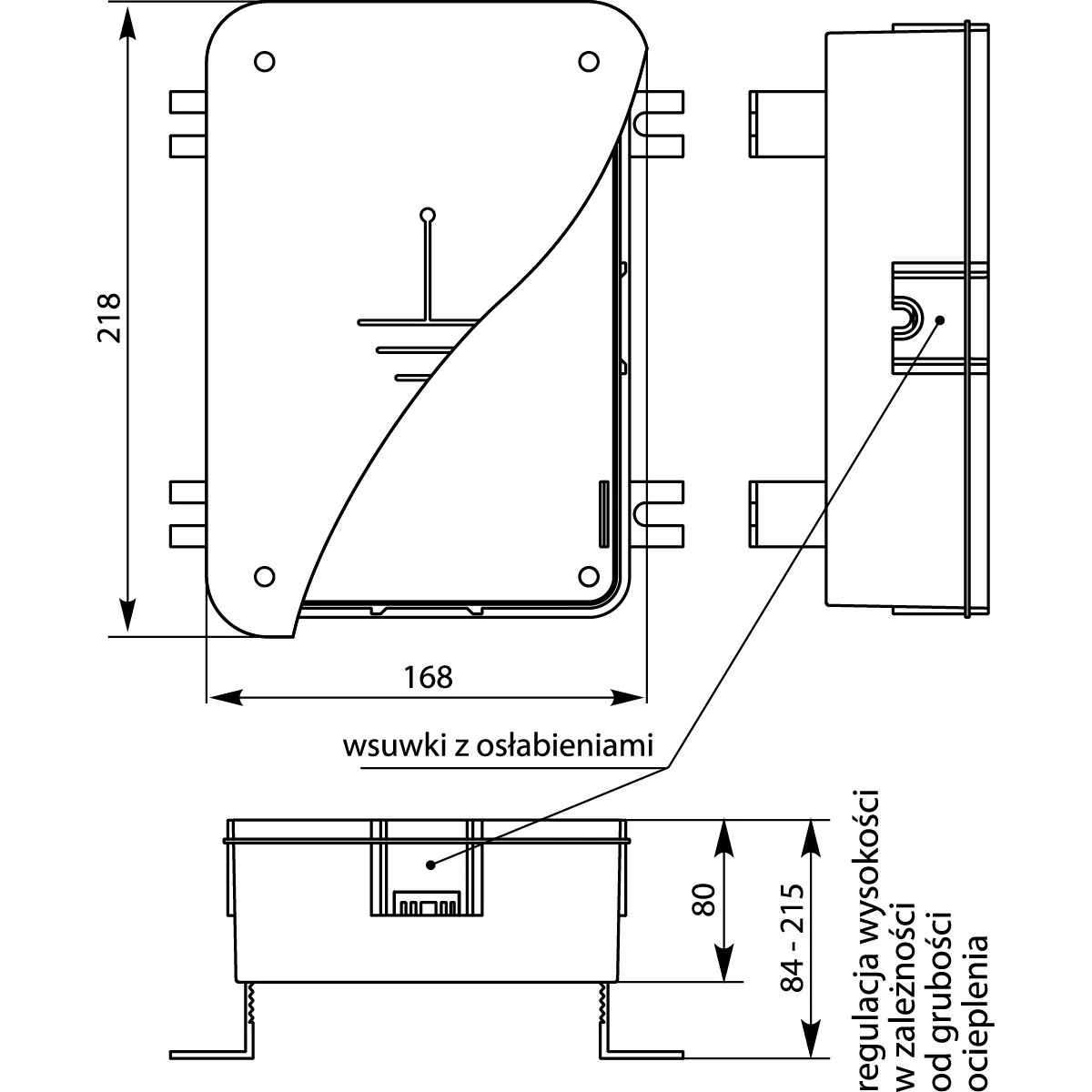

  • Height adjustment depending on the thickness of the insulation.
  • Slides with weaknesses.

Technical data

  • Depth [mm]
    84-215
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Type
    For Styrofoam
  • Width [mm]
    168
  • Type
    For lightning protection connections
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Color
    Orange White
  • Material
    Plastic
  • Cover
    Yes
  • Level of security
    IP20
  • Working temperature [°C]
    -25 to +60
  • Height [mm]
    218
  • Number of segments
    1
  • PKWIU
    27.33.13.0

Other technical data

  • Material
    Plastic
  • Width
    168 mm
  • Length
    218 mm
  • Height
    80 mm
