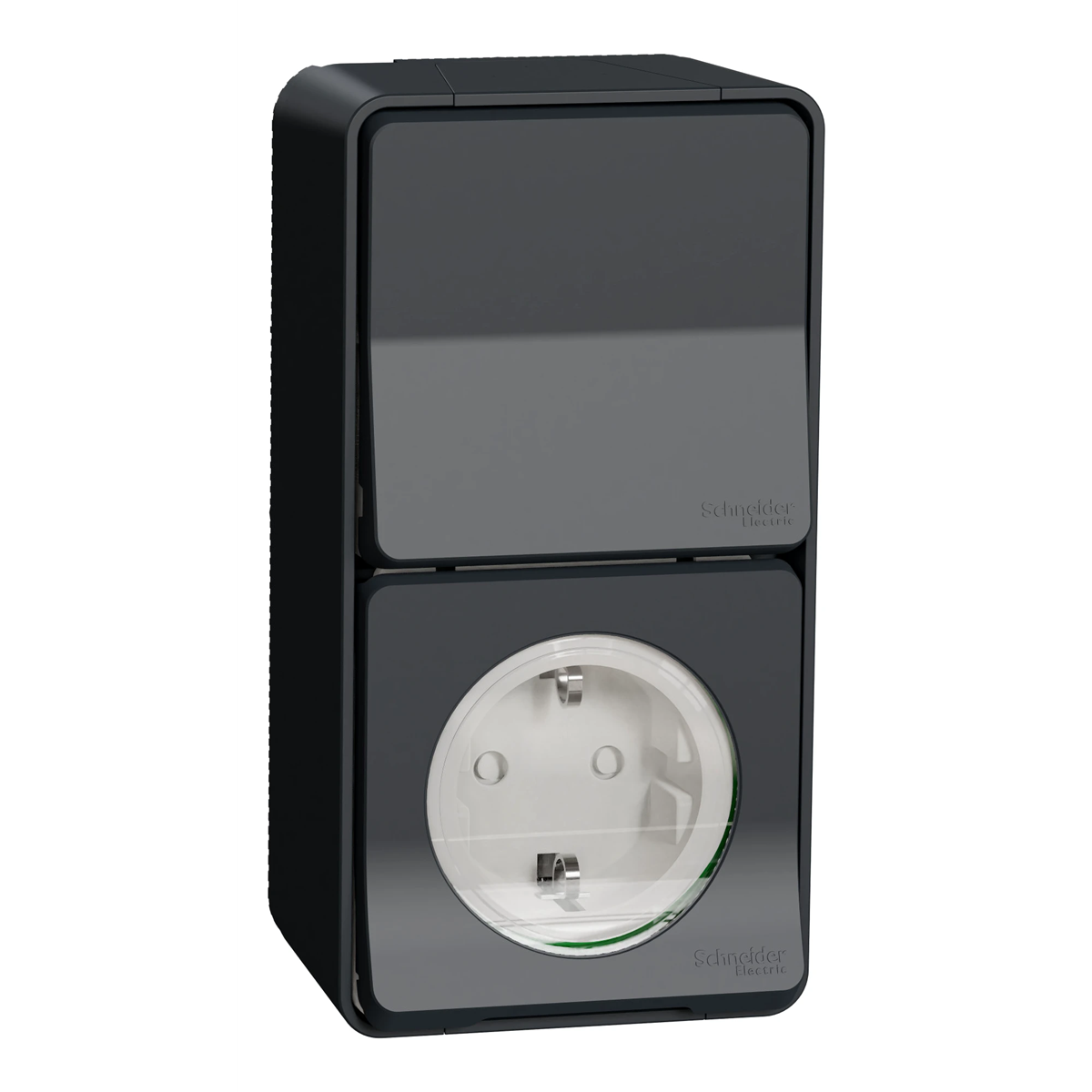

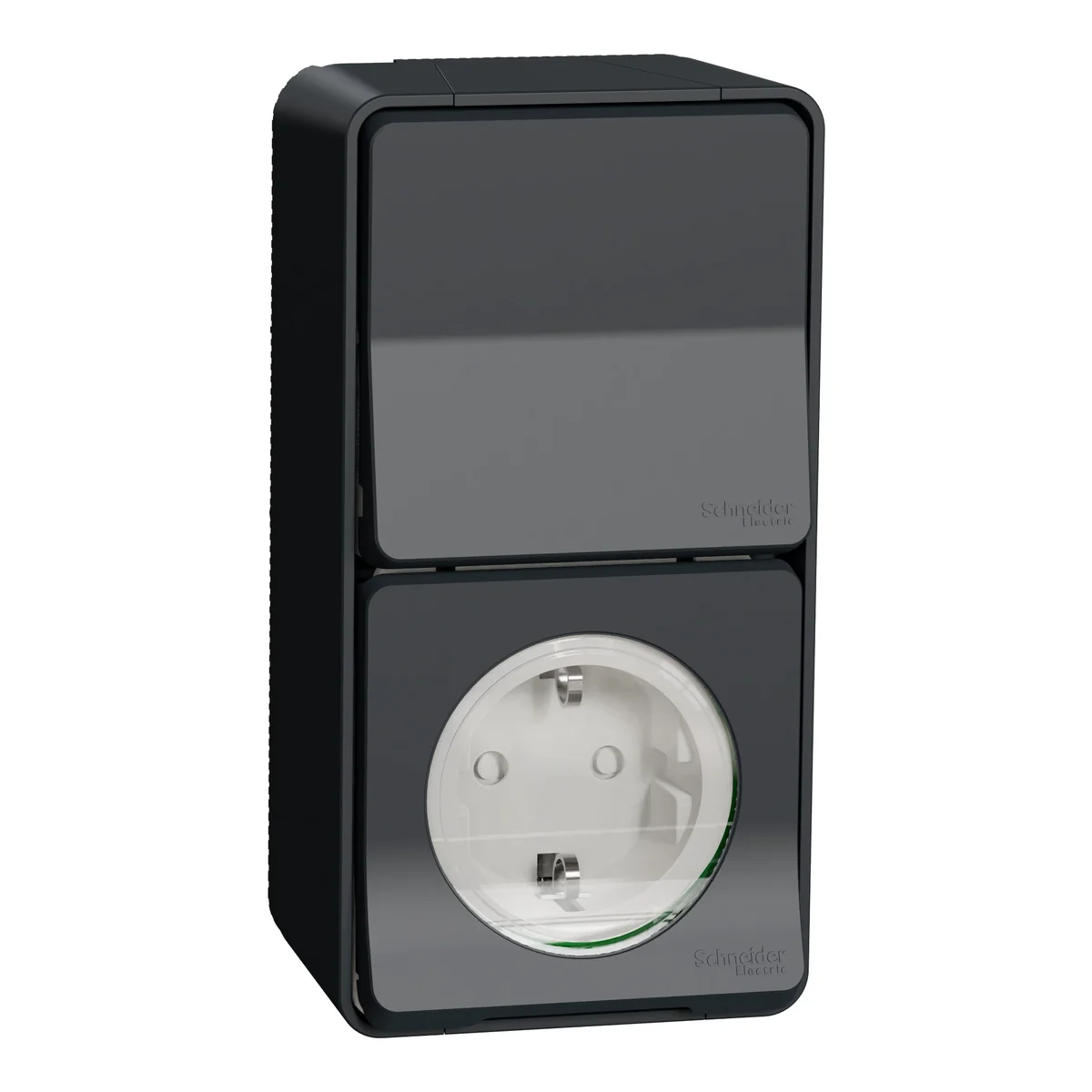

MUREVA STYL IP55 Stair switch + schuko socket anthracite MUR36024

local index:
MFB021SCHN
Catalog No:
MUR36024
EAN code:
3606480789816
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 64
Number of sockets: 1
Color: Graphite
Price:
30,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the Mureva Styl series, from Schneider Electric. The product catalog number is MUR36024.



FEATURES

  • With stair connector .
  • Polar configuration of the power socket 2P + E.
  • SCHUKO earthed socket.
  • Vertical installation direction.
  • Color anthracite.
  • Rated voltage 230 V. li>
  • Ingress protection IP55.
  • surface mounting.
  • Material: polycarbonate (PC), brass.< /li>



SERIES DESCRIPTION

Mureva Styl is a series of ergonomic electrical equipment which, thanks to the IP55 protection and mechanical strength IK08 is waterproof and resistant to shocks, dirt, dust and solvents. Hermetic surface-mounted electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    64
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    MUREVA STYLE
  • Width [mm]
    76
  • Ground
    schuko
  • Degree of mechanical protection
    IK08
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    NO
  • Additional connector
    Stair
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    147
  • Accurate color
    Anthracite
  • Mounting direction
    Vertical
  • On the DATA key
    NO
  • Lid color
    Transparent
  • Exact material
    PC

Other technical data

  • Type of switch
    Two-way switch
  • Number of socket outlets
    1
  • Mounting direction
    Vertical
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • Suitable for degree of protection (IP)
    IP55
  • Fault current protection
    No
  • Number of active contacts (round)
    2
  • Device height
    76 mm
  • Type of socket outlet
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Method of operation
    Rocker/button
  • With lighting
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Device width
    147 mm
  • Device depth
    64 mm
