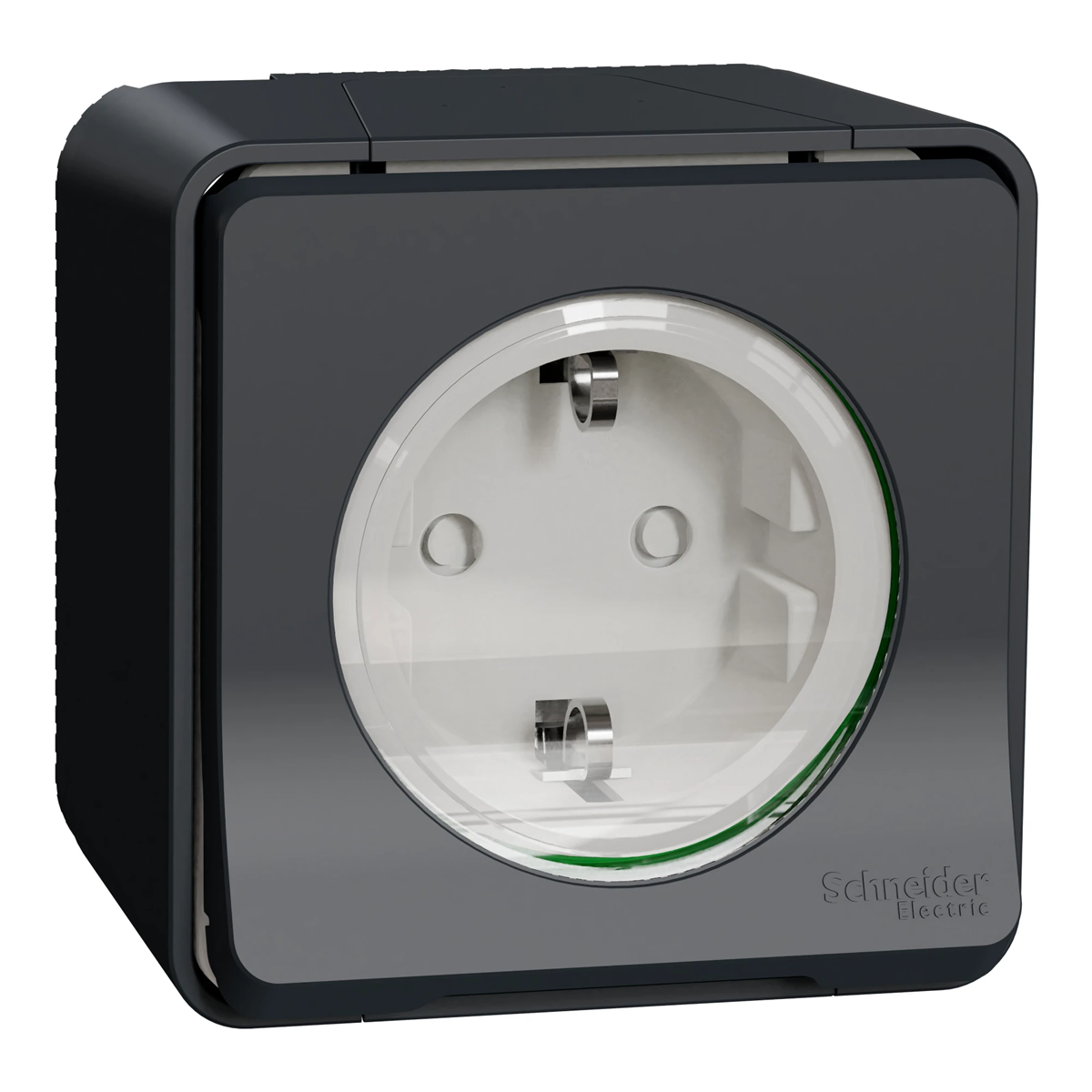

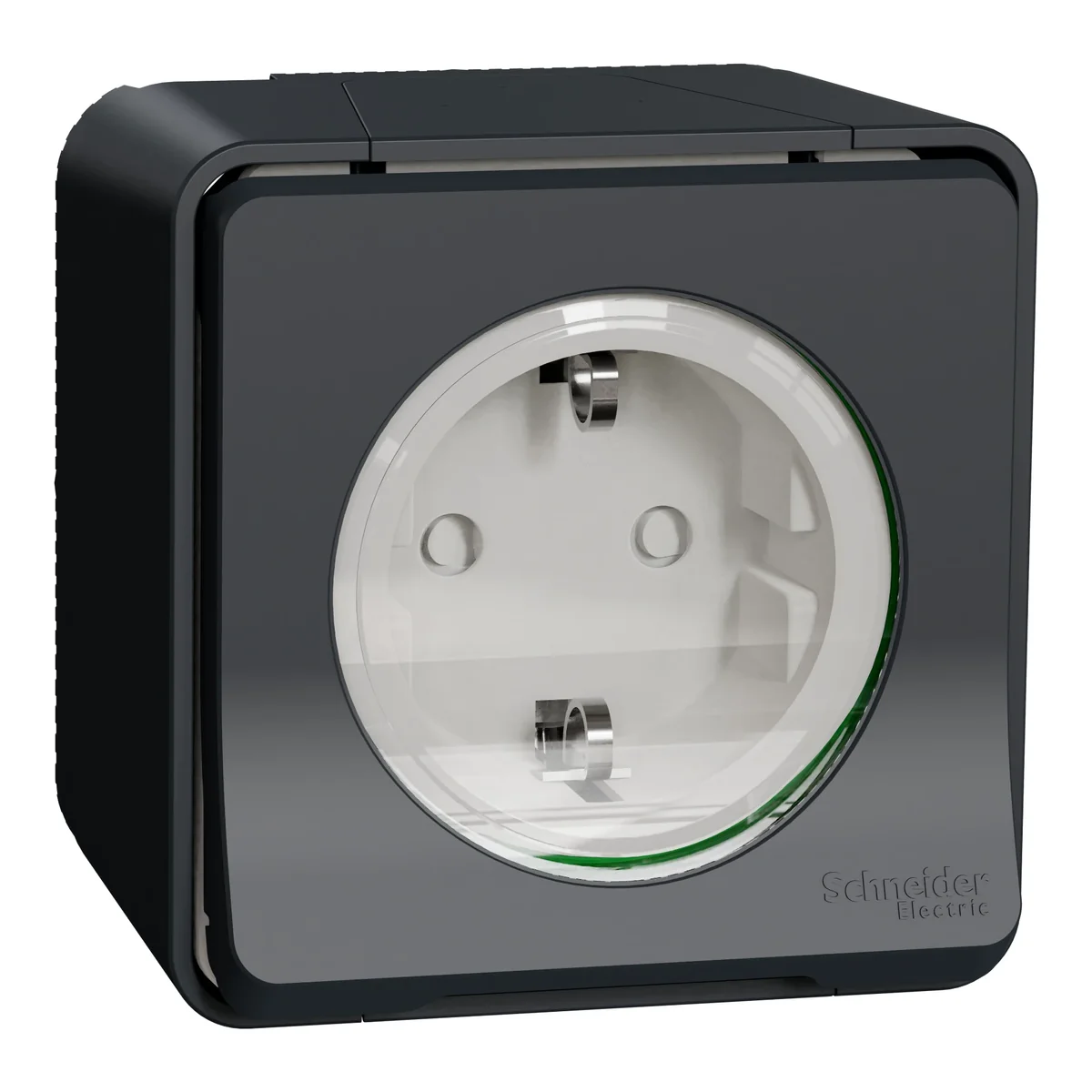

MUREVA STYL IP55 Socket 2P+PE schuko screw terminals anthracite MUR36731

local index:
MFB012SCHN
Catalog No:
MUR36731
EAN code:
3606480789656
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 64
Number of sockets: 1
Color: Graphite
Price:
18,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the Mureva Styl series, from Schneider Electric. The product part number is MUR36731.



FEATURES

  • Single.< /li>
  • 2P+PE.
  • 2-pole + PE with shutters.
  • With SCHUKO grounding .
  • Screw terminals.
  • Color anthracite.
  • Rated current 16 A< /strong>.
  • Rated voltage 230 V.
  • Ingress protection IP55.
  • Mounting < strong>surface-mounted.
  • Self-extinguishing 650°C according to IEC 60695-2-1.
  • Material: PP (polypropylene), brass, polycarbonate (PC) .



SERIES DESCRIPTION

Mureva Styl is a series of ergonomic electrical equipment which, thanks to the IP55 protection and mechanical strength IK08 is waterproof and resistant to shocks, dirt, dust and solvents. Hermetic surface-mounted electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    64
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    MUREVA STYLE
  • Width [mm]
    76
  • Ground
    schuko
  • Degree of mechanical protection
    IK08
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Anthracite
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    PP PC

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    7035
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    76 mm
  • Device depth
    63 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Anthracite
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK08
  • Device height
    76 mm
  • Min. depth of built-in installation box
    0 mm
