MUREVA STYL IP55 2P+PE triple socket anthracite MUR36037
local index:
MFB010SCHN
Catalog No:
MUR36037
EAN code:
3606480789786
Price:
53,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

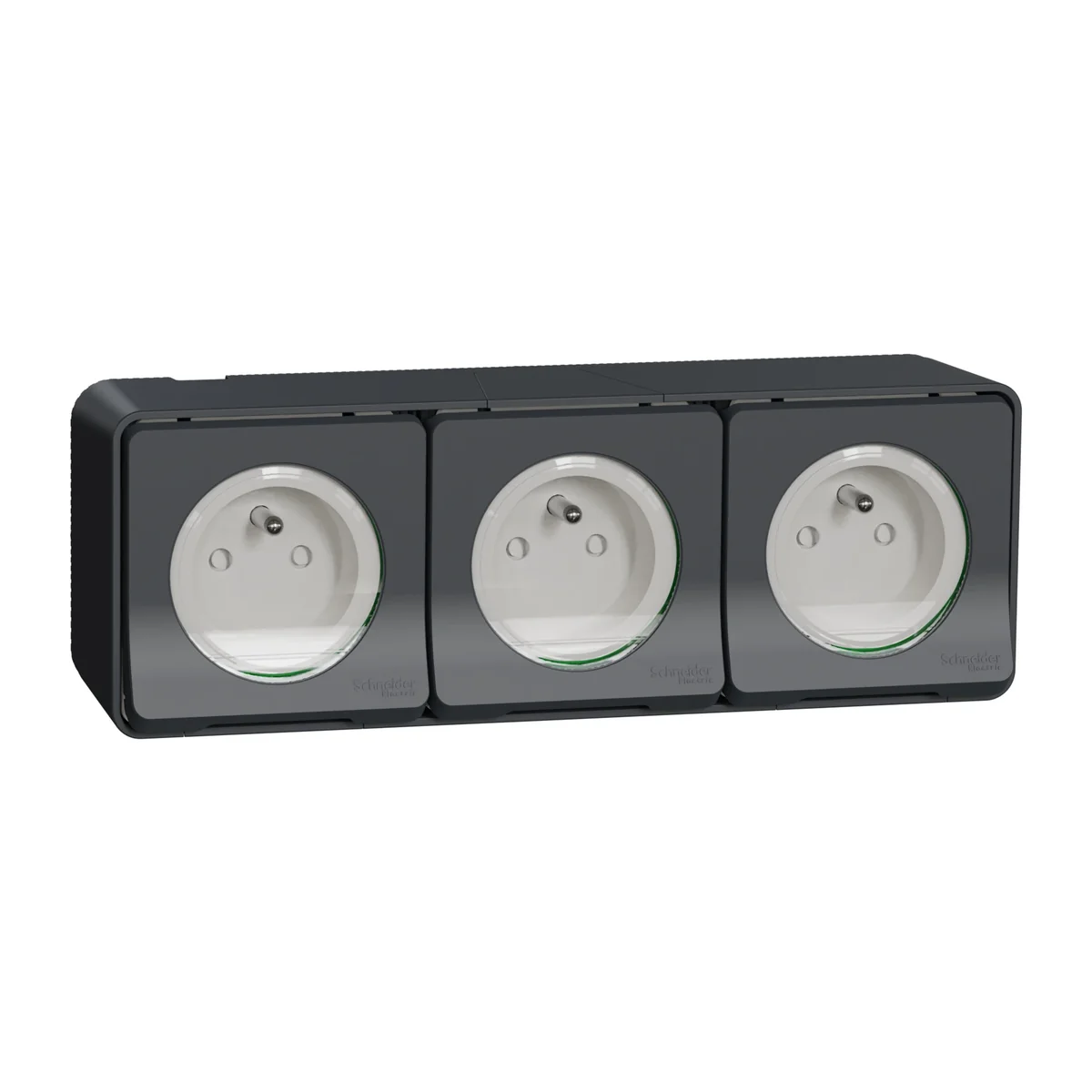

Hermetic wall-mounted electric socket from the Mureva Styl series, from Schneider Electric. The product part number is MUR36037.
FEATURES
- Triple .
- 2P+PE.
- 2-pole + PE with shutters.
- With grounding; grounding pin.
- Color anthracite.
- Rated current 16 A.
- Rated voltage 230 V.
- Ingress protection IP55.
- surface mounting.
- Self-extinguishing 650°C according to IEC 60695-2-1.
- Material: PP (polypropylene), brass, polycarbonate (PC).
- Cable stripping length: 13 mm.
SERIES DESCRIPTION
Mureva Styl is a series of ergonomic electrical accessories which, thanks to IP55 degree of protection and IK08 mechanical strength is waterproof and resistant to shocks, dirt, dust and solvents. Hermetic surface-mounted electrical socket characterizes the features of this unique series.
Technical data
-
Depth [mm]64
-
ColorGraphite
-
MaterialPlastic
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyMUREVA STYLE
-
Width [mm]218
-
GroundHurt
-
Degree of mechanical protectionIK08
-
BacklightNO
-
Conductor cross-section (wire) [mm²]1 - 2.5
-
Shutters of current pathsYes
-
For the frame systemNO
-
Exact materialPP PC
-
Number of sockets3
-
ShapeRectangular
-
FixingScrews
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP55
-
TypeSurface-mounted
-
Height [mm]76
-
Accurate colorAnthracite
-
Wire cross-section (cord) [mm²]1 - 2.5
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
PKWIU27.33.13.0
Other technical data
-
Protective contactYes
-
Number of active contacts (round)3
-
With signal lampNo
-
Number of units3
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourGrey
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK08
-
Device height218 mm
-
Min. depth of built-in installation box0 mm
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)6
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)7035
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningSnap mounting (engagement)
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP55
-
Device width76 mm
-
Device depth57 mm
