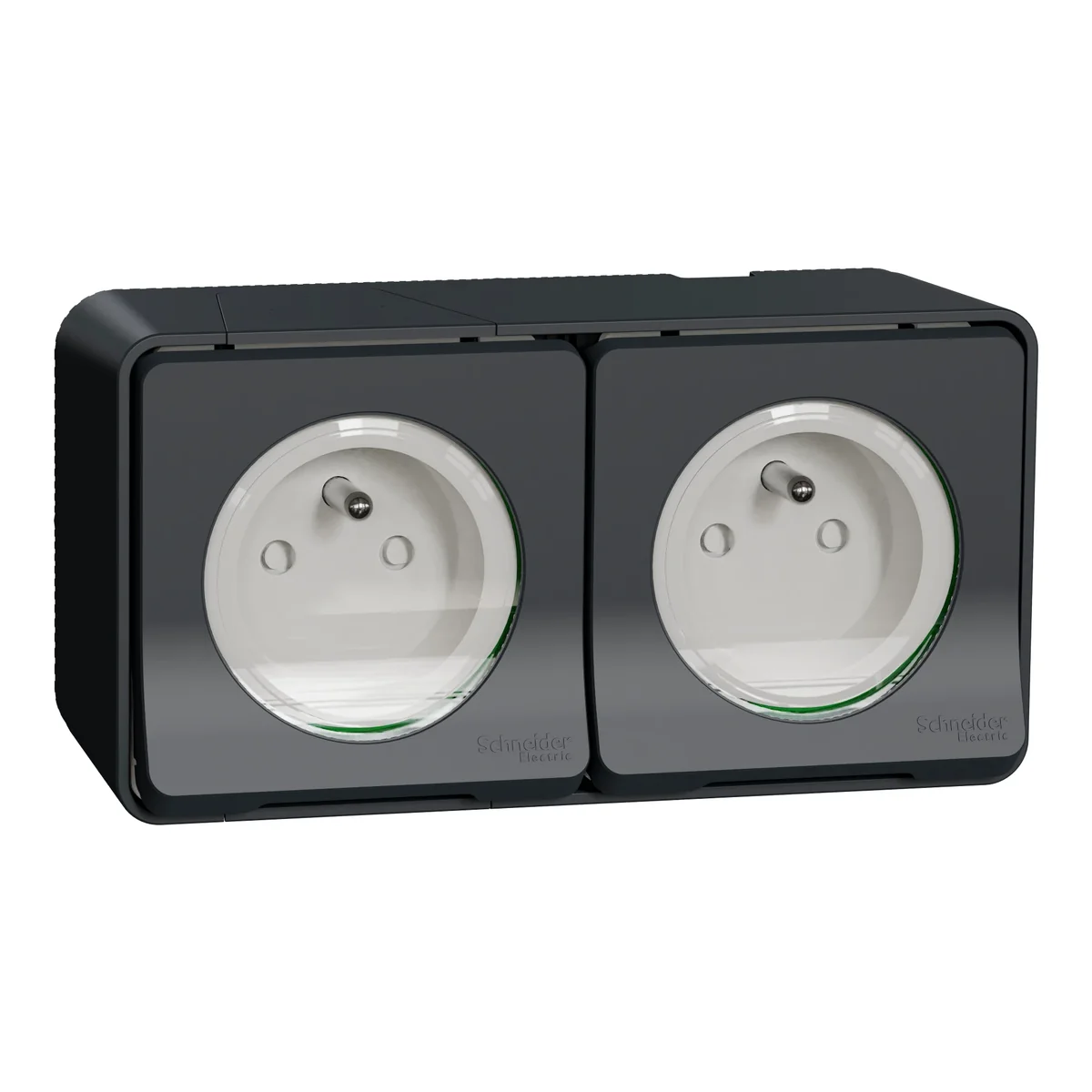

MUREVA STYL IP55 2P+PE double socket anthracite MUR36028

Índice local:

MFB006SCHN

Número de catálogo:

MUR36028

Código EAN:

3606480789694

MUREVA STYL IP55 2P+PE double socket anthracite

Haga clic en la foto para ampliar

Fabricante: SCHNEIDER ELECTRIC

Depth [mm]: 64

Number of sockets: 2

Color: Graphite

Ver descripción completa

Precio:

176,51 zł

gross / uds.

(IVA incluido 23%)

Accesible 5 uds.

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Hermetic wall-mounted electric socket from the Mureva Styl series, from Schneider Electric. The product part number is MUR35031.

FEATURES

Double .
2P+PE.
2-pole + PE with shutters.
With grounding; grounding pin.
Color anthracite.
Rated current 16 A.
Rated voltage 230 V.
Ingress protection IP55.
surface mounting.
Self-extinguishing 650°C according to IEC 60695-2-1.
Material: PP (polypropylene), brass, polycarbonate (PC).
Cable stripping length: 13 mm.

SERIES DESCRIPTION

Mureva Styl is a series of ergonomic electrical accessories which, thanks to IP55 degree of protection and IK08 mechanical strength is waterproof and resistant to shocks, dirt, dust and solvents. Hermetic surface-mounted electrical socket characterizes the features of this unique series.

Datos técnicos

Depth [mm]

64
Color

Graphite
Material

Plastic
Installation

Surface-mounted
Rated current [A]

16
Family

MUREVA STYLE
Width [mm]

76
Ground

Hurt
Degree of mechanical protection

IK08
Backlight

NO
Conductor cross-section (wire) [mm²]

1 - 2.5
Shutters of current paths

Yes
For the frame system

NO
Exact material

PP PC

Number of sockets

2
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP55
Type

Surface-mounted
Height [mm]

147
Accurate color

Anthracite
Wire cross-section (cord) [mm²]

1 - 2.5
Standard

European
On the DATA key

NO
Lid color

Transparent
PKWIU

27.33.13.0

Otros datos técnicos

Protective contact

Yes
Number of active contacts (round)

2
With built-in USB power supply

No
Number of units

2
Number of modules (module system)

4
Connection type

Push-in clamp
With enhanced contact protection

No
Colour

Grey
Metallic colour

No
Lockable

No
Insulated mounting

No
With orientation lighting

No
Special power supply

No special power supply
With miniature fuse

No
Type of fastening

Mounting with screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With on/off switch

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP55
Device width

147 mm
Device height

76 mm
Compatible with Apple HomeKit

No
Compatible with Google Assistant

No
For heavy conditions according to VDE

No

Okrągły styk ochronny

Yes
Number of active contacts (flat)

0
With signal lamp

No
Number of socket outlets switchable

0
Number of phases

1
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

7035
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
Fault current protection

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
With loop through function

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK08
Min. depth of built-in installation box

0 mm
Device depth

64 mm
Compatible with Amazon Alexa

No
IFTTT support available

No

Detalles del fabricante

Fabricante

Schneider Electric Polska
Dirección

02-673 Warszawa Konstruktorska 12 Polska
Email

poland.helpdesk@se.com

Empaquetado a granel

una especie de paquete	Sztuka
Cantidad	1 uds.
Peso (kg)	0,251
Volumen (m3)	0,001
Ancho (m)	0,076
Longitud (m)	0,147
Profundidad (m)	0,065
