MULTIWALL Two-pole flush-mounted box M2x60F 2xfi60mm orange 33160008

local index:
MVP035SIME
Catalog No:
33160008
EAN code:
5907813224829
Manufacturer: SIMET
Depth [mm]: 63
Color: Orange
Shape: Oval
Price:
1,65 €
gross / pcs.
(including VAT 23%)
30,00 € gross/kg.
Delivery in 3h
Accessible 490 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

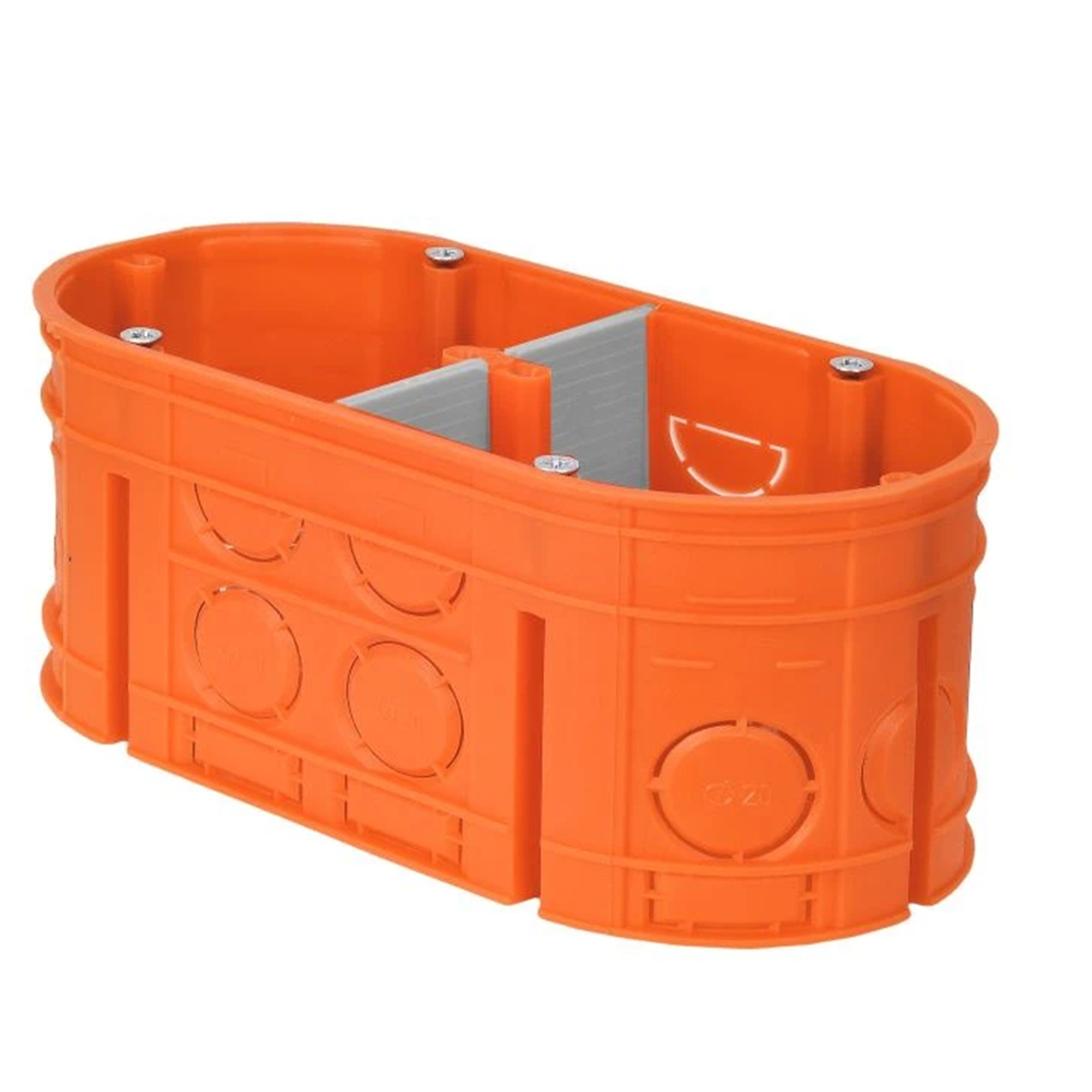

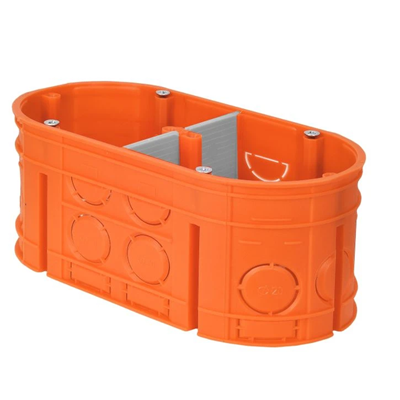

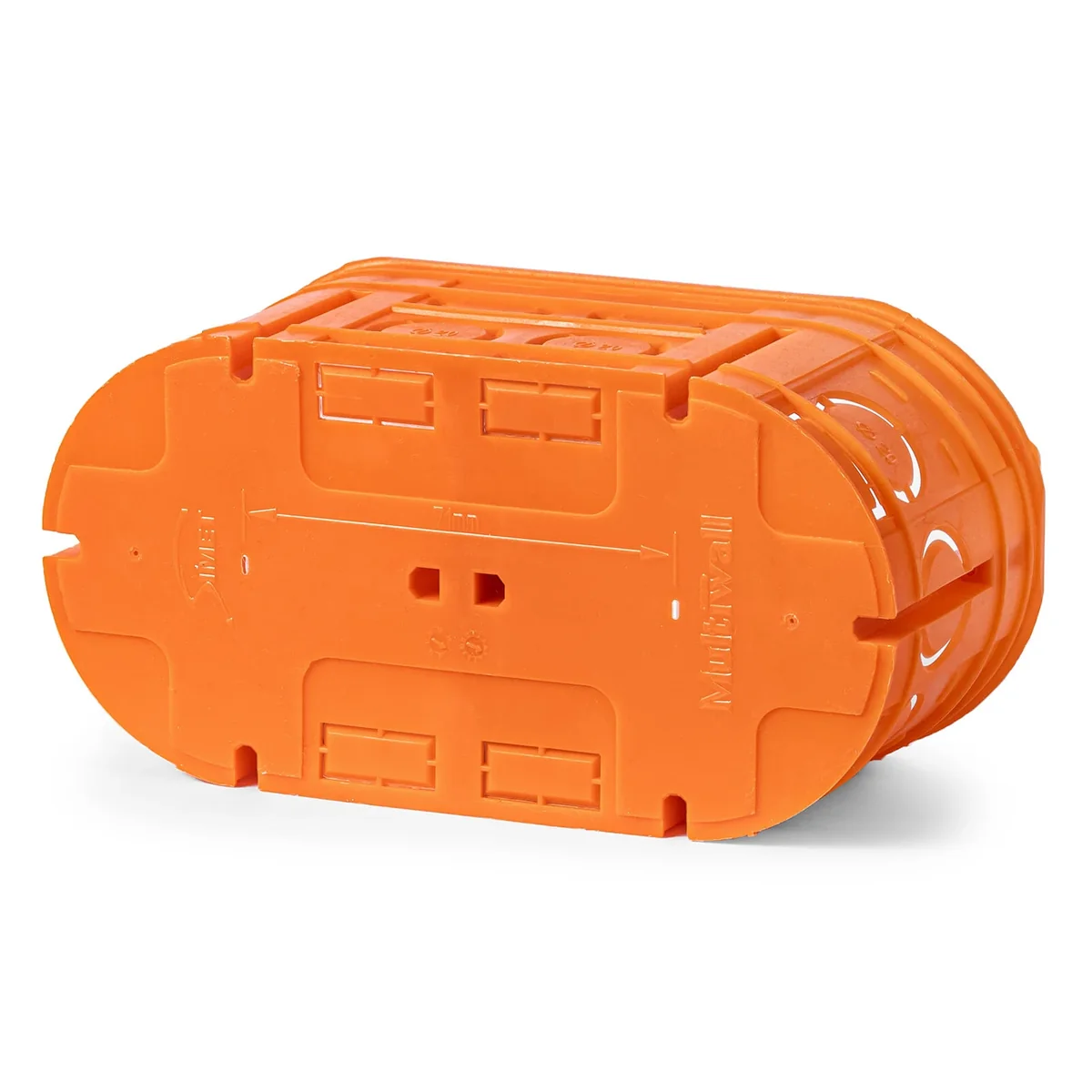

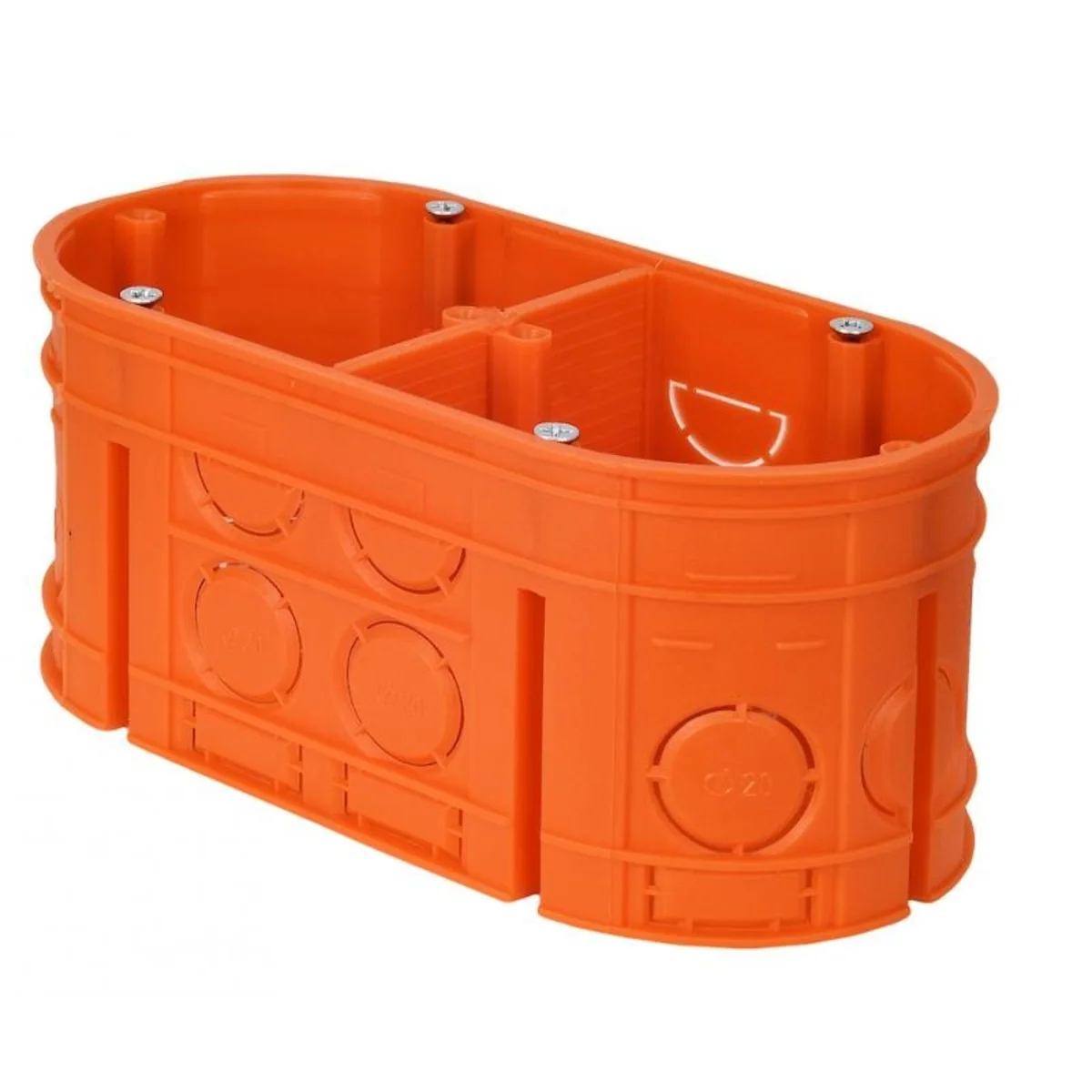

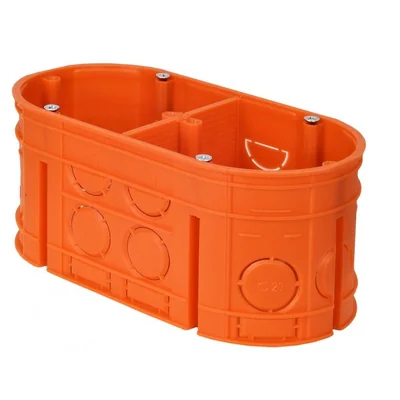

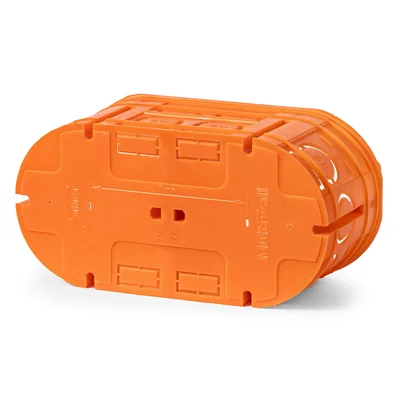

Two-pole flush-mounted box

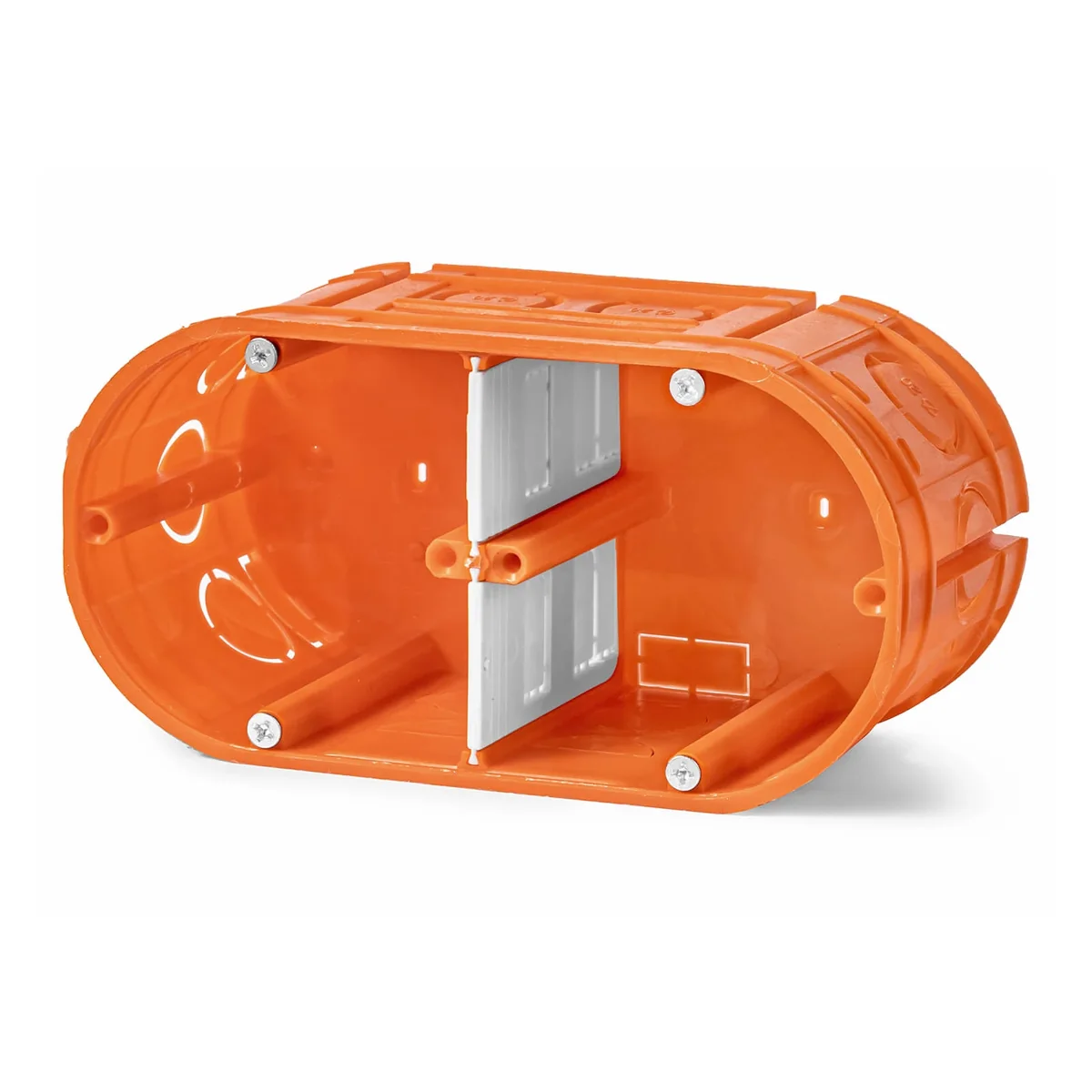

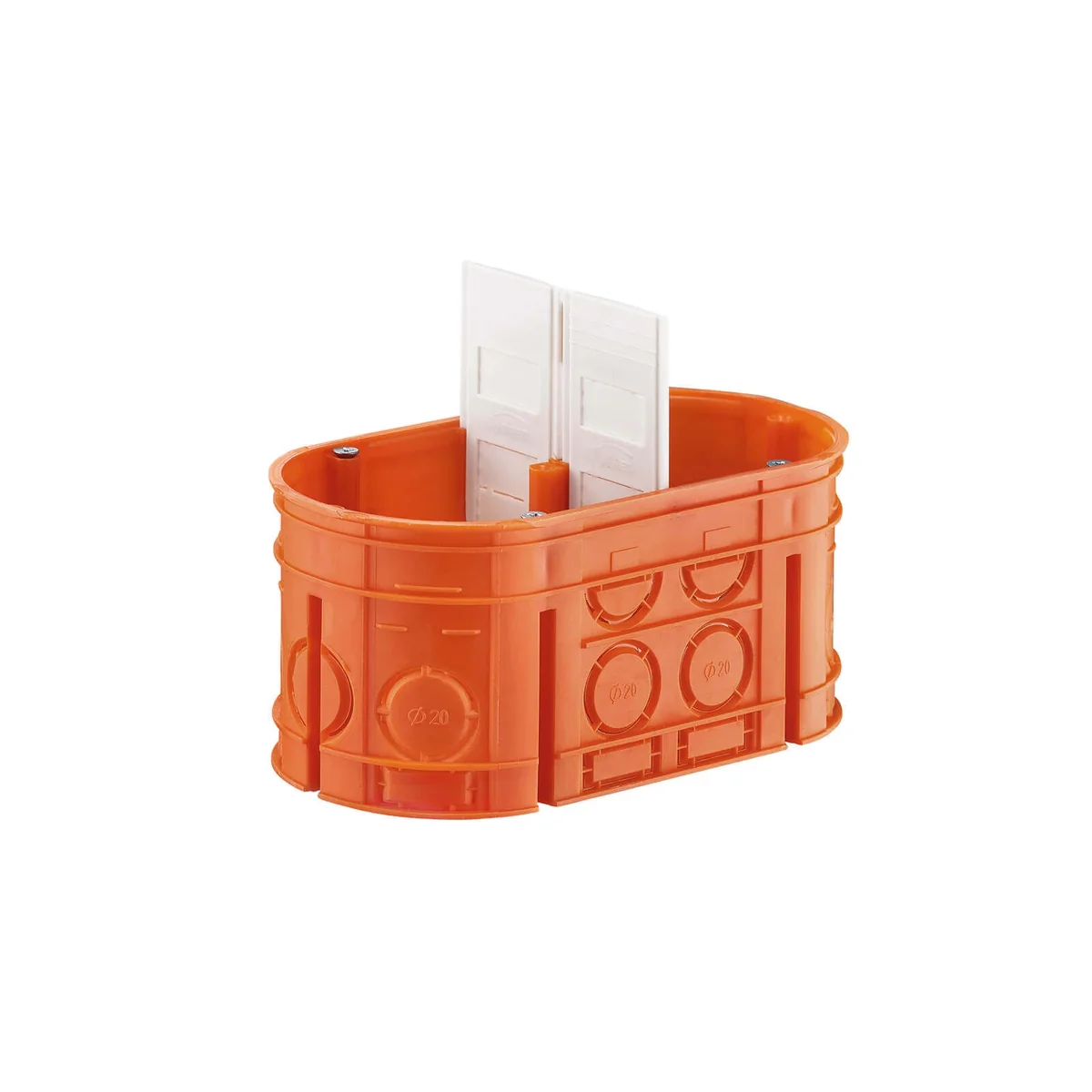

  • Equipped with 2 removable half-partitions with weakening in the lower part for cable routing and 4 screws.
  • < /ul>

    Accessories matching the box:

    • PM1 closing cover (designed to close the extreme - outer pópans of the box - when using it as an accessory box with increased installation space). The lid is placed at the level of the top flange of the box – therefore it does not protrude above the level of the mounted box.
    • PM2 closing cover (designed to close the central part – of the box, complete with two PM1 covers, the entire space of the box can be closed).
    • PS1 and PS2 signaling covers (two end covers PS1 and one central cover PS2 allow to close the space of the box for plastering works).
    • PDM60Z, PDM60W spacer rings are used to deepen multi-pole boxes from the Multiwall and Multibox2 series. They are fastened with screws to the box body. The rings can be shortened by cutting off the ribs spaced every 6 mm. Similarly to cans, rings can be closed with PM1 and PM2 covers. PS1 and PS2 signal covers can also be used for plastering works.
    • W16, W25, W40 screws

Technical data

  • Depth [mm]
    63
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Level of security
    IP20
  • Type
    For attachments
  • Height [mm]
    140
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Attachment diameter [mm]
    60
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Family
    MULTIWALL
  • Width [mm]
    71
  • Weight [g]
    55
  • Number of bolts/screws
    4
  • Number of segments
    2
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    140 mm
  • Depth
    63 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    ... 20 mm
  • Inlet from the rear
    Yes
  • Halogen free
    No
  • Colour
    Orange
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Oval
  • Model
    Double
  • Diameter
    60 mm
  • Width
    71 mm
  • For number of electric fittings
    2
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
