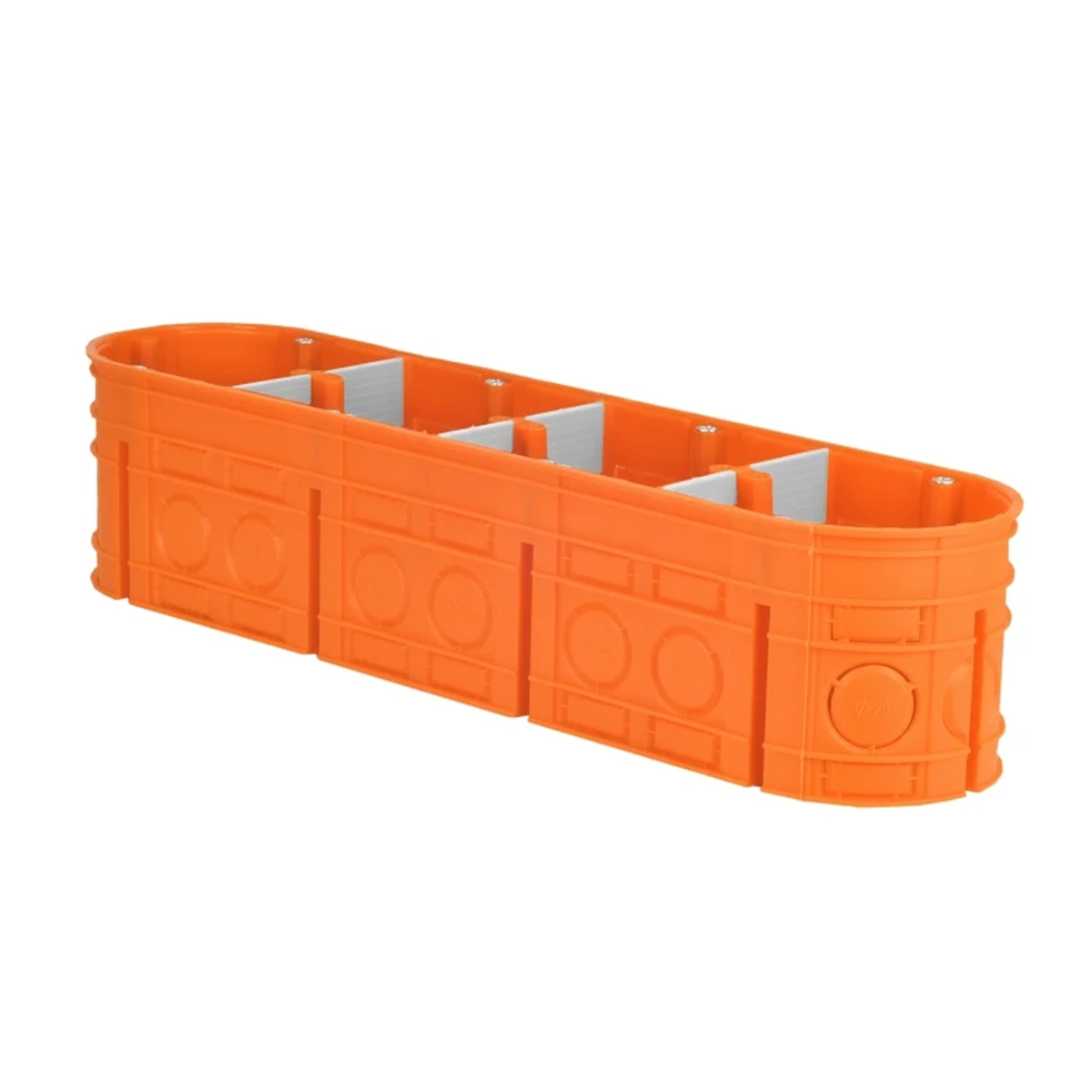

MULTIWALL Four-pole flush-mounted box M4x60F 4xfi60mm orange 33170008

local index:
MVP037SIME
Catalog No:
33170008
EAN code:
5907813224812
Manufacturer: SIMET
Depth [mm]: 63
Color: Orange
Shape: Oval
Price:
65,24 €
gross / pkg.
(including VAT 23%)
3,62 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Concealed box

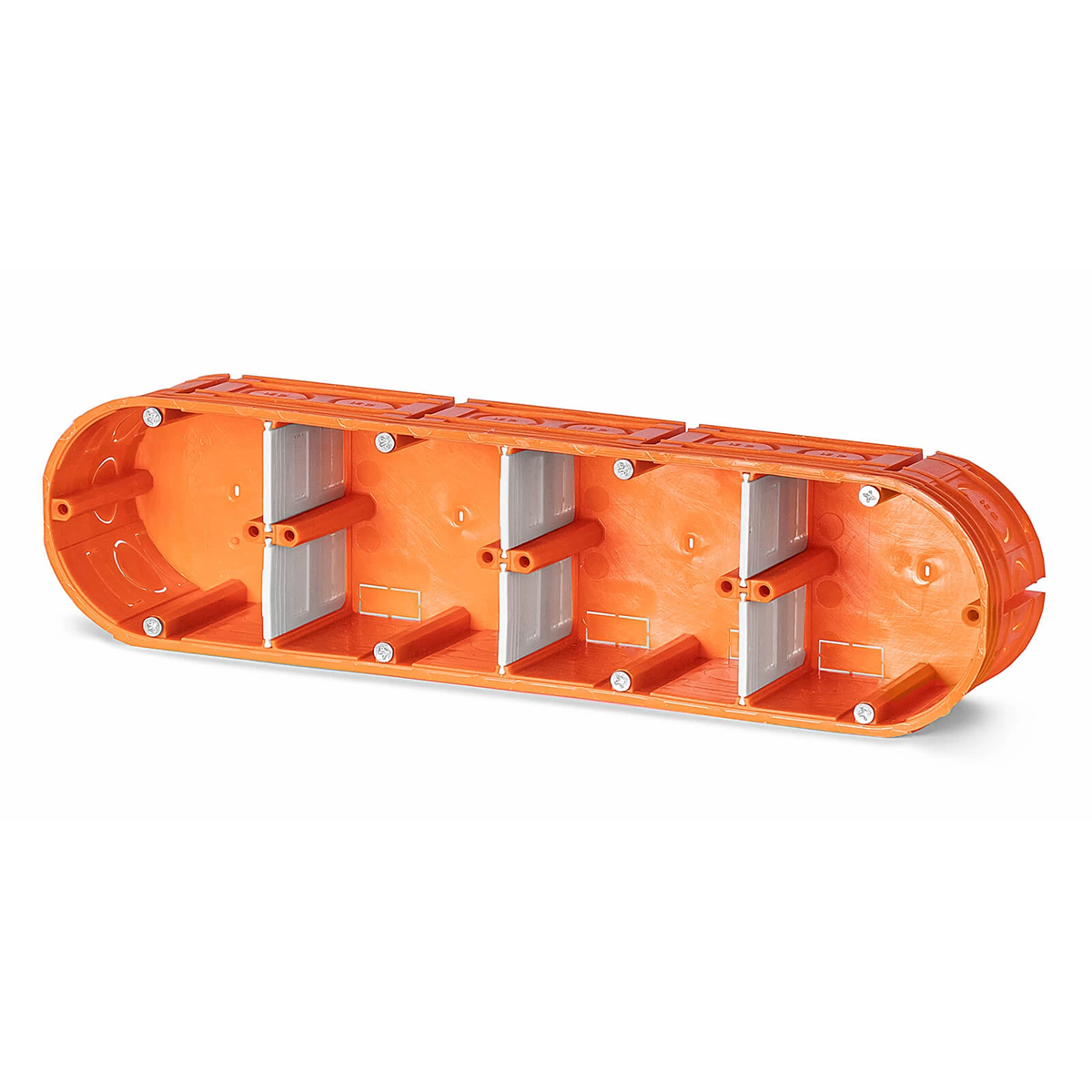

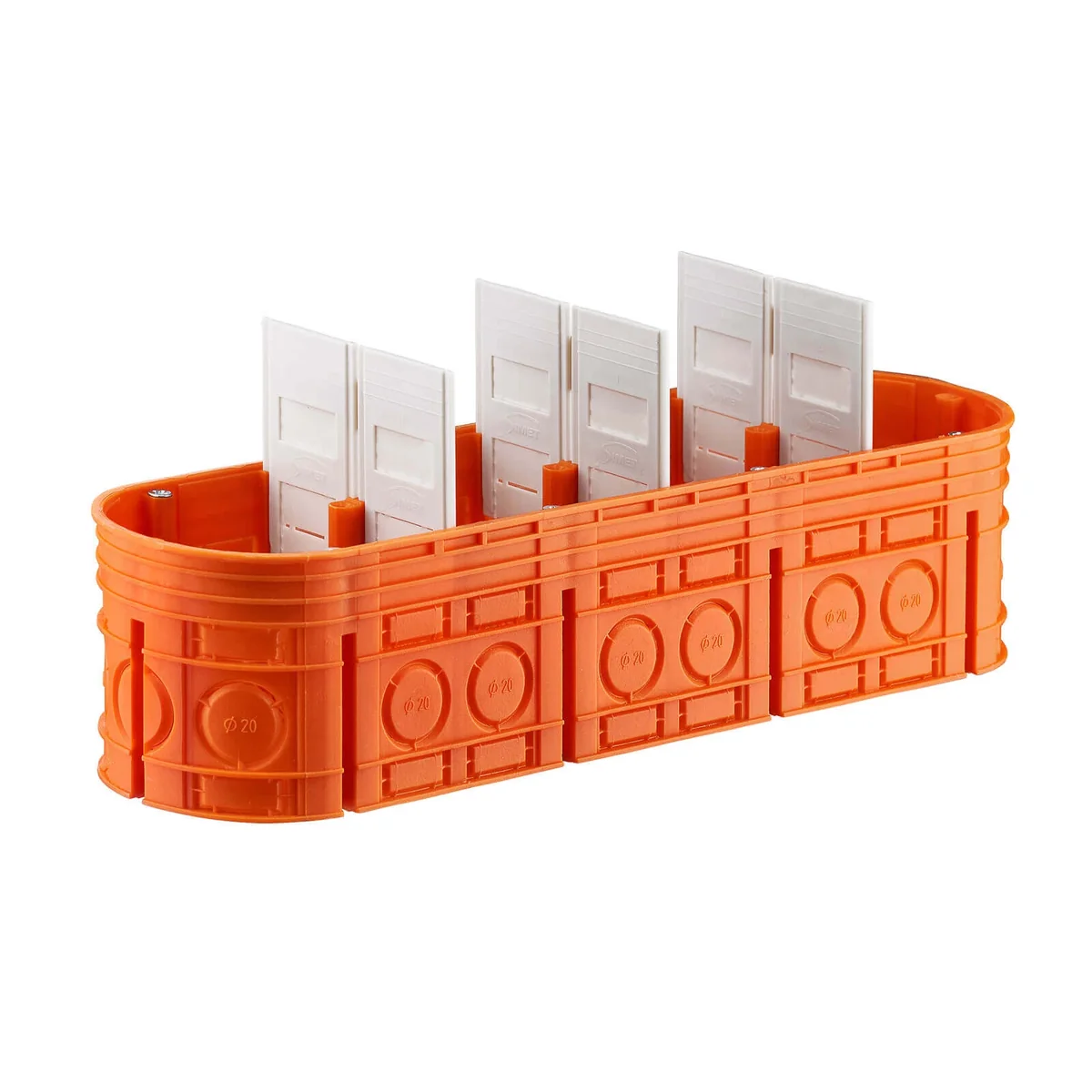

  • Equipped with 6 removable half-partitions with weakening in the lower part for cable routing and 8 screws.
  • There are many knockouts in the side walls for connecting conduits or ø 20mm pipes.

Accessories matching the box:

  • Lid closing box PM1 (intended for closing the extreme - outer panels of the box - when using it as an equipment box with enlarged installation space). The lid is placed at the level of the top flange of the box – therefore it does not protrude above the level of the mounted box.
  • PM2 closing cover (designed to close the central part – of the box, complete with two PM1 covers, the entire space of the box can be closed).
  • PS1 and PS2 signaling covers (two end covers PS1 and one central cover PS2 allow to close the space of the box for plastering works).
  • PDM60Z, PDM60W spacer rings are used to deepen multi-pole boxes from the Multiwall and Multibox2 series. They are fastened with screws to the box body. The rings can be shortened by cutting off the ribs spaced every 6 mm. Similarly to cans, rings can be closed with PM1 and PM2 covers. PS1 and PS2 signal covers can also be used for plastering works.
  • W16, W25, W40 screws

Technical data

  • Depth [mm]
    63
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Level of security
    IP20
  • Pieces in the package
    18
  • Weight [g]
    115
  • Number of bolts/screws
    8
  • Number of segments
    4
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Family
    MULTIWALL
  • Width [mm]
    71
  • Type
    For attachments
  • Height [mm]
    284
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Attachment diameter [mm]
    60

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    284 mm
  • Depth
    63 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    ... 20 mm
  • Inlet from the rear
    Yes
  • Halogen free
    No
  • Colour
    Orange
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Oval
  • Model
    Other
  • Diameter
    60 mm
  • Width
    71 mm
  • For number of electric fittings
    4
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
