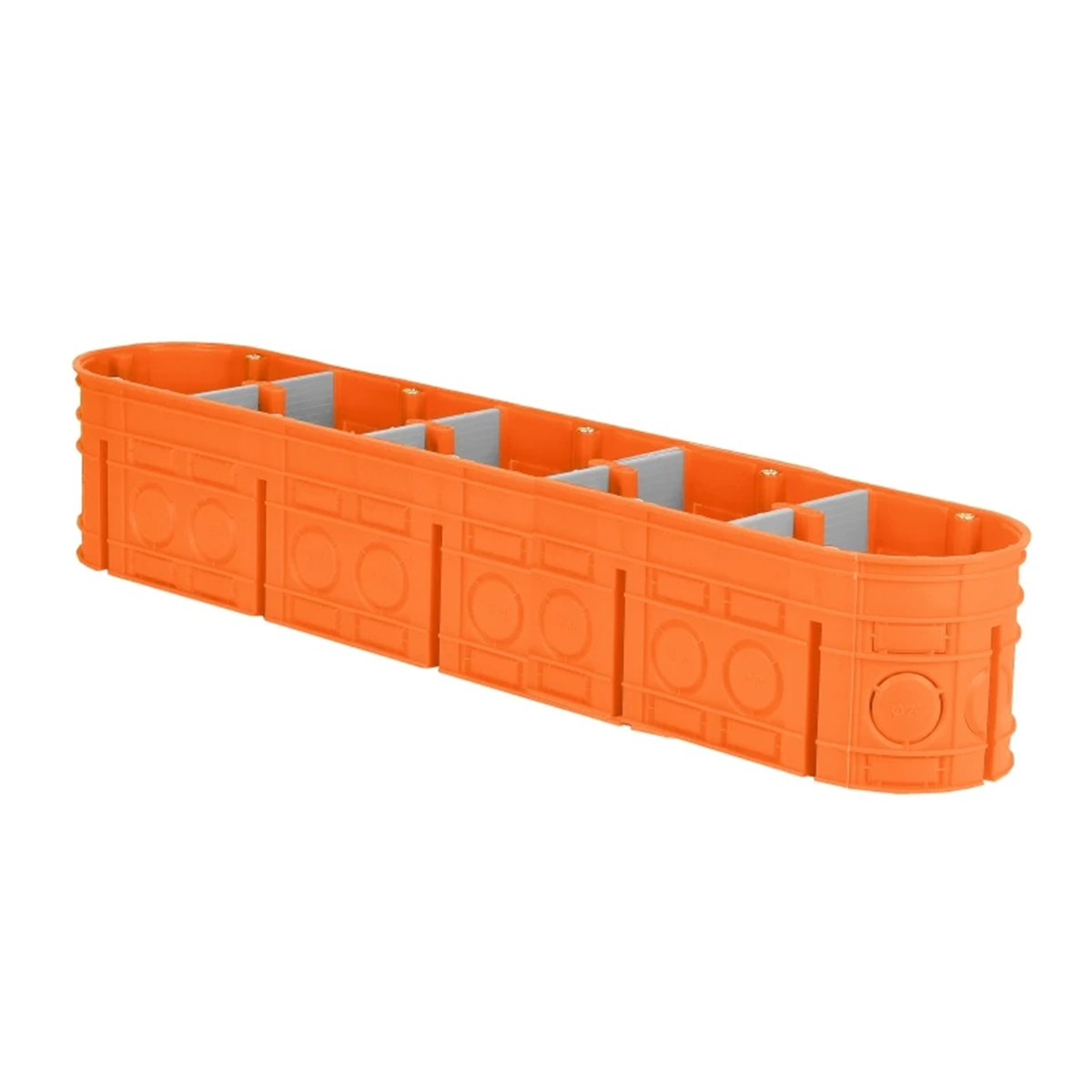

MULTIWALL Five-pole flush-mounted box M5x60F 5xfi60mm orange 33172008

Indeks lokalny:
MVP038SIME
Nr katalogowy:
33172008
Kod EAN:
5907813218798
Producent: SIMET
Depth [mm]: 63
Color: Orange
Shape: Oval
Cena:
5,14 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Conceal box

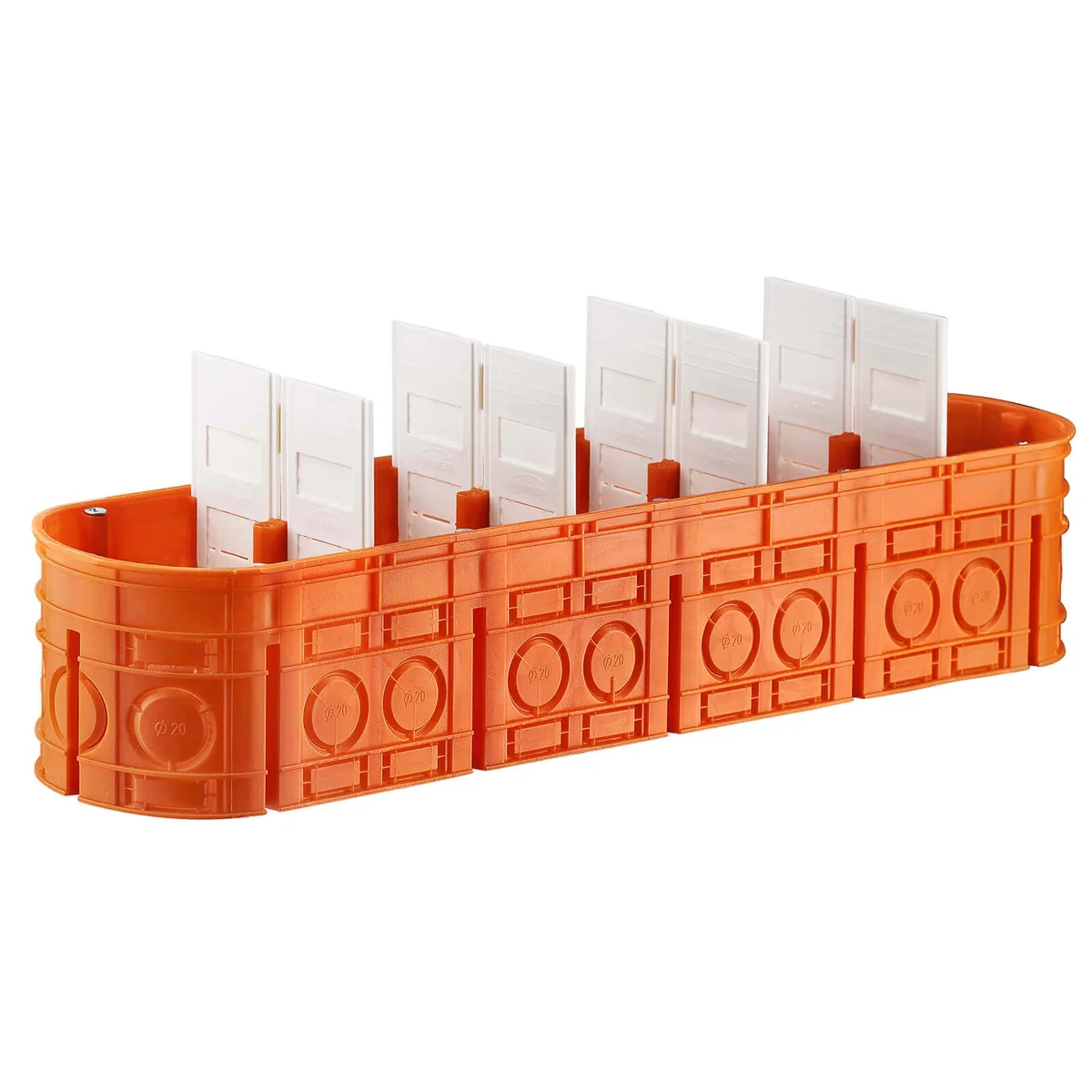

  • Equipped with 8 removable half-partitions with weakening in the lower part for cable routing and 10 screws.
  • Accessories matching the box:

    • PM1 closing cover (designed to close the extreme - outer pós of the box - if it is used as an accessory box with increased installation space). The lid is placed at the level of the top flange of the box – therefore it does not protrude above the level of the mounted box.
    • PM2 closing cover (designed to close the central part – of the box, complete with two PM1 covers, the entire space of the box can be closed).
    • PS1 and PS2 signaling covers (two end covers PS1 and one central cover PS2 allow to close the space of the box for plastering works).

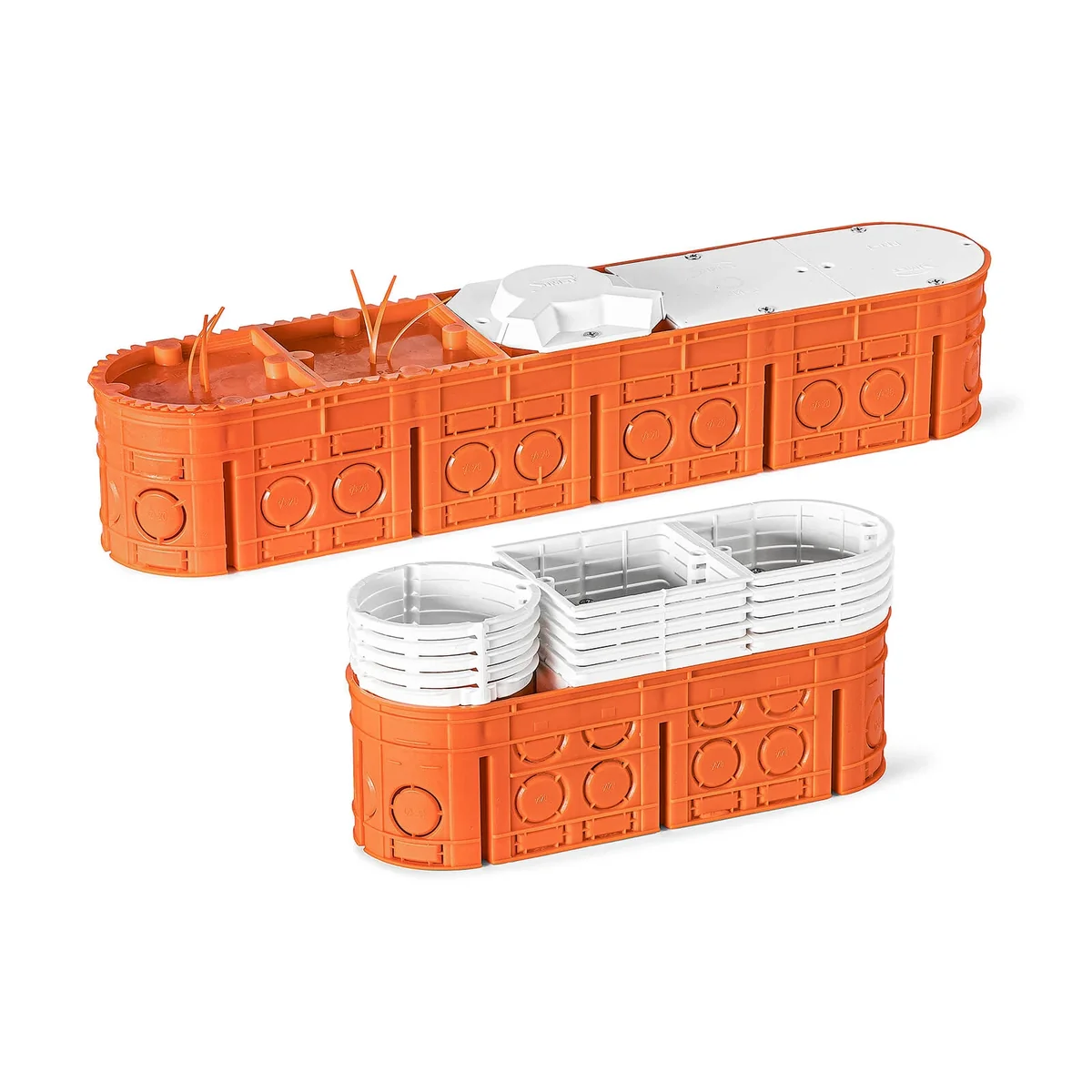

    • PDM60Z, PDM60W spacer rings are used to deepen multi-pole boxes from the Multiwall and Multibox2 series. They are fastened with screws to the box body. The rings can be shortened by cutting off the ribs spaced every 6 mm. Similarly to cans, rings can be closed with PM1 and PM2 covers. PS1 and PS2 signal covers can also be used for plastering works.
    • W16, W25, W40 screws

Dane techniczne

  • Depth [mm]
    63
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Level of security
    IP20
  • Pieces in the package
    15
  • Weight [g]
    148
  • Number of bolts/screws
    10
  • Number of segments
    5
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0
  • Color
    Orange
  • Material
    PP
  • Cover
    NO
  • Family
    MULTIWALL
  • Width [mm]
    71
  • Type
    For attachments
  • Height [mm]
    353
  • Fire resistance
    Not applicable
  • Fire resistance [°C]
    650
  • Attachment diameter [mm]
    60

Pozostałe dane techniczne

  • Mounting method
    Flush-mounted
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    284 mm
  • Depth
    63 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    ... 20 mm
  • Inlet from the rear
    Yes
  • Halogen free
    No
  • Colour
    Orange
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Oval
  • Model
    Other
  • Diameter
    60 mm
  • Width
    71 mm
  • For number of electric fittings
    5
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Dane producenta

  • Producent
    SIMET S.A.
  • Adres
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska

Opakowania zbiorcze

Rodzaj opakowania Pakiet
Ilość 1 szt.
Szerokość (m) 0,071
Długość (m) 0,354
Głębokość (m) 0,062
