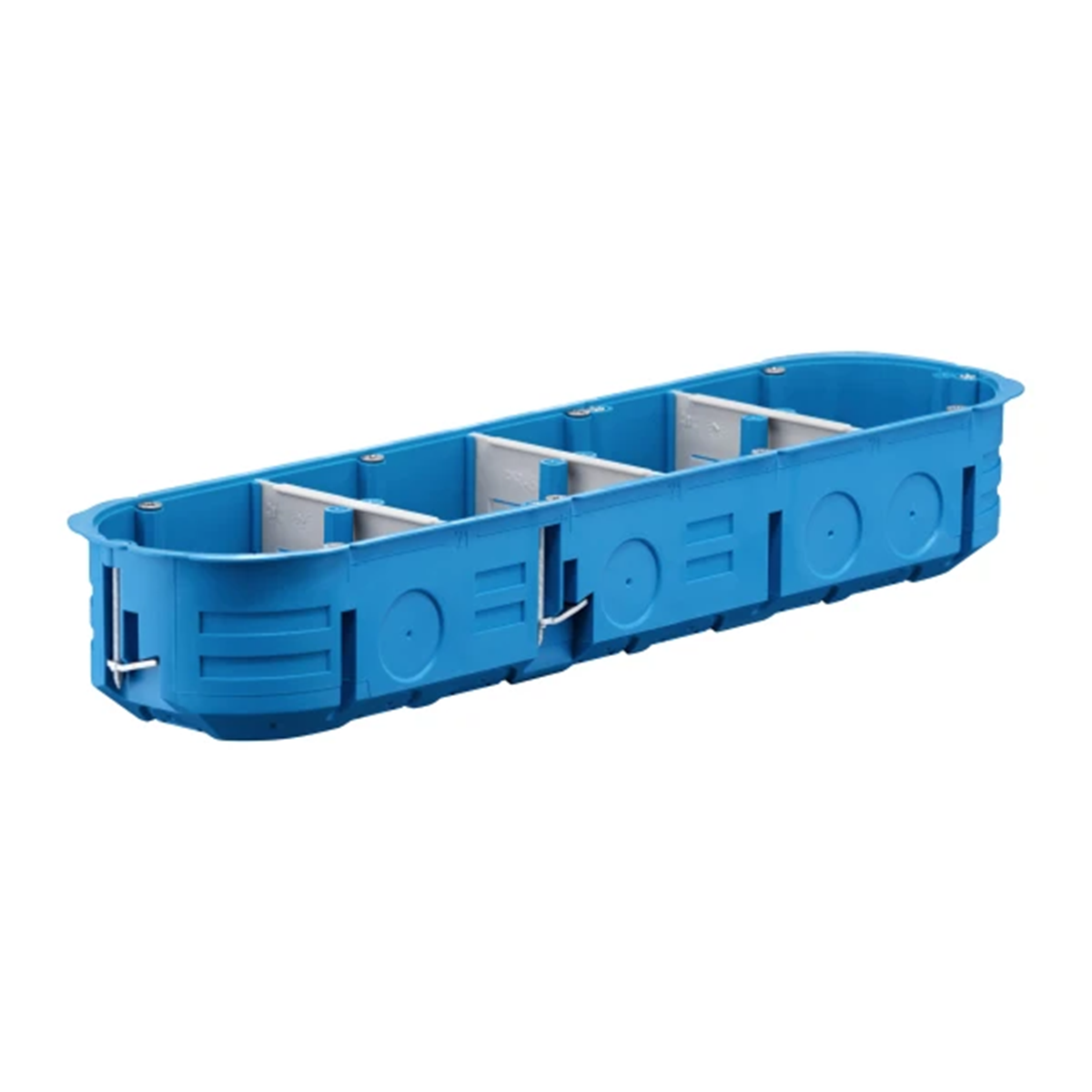

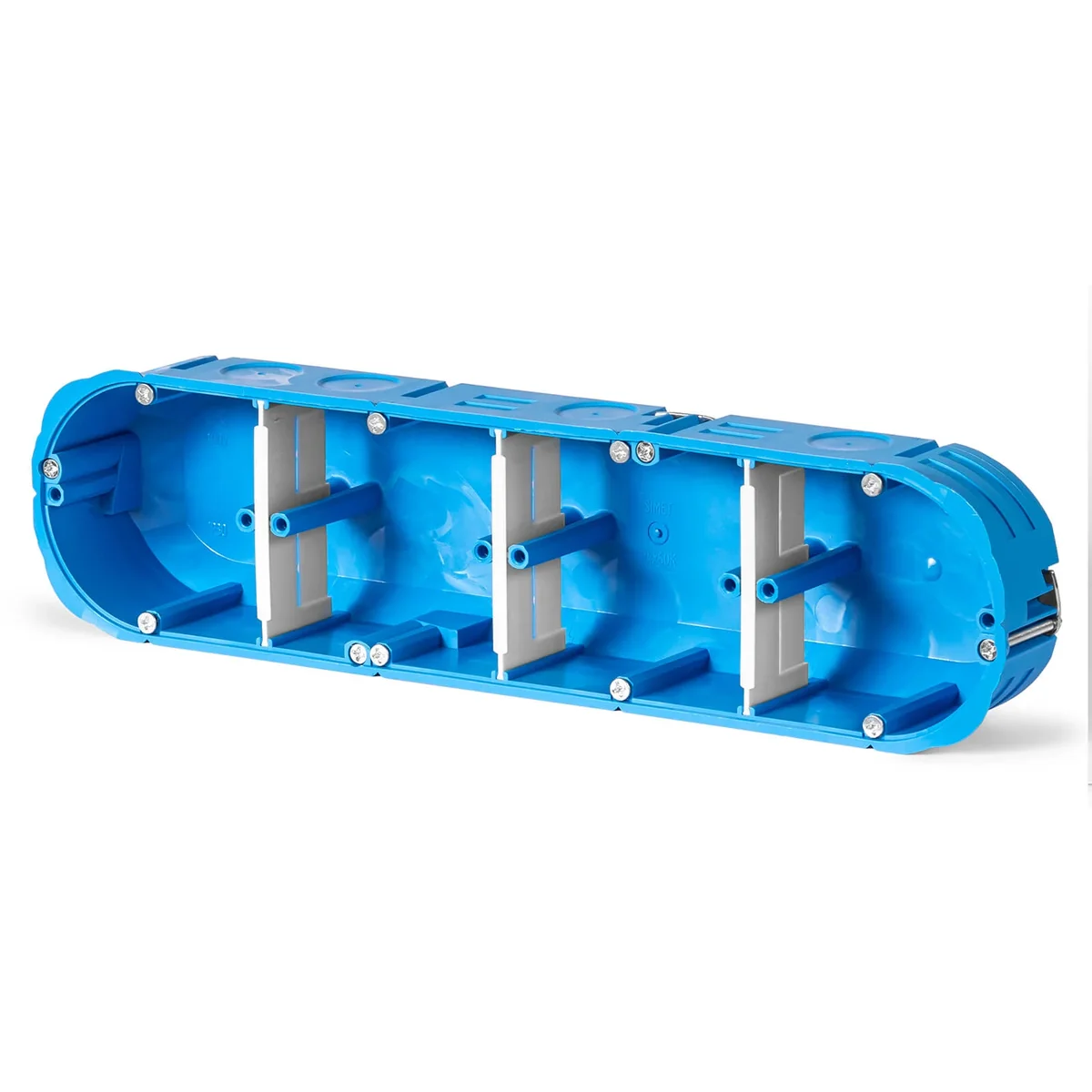

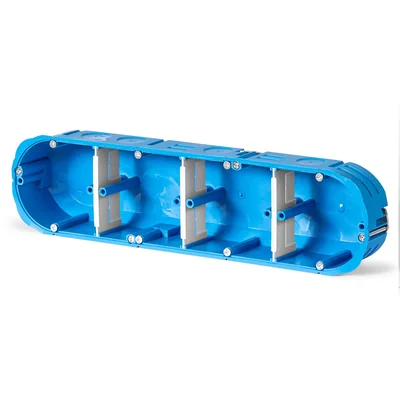

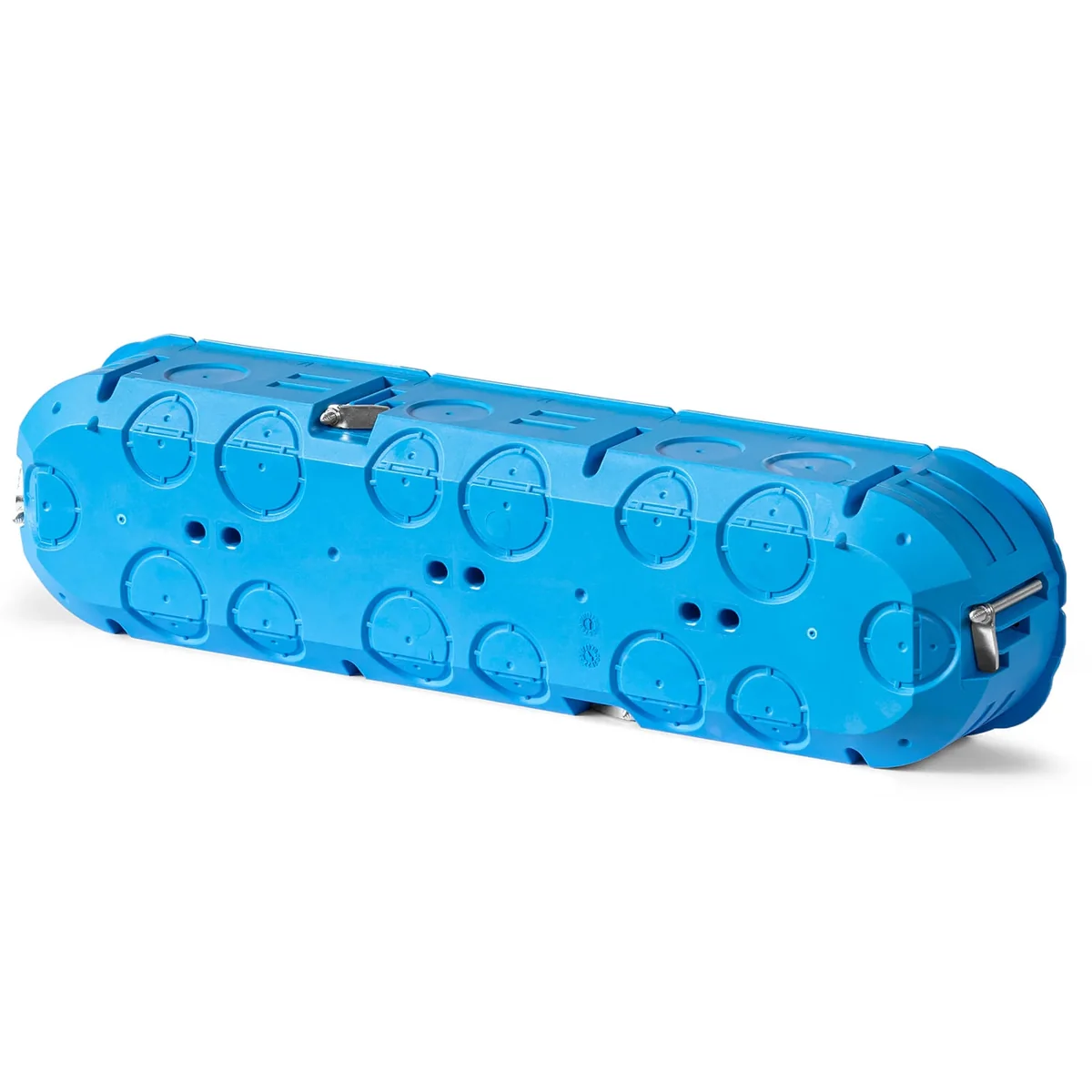

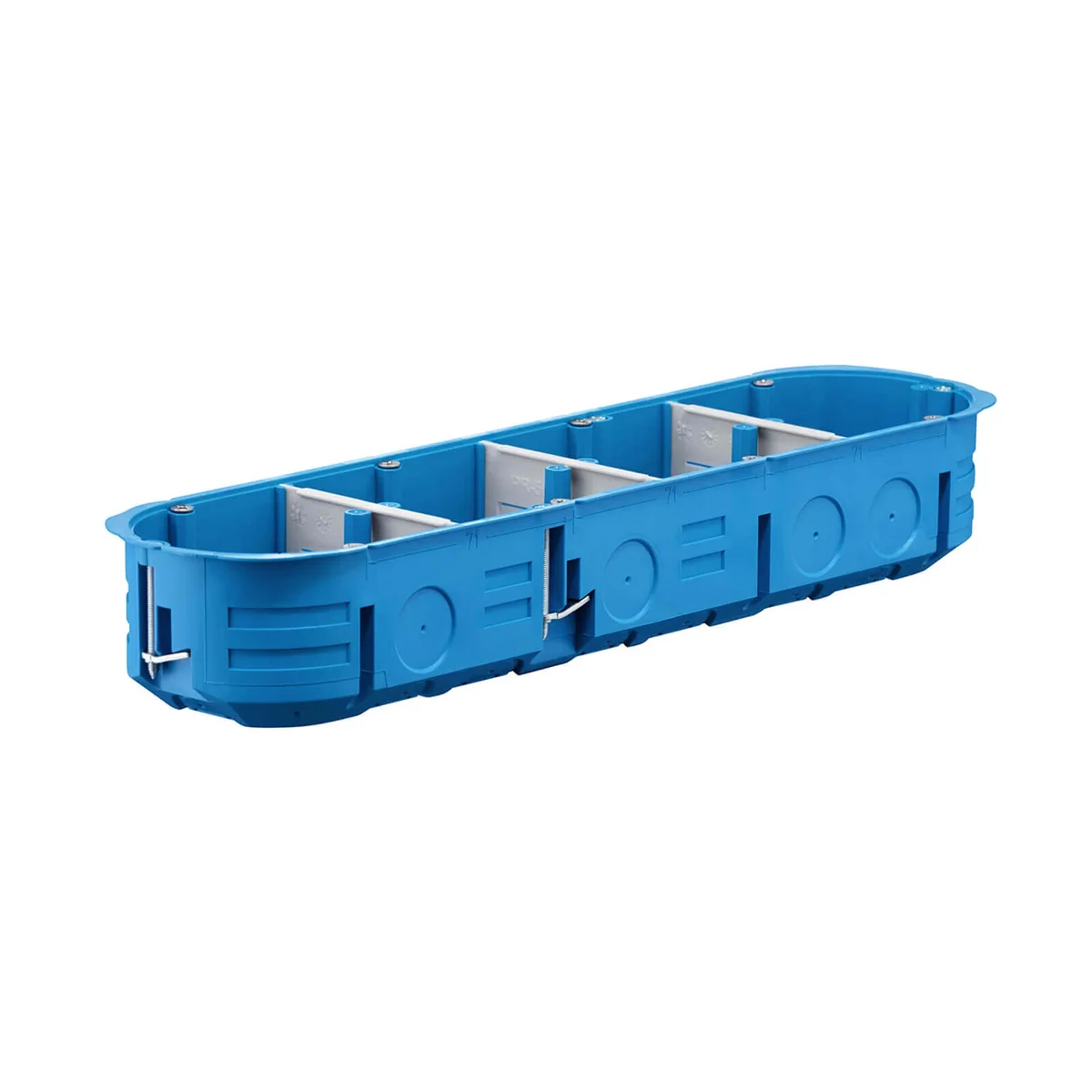

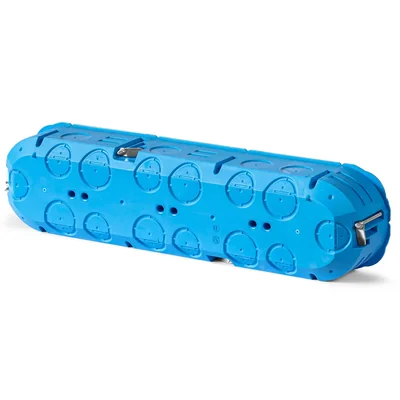

MULTIBOX K Hollow wall box P4x60K fi4x60mm blue tile 32326203

local index:
MVP022SIME
Catalog No:
32326203
EAN code:
5907813231407
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 45
Color: Blue
Price:
6,19 €
gross / pcs.
(including VAT 23%)
496,79 € gross/kg.
Delivery in 3h
Accessible 211 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Box for empty walls.

  • Rigid body, made of halogen-free, self-extinguishing material.
  • A number of knockouts in the bottom for insertion pipes and wires (max. 20mm).
  • Sliding partitions improve the rigidity of the structure and isolate the fields between the equipment.

Accessories matching the boxes:

< ul>
  • PM1, PM2, PKS60
  • PDM60x30Z, PDM60x30W
  • W16, W25, W40
  • Technical data

    • Halogen free
      Yes
    • Color
      Blue
    • Material
      Polyamide
    • Cover
      NO
    • Family
      MULTIBOX K
    • Width [mm]
      68
    • Weight [g]
      12.46
    • Self-extinguishing
      Yes
    • Number of segments
      4
    • Fire resistance [°C]
      960
    • Attachment diameter [mm]
      60
    • PKWIU
      27.33.13.0
    • Depth [mm]
      45
    • Shape
      Oval
    • Installation
      Flush-mounted
    • Type
      For plasterboards
    • Level of security
      IP30
    • Type
      For attachments
    • Height [mm]
      281
    • Fire resistance
      Non-flammable
    • Flammability class
      V0
    • For modular equipment
      Not applicable
    • Exact material
      PA6
