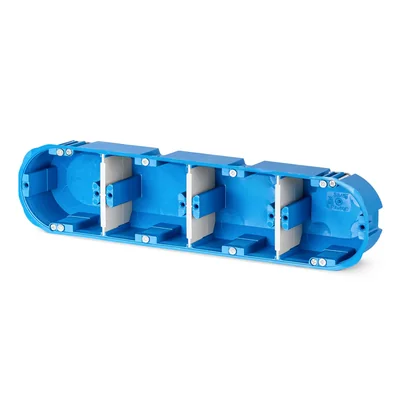

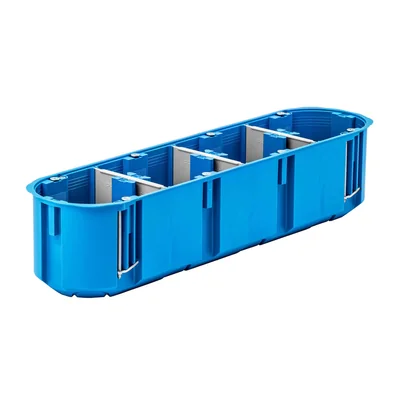

MULTIBOX 2 Installation box for empty walls, four-pole P4x60D fi4x60mm blue 32097203

local index:
MVP014SIME
Catalog No:
32097203
EAN code:
5907813224805
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 63
Color: Blue
Price:
8,24 €
gross / pcs.
(including VAT 23%)
48,47 € gross/kg.
Delivery in 3h
Accessible 358 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

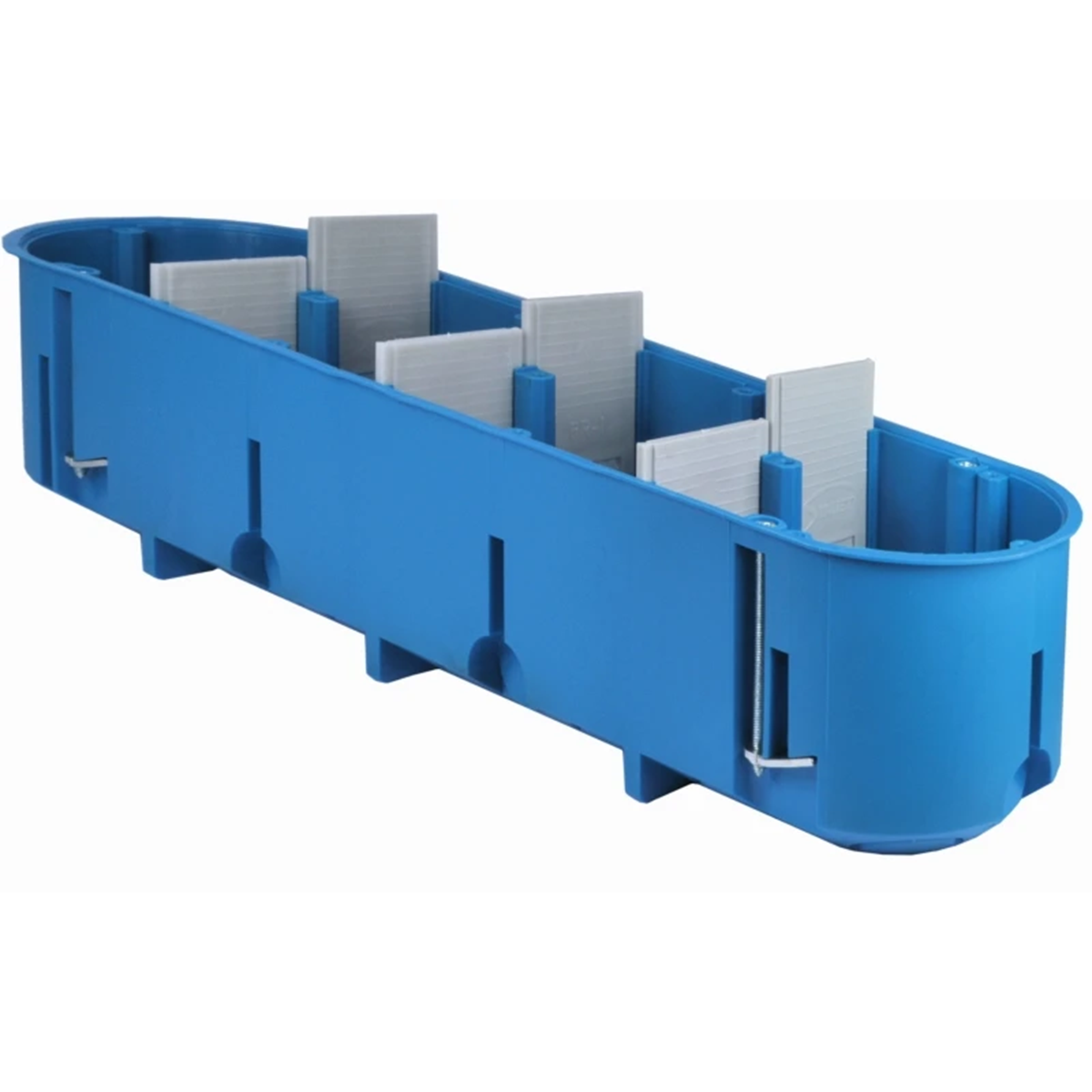

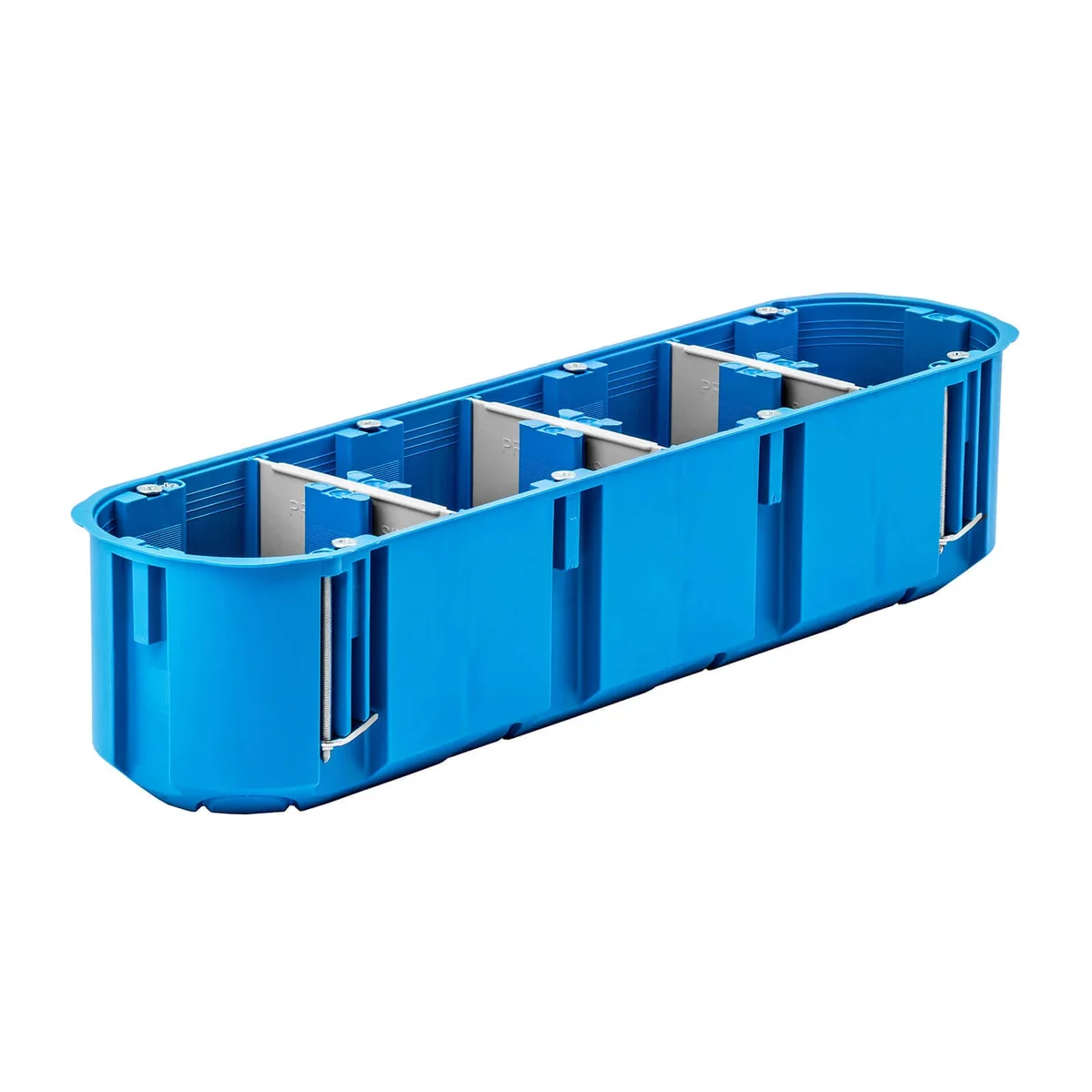

Gypsum plaster box for frame switches and sockets.

  • Rigid body, made of halogen-free, self-extinguishing material.
  • Equipped with screws accessories, 16mm long.
  • Clips for embedding boxes in plasterboard, wainscoting and other walls – also thin ones, e.g. made of plastic or sheet metal.

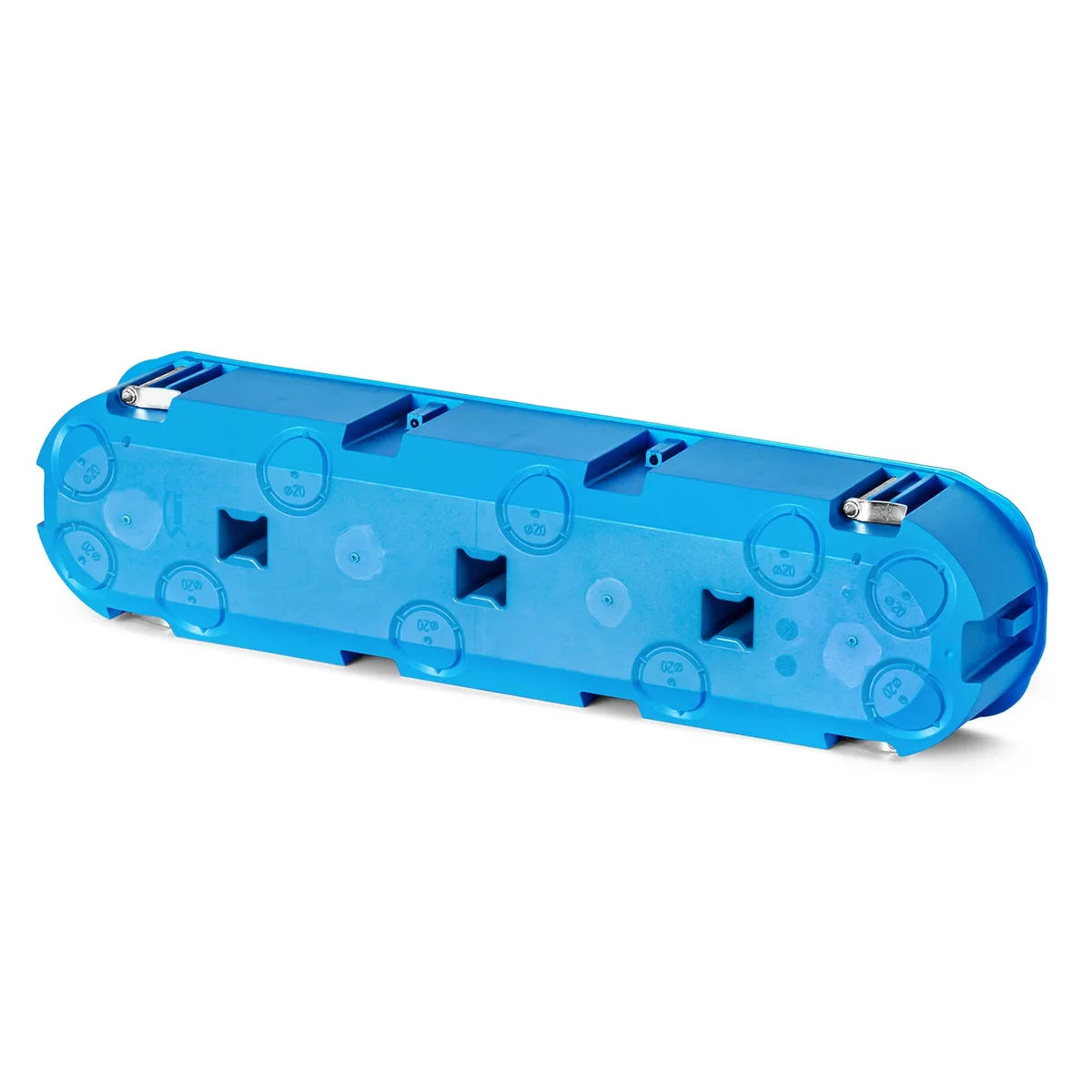

  • In the bottom, a series of weakenings for inserting pipes and wires (max. 20mm).

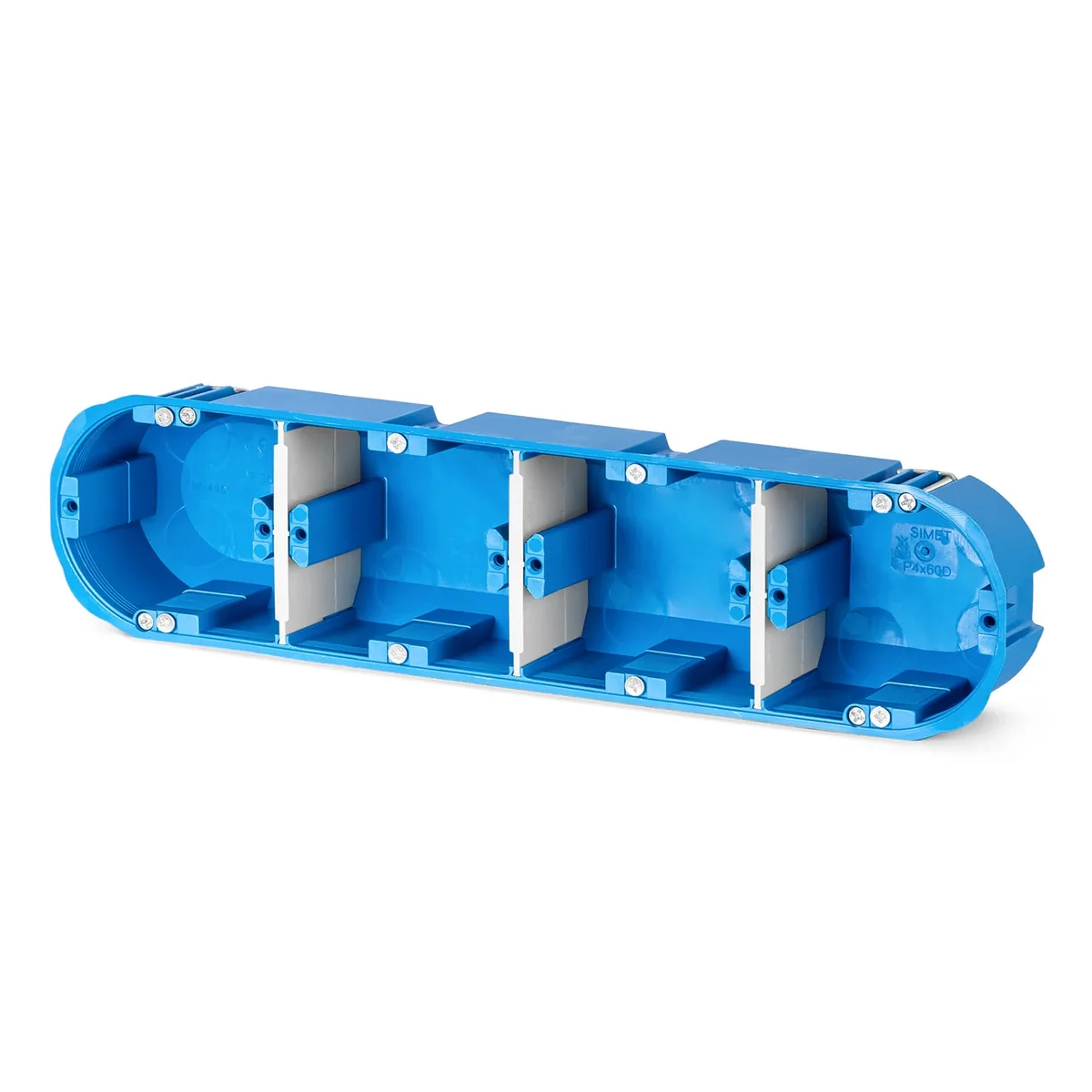

  • Sliding partitions with weakenings (in the lower part ) improving the rigidity of the structure and insulating the fields between the accessories.
  • The inner space of the box can be closed with two PM1 covers and two in the central PM2 fields.
  • 10 knockouts for ø 20 mm.
  • 8 knockouts for ø 16 mm.
  • 8 hardware screws included.

Accessories matching the box:

  • PM1 (closing cover)< /li>
  • PM2 (Internal closing cover)
  • PKS60 (Cable lead-out cover)

Technical data

  • Halogen free
    Yes
  • Color
    Blue
  • Material
    Polyamide
  • Cover
    NO
  • Family
    MULTIBOX 2

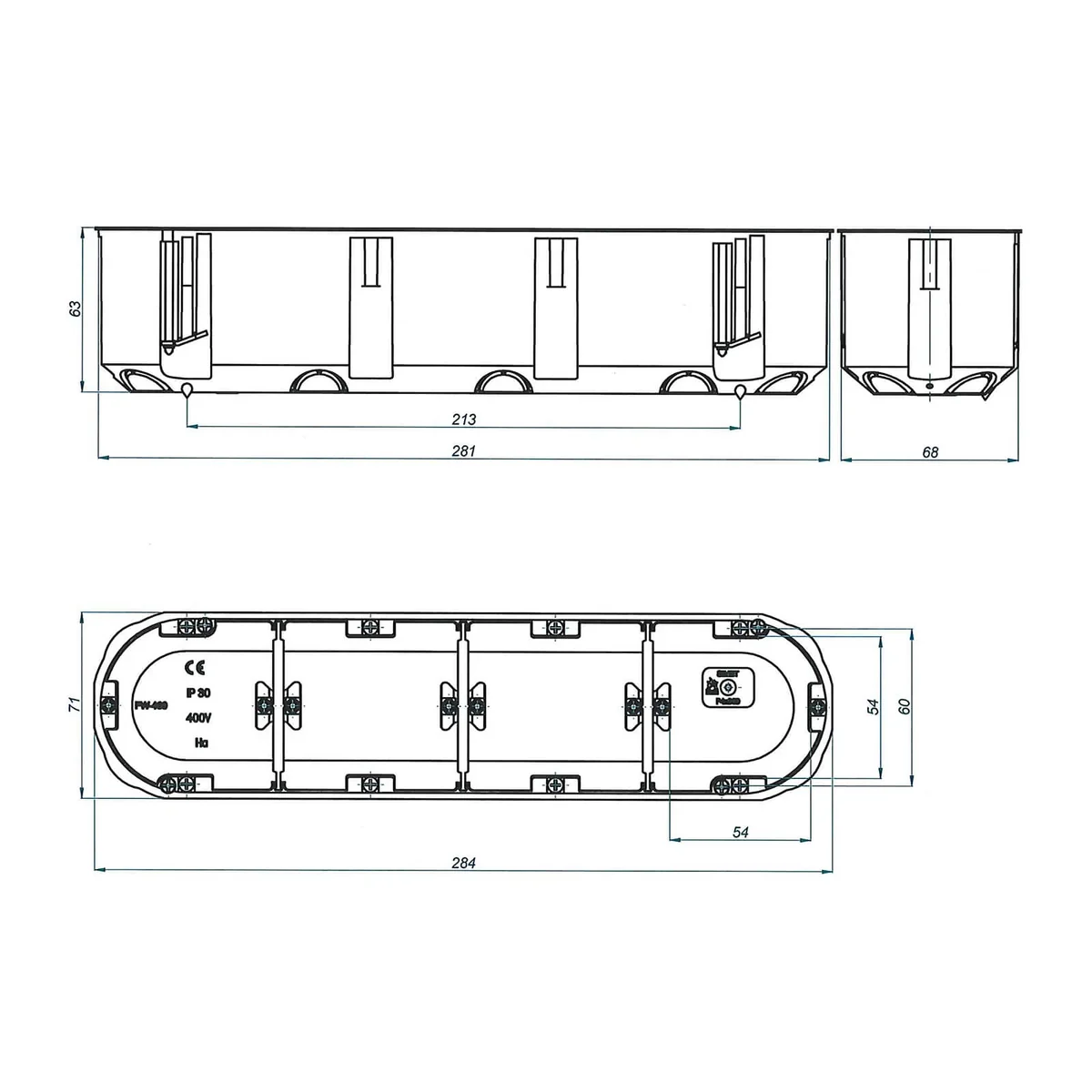

  • Width [mm]
    68
  • Type
    For attachments
  • Height [mm]
    280
  • Number of bolts/screws
    8
  • Number of segments
    4
  • Fire resistance [°C]
    960
  • Number of slots
    18
  • Exact material
    PA6
  • Depth [mm]
    63
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP30
  • Mounting hole diameter [mm]
    71
  • Weight [g]
    170
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Length
    280 mm
  • Depth
    61 mm
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    16 ... 20 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Other
  • Pokrywa
    None
  • Sealable
    No
  • With screening
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Shape
    Rectangular
  • Model
    Other
  • Diameter
    60 mm
  • Width
    70 mm
  • For number of electric fittings
    4
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Number of inlets
    18
  • Halogen free
    Yes
  • Colour
    Blue
  • Cover attachment
    Nie dotyczy
  • Circuit integrity
    None
  • Air tight
    No
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
