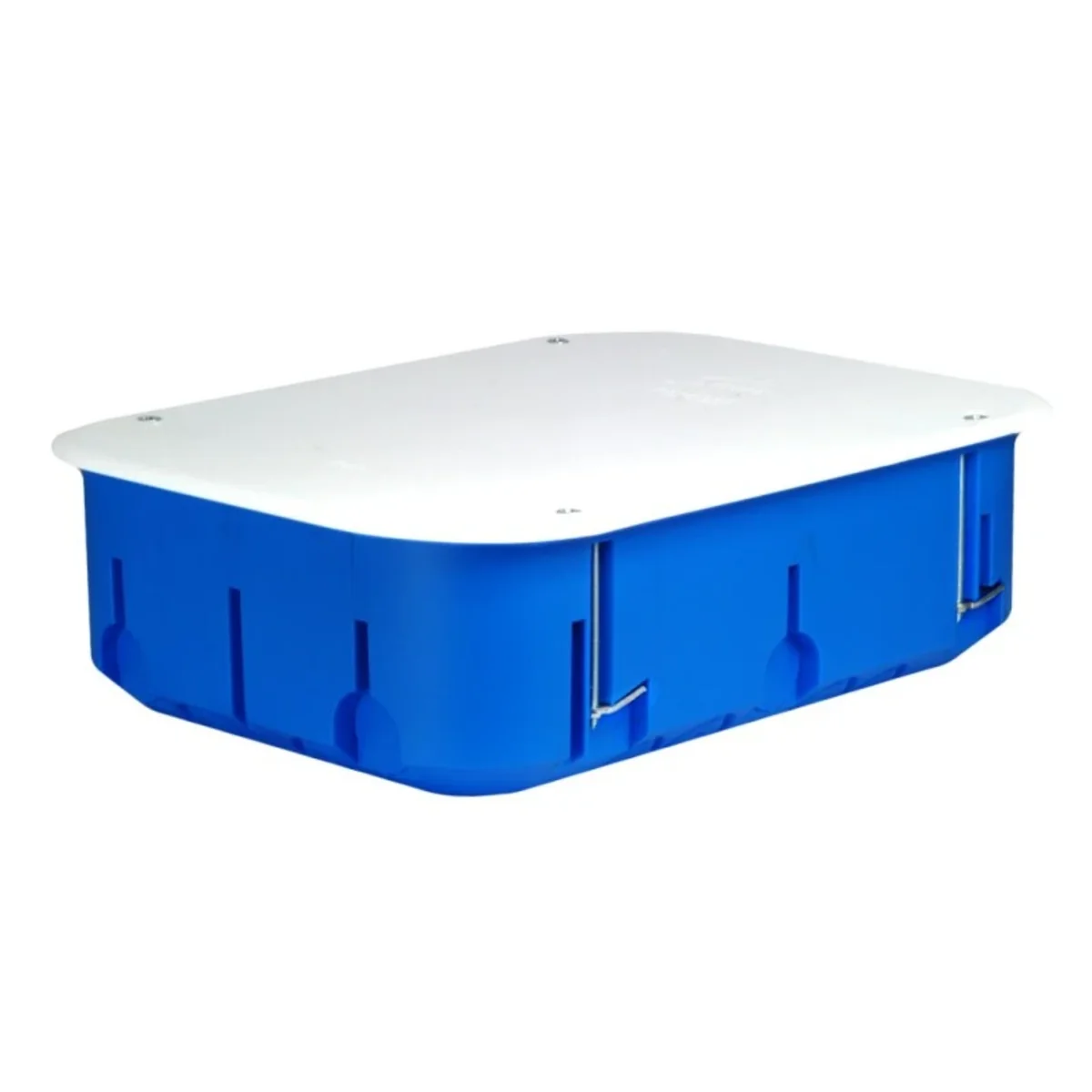

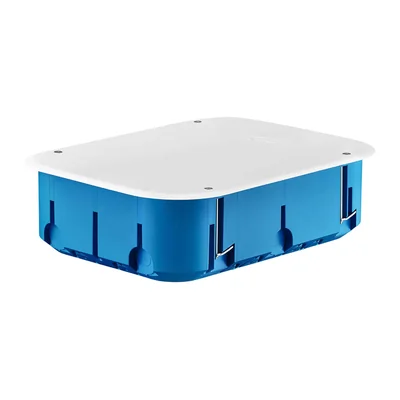

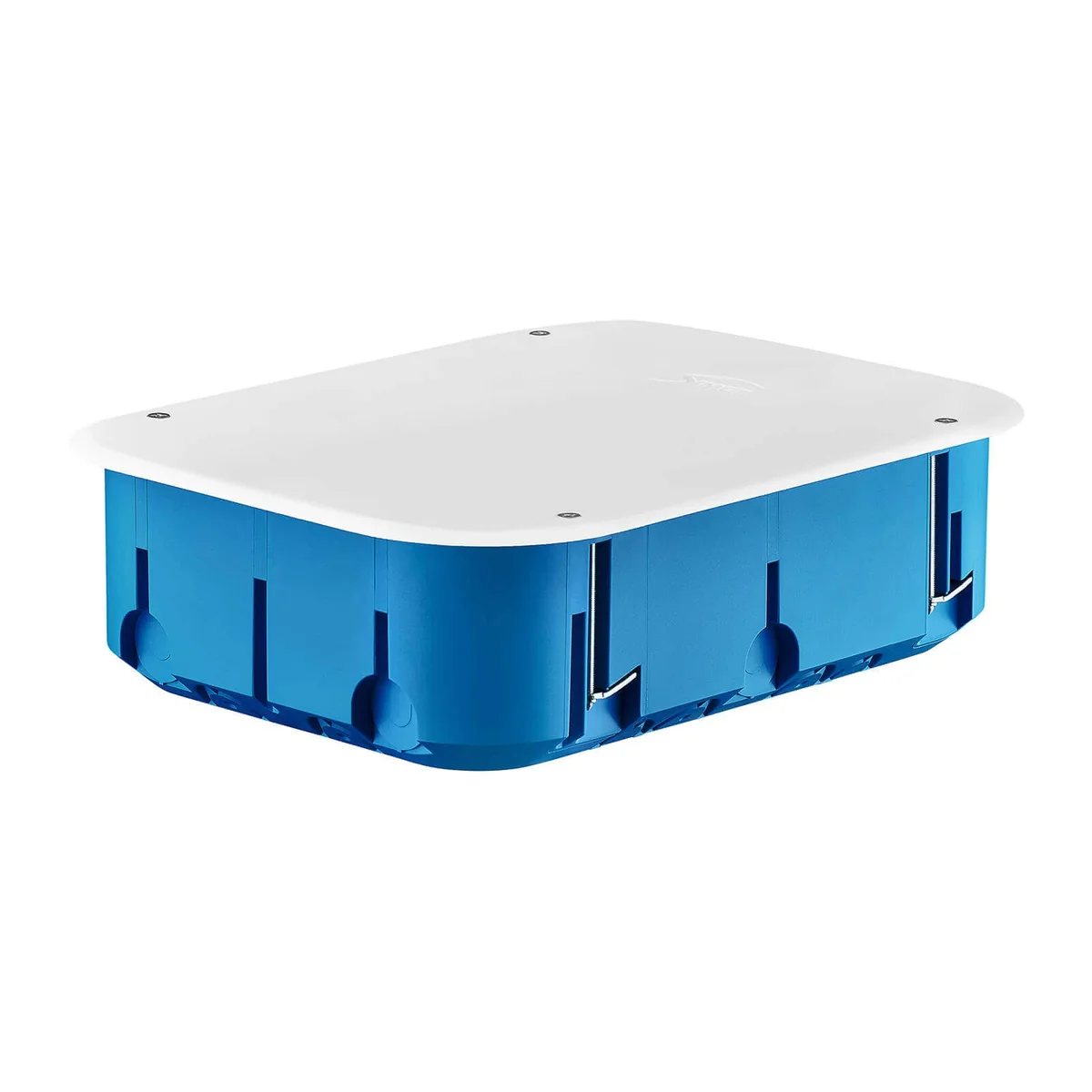

MULTIBOX 2 Hollow wall box with cover P6x60DP 6xfi60mm deep blue 32178203

local index:
MVP002SIME
Catalog No:
32178203
EAN code:
5907813220623
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 63
Color: Blue | White
Price:
92,09 €
gross / pkg.
(including VAT 23%)
13,16 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

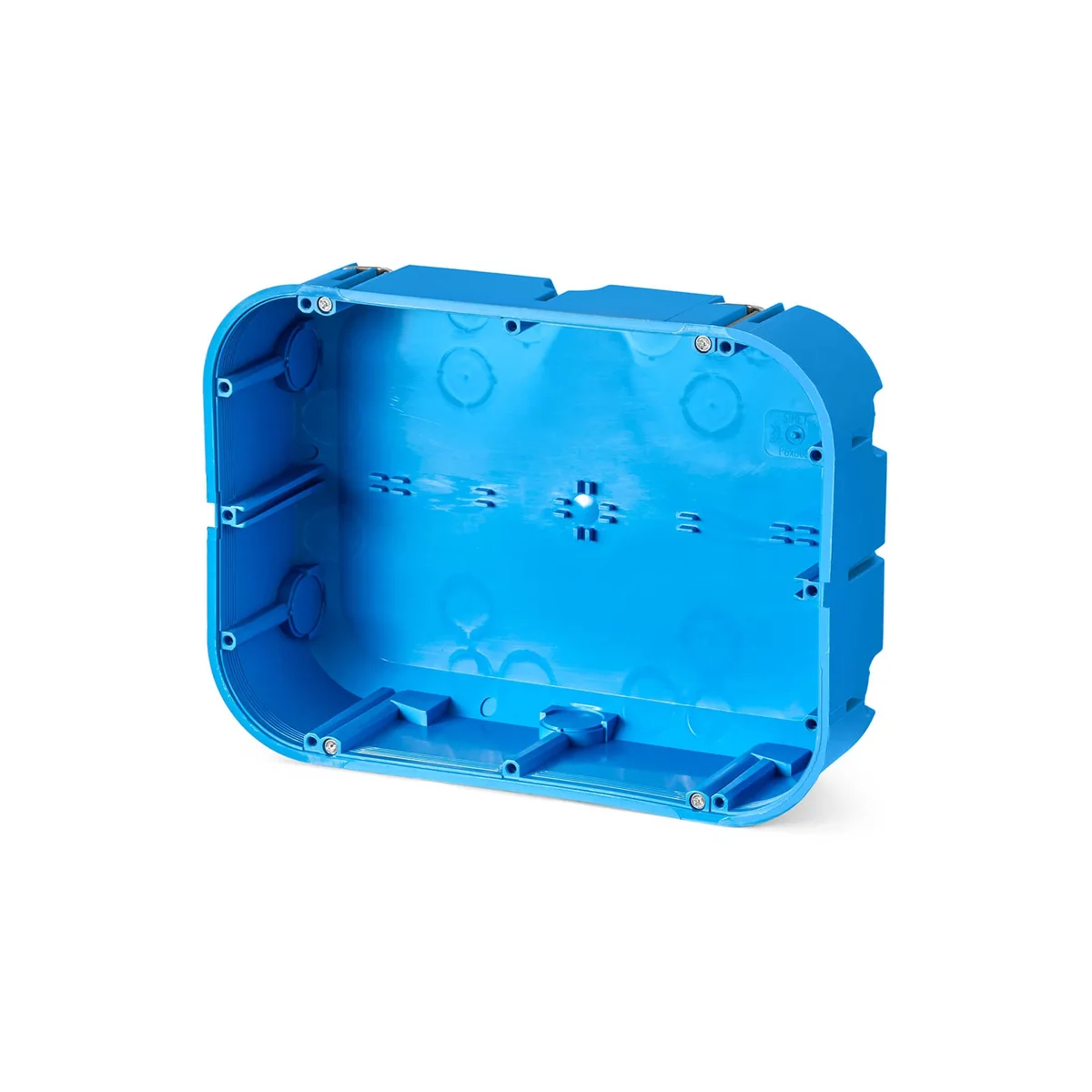

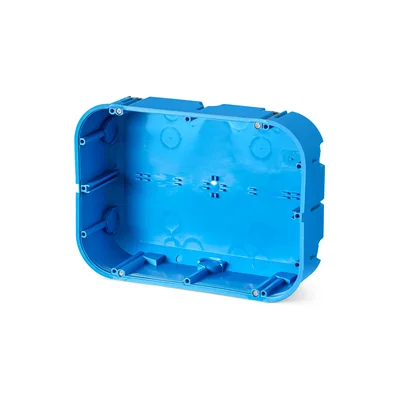

Dypsum plasterboard boxThe P6x60DP junction box with cover is the largest plasterboard box in the Simet electrical installation box range. A massive body and a securely screwed cover with 4 screws make it solid and convenient for placing many electrical and electronic components.

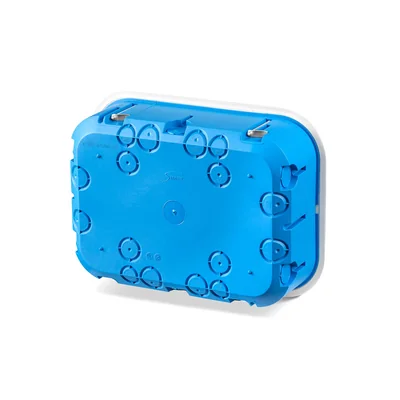

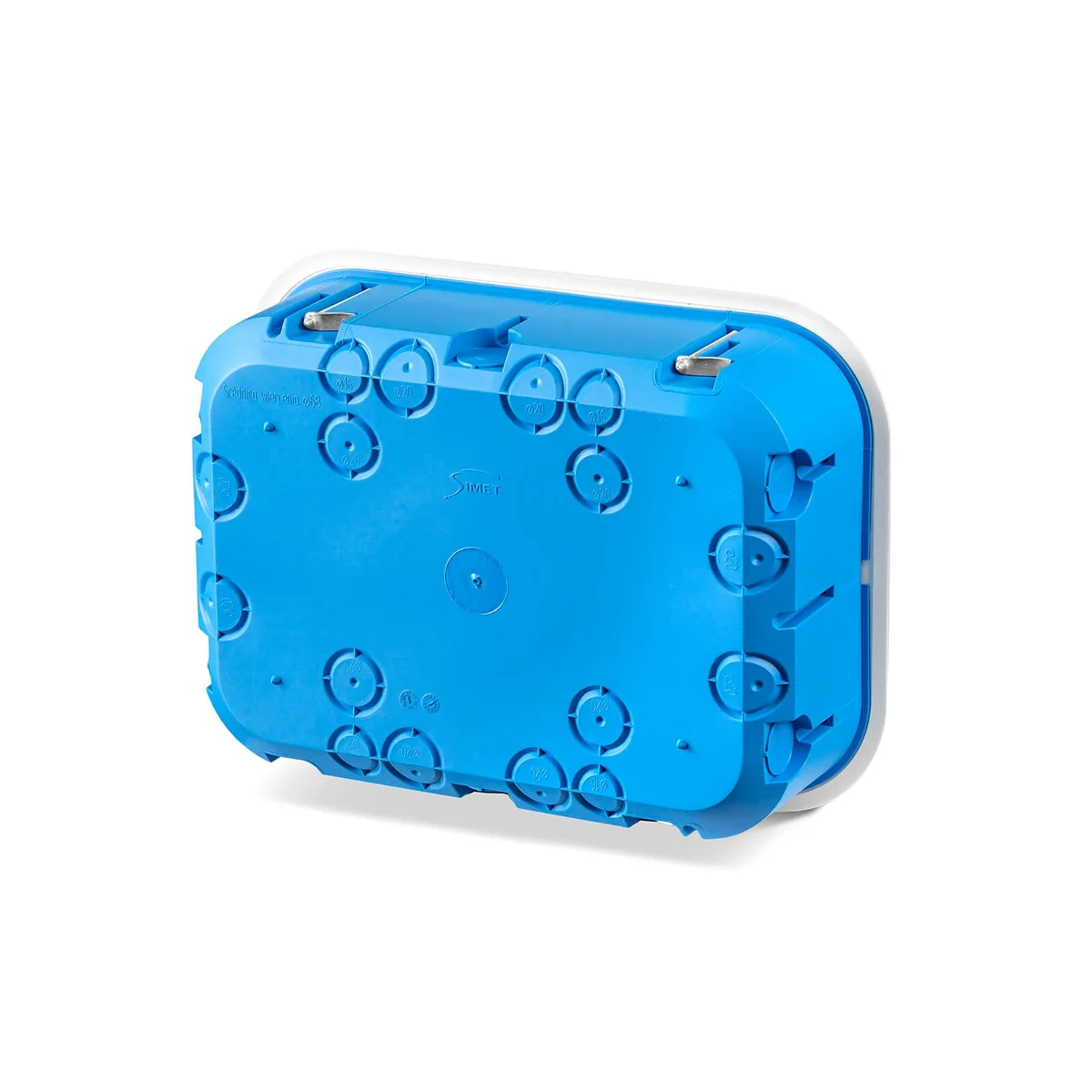

  • In the bottom, a series of knockouts for inserting pipes and wires (max. 20mm ).
  • Clips for embedding boxes in gypsum plasterboards, wainscoting and other walls – also thin ones, e.g. made of plastic or sheet metal.
  • 18 knockouts for ø 20mm, 4 knockouts for ø 16mm, complete with cover mounted on 4 acid-resistant screws, 4 plasterboard catches

Accessories matching the box:

  • PM1 (external closing cover)
  • PM2 internal closing cover
  • Hardware screws W16, W25, W40
  • PKS 60 (cover for cable entry)

Technical data

  • Halogen free
    Yes
  • Color
    Blue White
  • Material
    Polyamide
  • Cover
    Yes
  • Level of security
    IP43
  • Pieces in the package
    7
  • Height [mm]
    215
  • Number of bolts/screws
    4
  • Number of segments
    6
  • Fire resistance [°C]
    960
  • Number of slots
    20
  • Exact material
    PA6
  • Depth [mm]
    63
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    157
  • Type
    For attachments
  • Self-extinguishing
    Yes
  • Fire resistance
    Non-flammable
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Attachment diameter [mm]
    60
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Equipped with
    Other
  • Couplable
    No
  • Width
    171 mm
  • Depth
    67,3 mm
  • For number of electric fittings
    6
  • Mounting switching equipment
    Screwing
  • Type of housing feed-through
    Preembossing
  • Suitable for cable diameter
    1,5 ... 20 mm
  • Pipe locking
    No
  • Inlet from the rear
    Yes
  • Number of inlets
    18
  • Material
    Plastic
  • Surface protection
    Other
  • Pipe locking optional
  • Cover attachment
    Screwed
  • Sealable
    No
  • With screening
    No
  • Max. conductor cross section
    4 mm²
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    Yes
  • Special application
    Other
  • Shape
    Rectangular
  • Model
    Other
  • Provided with revolving ring
    No
  • Length
    229 mm
  • Diameter
    0 mm
  • Inner depth
    61,9 mm
  • Depth
    ... 63 mm
  • With screws
    Yes
  • For tube diameter
    20 mm
  • Housing feed-through by break-out opening
    Yes
  • Housing feed-through by seal membrane
    No
  • Housing feed-through by nozzle
    No
  • Housing feed-through by step membrane
    No
  • Halogen free
    Yes
  • Colour
    Blue
  • Pokrywa
    Nieprzezroczyste
  • Number of included spouts
    0
  • Circuit integrity
    None
  • Air tight
    No
  • Clamp position fixed
    No
  • Nozzle
    None
  • Number of poles of the clamp
    0
