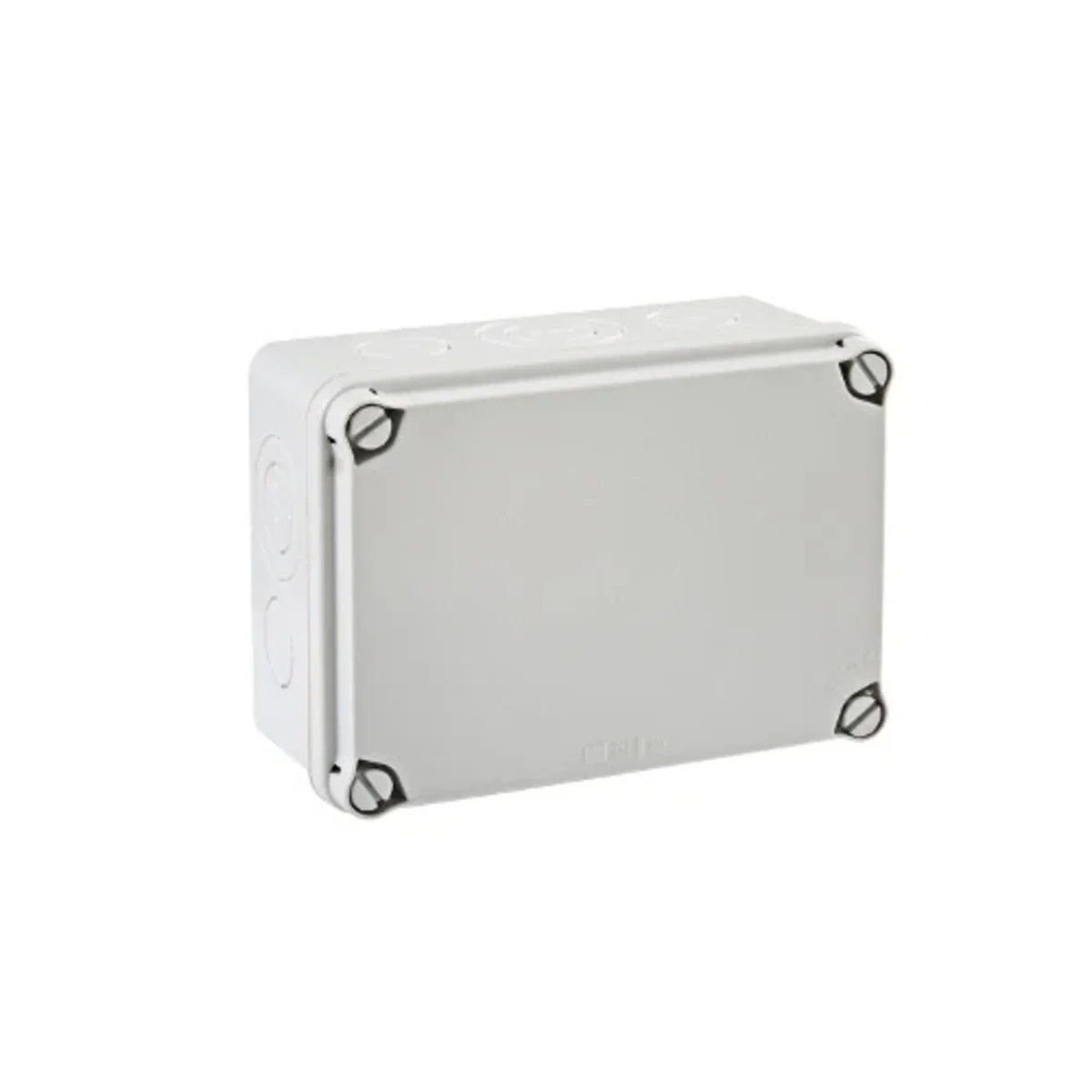

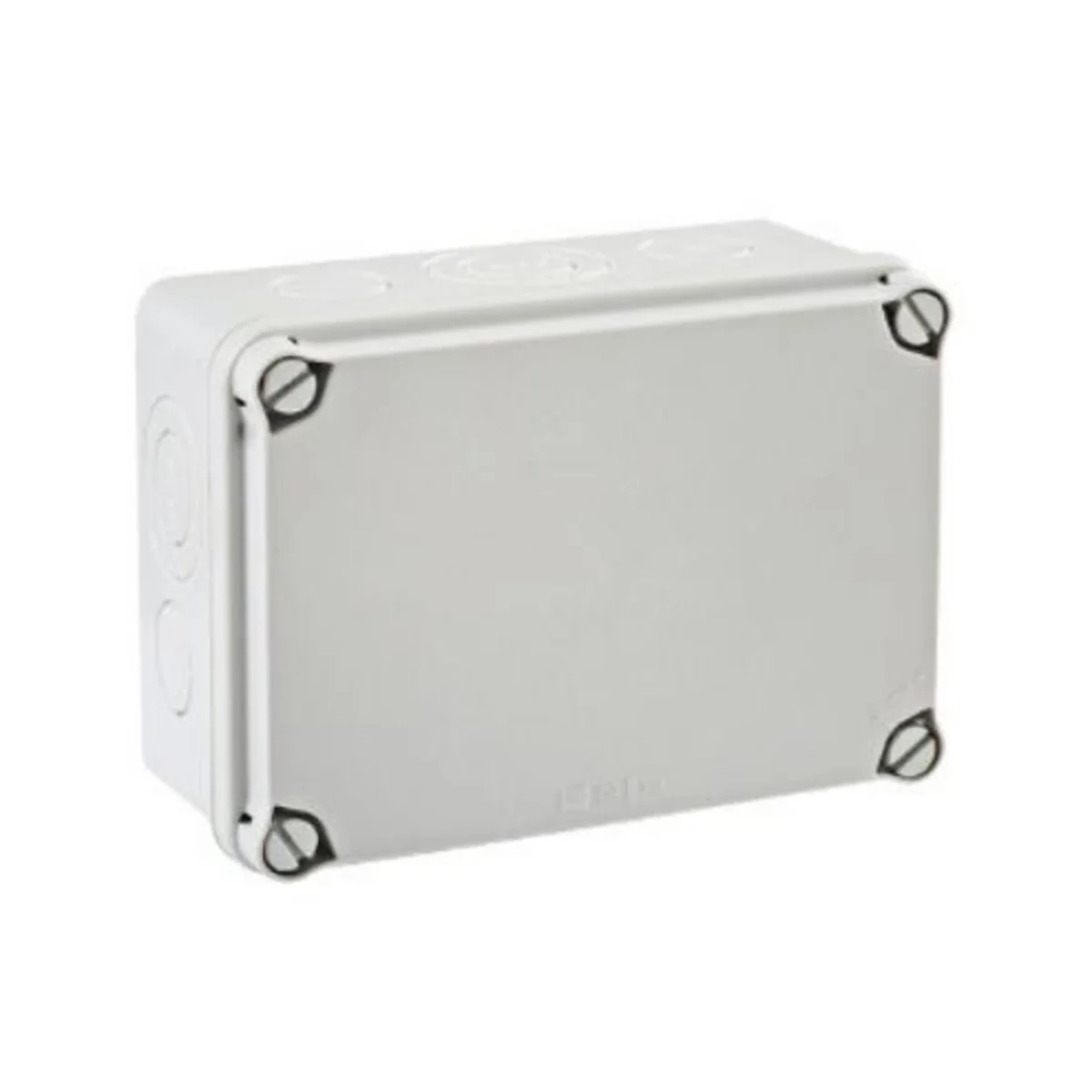

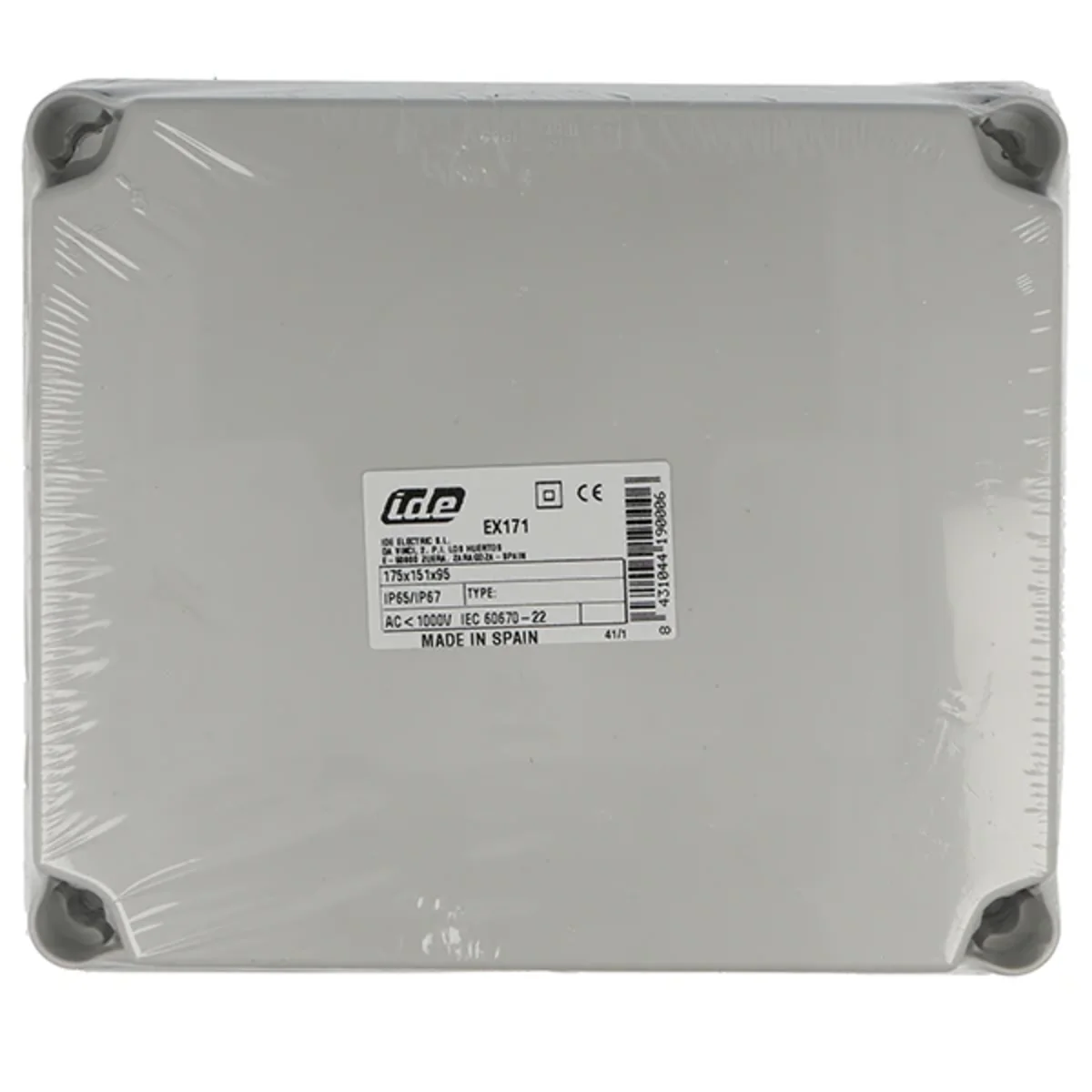

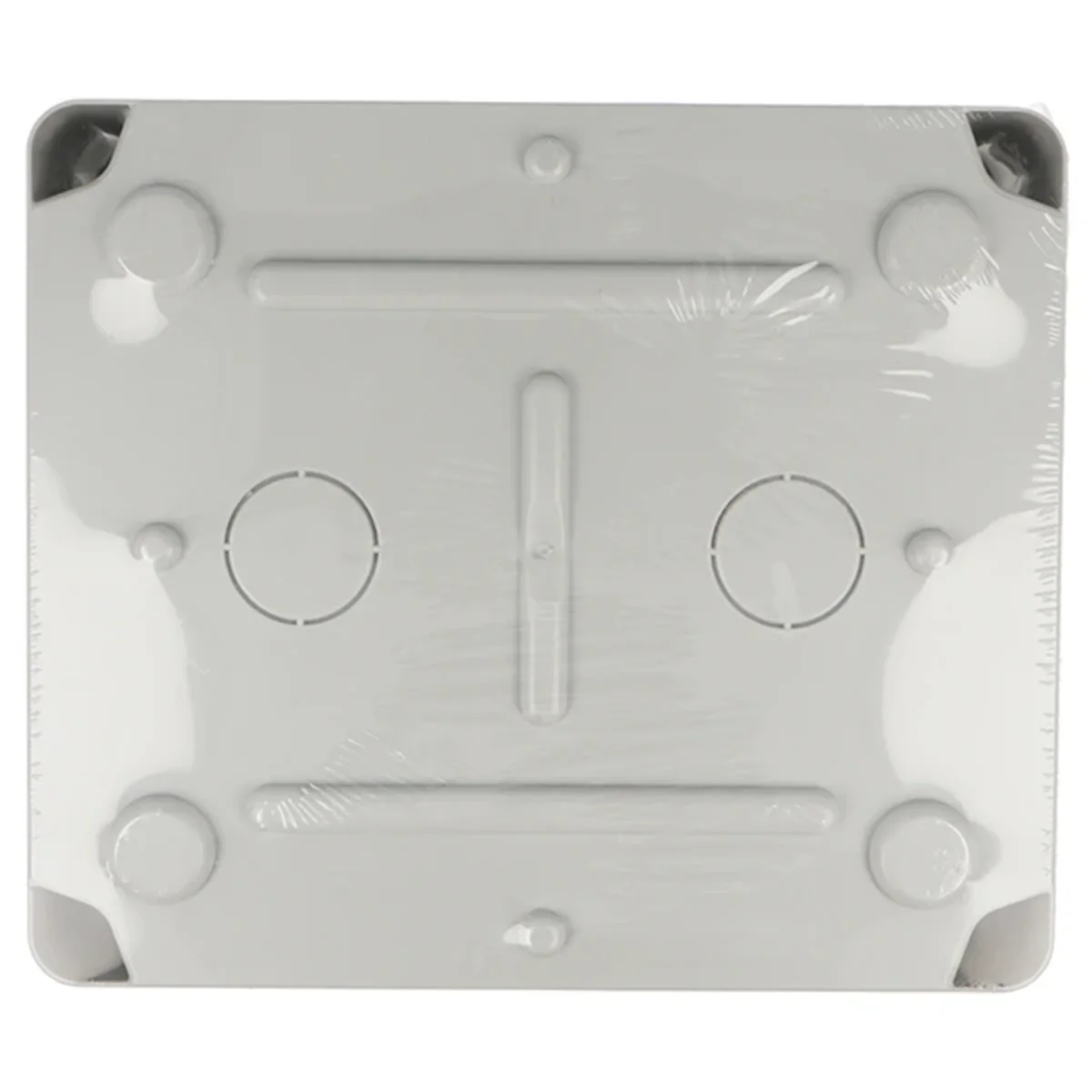

LIGHT Installation box with 10 knockouts, full cover 175x151x95mm EX-171

local index:
MVN074PCEQ
Catalog No:
EX-171
EAN code:
8431044190006
Manufacturer: PCE
Halogen free: Yes
Depth [mm]: 95
Color: White
Price:
6,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Installation box from the LIGHT series.

  • With a solid cover.
  • With knockouts.
  • 6xM25, 4xM40 .
  • Screwed.
  • Thermoplastic strength 70°C.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Cover
    Yes
  • Family
    LIGHT
  • Width [mm]
    175
  • Height [mm]
    151
  • Degree of mechanical protection
    IK07
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0
  • Depth [mm]
    95
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP66 IP67
  • Type
    branching
  • Operating temperature range [°C]
    -25 to +40
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of slots
    10
