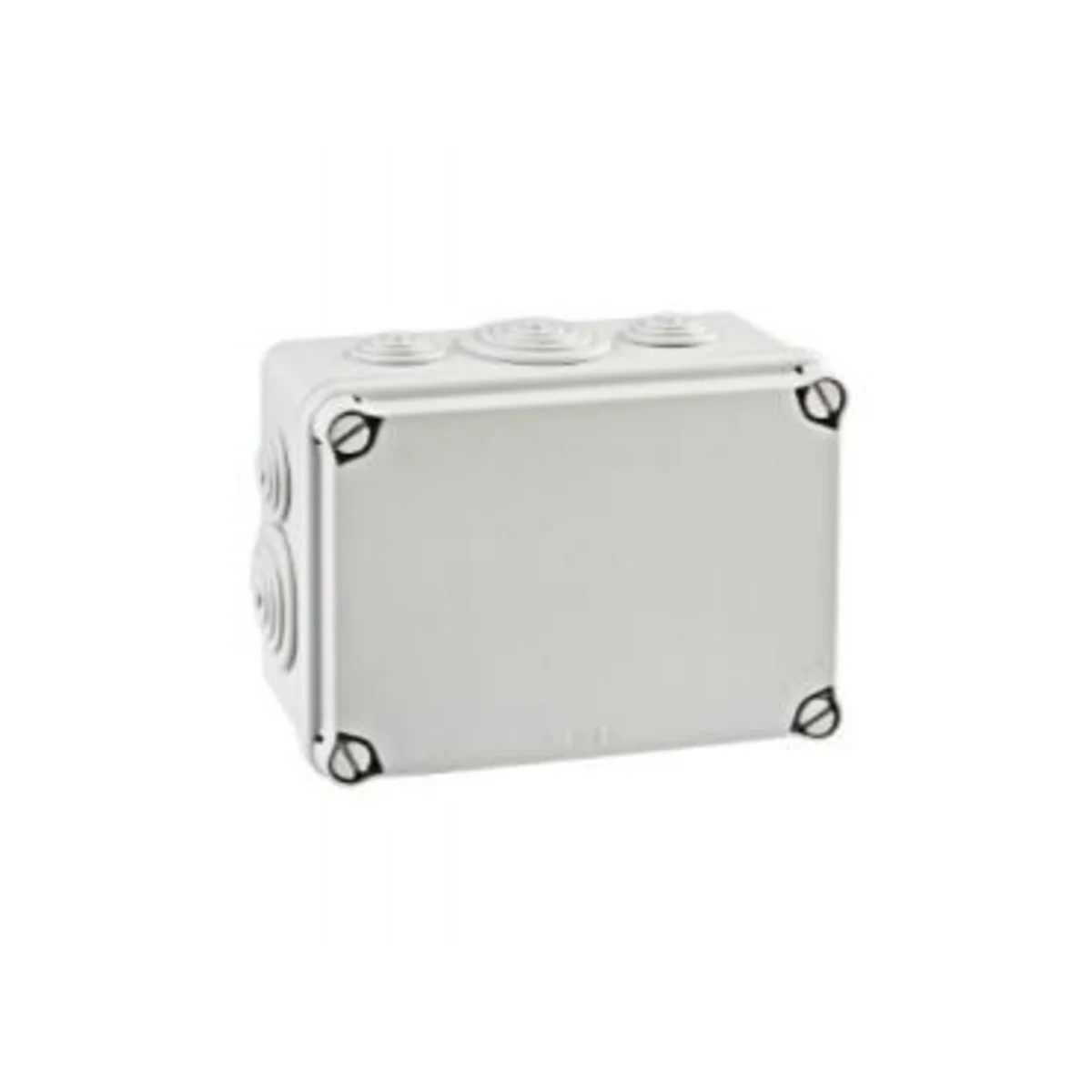

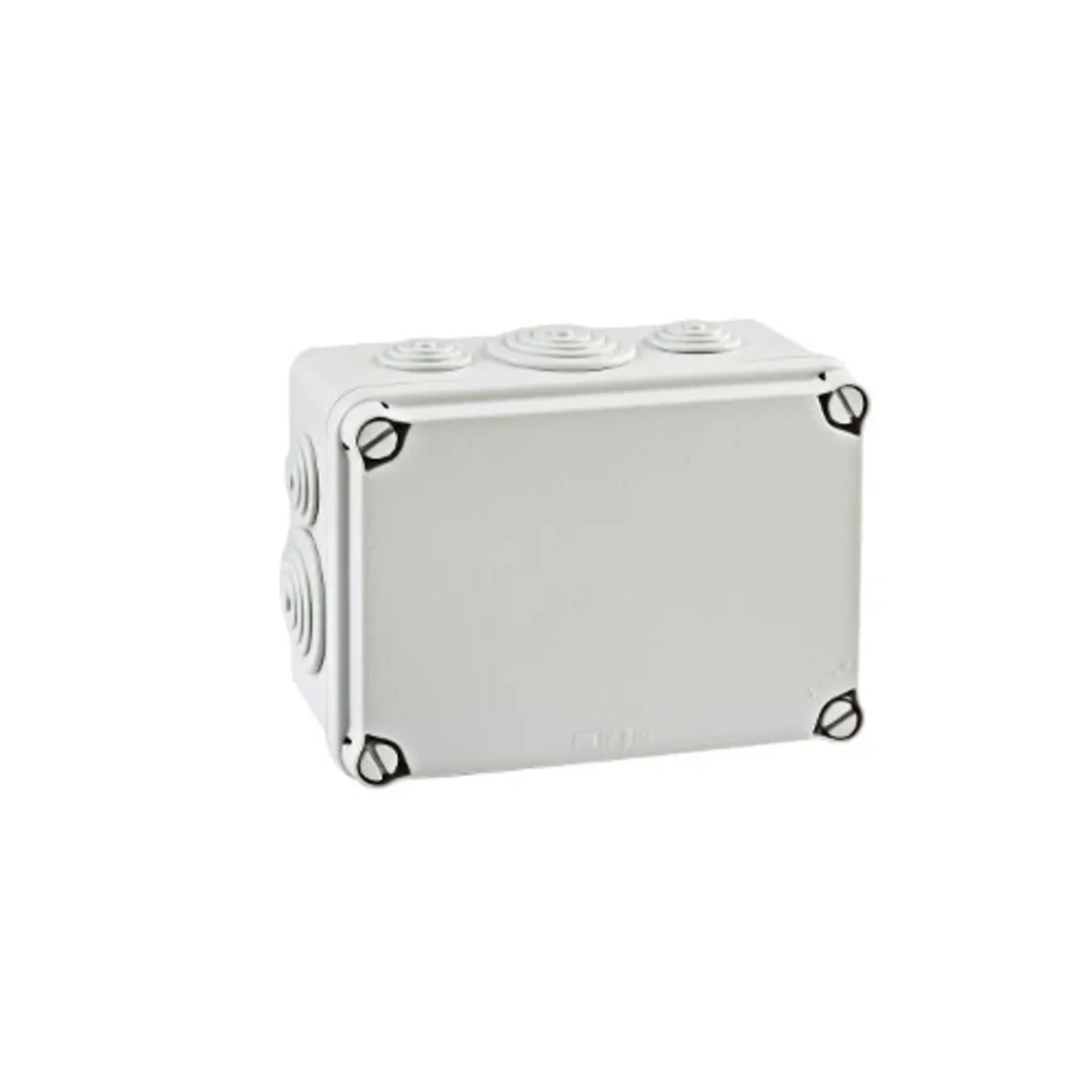

LIGHT Installation box 10 cable glands 162x116x76mm EV-161

local index:
MVN054PCEQ
Catalog No:
EV-161
EAN code:
8431044186009
Manufacturer: PCE
Halogen free: Yes
Depth [mm]: 76
Color: White
Price:
6,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Installation box from the LIGHT series.

  • With a solid cover.
  • With 6xM25, 4xM40 membrane glands.
  • Thermoplastic strength 70°C.
  • Dimensions of the box with glands: 176x130x76mm.

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Plastic
  • Cover
    Yes
  • Family
    LIGHT
  • Width [mm]
    162
  • Height [mm]
    116
  • Degree of mechanical protection
    IK07
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • Stuffing box type
    M25 M40
  • Depth [mm]
    76
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP66 IP67
  • Type
    branching
  • Operating temperature range [°C]
    -25 to +40
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    10
  • PKWIU
    27.12.40.0
