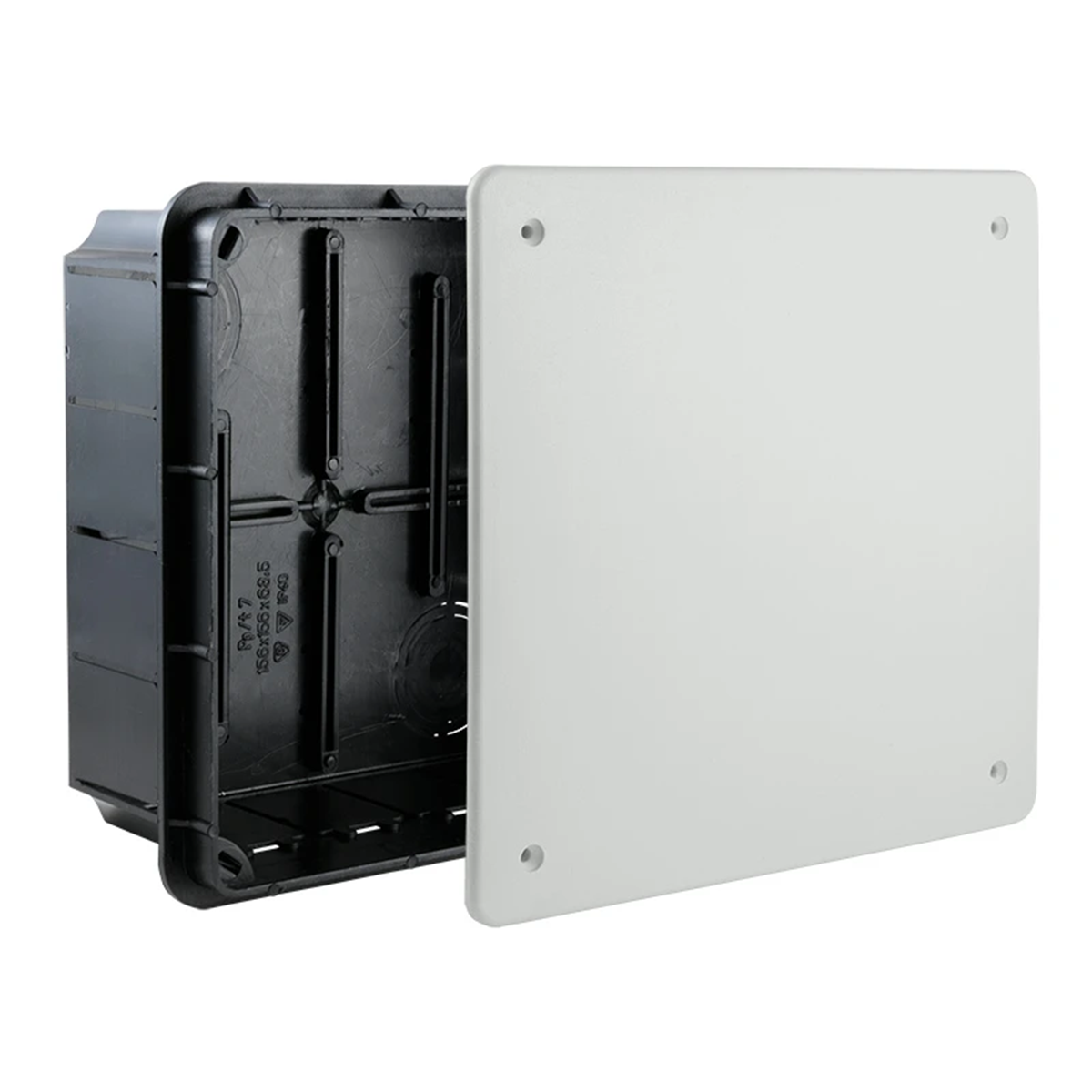

LAVA LINE Flush-mounted box with a white cover 160x160x70 IP40 orange 11.7

local index:
MVP010ELOP
Catalog No:
11.7
EAN code:
5903978376458
Depth [mm]: 70
Protection class: II
Color: Orange | White
Price:
2,18 €
gross / pcs.
(including VAT 23%)
9,48 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

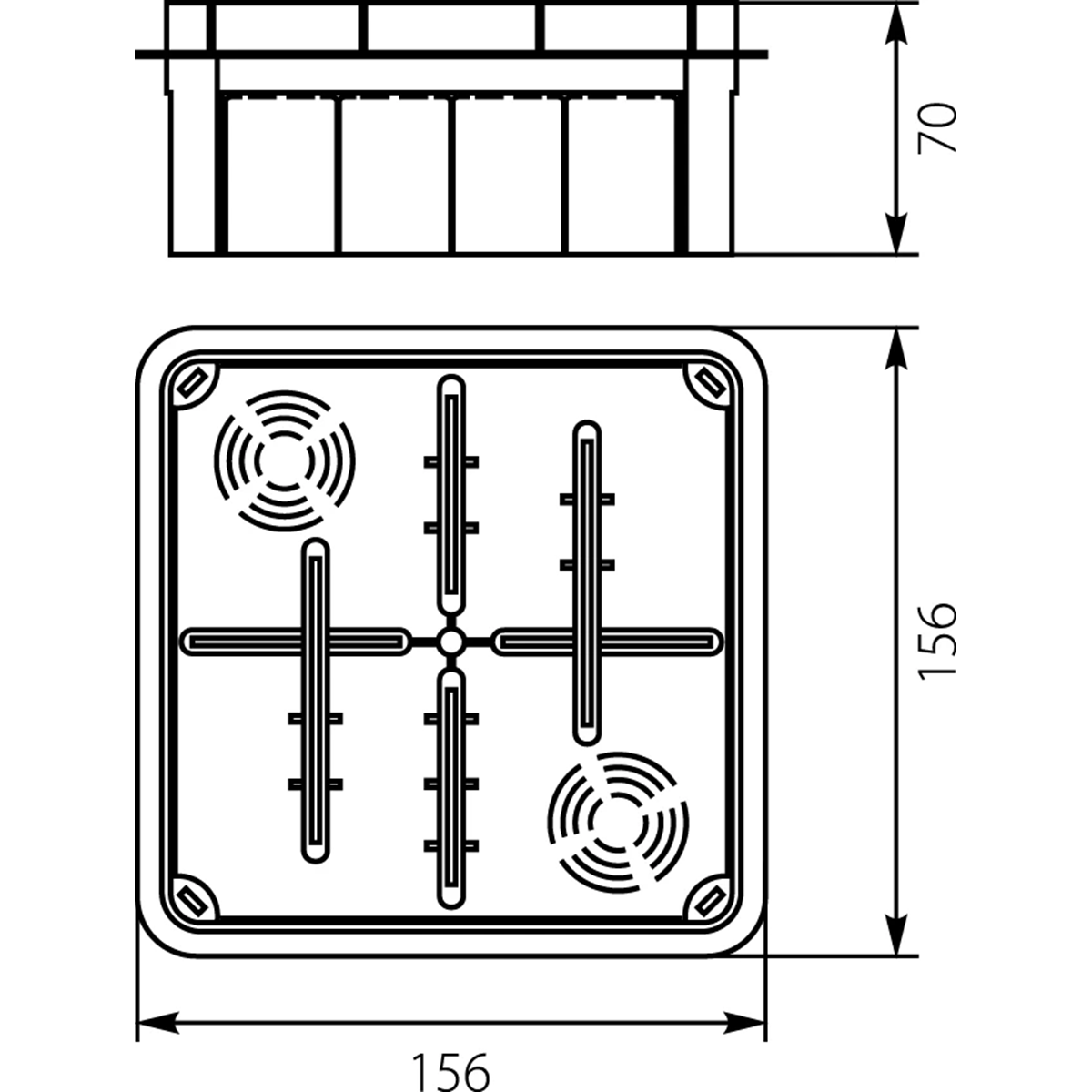

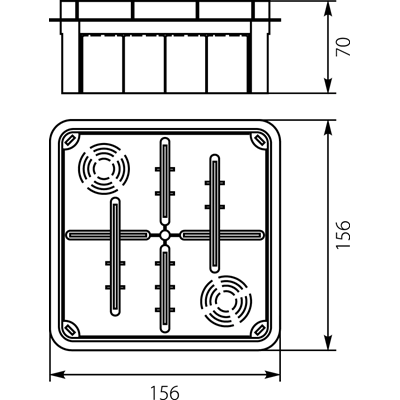

The flush-mounted box is made of plastics with high mechanical and electrical strength. The box is is applied in flush-mounted electrical installations. Inside the box, it is possible to install two-, three-, four- and five-circuit branch plates up to 10 mm2. The box has weakenings both in the side walls and in the bottom of the body and is equipped with a special flange around the body that facilitates the installation of boxes to plasterboards. The box is also equipped with a cardboard plug that protects its interior against dirt during facade and renovation works.

It is used in all flush-mounted electrical installations, in dry rooms as a distribution point for electrical wires . They consist of a body and a snap-on cover. Inside the boxes it is possible to install branch elements.

Technical data

  • Depth [mm]
    70
  • Color
    Orange White
  • Material
    Plastic
  • Rated voltage [V]
    230 400
  • Cover
    Yes
  • Family
    LAVA LINE
  • Width [mm]
    160
  • Weight [g]
    230
  • Fire resistance
    Not applicable
  • Number of slots
    18
  • Protection class
    II
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated insulation voltage [V]
    500
  • Type
    For plasterboard To the wall
  • Level of security
    IP40
  • Type
    For branch plates
  • Height [mm]
    160
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Cable junction box
  • Provided with revolving ring
    No
  • Equipped with
    None
  • Length
    156 mm
  • Depth
    70 ... 70 mm
  • For number of electric fittings
    0
  • With screws
    No
  • Housing feed-through by seal membrane
    No
  • Housing feed-through by step membrane
    No
  • Suitable for cable diameter
    4 ... 15 mm
  • Pipe locking optional
    No
  • Number of inlets
    2
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP40
  • Cover model
    Blind cover
  • Cover attachment
    Screwed
  • Circuit integrity
    None
  • Air tight
    Yes
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Square
  • Model
    Single
  • Couplable
    No
  • Diameter
    0 mm
  • Width
    156 mm
  • Inner depth
    62 mm
  • Mounting switching equipment
    Screw or spread out
  • Housing feed-through by break-out opening
    Yes
  • Housing feed-through by nozzle
    No
  • For tube diameter
    32 mm
  • Pipe locking
    No
  • Inlet from the rear
    Yes
  • Number of included spouts
    0
  • Halogen free
    Yes
  • Colour
    White
  • Degree of protection (NEMA)
    1
  • Transparent cover
    No
  • Sealable
    No
  • With screening
    No
  • Max. conductor cross section
    4 mm²
  • Clamp position fixed
    No
  • Nozzle
    None
  • Special application
    None

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,226 -
