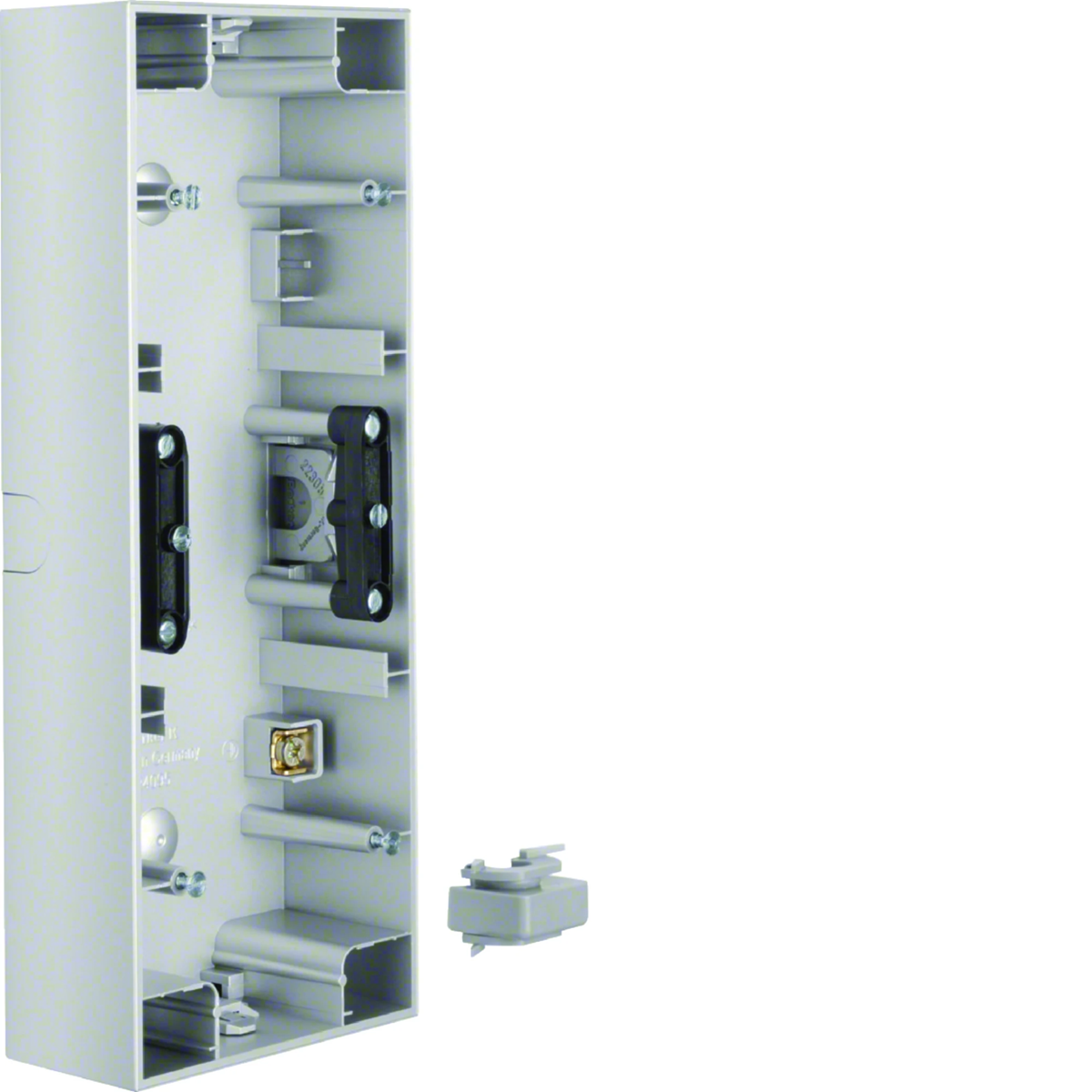

K.5 Three-gang vertical surface-mounted aluminum box 10437003
local index:
MVN046BERK
Catalog No:
10437003
EAN code:
4011334377467
Price:
37,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surface-mounted 3-gang vertical box from Berker K.5 - a series that, thanks to its timeless design, fits into minimalist interiors.
Features:
- Mounting depth: 36 mm,
- Cable entries: cable entry possible from the top, bottom and in the middle of each side,
- Cable: from cable and duct entry,
- Type of installation: suitable for installation on flammable surfaces, for vertical installation,
- Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.
Technical data
-
Halogen freeYes
-
ColorSilver
-
MaterialThermoplastic
-
CoverNO
-
FamilyK.5
-
Width [mm]224
-
Height [mm]88.5
-
Surface finishmatte
-
Fire resistanceNot applicable
-
Number of segments3
-
With terminal stripNO
-
PKWIU27.12.40.0
-
Depth [mm]41.5
-
ShapeRectangular
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
Mounting directionVertical
-
For modular equipmentNot applicable
-
Number of slots4
Other technical data
-
Assembly arrangementHousing base
-
Number of modules (module system)0
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
With cover frameNo
-
With cable entryYes
-
Degree of protection (IP)IP20
-
Device height88.5 mm
-
Suitable for modular domestic switching devicesNo
-
Number of units3
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAluminium
-
TransparentNo
-
With duct entryYes
-
With screw gland entryNo
-
Device width224 mm
-
Device depth41.5 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 10 pcs. | 320 pcs. |
| Weight (kg) | 0,165 | 0,942 | 2,342 | 99,368 |
| Width (m) | 0,089 | 0,187 | 0,300 | 0,800 |
| Length (m) | 0,041 | 0,130 | 0,225 | 1,050 |
| Depth (m) | 0,224 | 0,274 | 0,400 | 1,200 |
