K.5 Single surface-mounted aluminum box 10417003
Lokaler Index:
MVN024BERK
Katalognummer:
10417003
EAN-Code:
4011334377443
Preis:
19,21 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

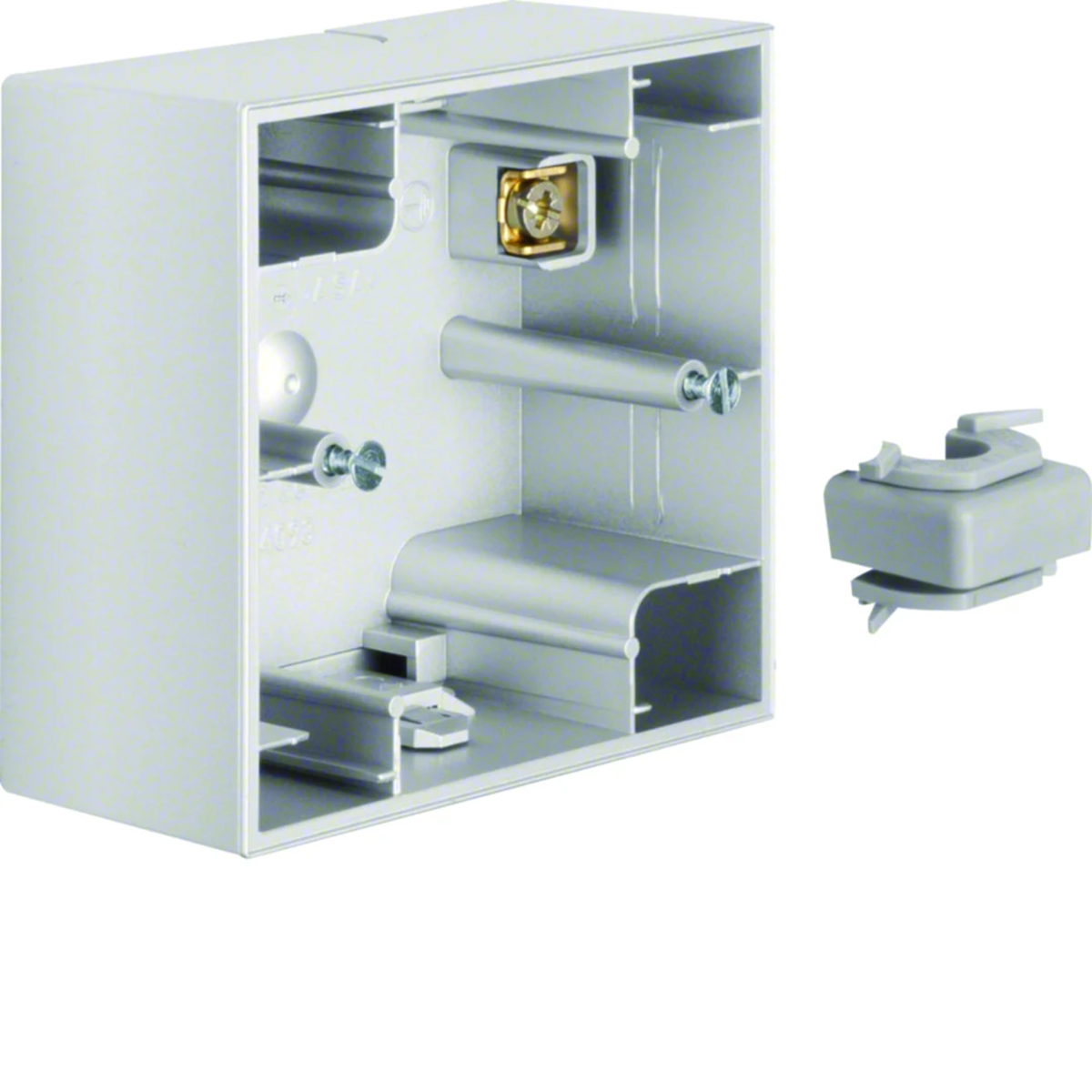

Surface-mounted 1-gang box from Berker K.5 - a series that, thanks to its timeless design, fits into minimalist interiors.
Features :
- Installation depth: 36 mm,
- Inputs: cable entry possible from above and below,
- Cable: with cable entry
- Type of installation: suitable for installation on flammable surfaces,
- Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation,
Technische Daten
-
Halogen freeYes
-
ColorSilver
-
MaterialThermoplastic
-
CoverNO
-
FamilyK.5
-
Width [mm]88.5
-
Height [mm]82
-
Surface finishmatte
-
Fire resistanceNot applicable
-
For modular equipmentNot applicable
-
Number of slots2
-
Depth [mm]41.5
-
ShapeSquare
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
Number of segments1
-
With terminal stripNO
-
PKWIU27.12.40.0
Weitere technische Daten
-
Assembly arrangementHousing base
-
Number of modules (module system)0
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
With cover frameNo
-
With cable entryYes
-
Degree of protection (IP)IP20
-
Device height82 mm
-
Suitable for modular domestic switching devicesNo
-
Number of units1
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAluminium
-
TransparentNo
-
With duct entryYes
-
With screw gland entryNo
-
Device width88.5 mm
-
Device depth41.5 mm
Hersteller-Details
-
HerstellerBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 10 stk. | 20 stk. | 640 stk. |
| Gewicht (kg) | 0,750 | 1,500 | 48,000 |
| Breite (m) | 0,180 | 0,300 | 0,800 |
| Länge (m) | 0,130 | 0,220 | 1,050 |
| Tiefe (m) | 0,270 | 0,400 | 1,200 |
