K.5 Double wall-mounted vertical box, lacquered stainless steel 10427004

local index:
MVN035BERK
Catalog No:
10427004
EAN code:
4011334275664
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 41.5
Color: Silver
Price:
27,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

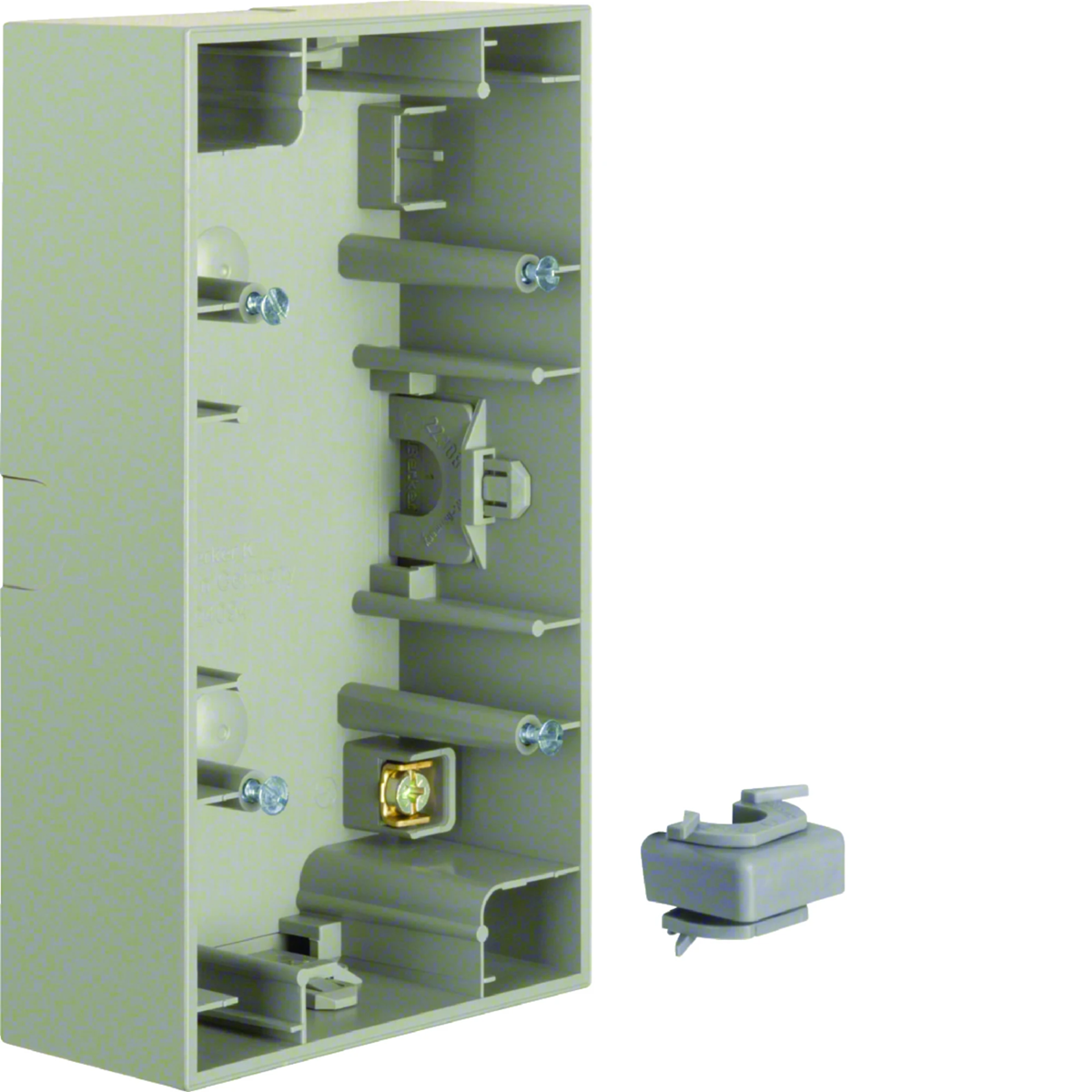

Surface-mounted 2-gang vertical box from Berker K.5 - a series that, thanks to its timeless design, fits into minimalist interiors.

Features:

  • Mounting depth: 36 mm,
  • Cable entries: cable entry possible from the top, bottom and in the middle of each side,
  • Cable: from cable and duct entry,
  • Type of installation: suitable for installation on flammable surfaces, for vertical installation,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    K.5
  • Width [mm]
    153
  • Height [mm]
    88.5
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0
  • Depth [mm]
    41.5
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface protection
    varnishing
  • Accurate color
    stainless steel
  • Mounting direction
    Vertical
  • For modular equipment
    Not applicable
  • Number of slots
    4

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    0
  • Mounting direction
    Vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Stainless steel
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Device width
    153 mm
  • Device depth
    41.5 mm
  • Suitable for modular domestic switching devices
    No
  • Number of units
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • With cover frame
    No
  • With cable entry
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    88.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 10 pcs. 320 pcs.
Weight (kg) 0,119 0,710 1,860 82,520
Width (m) 0,089 0,190 0,300 0,800
Length (m) 0,041 0,130 0,225 1,050
Depth (m) 0,153 0,275 0,400 1,200
