K.5 Double surface-mounted vertical aluminum box 10427003

Índice local:
MVN034BERK
Número de catálogo:
10427003
Código EAN:
4011334377450
Fabricante: BERKER
Halogen free: Yes
Depth [mm]: 41.5
Color: Silver
Precio:
123,98 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

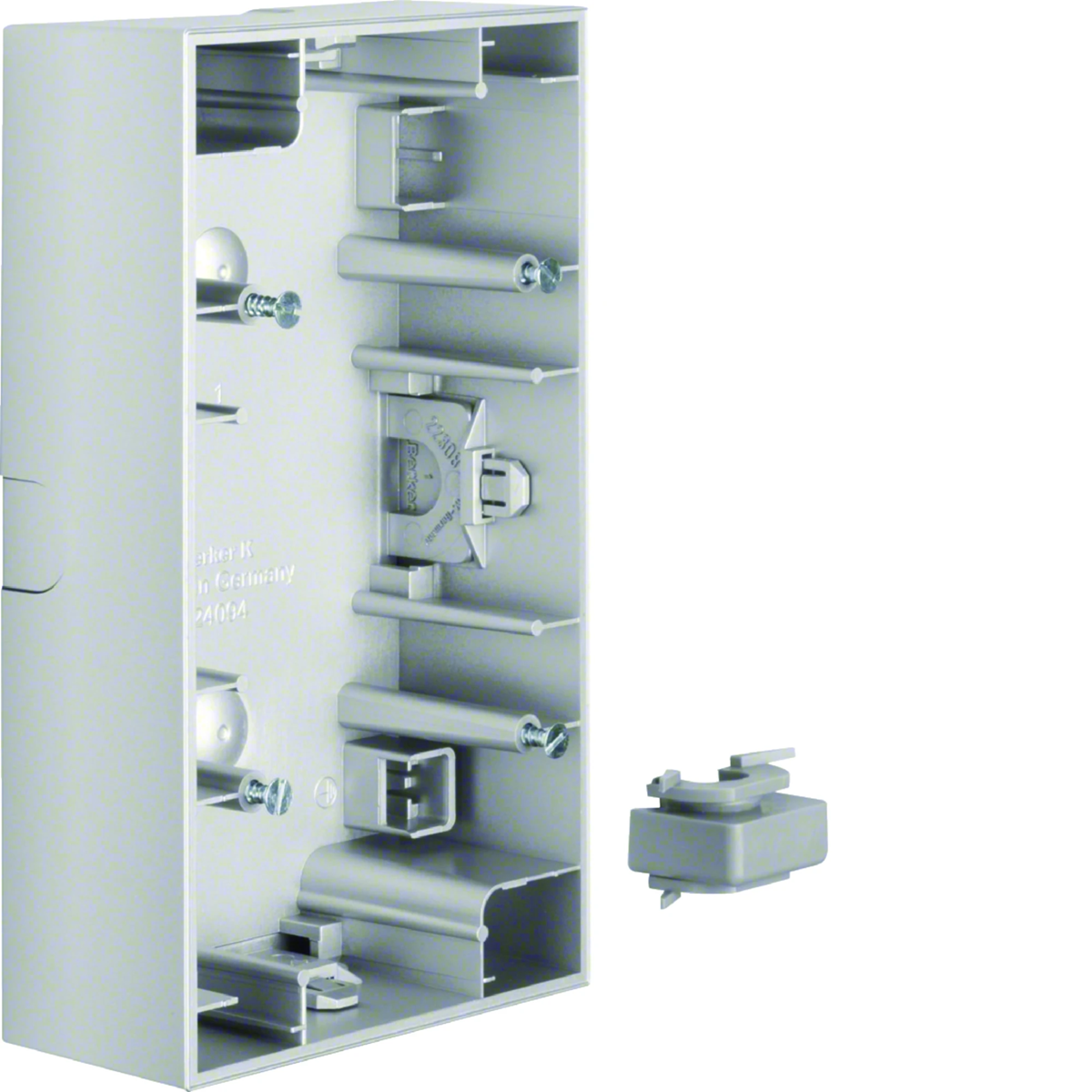

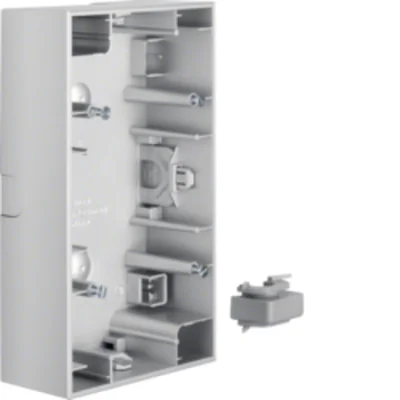

Surface-mounted 2-gang vertical box from Berker K.5 - a series that, thanks to its timeless design, fits into minimalist interiors.

Features:

  • Mounting depth: 36 mm,
  • Cable entries: cable entry possible from the top, bottom and in the middle of each side,
  • Cable: from cable and duct entry,
  • Type of installation: suitable for installation on flammable surfaces, for vertical installation,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Datos técnicos

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    K.5
  • Width [mm]
    153
  • Height [mm]
    88.5
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0
  • Depth [mm]
    41.5
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Mounting direction
    Vertical
  • For modular equipment
    Not applicable
  • Number of slots
    4

Otros datos técnicos

  • Assembly arrangement
    Housing base
  • Suitable for modular domestic switching devices
    No
  • Desktop device
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Number of inlets
    4
  • Degree of protection (IP)
    IP20
  • Height
    59 mm
  • Suitable for mounting over existing flush-mounted box
    Yes
  • Number of modules (module system)
    0
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With cover frame
    No
  • With cable entry
    Yes
  • With installation tube entry
    Yes
  • Number of earthing terminals
    1
  • Width
    231 mm
  • Compliant with BS 4662
    No

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 5 uds. 10 uds. 320 uds.
Peso (kg) 0,710 1,857 79,439
Ancho (m) 0,180 0,300 0,800
Longitud (m) 0,130 0,220 1,050
Profundidad (m) 0,270 0,400 1,200
