K.1 Three-gang vertical surface-mounted box, matt anthracite lacquered 10437006
Lokaler Index:
MVN048BERK
Katalognummer:
10437006
EAN-Code:
4011334298755
Preis:
179,33 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

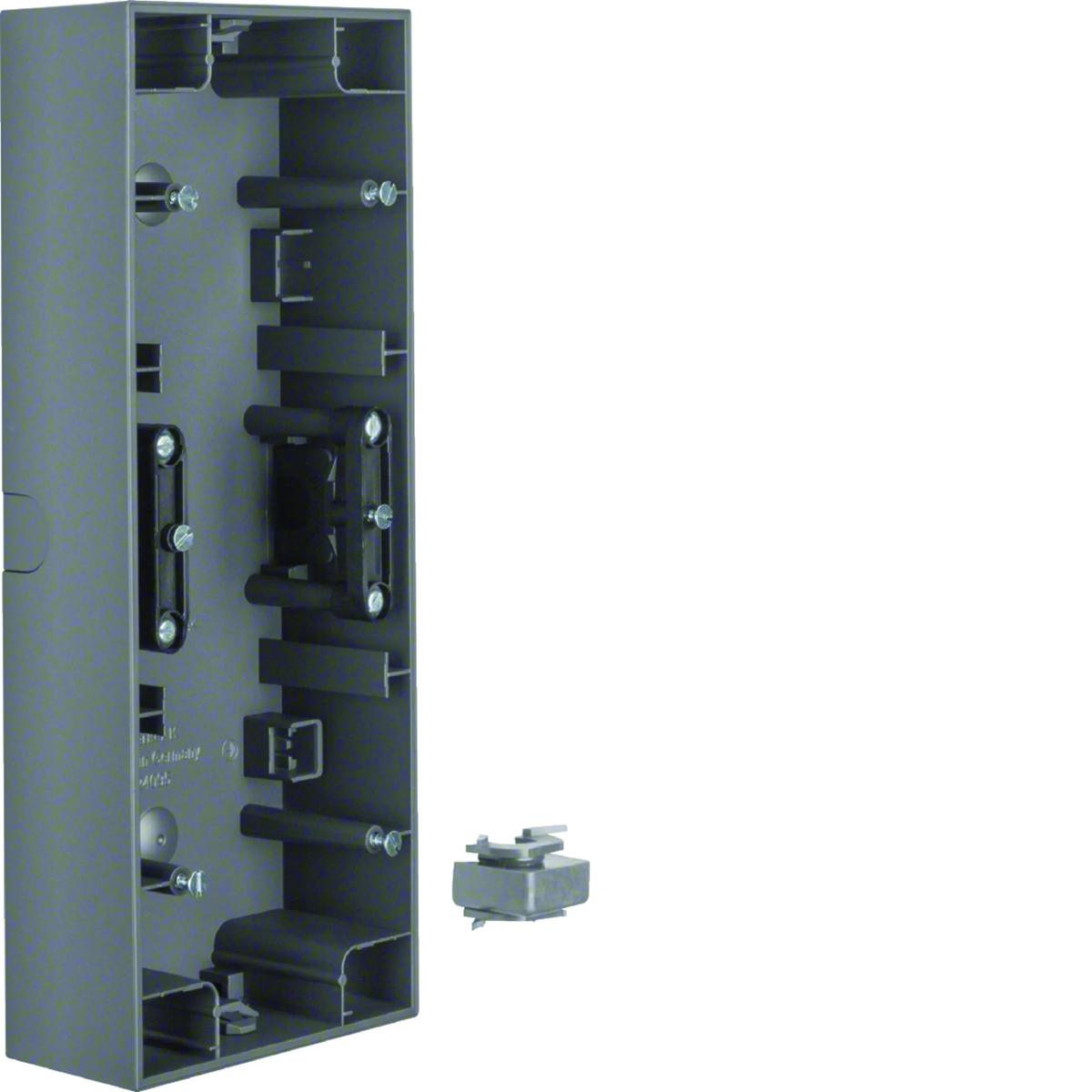

Surface-mounted box3-gang verticalfrom Berker K.1 - a series that, thanks to its timeless design, fits into minimalist interiors.
Features:
- Mounting depth: 36 mm,
- Entry: cable entry possible from the top, bottom and in the middle of each side,
- Cable: with cable entry and conduit,
- Mounting type: suitable for installation on flammable surfaces; for vertical installation,
- Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.
Technische Daten
-
Halogen freeYes
-
ColorGraphite
-
MaterialThermoplastic
-
CoverNO
-
FamilyK.1
-
Width [mm]224
-
Height [mm]88.5
-
Surface finishmatte
-
Fire resistanceNot applicable
-
Number of segments3
-
With terminal stripNO
-
PKWIU27.12.40.0
-
Depth [mm]41.5
-
ShapeRectangular
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
Mounting directionVertical
-
For modular equipmentNot applicable
-
Number of slots4
Weitere technische Daten
-
Assembly arrangementSurface mounted box
-
Number of modules (module system)0
-
Mounting directionVertical
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAnthracite
-
TransparentNo
-
With duct entryYes
-
With screw gland entryNo
-
Device width224 mm
-
Device depth41.5 mm
-
Suitable for modular domestic switching devicesNo
-
Number of units3
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
With cover frameNo
-
With cable entryYes
-
Degree of protection (IP)IP20
-
Device height88.5 mm
Hersteller-Details
-
HerstellerBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 5 stk. | 10 stk. | 320 stk. |
| Gewicht (kg) | 0,970 | 1,950 | 62,400 |
| Breite (m) | 0,180 | 0,300 | 0,800 |
| Länge (m) | 0,130 | 0,220 | 1,050 |
| Tiefe (m) | 0,270 | 0,400 | 1,200 |
