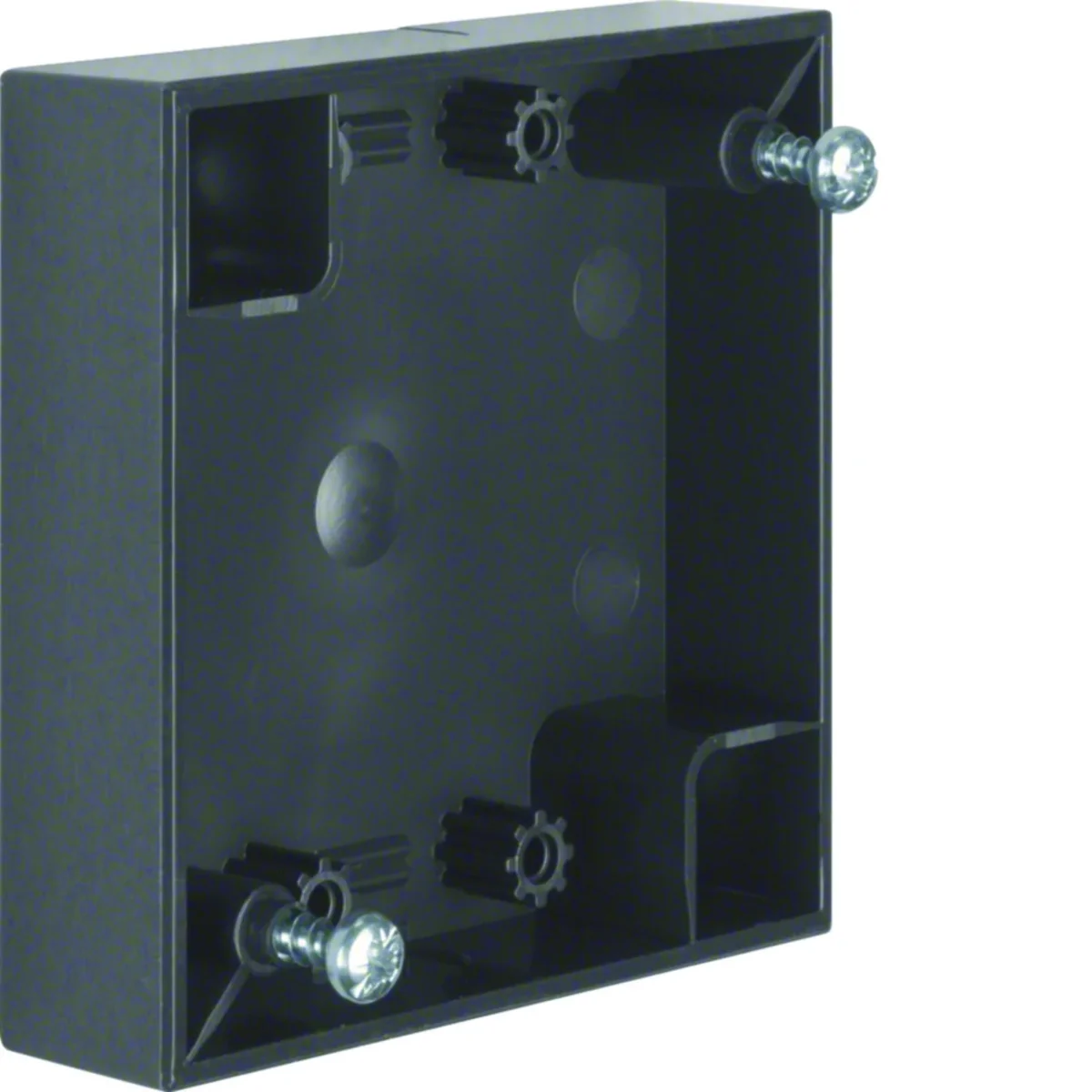

INTEGRO FLOW Single flat surface-mounted box without reduction anthracite 911522525

local index:
MVN091BERK
Catalog No:
911522525
EAN code:
4011334239598
Manufacturer: BERKER
Depth [mm]: 16
Color: Graphite
Shape: Square
Price:
6,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface mounted one-gang flat box, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever compact design and comprehensive functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats.

Installation / Assembly:

  • for mounting connectors and self-returning switches.

Cable:

  • without reduction.

Technical data

  • Depth [mm]
    16
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Width [mm]
    59.5
  • Height [mm]
    59.5
  • Accurate color
    Anthracite
  • Number of segments
    1
  • With terminal strip
    NO
  • Color
    Graphite
  • Material
    Plastic
  • Cover
    NO
  • Family
    INTEGRA FLOW
  • Type
    For attachments
  • Surface finish
    Shiny
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    0
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Device width
    59.3 mm
  • Device depth
    16 mm
  • Suitable for modular domestic switching devices
    No
  • Number of units
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7021
  • With cover frame
    No
  • With cable entry
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    59.3 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 3840 pcs.
Weight (kg) 0,015 0,211 2,960 114,712
Width (m) 0,059 0,130 0,300 0,800
Length (m) 0,019 0,060 0,225 1,050
Depth (m) 0,059 0,200 0,400 1,200
