INTEGRO FLOW Single flat, snow-white surface-mounted box 911522559

Name: INTEGRO FLOW Single flat, snow-white surface-mounted box
Brand: BERKER
SKU: MVN094BERK
Price: 6.22 PLN

local index:

MVN094BERK

Catalog No:

911522559

EAN code:

4011334239635

INTEGRO FLOW Single flat, snow-white surface-mounted box

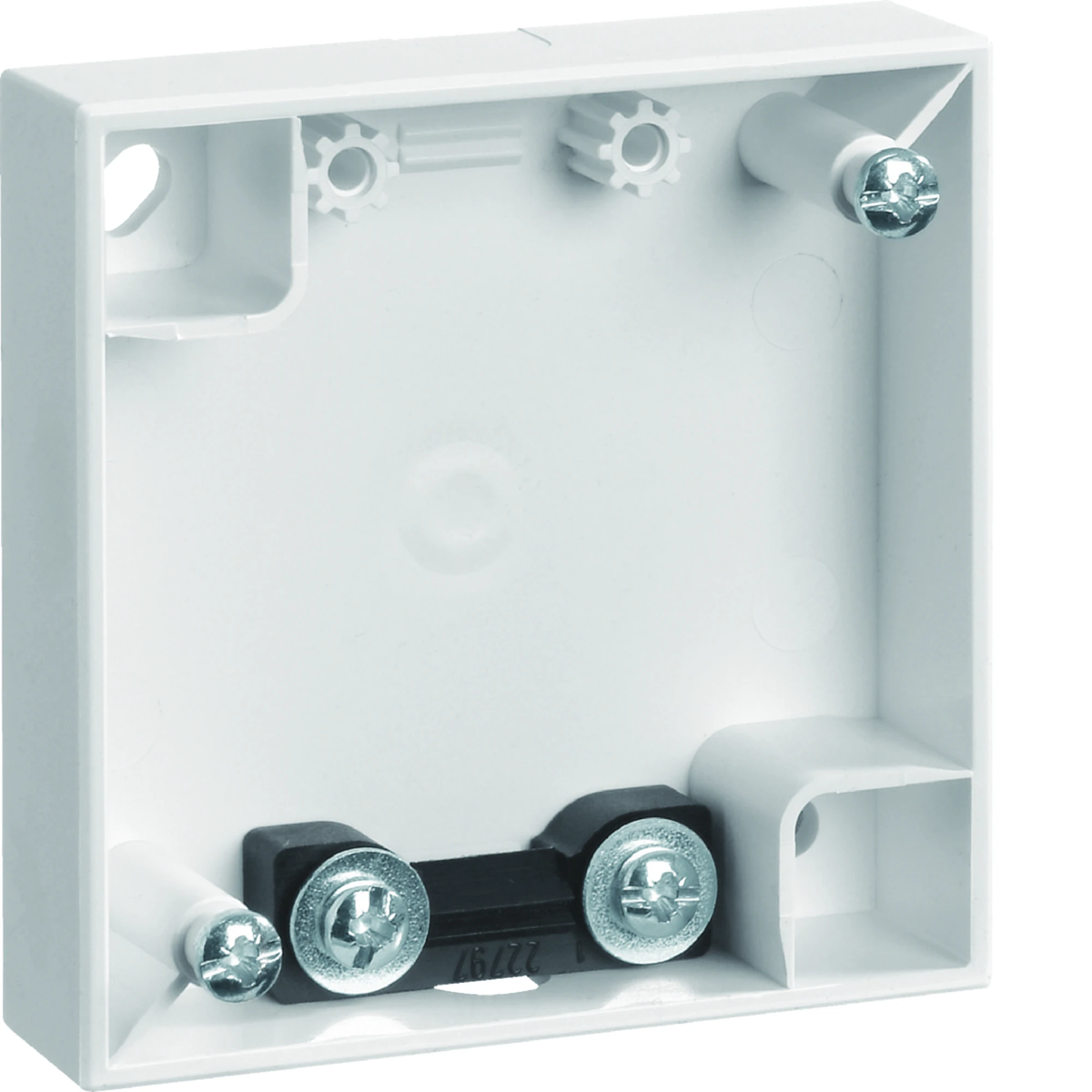

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 16

Color: White

Shape: Square

See full description

Price:

6,22 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Surface mounted one-gang flat box, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in kitchen furniture, in the sanitary industry and wherever compact design and comprehensive functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats.

Installation / Assembly:

for mounting connectors and self-locking switches.

Cable:

with fixing clamp.

Technical data

Depth [mm]

16
Shape

Square
Installation

Surface-mounted
Type

Wall-mounted
Width [mm]

59.5
Height [mm]

59.5
Accurate color

Snow white
Number of segments

1
With terminal strip

Yes

Color

White
Material

Plastic
Cover

NO
Family

INTEGRA FLOW
Type

For attachments
Surface finish

Shiny
Fire resistance

Not applicable
For modular equipment

Not applicable
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Surface mounted box
Number of modules (module system)

0
Mounting direction

Horizontal and vertical
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
With duct entry

Yes
With screw gland entry

No
Device width

59.5 mm
Device depth

16 mm

Suitable for modular domestic switching devices

No
Number of units

1
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9010
With cover frame

No
With cable entry

Yes
Degree of protection (IP)

IP20
Device height

59.5 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	120 pcs.	3840 pcs.
Weight (kg)	0,018	0,250	3,330	126,552
Width (m)	0,059	0,130	0,300	0,800
Length (m)	0,019	0,060	0,225	1,050
Depth (m)	0,059	0,200	0,400	1,200
