INTEGRO FLOW Flush-mounted box fi49mm gray 91887

local index:
MVP007BERK
Catalog No:
91887
EAN code:
4011334149835
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 38
Number of terminals: 1
Price:
2,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

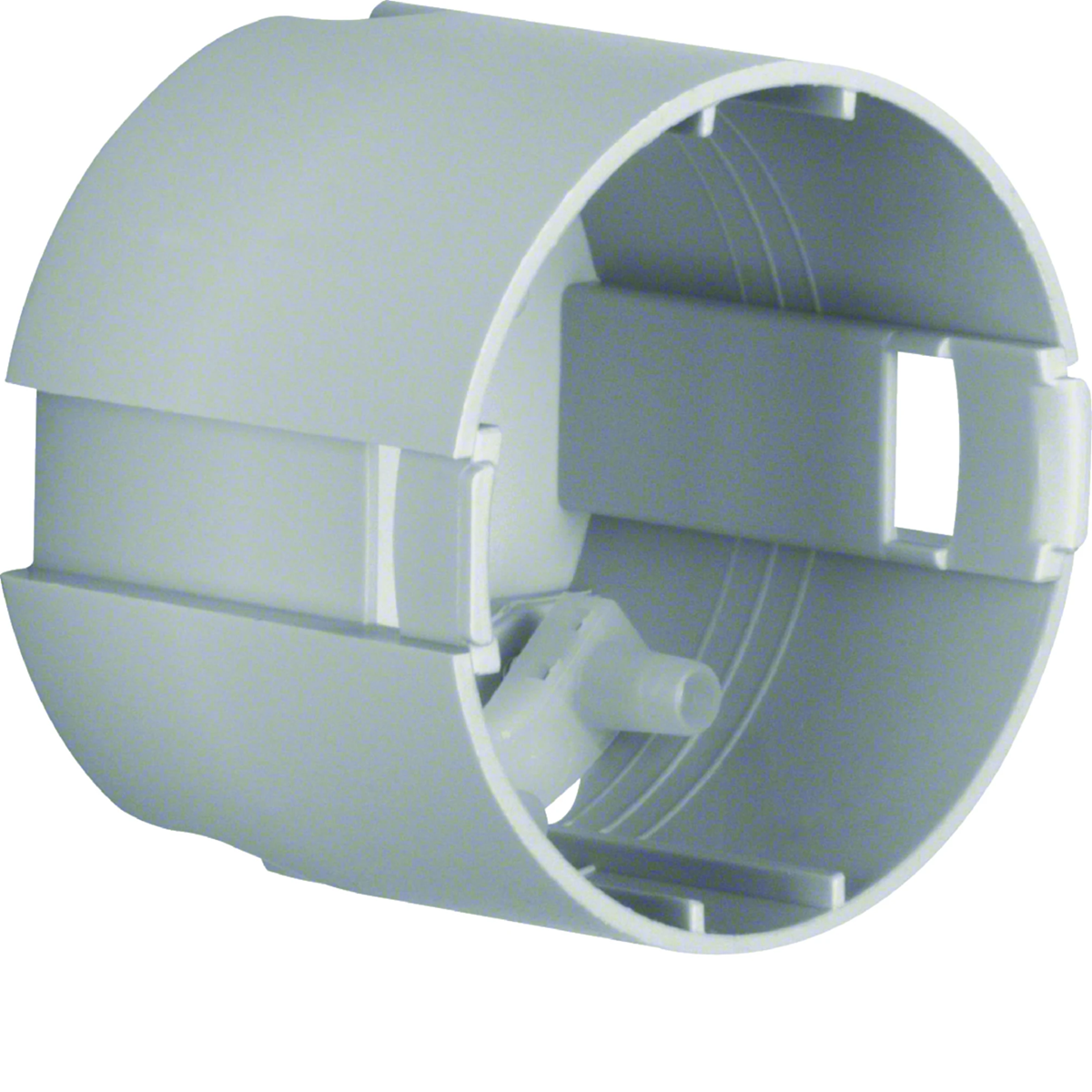

Flush-mounted box

  • With 1 side inner double clamp.
  • The clamp is not intended for flat cables.
  • Flammable to VDE 0606-1.
  • With 2 cable entries.

 Integro Flow  is an ideal solution for use in kitchen furniture, in the sanitary industry and everywhere where compact construction and versatile functionality are required, all thanks to minimalist design and quick and easy installation.

Technical data

  • Halogen free
    Yes
  • Number of terminals
    1
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Level of security
    IP20
  • Cable diameter [mm]
    ≤10
  • Accurate color
    light gray
  • Number of segments
    1
  • For modular equipment
    K45
  • Attachment diameter [mm]
    45
  • Depth [mm]
    38
  • Color
    Gray
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    INTEGRA FLOW
  • Width [mm]
    49
  • Type
    For attachments
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    850
  • Number of slots
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Built-in installation box (device box)
  • Couplable
    No
  • Diameter
    49 mm
  • Depth
    38 ... 38 mm
  • For number of electric fittings
    1
  • With screws
    No
  • Pipe locking
    No
  • Number of inlets
    2
  • Halogen free
    Yes
  • Colour
    Grey
  • Transparent cover
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Clamp position fixed
    No
  • Nozzle
    Other
  • Shape
    Round
  • Model
    Single
  • Equipped with
    None
  • Width
    49 mm
  • Inner depth
    38 mm
  • Mounting switching equipment
    Screwing
  • Suitable for cable diameter
    12 ... 12 mm
  • Inlet from the rear
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Sealable
    No
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 150 pcs. 150 pcs. 4800 pcs.
Weight (kg) 0,008 2,193 2,193 93,176
Width (m) 0,048 0,300 0,300 0,800
Length (m) 0,039 0,225 0,225 1,050
Depth (m) 0,048 0,400 0,400 1,200
